Mounting Accessory SCHROFF Buerst.Leist. + Bod.Blech 50kg 27230055 — mounting bracket and base plate, load 50 kg

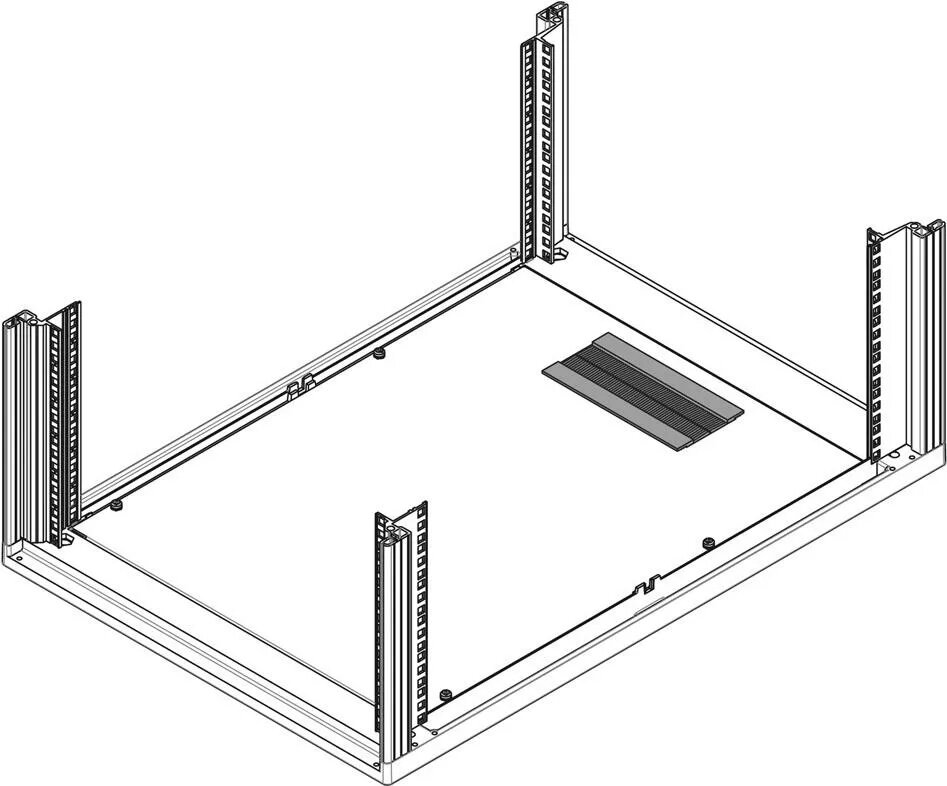

SCHROFF Buerst.Leist. + Bod.Blech 50kg 27230055 is a mounting bracket and base plate engineered to support loads up to 50 kg for electronics racks and equipment enclosures. The assembly combines a robust bracket with a matching base plate to provide a stable attachment point for modules, enclosures and other mounted components. The design targets applications where predictable load-bearing capacity and secure mechanical fixation are required.

Advantages

The mounting bracket and base plate are made from durable materials and feature a geometry that distributes load evenly to reduce local stress. The combined solution simplifies installation by providing complementary parts matched for fit and alignment, reducing the need for additional adapters. Its rated 50 kg load capacity permits mounting of heavier modules while maintaining stable mechanical support in rack or cabinet environments.

Suitable for

• Securing electronic enclosures and subracks in communication or industrial cabinets
• Mounting power supplies, converters or heavy modules inside equipment racks
• Attachment of mechanical parts or assemblies requiring a stable base in control cabinets
• Retrofit projects where existing rack fittings need reinforced mounting points

Key specifications

• System components: mounting bracket plus base plate
• Rated static load capacity: 50 kg
• Material: corrosion-resistant metal suitable for indoor rack use
• Surface finish: protective coating to resist wear and handling
• Compatibility: designed for use with standard electronics racks and enclosures
• Mounting method: screw-fastened attachment to cabinet or subrack structures

How to use

Position the base plate on the intended mounting surface and align the bracket so that attachment holes match the cabinet or rack mounting points. Fasten the base plate and bracket with appropriate screws or bolts for the cabinet material and thickness, observing the specified torque limits for the chosen fasteners. Place the component to be mounted onto the bracket, verify load distribution and secure it with the recommended hardware. Ensure that the assembled bracket and base plate are installed on a structurally sound section of the rack or enclosure.

Usage recommendations

Verify that the combined weight of the mounted component and any dynamic loads do not exceed the 50 kg rating. Use corrosion-resistant fasteners compatible with the mounting hardware and apply thread-locking compound where vibration is present. Inspect mounting points periodically for loosening or corrosion and re-torque fasteners after initial operation.
