Partition wall 3HE extension SCHROFF Model 30819442 for rack enclosures

Partition wall 3HE extension by SCHROFF Model 30819442 is a 3U-height metal panel engineered for installation inside rack enclosures to separate bays or create compartments. Intended for use in server racks and electronic cabinets, the partition provides physical segregation between modules and cabling, supports organized internal layouts and contributes to improved airflow management within standard 19-inch racks.

Advantages

The partition wall delivers a rigid, durable barrier that reduces interference between adjacent equipment and helps prevent cable entanglement. Its standardized 3HE height ensures compatibility with common rack-mount units, while the design supports easier installation and removal for reconfiguration. By directing airflow and limiting cross-contamination of hot and cold zones, the panel can aid thermal management without modifying existing rack infrastructure.

Suitable for

• Creating separated compartments in 19-inch server racks and network cabinets
• Organizing and isolating power supplies, controllers or I/O modules
• Improving cable routing and preventing cable intrusion between bays
• Supporting basic airflow management and containment in enclosed racks

Key specifications

• Height: 3U (3HE) compatible with standard rack units
• Form factor: panel for internal rack partitioning
• Material: metal construction for rigidity and durability
• Mounting: designed for installation inside 19-inch rack enclosures
• Function: physical separation of modules, cable organization, airflow guidance

How to use

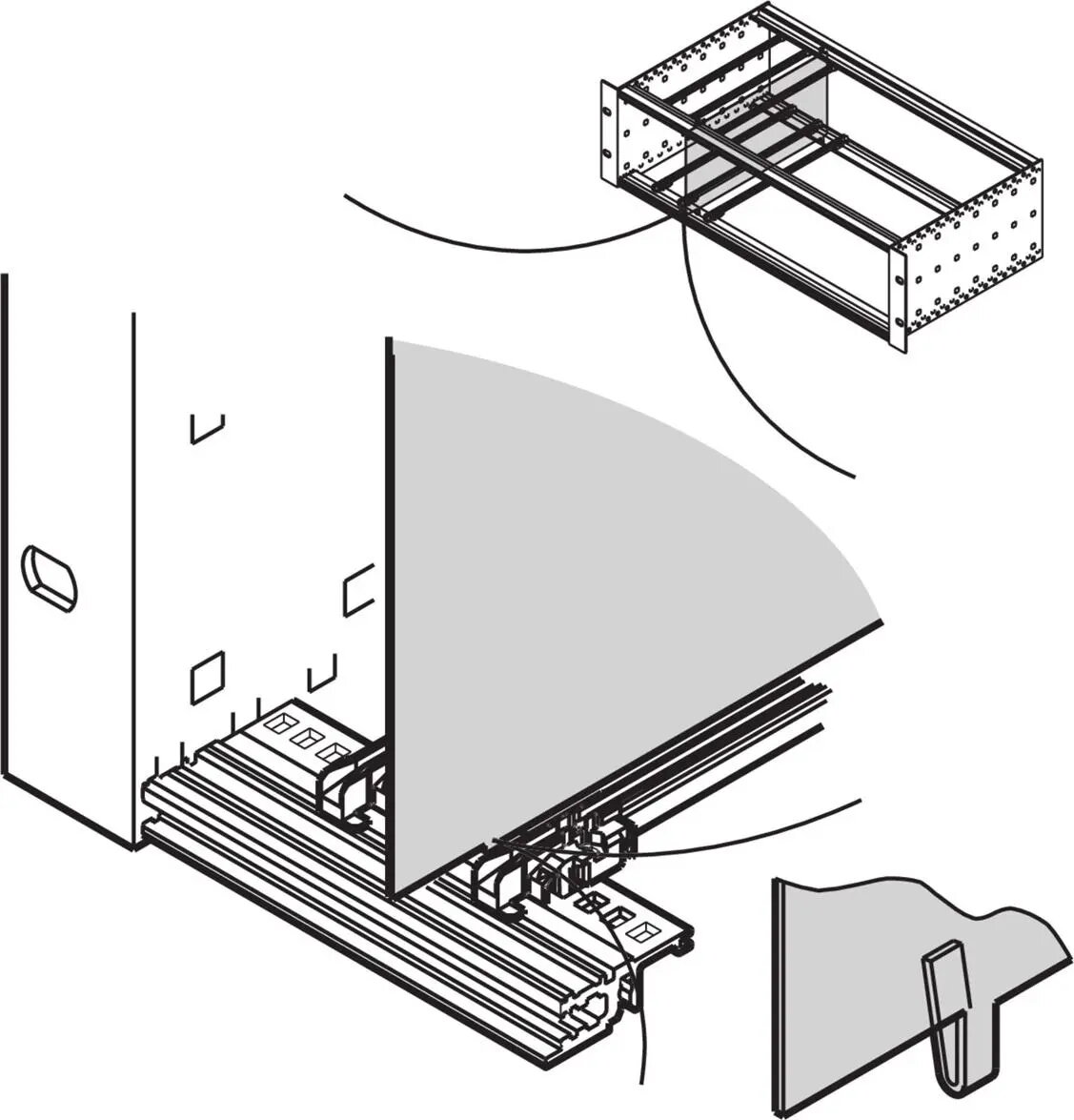

Install the partition wall at the required vertical position in the rack and secure it according to the enclosure’s internal mounting points or rails. Ensure the panel aligns with adjacent modules and leaves appropriate clearance for connectors and cable entries. For reconfiguration, remove fasteners and reposition the panel to a new location, then retighten. Follow the rack manufacturer’s guidelines on weight distribution and mounting sequence to maintain structural integrity.

Usage recommendations

Place the partition between heat-generating equipment and cooler zones to improve airflow patterns. Combine with cable management accessories and blanking panels to achieve more effective thermal separation. Inspect mounting hardware periodically and confirm that connectors and cables are not obstructed by the panel.
