Mounting plate SCHROFF 220D 84HP model 34562752 for 19-inch rack systems

The Mounting plate SCHROFF 220D 84HP model 34562752 for 19-inch rack systems is a metal mounting accessory engineered to fit standard 19-inch enclosures. With a usable width of 84HP, this plate provides a flat, rigid surface for installing modules, carrier boards and other rack-compatible components. It is intended to ensure stable mechanical support, correct alignment and straightforward integration into server, telecom and industrial racks where a precise mounting interface is required.

Advantages

This SCHROFF mounting plate offers a robust metal construction that resists deformation and maintains alignment under load. The 84HP width corresponds to common modular formats used in electronics racks, enabling efficient placement of multiple modules side by side. The product is compatible with standard 19-inch mounting rails and simplifies mechanical integration and maintenance tasks by providing a consistent mounting plane.

Suitable for

• Server cabinets and data center racks for mounting controller or interface modules
• Telecommunication enclosures for distribution and line cards
• Industrial control cabinets and measurement equipment racks
• Prototyping and lab racks where precise component alignment is required

Key specifications

• Standard: 19-inch rack compatible
• Width: 84HP usable mounting width
• Material: metal plate (protective finish as supplied by manufacturer)
• Function: rigid mounting surface for modules and components
• Application environment: server, telecom and industrial enclosures

How to use

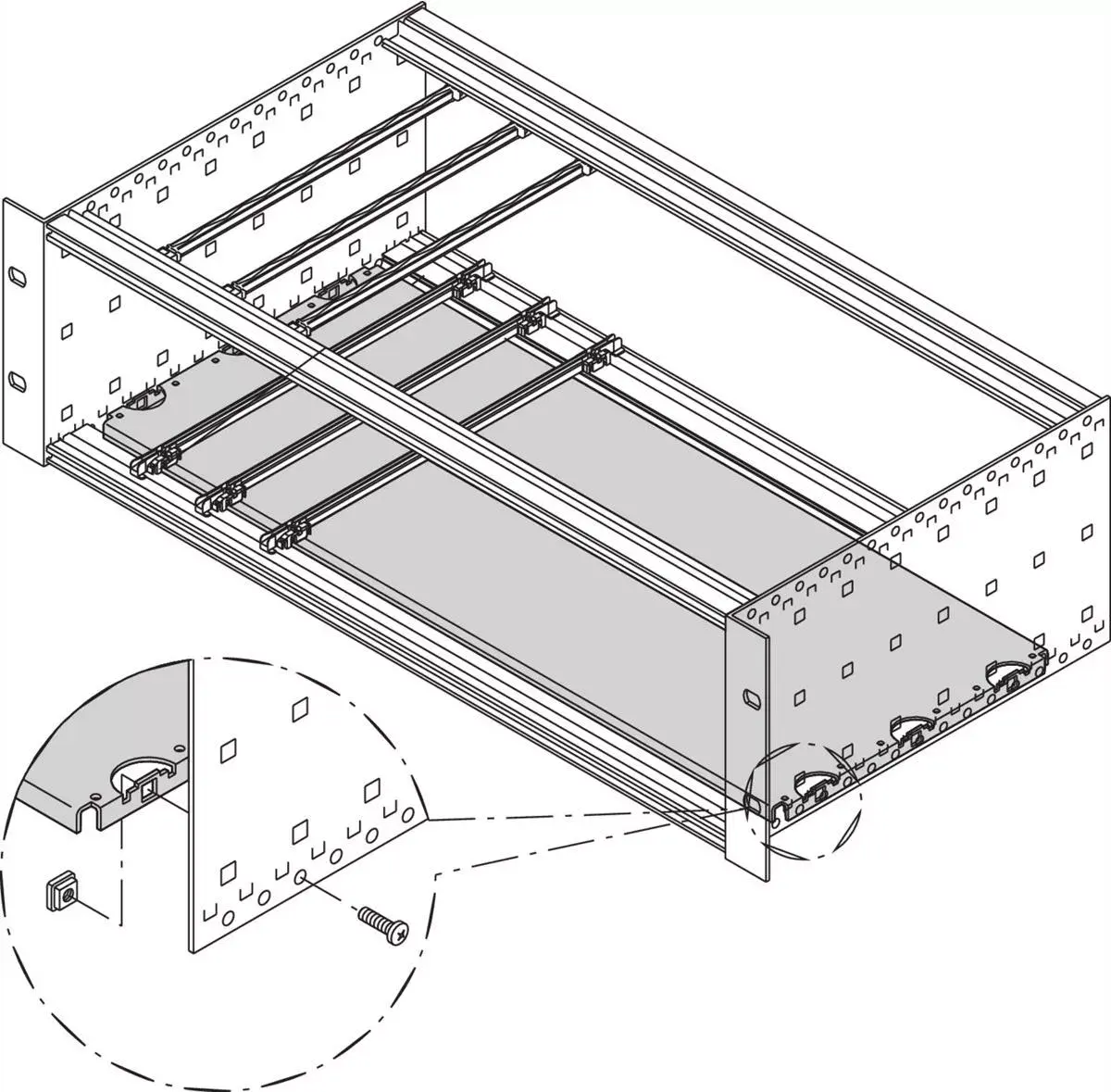

Install the mounting plate into standard 19-inch rack rails at the required vertical position using appropriate rack-mount fasteners. Align the plate so the 84HP opening matches the module layout and secure it to the rack rails to provide a stable support plane. Mount modules or carrier boards onto the plate following the component manufacturer’s mechanical instructions, ensuring all fasteners are tightened to recommended torque values and that connectors and cooling clearances are preserved.

Usage recommendations

For reliable performance, verify rack rail compatibility and confirm the plate’s orientation before fastening. Use corrosion-resistant fasteners in humid or industrial environments and observe safe handling to avoid sharp edges. When installing powered modules, ensure adequate airflow and grounding per system requirements.
