Mounting plate SCHROFF 340T 42TE model 34562758 for 19" rack equipment

Mounting plate SCHROFF 340T 42TE model 34562758 for 19" rack equipment is a metal mounting panel designed to support standard 19-inch rack modules and components. With a nominal width of 42TE it provides a wide, stable surface for attaching electronic modules, power supplies and interface units inside server rooms, telecom cabinets and industrial enclosures. The plate is intended to integrate with 19" rack systems and organize equipment mounting while maintaining mechanical stability and alignment.

Advantages

The SCHROFF 340T 42TE mounting plate offers a rigid steel construction that resists bending under load and provides secure mechanical support for mounted devices. Its 42TE width matches common rack unit modularity, enabling flexible placement of modules without custom adapters. The design facilitates heat dissipation from mounted equipment and allows straightforward fastening with standard rack screws and hardware. The plate’s finish and mounting hole pattern are compatible with professional rack installations, supporting reliable long-term use in technical environments.

Suitable for

• Mounting 19" rack modules and electronic components in server rooms
• Installation of power supplies, interface cards and control modules in telecom cabinets
• Use inside industrial enclosures and control cabinets to organize hardware
• Retrofit and rebuild projects where a flat, wide mounting surface is required

Key specifications

• Form factor: 42TE width for 19" rack compatibility
• Material: metal plate designed for mechanical strength
• Surface: industrial finish suitable for technical installations
• Mounting: hole pattern and edges compatible with standard 19" rack fastening hardware
• Intended environment: server rooms, telecom racks, industrial cabinets

How to use

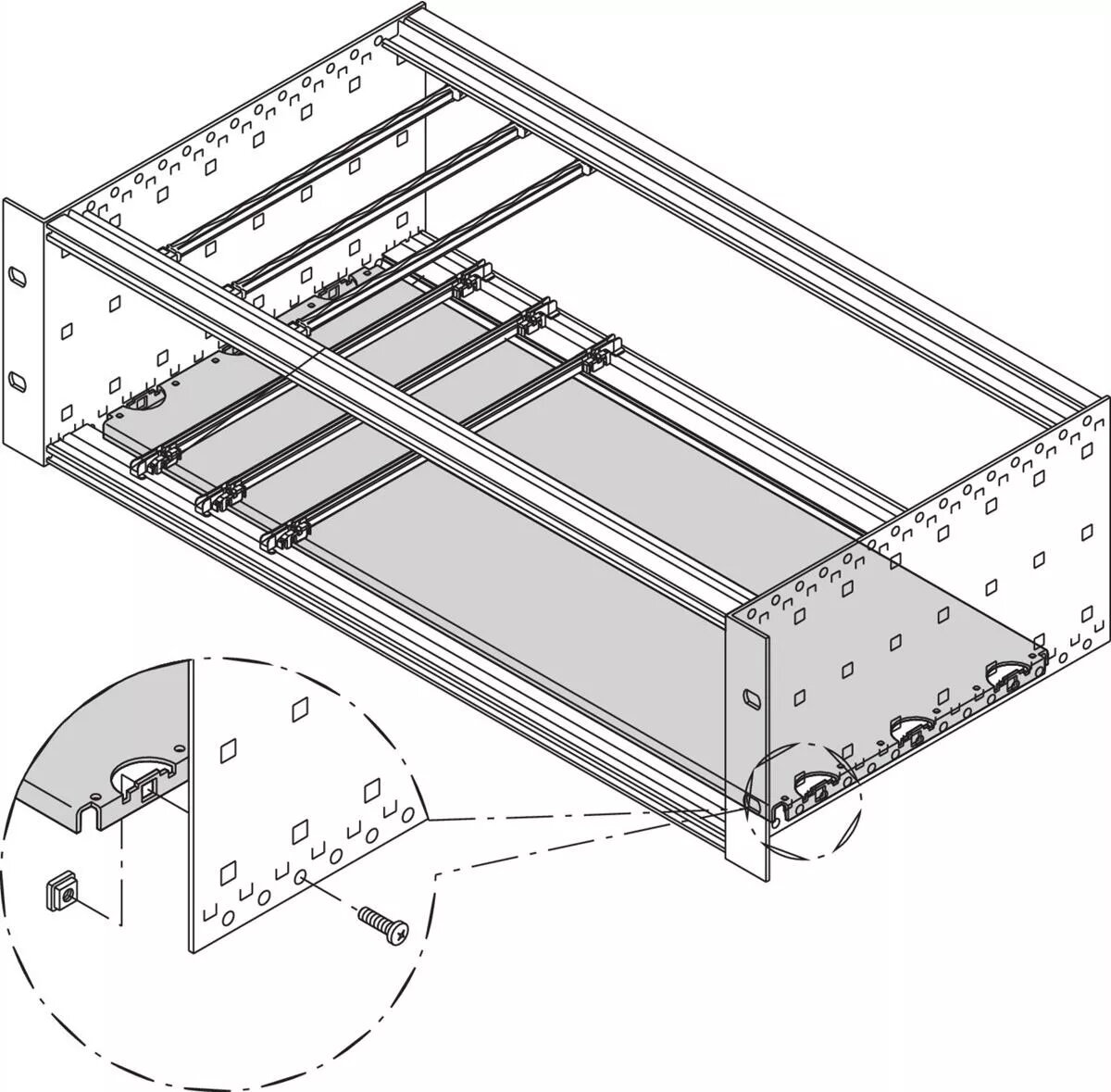

Install the mounting plate into a compatible 19" rack or cabinet by aligning its mounting holes with the rack’s vertical rails and fastening it with standard rack screws and nuts. Position modules and components on the plate so that their mounting holes align with the plate’s hole pattern, then secure each device using appropriate fasteners. Ensure that weight is evenly distributed and that cabling and airflow are planned to avoid obstruction. Check that all fastenings are tightened to maintain mechanical stability during operation.

Usage recommendations

Verify rack depth and rail spacing before installation to confirm compatibility. Use appropriate anti-vibration washers or grounding methods when required by the installation environment, and follow safety practices for working in live racks and cabinets.
