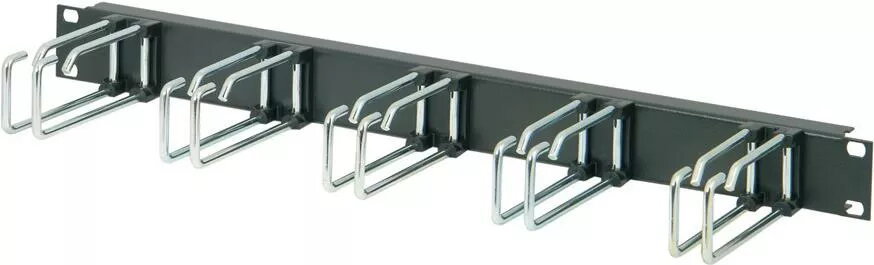

Cable eye kit SCHROFF 60118474, 110 mm, 5 pieces

Cable eye kit SCHROFF 60118474, 110 mm, 5 pieces contains five identical cable eyes designed for routing, securing and organizing cables inside electronic enclosures, racks and industrial cabinets. Each cable eye has a 110 mm length that provides adequate reach for common cable runs and allows tidy routing along panels, frames and cable channels. The kit is intended to offer durable cable termination points and strain relief to reduce mechanical stress on cable connections and improve serviceability.

Advantages

The cable eyes deliver consistent mechanical fixation and strain relief for individual cables or harnesses. Their standardized length and form help maintain uniform cable routing and reduce the risk of abrasion or connector strain. Using dedicated cable eyes simplifies maintenance by making cables easier to identify, remove and replace, while also improving airflow and internal organization in racks or enclosures.

Suitable for

• Cable management and routing inside server racks and network cabinets
• Securing power and signal cables in industrial control enclosures
• Providing strain relief at connector terminations in electronic assemblies
• Organizing cables in telecommunications and data centre equipment
• Retrofit or new installations requiring neat and reliable cable fixation

Key specifications

• Quantity: 5 pieces per kit
• Length: 110 mm each
• Function: cable routing, securing and strain relief
• Typical mounting: panel, frame or cable rail attachment
• Application environment: racks, cabinets, industrial enclosures

How to use

Select appropriate cable eye positions to achieve even cable distribution and to avoid sharp bends near connectors. Attach each cable eye to the enclosure frame, mounting rail or panel using compatible fasteners or mounting points. Route cables through the eye so that the eye supports the cable length and prevents concentrated stress at the connector. Verify that cables maintain required bend radii and that strain relief is effective before closing the enclosure or returning the system to service.

Usage recommendations

Use one cable eye per cable or per cable bundle where strain relief or directional support is needed; avoid overloading a single eye with excessive bundle diameter. Regularly inspect cable termination points for wear and replace cable eyes if mechanical damage or deformation is visible. Combine cable eyes with appropriate ties or straps for larger bundles and follow manufacturer guidelines for fastening hardware and torque values.
