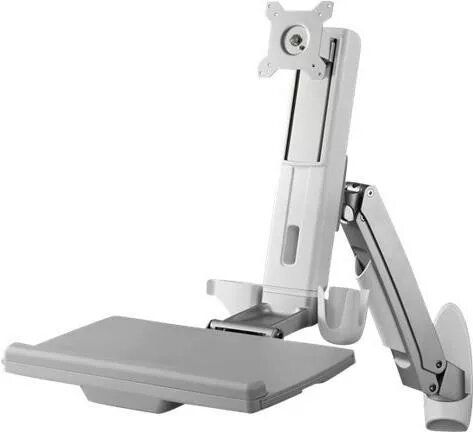

VESA Mounting Kit SCHROFF 25630-184 adjustable arm for LCD displays up to 24 inch

VESA Mounting Kit SCHROFF 25630-184 adjustable arm for LCD displays up to 24 inch is an articulated mounting solution engineered to support VESA-compatible monitors up to 24". The arm provides a compact footprint suitable for desktop use or installation inside equipment racks and enclosures. Designed for environments such as control rooms, industrial panels and workstations, it allows repeatable positioning and secure attachment of LCD displays while maintaining access to cabling and ventilation.

Advantages

The adjustable arm offers VESA-compliant mounting holes and a robust joint mechanism that enables tilt, swivel and rotation for precise screen alignment. Its compact design minimizes occupied space and supports stable mounting on both flat surfaces and rack panels. The assembly is made to deliver reliable load support and reduce vibration transfer, ensuring screen stability in demanding operational conditions.

Suitable for

• Mounting 17–24" VESA-compatible LCD monitors on desktops
• Installation in control rooms and industrial enclosures
• Workstations and operator panels requiring adjustable viewing angles
• Equipment racks where compact, articulated monitor positioning is needed

Key specifications

• Maximum recommended display size: up to 24 inches
• VESA compatibility: supports common VESA hole patterns for small to medium displays
• Articulation: adjustable tilt, swivel and rotation joints for flexible positioning
• Mounting options: desktop mounting and rack/enclosure attachment capability
• Construction: metal arm and joints designed for stable support and reduced vibration
• Footprint: compact profile suitable for confined or multi-device installations

How to use

Attach the arm to a stable mounting surface or rack panel using the provided fixing points and hardware. Align and secure the monitor to the VESA-compatible plate, ensuring that the VESA holes on the display match the plate pattern. Adjust tilt, swivel and rotation to the desired viewing angle, then tighten the joint fasteners to lock the position. Route display cables along the arm or through available channels to maintain a tidy installation and avoid strain on connectors. Verify the stability of the mounted display and retighten fasteners if necessary after initial use.

Usage recommendations

Confirm the display weight and VESA hole pattern before installation to ensure compatibility. Use appropriate mounting hardware for the type of surface or rack, and periodically check joint tension and fasteners in environments with vibration or frequent adjustments.
