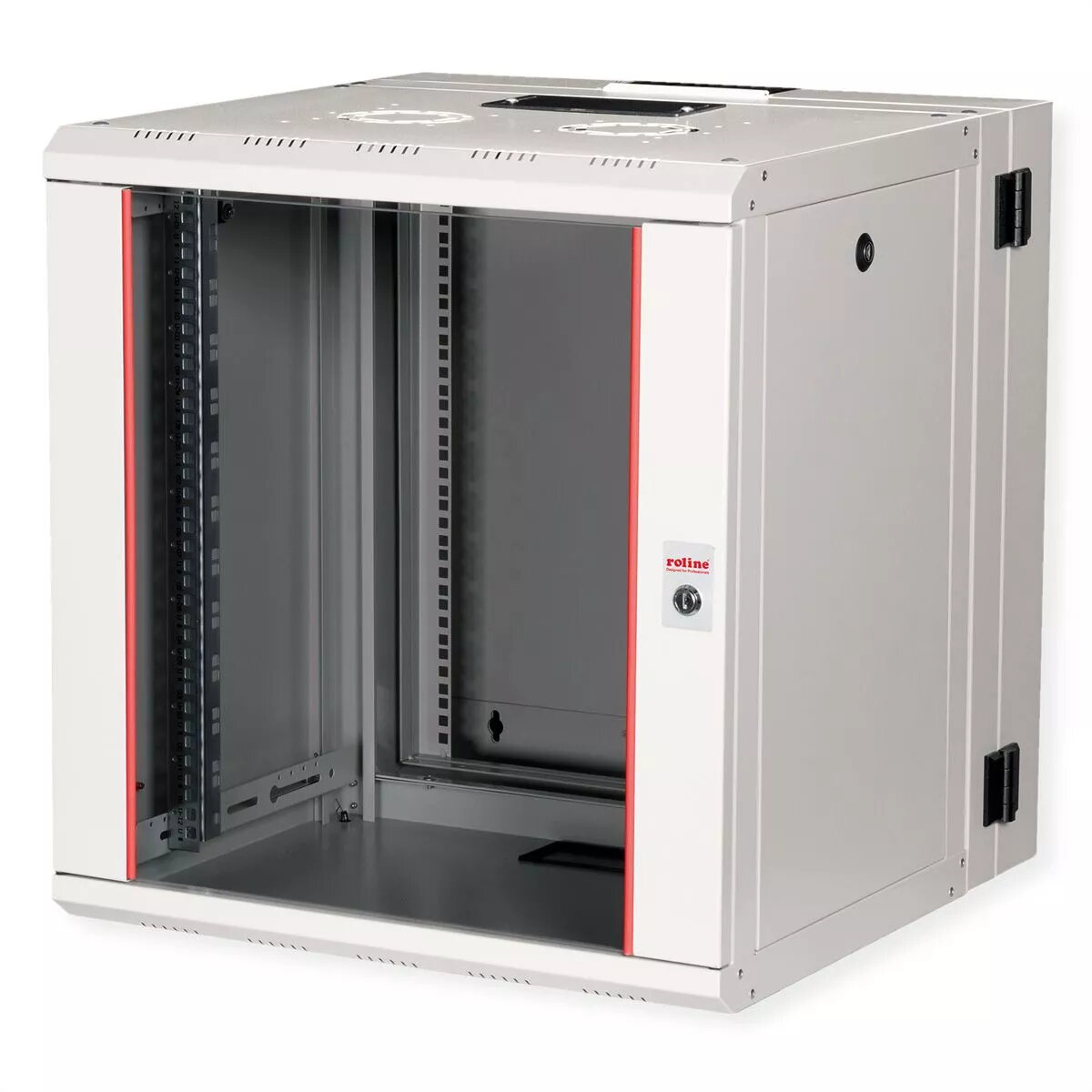

Wall mounted rack ROLINE Pro 12U 600x600 grey key lock IP20

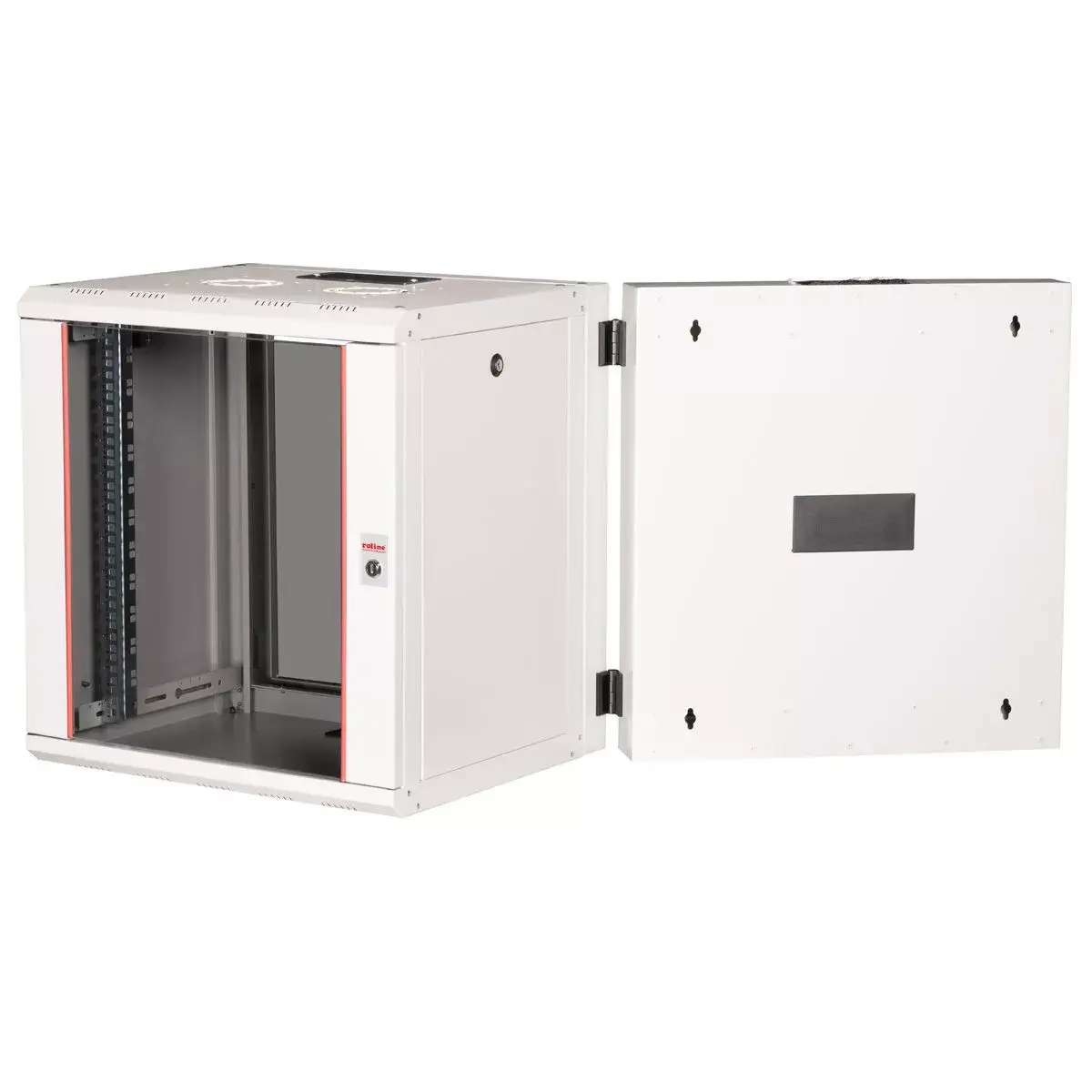

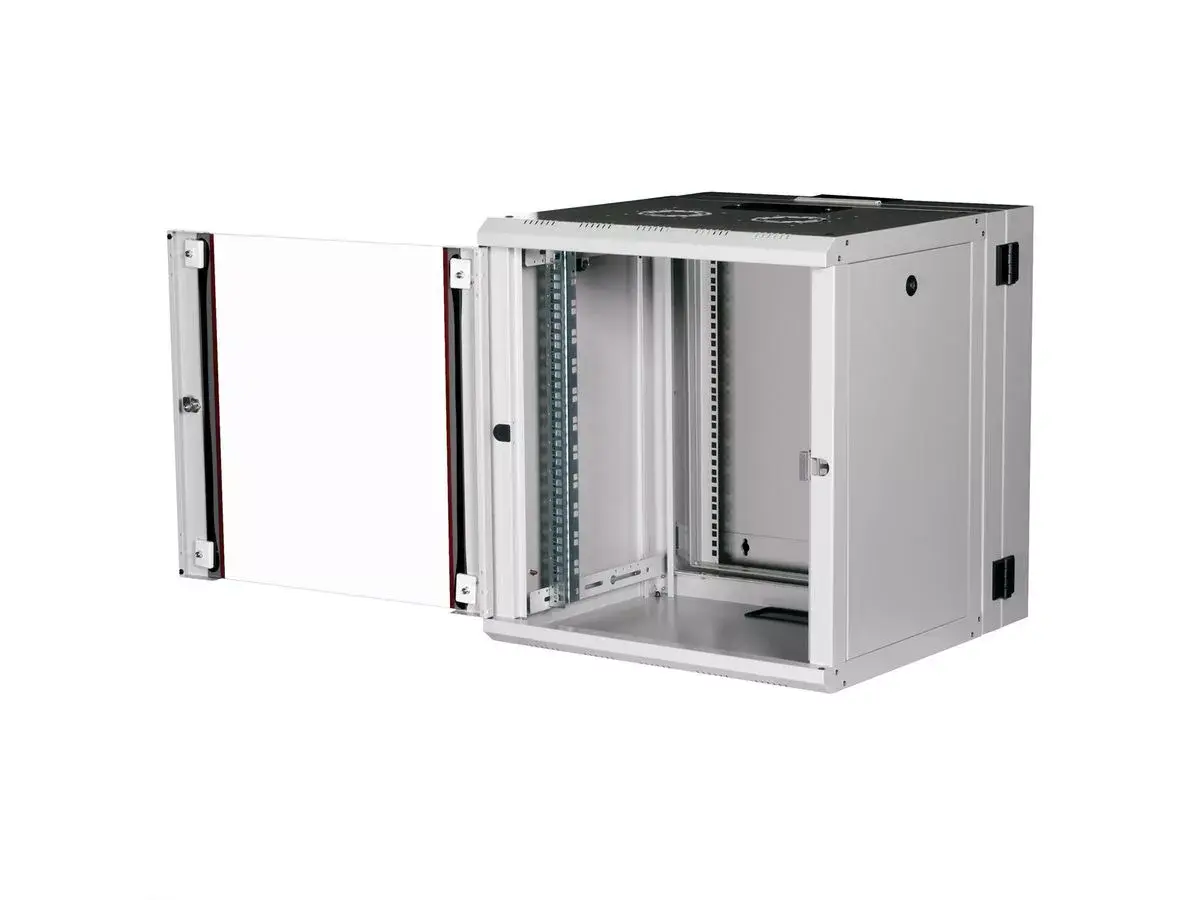

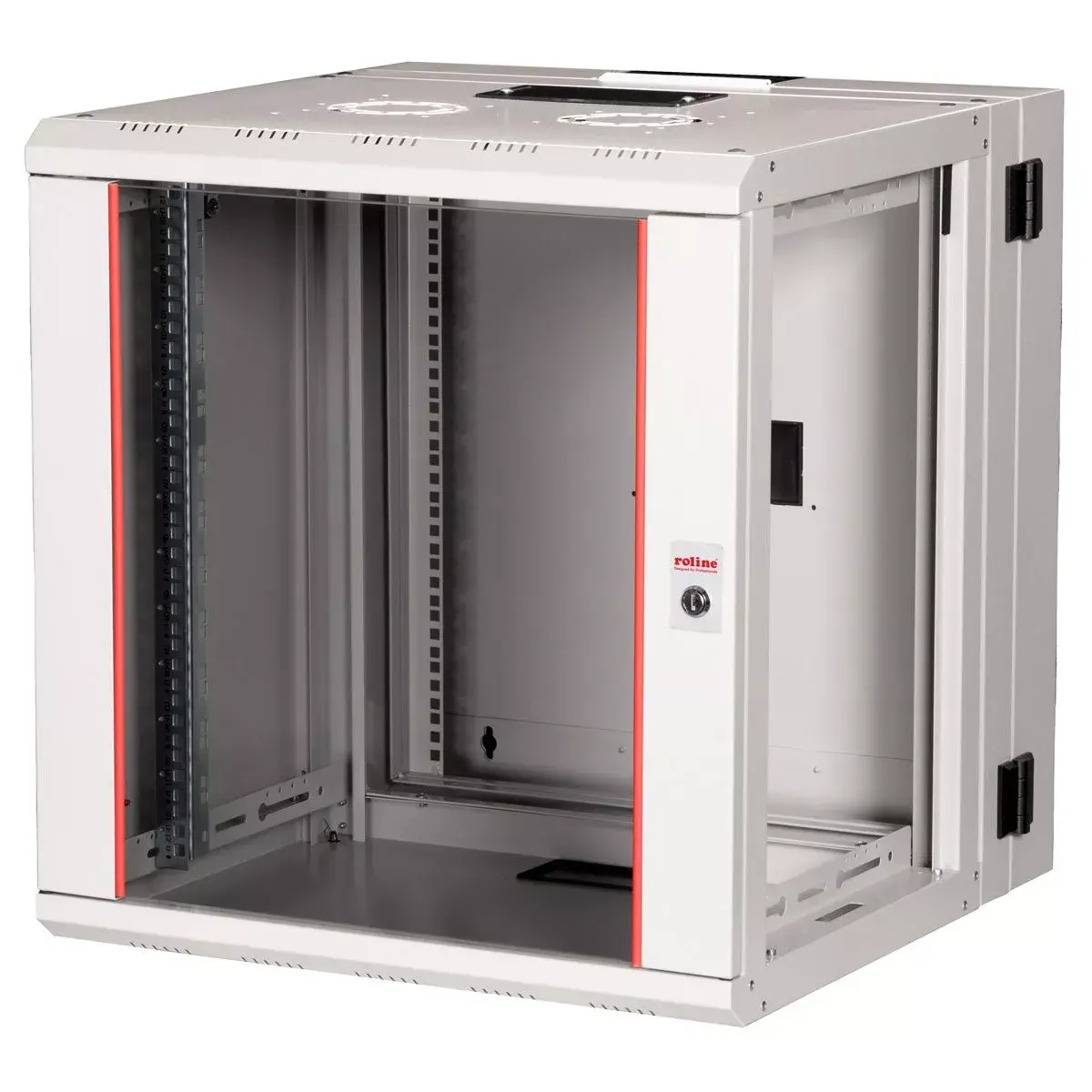

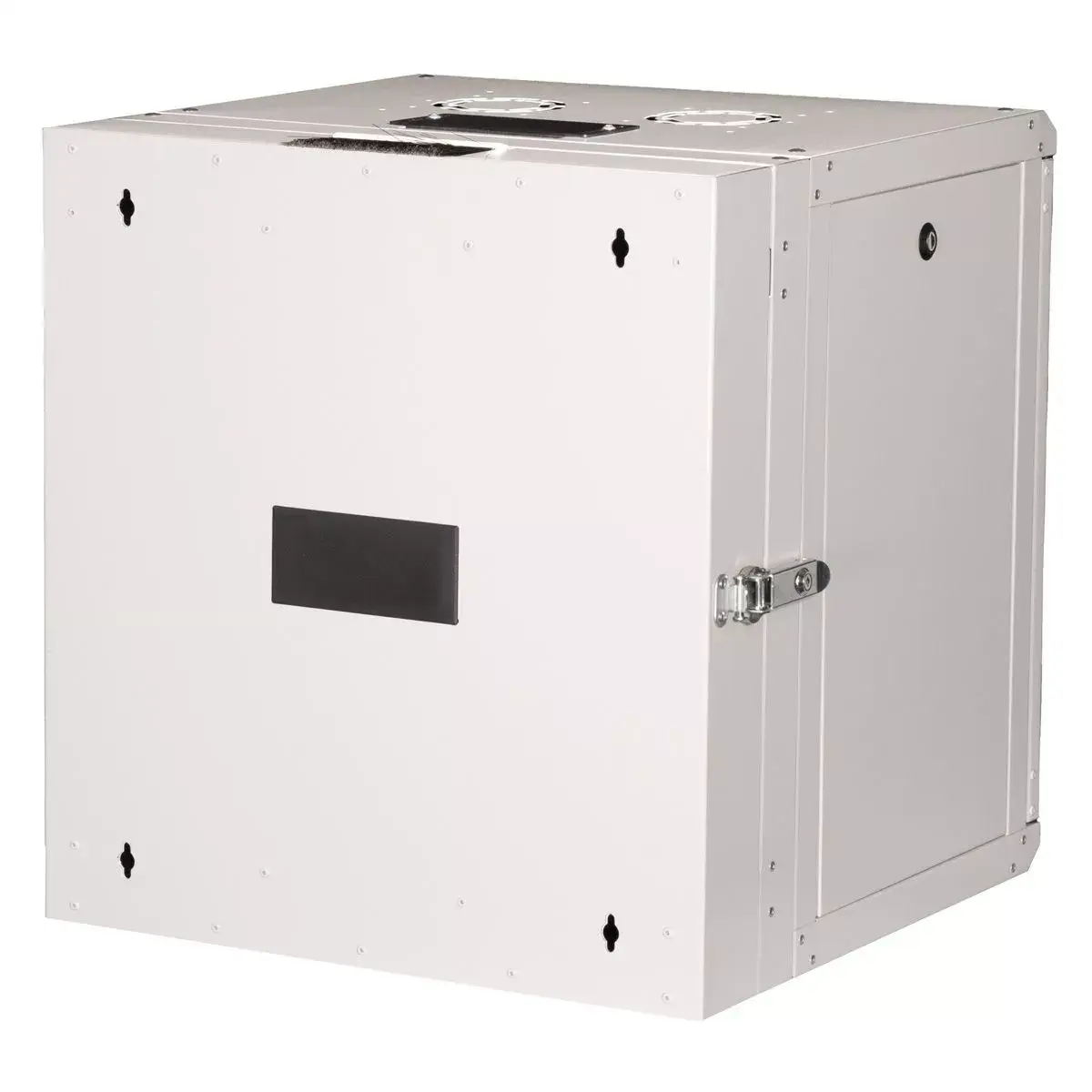

The ROLINE Pro 12U 600x600 wall-mounted rack is designed for flexible network cabling and secure equipment storage. The enclosure features a two-part swivelling rear frame with an integrated hinge that allows the cabinet to be folded to the side. The roof includes a sliding cable inlet with a foam rubber seal and a factory-cut opening for an optional fan module. The rear panel and base provide punched cable inlets with plastic covers, and brush strips are fitted at the top and bottom of the rear frame. Inside there are galvanised 19" profile rails, reversible and depth-adjustable, and the rear frame also has 19" perforations. The cabinet is constructed from up to 1.5 mm sheet steel with an electrostatically applied powder coat finish in grey (RAL 7035) and black (RAL 9005). The unit includes modular, lockable and removable side panels and a lockable, removable front door; the door hinge can be changed. The rack offers IP20 protection, a key lock, and a maximum load capacity of 50 kg.

Advantages

The cabinet’s two-part swivelling rear frame and integrated hinge enable easier access for installation and maintenance without removing the whole enclosure. Depth-adjustable, reversible 19" rails and 19" perforations in the rear frame increase mounting flexibility. Factory-prepared cable entry points, foam-sealed roof inlet and brush strips reduce dust ingress and simplify cable routing. Modular, removable and lockable panels and door provide secure access control while allowing fast equipment changes. Robust 1.5 mm sheet-steel construction with powder coating ensures mechanical protection in office and technical environments.

Suitable for

• Mounting and securing network switches, patch panels and small servers in office or equipment rooms
• Organising structured cabling and fiber splices in limited-space installations
• Applications requiring lockable, wall-mounted 19" housing with IP20 protection

Key specifications

• Size: 12U, 600 x 600 mm
• Protection rating: IP20
• Material: sheet steel up to 1.5 mm, powder-coated (grey RAL 7035 / black RAL 9005)
• Mounting: wall-mounted; optional levelling feet or castors for free-standing use
• Rails: galvanised 19" profile rails, reversible and depth-adjustable; rear frame with 19" perforations
• Cable management: sliding roof inlet with foam seal, punched inlets with plastic covers, brush strips
• Cooling: roof cut-out for fan module
• Security: key lock; modular lockable removable side panels and front door
• Maximum load capacity: 50 kg

How to use

Install the rear frame on the wall in the desired opening direction, then attach the enclosure to the mounted frame. Route cables through the sliding roof inlet, punched inlets or brush strips as required and secure them using the plastic covers or route management accessories. Mount equipment on the 19" rails, adjusting rail depth as needed. If required, install a fan module in the roof cut-out. Lock the front door and side panels with the supplied key to secure the equipment.

Usage recommendations

For wall mounting, ensure the supporting wall and fixings are rated for the combined weight of the cabinet and installed equipment (maximum load 50 kg). Use the reversible 19" rails to optimise mounting position and leave sufficient ventilation space if active equipment is installed.
