Wall mounted rack ROLINE Pro 20 U 600x600 grey IP20 50 kg

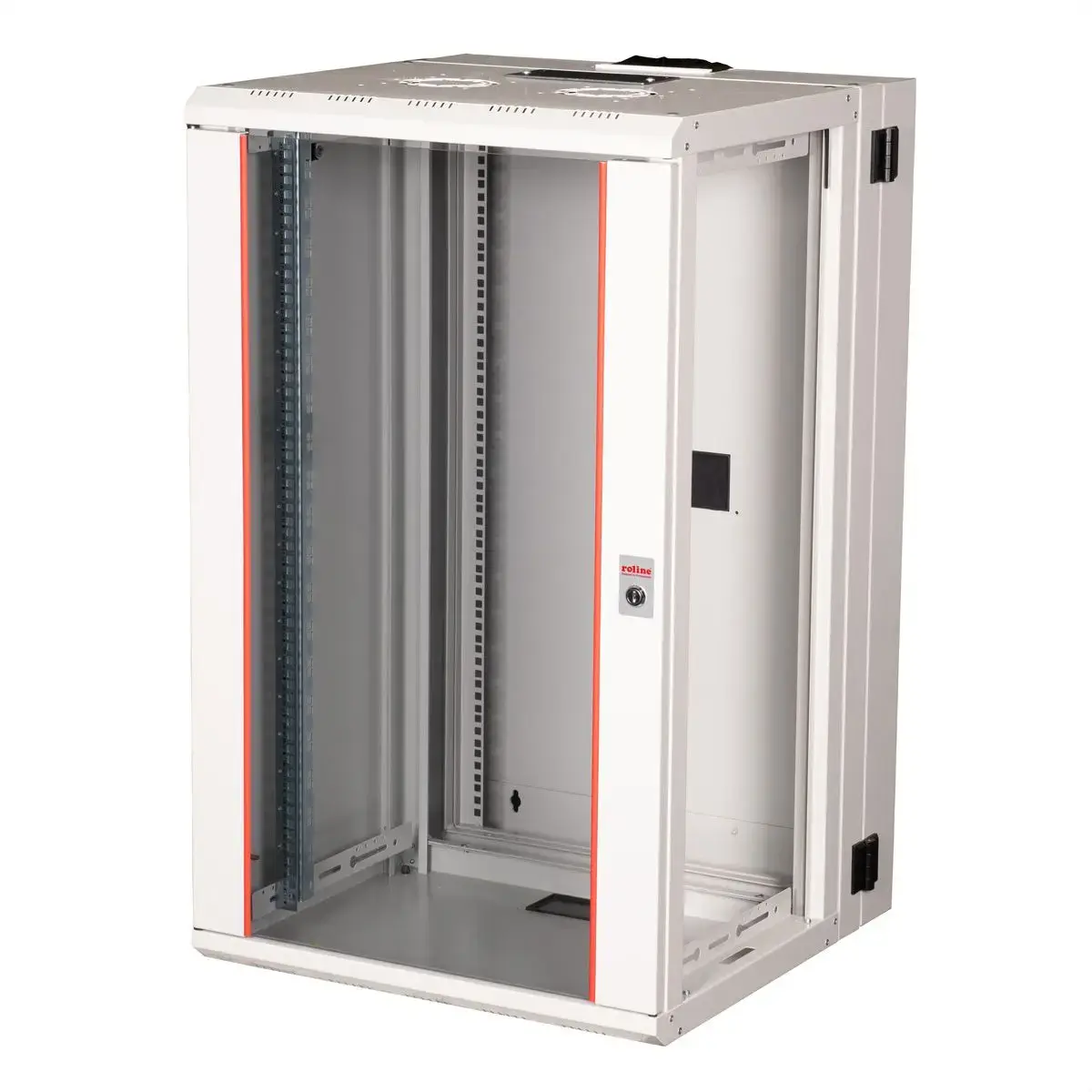

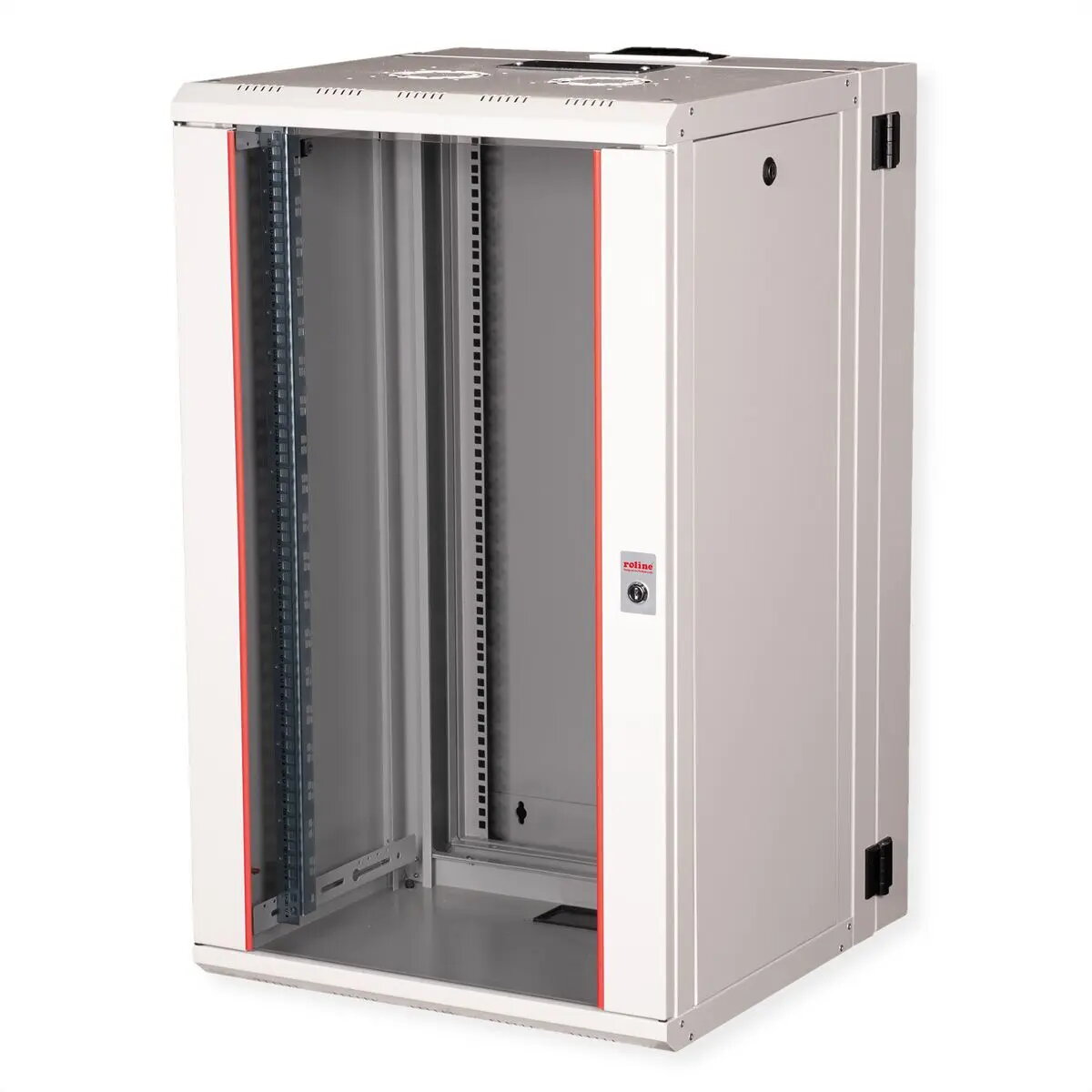

The ROLINE Pro 20U wall-mounted rack is a 19-inch enclosure designed for flexible network cabling and indoor equipment mounting. It has a two-part swivelling rear frame with an integrated hinge for side folding, adjustable galvanized 19" profile rails, and a roof chassis prepared for a fan module. The cabinet is made from up to 1.5 mm thick steel, powder-coated in grey (RAL 7035), and provides an IP20 protection rating with a maximum load capacity of 50 kg.

Advantages

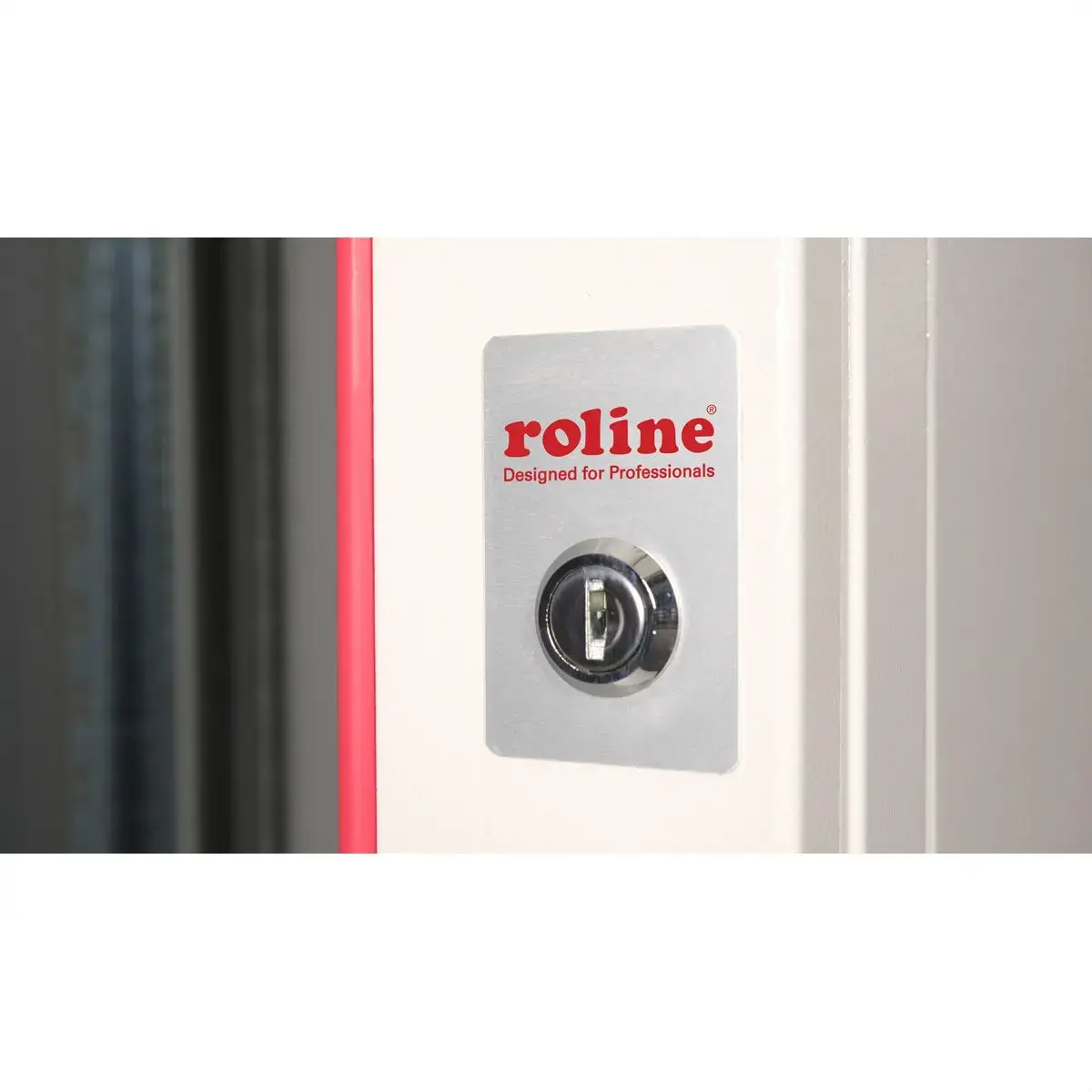

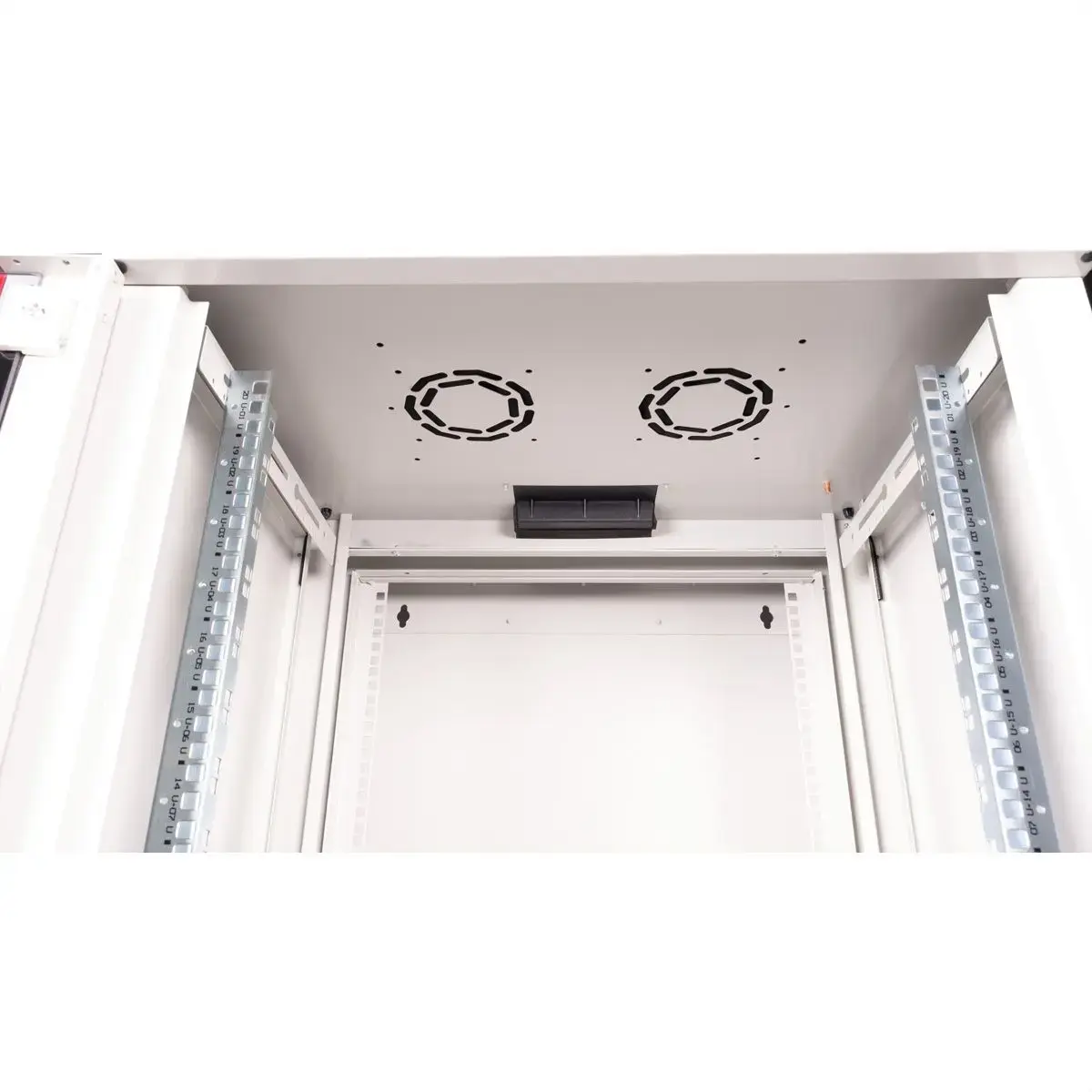

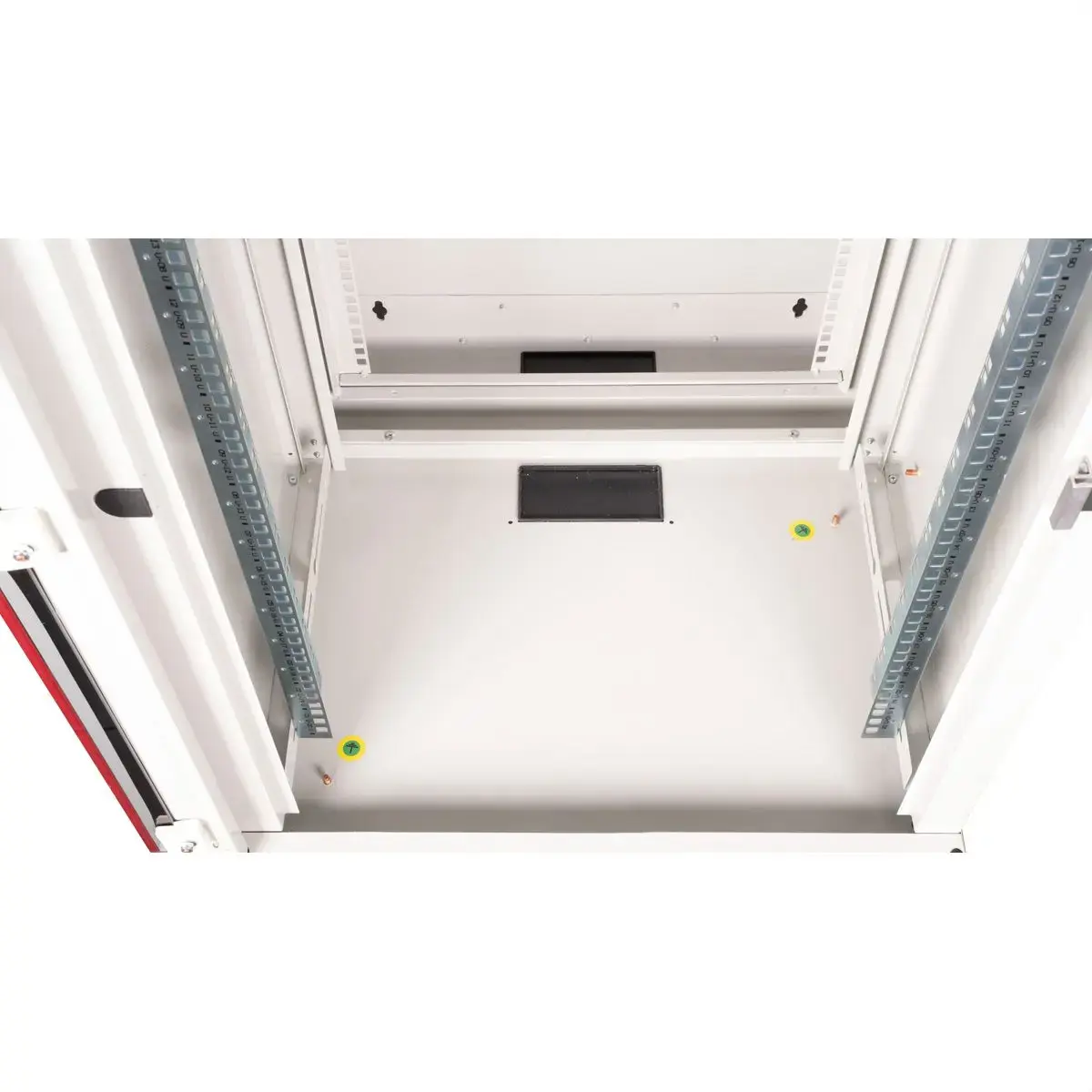

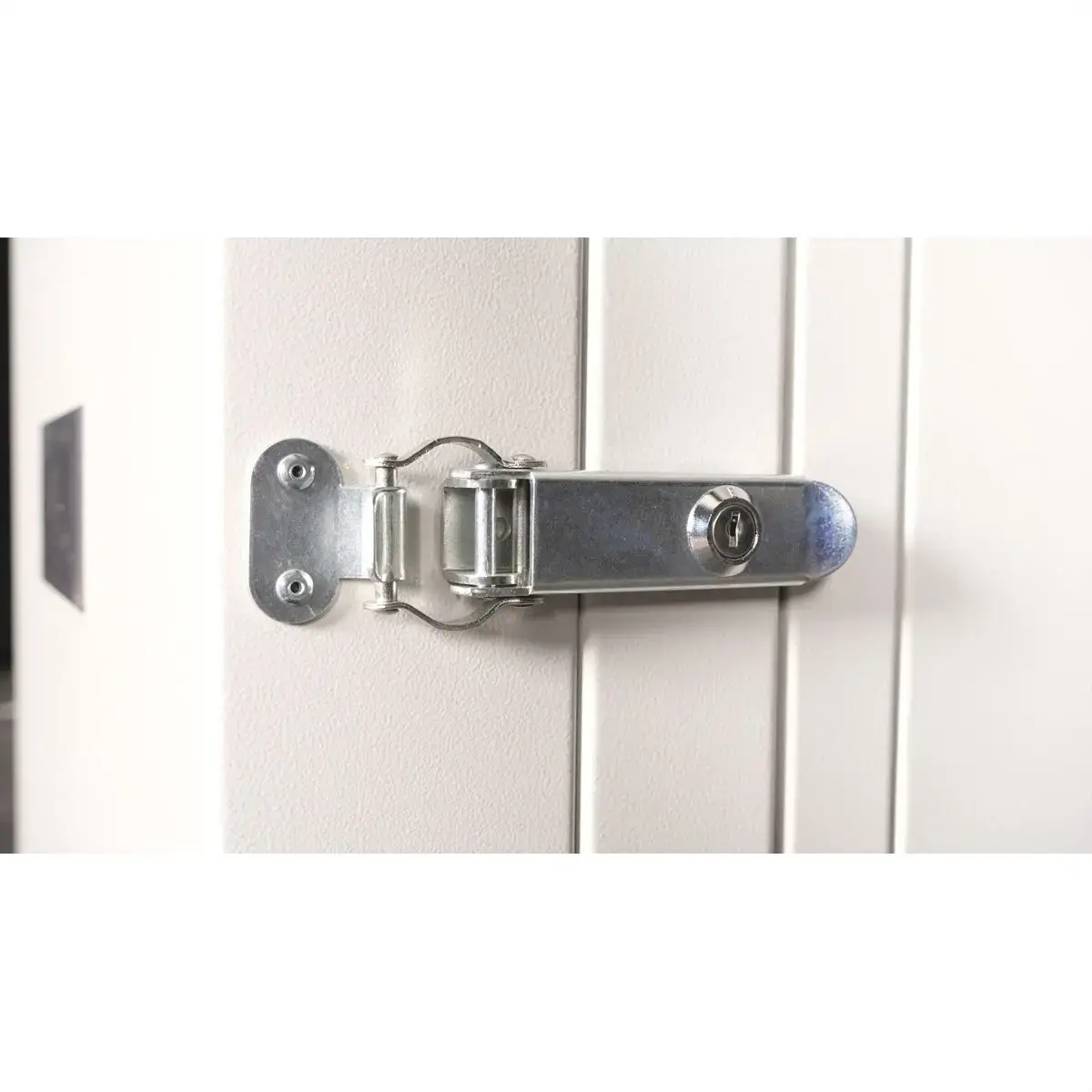

The enclosure offers a compact 20U 19-inch mounting space with depth-adjustable rails that are reversible for flexible installation. Cable management features include a sliding cable inlet with foam seal in the roof, punched cable inlets with plastic covers in the rear panel and base, and brush strips on the rear frame. The roof has a cut-out for an optional fan, and the cabinet includes lockable, removable front door and modular side panels for controlled access and convenient maintenance.

Suitable for

• Mounting 19" network switches, patch panels and small servers
• Indoor IT rooms, comms cabinets and office network closets
• Environments requiring moderate load capacity and basic dust protection (IP20)
• Applications needing cable routing and optional fan installation

Key specifications

• Model: ROLINE Pro 20 U 600x600 grey IP20
• Rack units: 20U (19" standard)
• External dimensions (W x D): 600 x 600 mm (as stated in product name)
• Material: sheet steel up to 1.5 mm, electrostatic powder coating (grey RAL 7035)
• Protection class: IP20 (indoor use)
• Maximum load capacity: 50 kg
• Weight: 52.1 kg

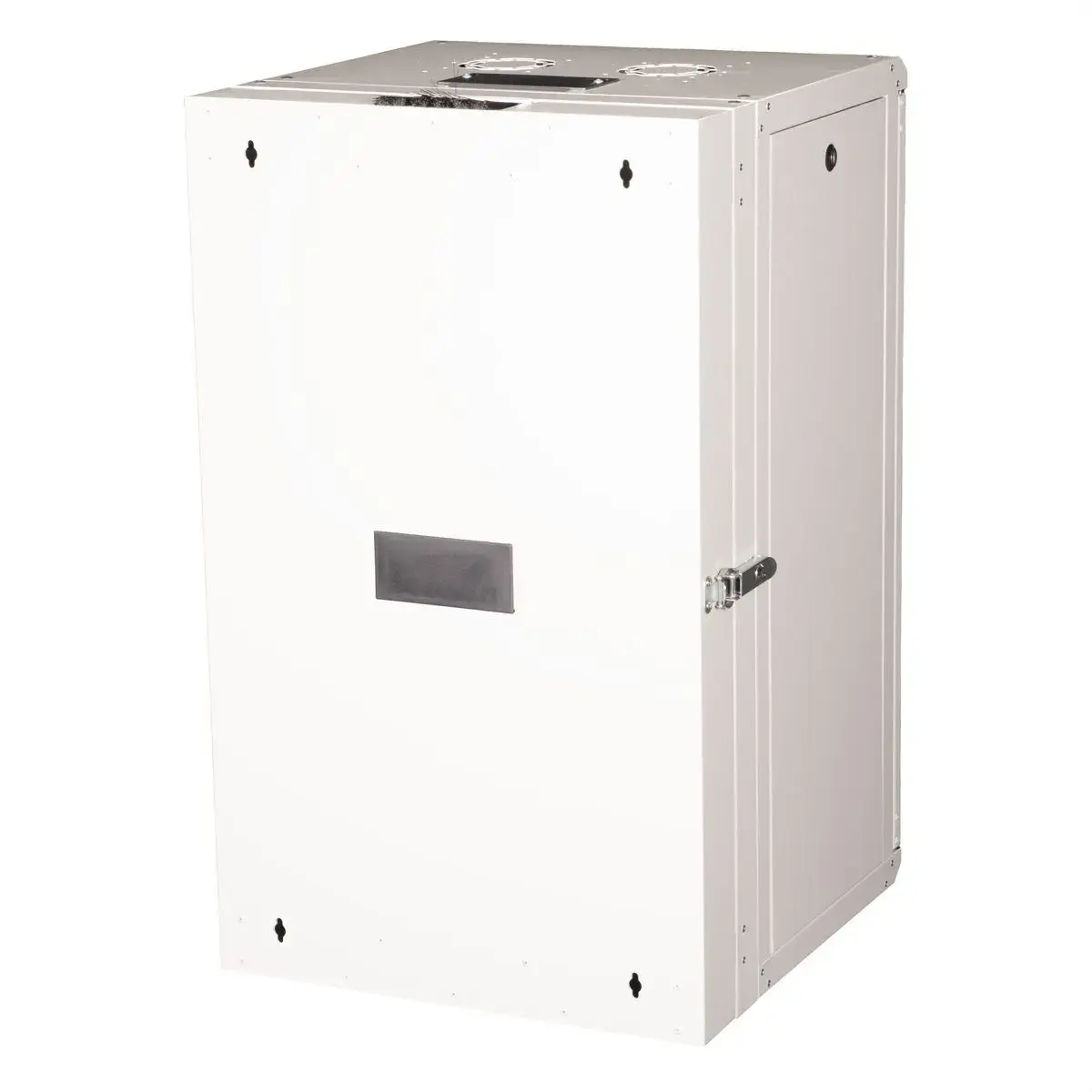

• Features: hinged rear frame, depth-adjustable and reversible 19" profile rails, roof cut-out for fan, sliding roof cable inlet with foam seal, punched cable entries with covers, brush strips, lockable removable front door and side panels
• Brand: Secomp, MPN: 26.21.0014, EAN: 7630049600157

How to use

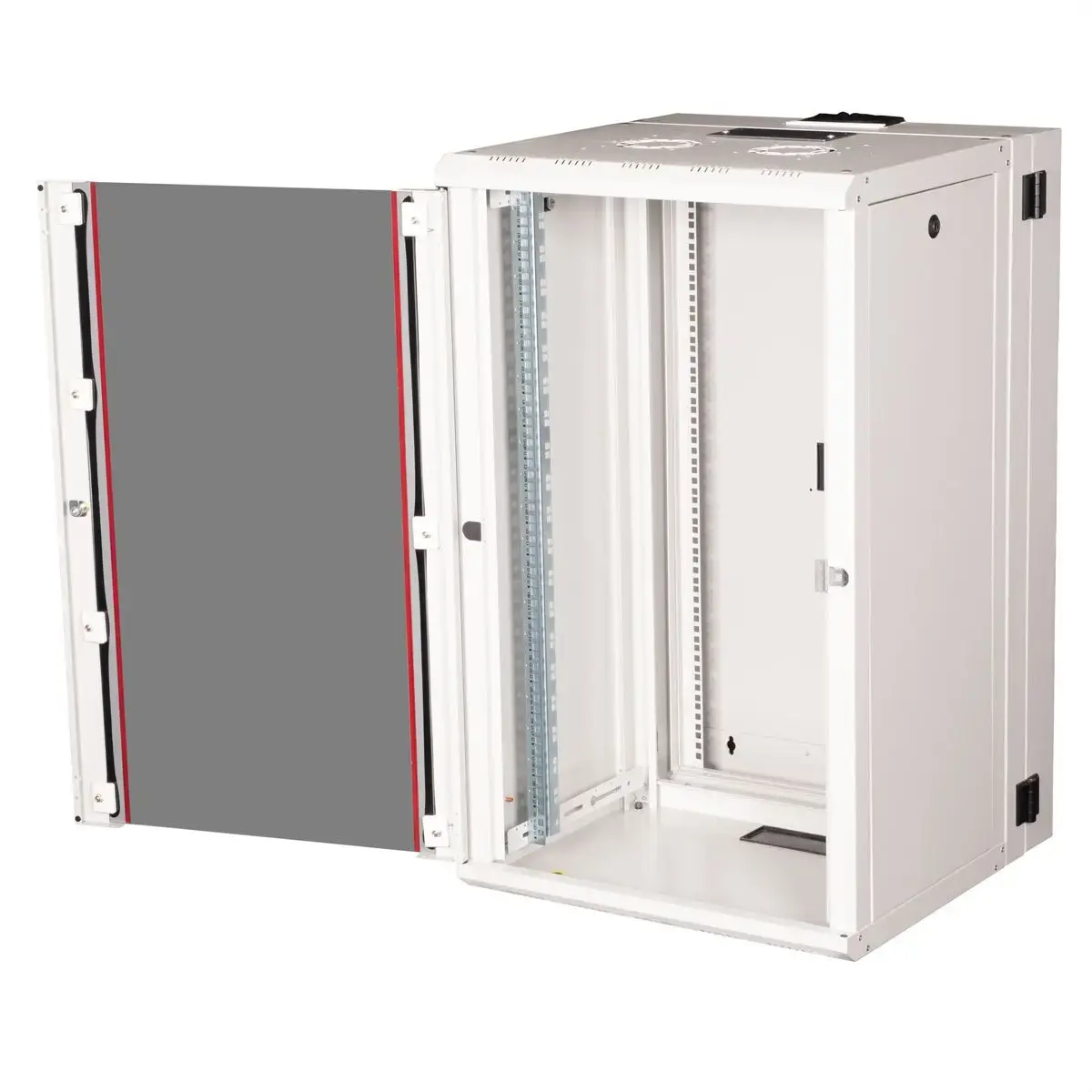

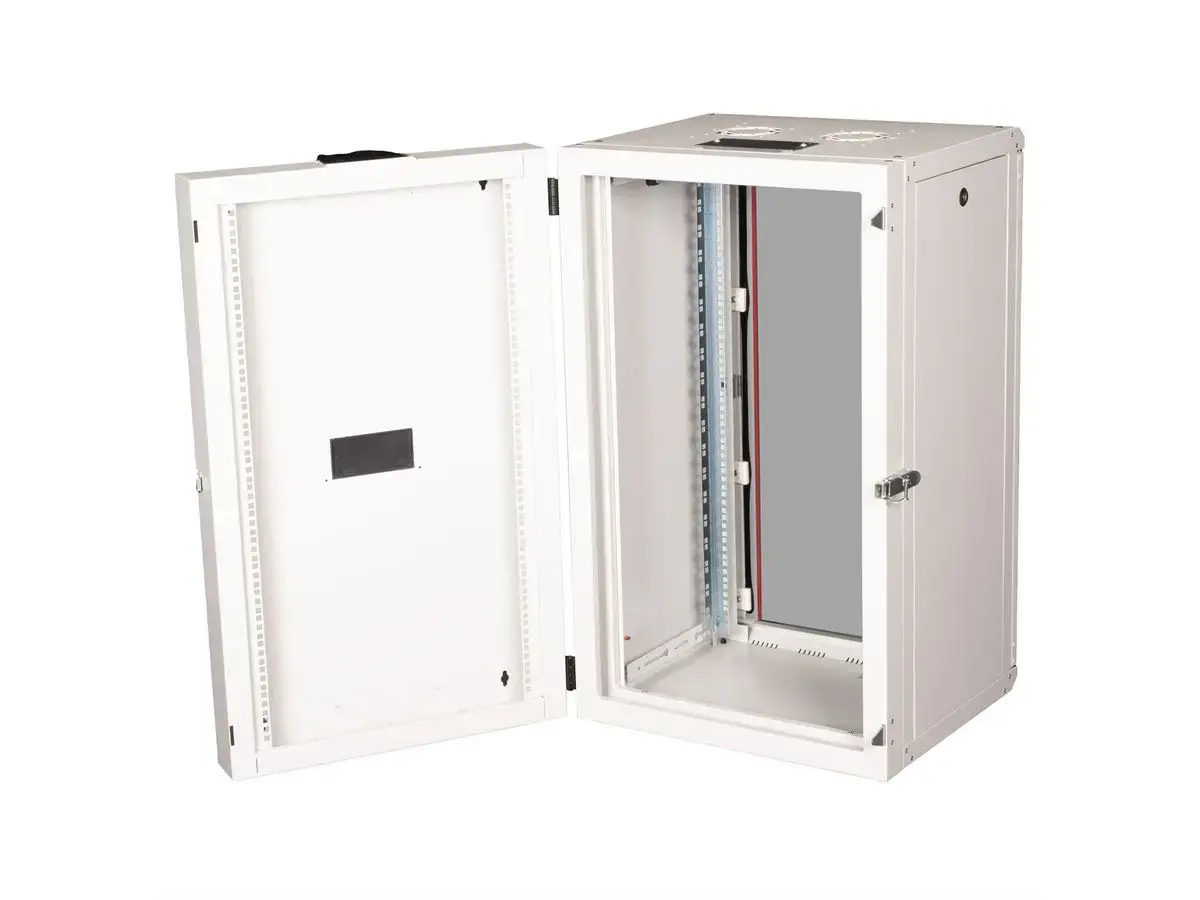

Mount the enclosure on a suitable load-bearing wall using appropriate fixings, ensuring the wall and fasteners support the 50 kg maximum load plus the weight of installed equipment. Open the rear frame via the integrated hinge to gain access for mounting equipment on the 19" rails; adjust the rail depth and orientation as needed. Route cables through the sliding roof inlet or punched inlets with covers and use the brush strips for tidy cable exits. If required, fit a compatible fan module into the roof cut-out. Close and lock the removable front door and side panels to secure installed devices.

Usage recommendations

Install the rack in a dry, dust-limited indoor environment and distribute equipment weight evenly across rails. Verify wall mounting anchors and service clearances before installing heavy equipment; do not exceed the 50 kg load rating.
