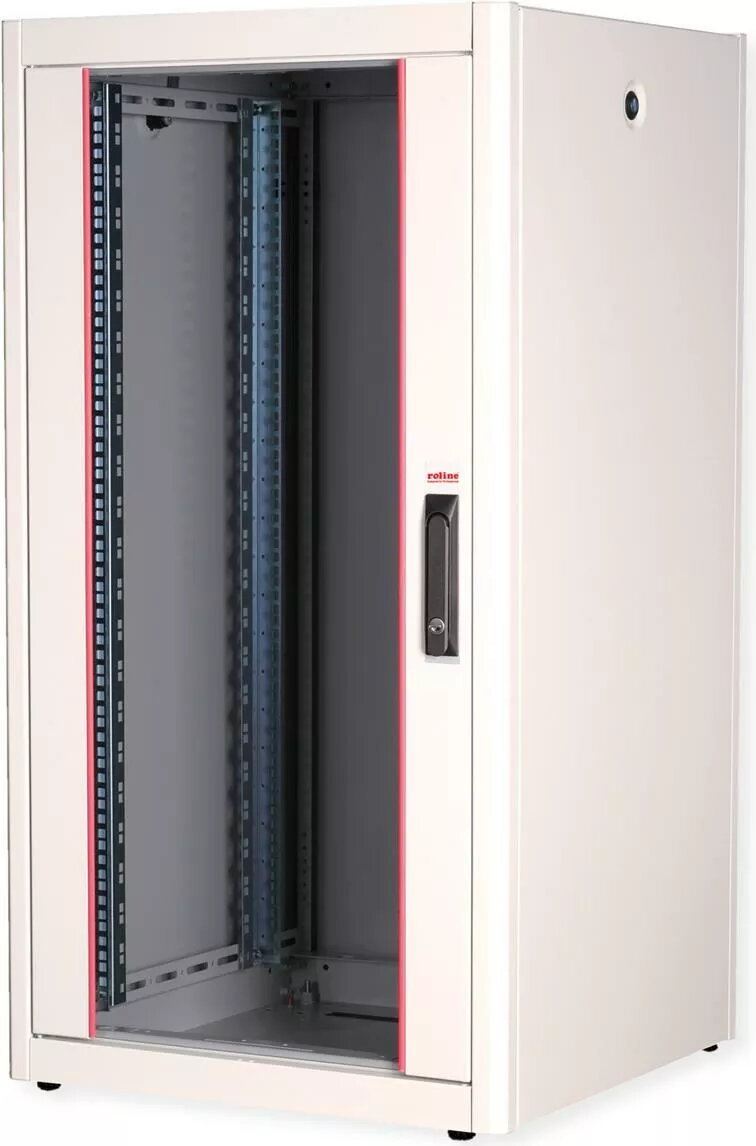

Freestanding rack ROLINE 19-inch Basic 22U 600x600 glass door grey

The ROLINE 19-inch Basic 22U freestanding rack (600x600) with a glass front door is designed for simple and cost-efficient network expansion and equipment housing. The cabinet features a robust steel construction with sheet thickness up to 1.5 mm, adjustable 19" profile rails, removable side and rear panels, a lockable removable glass door and adjustable feet. Cable inlets are positioned in the base chassis (rear centre) and additional inlets are provided for wider enclosures; the roof includes openings for cable entry and a punched area for a fan module. The unit is finished with an electrostatic powder coating in grey (RAL 7035).

Advantages

The freestanding rack provides a durable steel frame that supports a maximum load suitable for typical network equipment, while adjustable depth rails and reversible mounting direction allow flexible installation. Multiple strategically placed cable inlets and roof openings simplify cable routing and fan installation. Removable panels and a lockable glass door offer straightforward access and basic security. The rack’s modular, demountable design enables complete dismantling for transport or site preparation.

Suitable for

• Small to medium server rooms and network closets
• Installation of 19" active and passive network equipment up to 22U
• Office IT infrastructure and patch panel mounting
• Environments requiring controlled indoor equipment housing (IP20)

Key specifications

• Model: ROLINE 19-inch Basic 22U 600x600
• Dimensions (W x D): 600 x 600 mm
• Height: 22U
• Load capacity: up to 600 kg
• Material: steel, sheet thickness up to 1.5 mm
• Doors/panels: lockable removable glass front door, removable side and rear panels
• Rail type: two pairs of galvanised 19" profile rails, depth-adjustable and reversible
• Cable management: base and roof cable inlets, roof punched area for fan module
• Protection class: IP20 (indoor use)
• Finish: electrostatic powder coating, grey (RAL 7035)
• Other: adjustable feet, door hinge changeable, demountable design

How to use

Place the freestanding rack on a level indoor surface and adjust the feet to ensure stability. Install the galvanised 19" profile rails at the required depth and mount network devices and patch panels up to the 22U capacity. Route cables through the base or roof inlets and secure them according to your cable management practice. If needed, use the roof punched area to install a compatible fan module. Panels and the front glass door can be removed for easier access during installation and maintenance.

Usage recommendations

For safe and reliable operation, install the rack in a dry indoor environment, distribute equipment weight evenly, and secure heavy components at lower U-positions. Ensure ventilation or active cooling when installing heat-generating devices and follow IP20 indoor-use guidelines.
