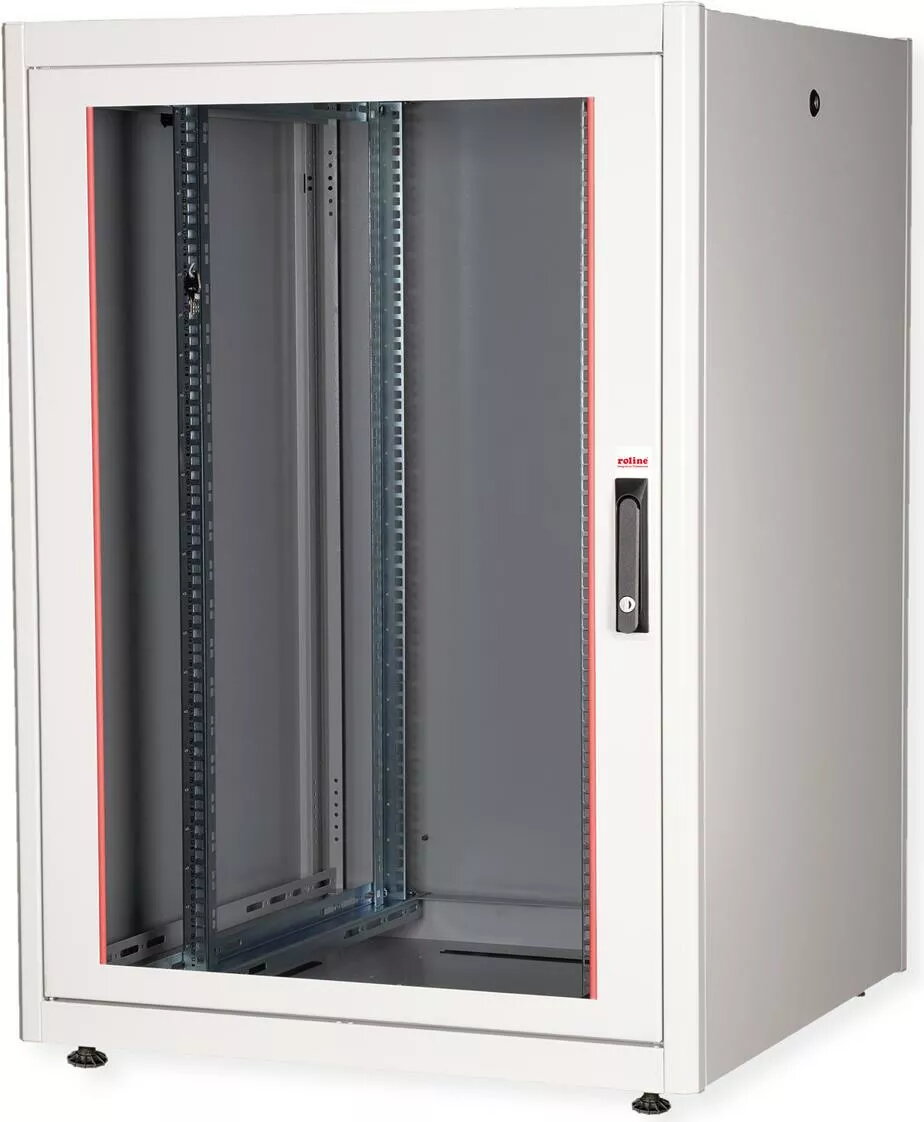

Freestanding rack ROLINE Basic 22U 800x800 glass door grey

The ROLINE Basic 22U freestanding network cabinet with glass door is designed for simple and cost-efficient network expansion. It provides a robust steel construction with removable side and rear panels, a lockable removable front glass door and adjustable rack rails. Cable inlets are positioned in the base chassis and, for wider enclosures, additionally on the sides and in the roof; the roof also includes a cut-out for a fan module. The cabinet is powder-coated in grey (RAL 7035) and is suitable for indoor use with an IP20 rating.

Advantages

This freestanding rack combines a sturdy steel frame with demountable construction for easy transport and installation. Depth-adjustable and reversible 19" profile rails allow flexible mounting of equipment, while multiple cable inlets and a roof fan cut-out support neat cable management and ventilation. Removable panels and a reversible door hinge improve accessibility and maintenance.

Suitable for

• Housing 19" servers, switches and patch panels up to 22U
• Small to medium office network installations
• Telecommunications and IT cabinets in server rooms or closets

Key specifications

• Mounting height: 22U
• External dimensions (W×D): 800 × 800 mm
• Load capacity: up to 600 kg
• Construction: sheet steel with material thickness up to 1.5 mm
• Finish: electrostatic powder coating, grey (RAL 7035)
• Protection rating: IP20 (indoor use)
• Door: lockable removable glass front; hinge changeable
• Cable management: base cable inlet with screwed cover plate; additional side and roof inlets for wider units
• Rack rails: two pairs of galvanised 19" profile rails, depth-adjustable and reversible
• Ventilation: roof chassis with punched area for fan module
• Adjustable feet for leveling

How to use

Place the freestanding rack on a stable, level surface and adjust the feet to ensure proper leveling. Remove the front door and side panels as needed to install 19" equipment on the galvanised profile rails, adjusting rail depth to accommodate device depths. Route cables through the base inlet or the side/roof inlets where available, secure them to maintain clear airflow, and mount a fan module in the roof cut-out if additional ventilation is required. Reattach panels and lock the front door after installation.

Usage recommendations

Install the cabinet indoors in a dry, dust-reduced environment and allow sufficient clearance for airflow at the front and rear. For heavy equipment or dense installations, use the depth-adjustable rails and distribute load evenly to stay within the specified maximum load capacity.
