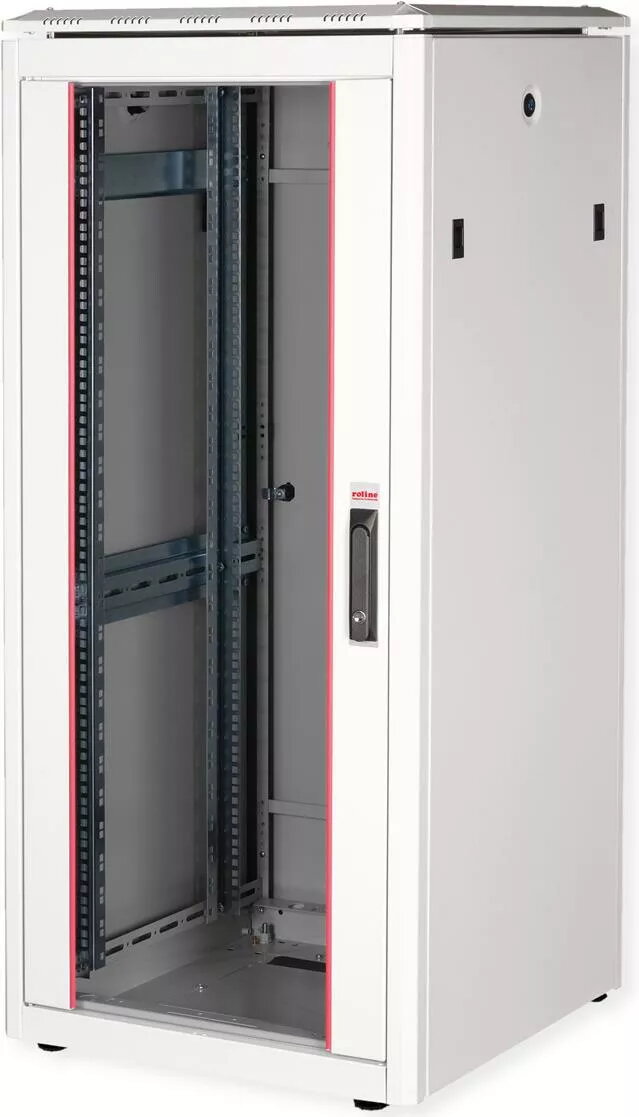

Freestanding rack ROLINE 19-inch Network Cabinet Pro 26 U 600x600 glass door grey

The ROLINE 19-inch Network Cabinet Pro 26 U 600x600 with glass door is a freestanding rack designed for flexible and convenient network cabling. The cabinet supports up to 26U of 19" equipment, offers a maximum load capacity of 600 kg and is constructed from robust steel with sheet thicknesses up to 1.5 mm. Standard finishes are grey (RAL 7035) and black (RAL 9005). The enclosure has an IP20 rating and a net weight of approximately 52.7 kg. Removable side panels and doors, as well as an interchangeable hinge, allow easy access and reconfiguration.

Advantages

The cabinet provides versatile cable ingress options including brush inlets in the roof and base area and a slide-on inlet with foam rubber seal in the base chassis. Brush strips above and below the rear door improve cable sealing. Two pairs of galvanised, front- and rear-readable 19" profile rails are fitted and are depth-adjustable; they are also connected to additional depth struts for increased stability. A stepped, removable top cover with ventilation slots improves airflow and allows easy installation of a fan module. Modular removable panels and the option to fully dismantle the cabinet simplify installation and maintenance.

Suitable for

• Installation of 19" switches, patch panels and servers up to 26U
• Small to medium enterprise network rooms and server closets
• Structured cabling with horizontal and vertical cable routing
• Equipment requiring front and rear rack-mount access

Key specifications

• Rack units: 26U
• Outer dimensions (W x D): 600 x 600 mm
• Door type: glass front door
• Maximum load capacity: 600 kg
• Material: steel construction, sheet thickness up to 1.5 mm
• Finish: powder coated grey (RAL 7035) or black (RAL 9005)
• IP rating: IP20
• Weight: approx. 52.7 kg
• Accessories: galvanised adjustable 19" profile rails, brush cable inlets, removable panels

How to use

Place the freestanding cabinet on a stable and level surface. Adjust the feet for levelling if required. Install the 19" equipment using the supplied adjustable profile rails, positioning rails to the correct depth and securing devices with appropriate rack screws. Route cables through the brush inlets in the top and base or through the rear door brush strips and use the vertical cable ducts where available. If additional ventilation is needed, remove the stepped top cover and fit a compatible fan module in the ventilated opening.

Usage recommendations

Use the cabinet indoors in environments compliant with IP20 protection. Plan equipment placement to distribute weight evenly across rails and use additional depth struts for heavy loads. To maintain airflow, avoid blocking ventilation slots and install cable management accessories to prevent strain on connectors.
