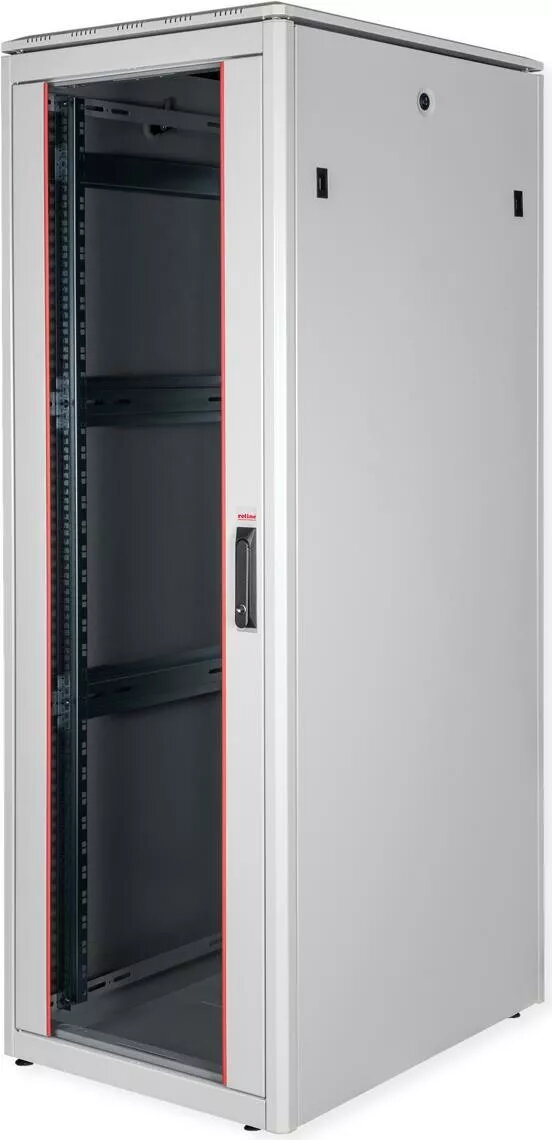

Freestanding rack ROLINE 19-inch Network Cabinet Pro 36U 600x800 grey

The ROLINE 19-inch Network Cabinet Pro 36U 600x800 in grey is a freestanding rack designed for organised and flexible network cabling. Built from robust steel with sheet thickness up to 1.5 mm, the cabinet includes two pairs of galvanised, reversible 19" profile rails with depth adjustment, modular removable side panels and doors, and a tempered glass front door. The enclosure offers IP20 protection, adjustable feet, a maximum load capacity of 600 kg and total dimensions of 600 x 800 mm (rack height 36U), providing a stable and spacious housing for servers, switches and other 19" equipment.

Advantages

The cabinet provides flexible cable entry options with brush inlets in the roof and base area, a slide-on inlet in the base chassis with foam rubber seal, and brush strips on the rear door to reduce dust ingress. A stepped removable top cover with ventilation slots improves air circulation and allows simple installation of a fan module. Vertical cable ducts with covers (available for 800 mm width) and additional depth struts increase cable management options, while electrostatic powder coating in RAL 7035 (grey) and RAL 9005 (black) ensures a durable finish. The design allows door hinge reversal and full disassembly for transport or installation.

Suitable for

• Server, switch and patch panel installations in small to medium data rooms
• Office network closets and telecommunications cabinets
• Equipment racks requiring organised cable management and ventilation
• Environments where a glass front door and secure, freestanding cabinet are needed

Key specifications

• Form factor: 19-inch network cabinet, freestanding
• Rack height: 36U
• External dimensions (W x D): 600 x 800 mm
• Material: steel construction, up to 1.5 mm sheet thickness
• Load capacity: up to 600 kg
• Protection class: IP20
• Door: tempered glass front door; modular removable side panels and doors
• Rails: two pairs of galvanised 19" profile rails, reversible and depth-adjustable
• Colour: grey (RAL 7035) — also available in black (RAL 9005)
• Weight: 76.1 kg

How to use

Position the freestanding cabinet on a level surface and adjust the feet for stability. Install equipment into the 19" profile rails, adjusting the rail depth as required and securing devices with appropriate rack screws. Route network and power cabling through the brush inlets, slide-on base inlet or vertical cable ducts to maintain organised wiring. Use the removable top cover and ventilation slots to mount fan modules if additional airflow is needed. The door hinge can be changed and panels removed to simplify installation and maintenance.

Рекомендации по использованию

Размещайте тяжелое оборудование в нижней части стойки для оптимального распределения нагрузки; при установке вентиляционных модулей соблюдайте последовательность воздушного потока для эффективного охлаждения. Регулярно проверяйте крепления и кабельные вводы, чтобы поддерживать безопасность и защиту сети.
