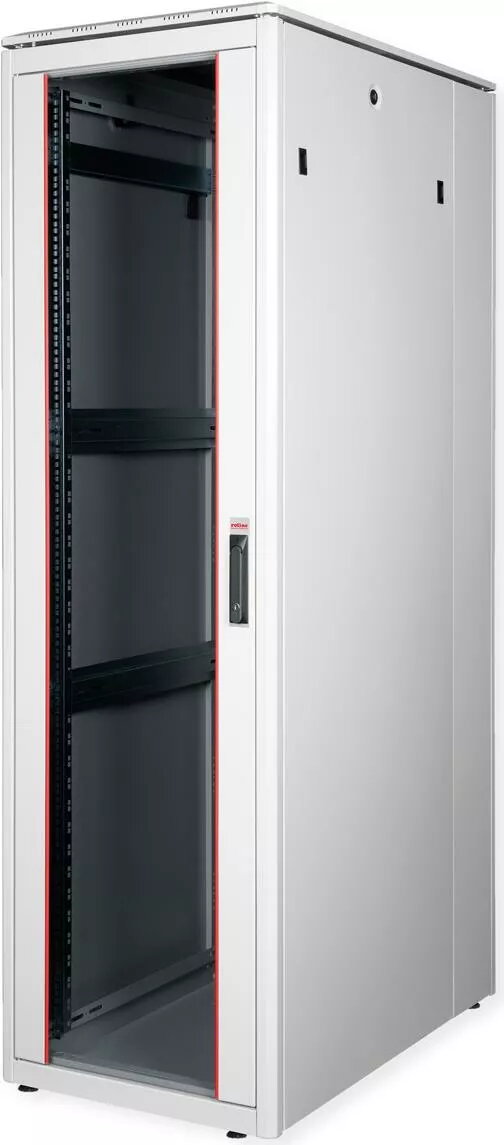

Freestanding rack ROLINE 19-inch Network Cabinet Pro 42U 600x1000 grey

The ROLINE 19-inch Network Cabinet Pro 42U 600x1000 grey is a freestanding steel rack designed to house and organise server, network and telecommunication equipment. With a load capacity of up to 600 kg and a usable height of 42U, this cabinet offers adjustable depth rails, removable side panels and doors, and an IP20 protection rating suitable for indoor network rooms, data closets and offices. The enclosure uses up to 1.5 mm sheet steel construction and an electrostatic powder coating in grey (RAL 7035) for durable surface protection. Built-in cable management features and ventilation-ready covers make it suitable for structured cabling and efficient airflow management.

Advantages

The cabinet combines a robust steel construction with modular accessibility: removable side panels, interchangeable door hinges and a completely dismantlable frame facilitate installation and maintenance. Two pairs of galvanised 19" profile rails are depth-adjustable and reversible, enabling flexible mounting of switches, servers and patch panels. Integrated brush inlets, slide-on base inlet with foam seal and vertical cable ducts (depending on width and height) support tidy cable entry and reduce dust ingress. The stepped removable top cover with ventilation slots allows for improved air circulation and straightforward fan module installation.

Suitable for

• Small and medium enterprise server rooms and comms closets
• Network distribution and patching of switches, routers and patch panels
• Mounting 19" rack servers, UPS units and power distribution
• Structured cabling installations requiring cable entry and vertical ducts

Key specifications

• Height: 42U usable rack space
• Footprint (external): 600 x 1000 mm
• Maximum static load capacity: 600 kg
• Material: up to 1.5 mm sheet steel construction
• Protection rating: IP20 (indoor use)
• Finish: electrostatic powder coating, grey (RAL 7035)
• Rails: two pairs of galvanised 19" profile rails, depth-adjustable and reversible
• Cable management: roof and base brush inlets, slide-on base inlet with foam seal, brush strips on rear door (available from certain sizes)
• Ventilation: stepped removable top cover with ventilation slots for fan module installation
• Adjustability: adjustable feet and adjustable rack rails

How to use

Place the freestanding cabinet on a level indoor surface and adjust the feet to ensure stability. Remove side panels or doors as needed to access the interior for mounting equipment. Install the 19" devices on the galvanised profile rails, adjusting the rail depth to match equipment depth and securing with appropriate rack screws. Route network and power cabling through the brush inlets or slide-on base inlet, using the vertical cable ducts where present to separate power and data runs. Use the removable top cover when adding fan modules to improve airflow. Reassemble panels and close doors after equipment and cabling are secured.

Usage recommendations

For optimal performance and longevity, distribute equipment weight evenly across the cabinet and secure heavier devices at lower U positions. Maintain clear airflow paths by leaving space for ventilation above and below high-heat devices, and consider installing dedicated fans in the top cover if heat density is high. Use recommended rack fastening hardware and follow local electrical and safety regulations when routing power and installing UPS or PDU units.
