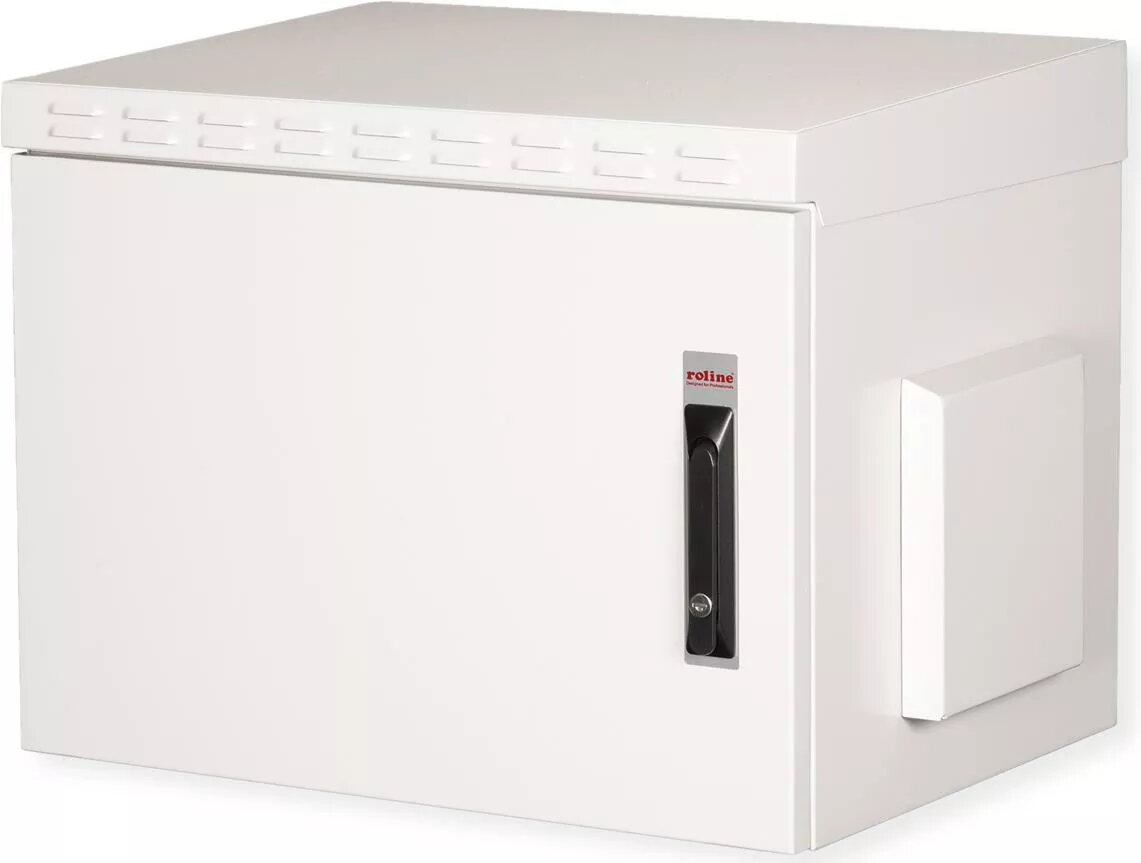

Wall mounted rack ROLINE Pro 7 U 600x450 IP55 grey

The ROLINE Pro 7 U 600x450 IP55 grey wall-mounted rack is an outdoor 19-inch enclosure designed for harsh environments. It provides IP55 protection, a robust steel construction up to 2.0 mm thick and a 7U mounting capacity. The cabinet is finished with electrostatic powder coating in RAL 7035 grey and is supplied with mounting brackets for wall installation. Inside there are galvanised, front-reversible 19" profile rails (one pair for depths under 600 mm, two pairs from 600 mm depth) that are depth-adjustable. The roof chassis includes a filtered area for an optional fan module and the enclosure uses insulated PG cable glands.

Advantages

The enclosure offers IP55 protection suitable for outdoor use and a 3-point locking system with a lockable swivelling handle for secure access. Integrated ventilation filter housings provide IP54-level protection for ventilation openings, and the steel construction with powder-coated finish ensures mechanical durability and corrosion resistance. The depth-adjustable galvanised rails and provision for fan mounting simplify installation and equipment cooling. The unit can be installed on a wall using supplied brackets or converted to free-standing or pole-mounted use with optional accessories.

Suitable for

• Mounting and protecting 19-inch network and telecom equipment outdoors
• Environments exposed to rain, hail, splash water and dust
• Small server, switch or patch panel installations requiring 7U of rack space
• Outdoor CCTV, access control or remote network cabinets

Key specifications

• Brand: Secomp; MPN: 26.21.0082; EAN: 7630049600836
• Type: 19" wall-mounted rack, 7U
• External dimensions (W x D): 600 x 450 mm
• Protection class: IP55 (ventilation filters provide IP54 protection for vents)
• Material: steel, up to 2.0 mm thickness; colour: RAL 7035 (grey), electrostatic powder coating
• Locking: 3-point locking system with lockable swivelling handle
• Cable entries: insulated PG cable glands
• Internal rails: galvanised 19" profile rails, depth-adjustable, reversible; one pair (two pairs from 600 mm depth)
• Roof: filtered area for fan module installation
• Weight: approx. 31 kg

How to use

Install the rack on a solid wall using the supplied mounting brackets, ensuring correct anchoring for the wall material and the combined weight of the cabinet and equipment. Fit 19" equipment to the galvanised profile rails and adjust the rail depth as required. Use the filtered roof area if active ventilation is needed and install an appropriate fan module. Route cables through the insulated PG glands and secure the swivelling handle; use the 3-point locking system to lock the cabinet when access is not required. For alternative installation, fit the optional base for free-standing use or use the pole-mounting set to attach the cabinet to poles.

Usage recommendations

To maintain IP55 performance, verify that cable gland seals and filter housings are correctly installed and periodically inspect filters and seals for contamination or damage. Select mounting anchors and accessories appropriate for the wall type and expected environmental loads.
