Wall mounted rack ROLINE Pro 16 U 600x450 IP55 outdoor grey

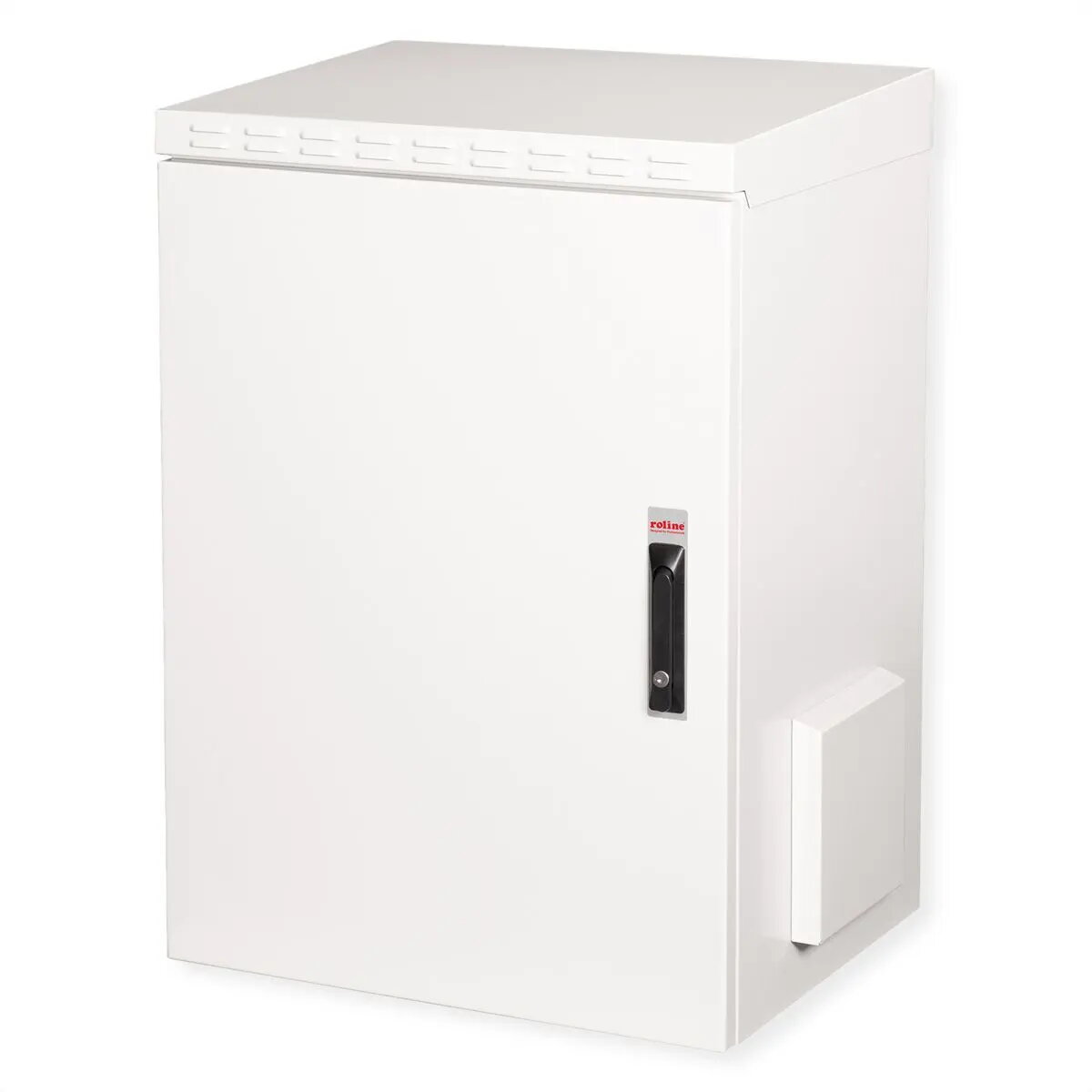

The ROLINE Pro 16 U wall-mounted rack is an outdoor network enclosure with IP55 protection class, developed for harsh environments and outdoor installations. It provides a 16U 19-inch mounting space with internal depth of 600 mm and external width of 450 mm, and is built from robust steel up to 2.0 mm thick. The housing is electrostatically powder-coated in grey (RAL 7035) and can be mounted to a wall using the supplied brackets; optional accessories allow pole mounting or conversion to a free‑standing base.

Advantages

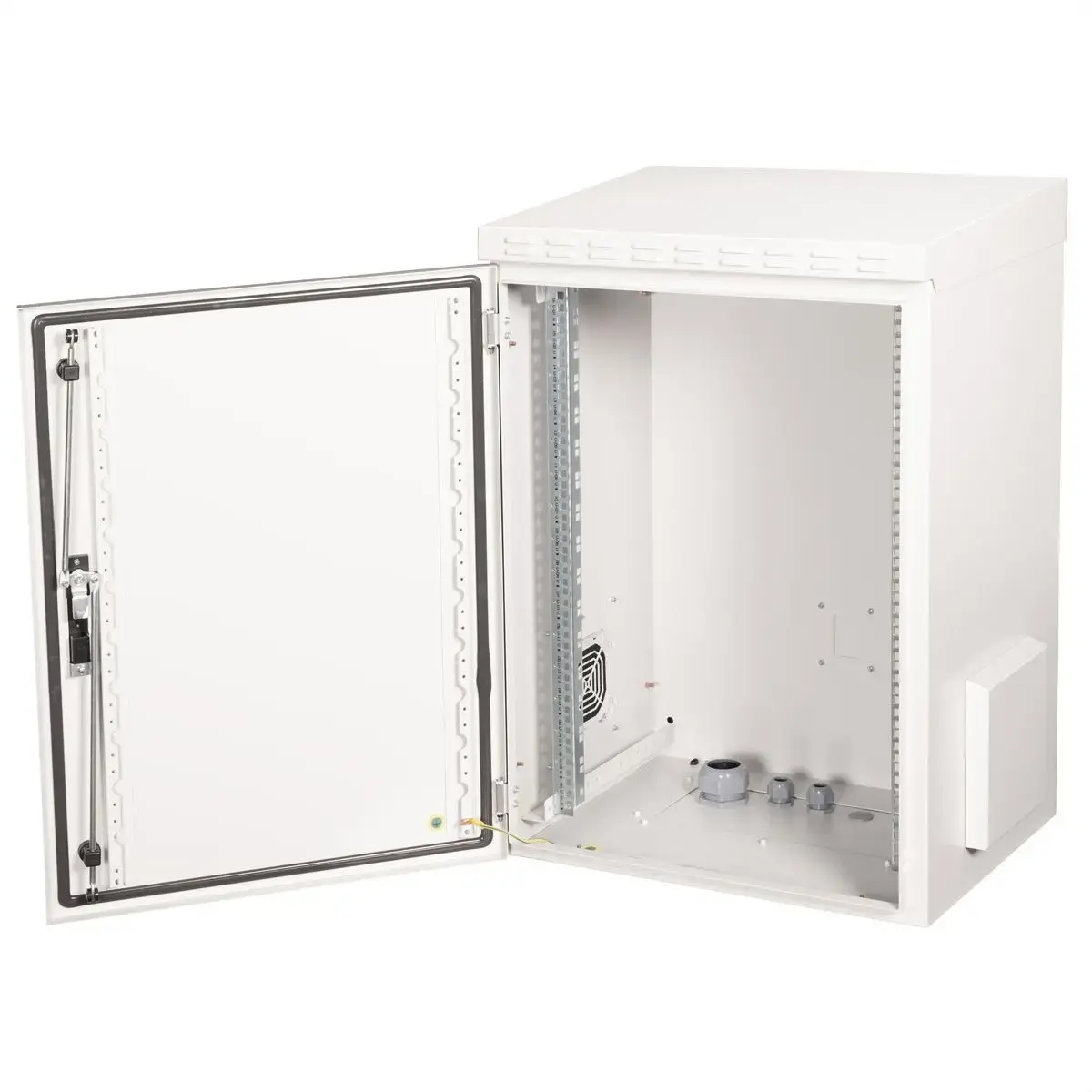

The enclosure offers a 3-point locking system with a lockable swivelling handle, insulated PG cable glands and integrated ventilated filter housings that maintain airflow while protecting against water and dust to IP54. A roof area is prepared for a fan module, and one pair (two pairs for 600 mm depth and above) of galvanised, depth-adjustable 19" profile rails are included. Designed for outdoor exposure, it withstands rain, hail and splash water while providing secure, organised mounting for network components.

Suitable for

• Outdoor network equipment installations (routers, switches, PoE devices)
• Wall-mounted telecommunications and security equipment
• Small to medium rack-mounted systems requiring 16U of space

When it may not be suitable

This enclosure is not intended for fully submerged or high-pressure water environments; its IP55 rating protects against dust and water jets but not continuous immersion. Very large or heavy server racks exceeding 16U or requiring greater internal width/depth may not fit; check device dimensions against the 600×450 mm internal footprint.

Key specifications

• Rack units: 16U
• 19" mounting rails: galvanised, reversible and depth-adjustable (pair; two pairs at 600 mm depth and above)
• Internal depth: 600 mm
• External width/depth reference: 600×450 mm (B×T)
• Protection class: IP55 (enclosure), ventilated filter housings rated to IP54
• Material: steel construction up to 2.0 mm thickness
• Surface finish: electrostatic powder coating, grey RAL 7035
• Locking: 3-point locking with lockable swivelling handle
• Cable entry: insulated PG cable glands
• Cooling provision: roof area prepared for fan module installation
• Mounting: wall brackets included; optional base or pole-mount accessories available
• Weight: approximately 41 kg

How to use

Fix the supplied mounting brackets securely to a suitable wall that can support the enclosure weight and mounted equipment. Install the galvanised 19" profile rails at the required depth and orient them as needed. Route cables through the insulated PG glands and secure them. Use the ventilated filter housings and, if required, install a fan module in the roof area to manage airflow. Lock the front door using the 3-point locking handle to protect equipment from unauthorized access and environmental exposure.

What to consider before purchase

• Confirm that your rack-mount devices fit within 16U and the 600×450 mm internal footprint
• Ensure the wall or mounting surface can support the cabinet plus installed equipment (approx. 41 kg empty)
• Decide if additional cooling (fan module) or pole/base mounting accessories are required
• Verify that IP55 protection level meets site-specific environmental conditions

Usage recommendations

For reliable outdoor operation, mount the cabinet under minimal direct exposure where possible, maintain the ventilation filters regularly, and use the provided insulated cable glands to preserve the IP rating.
