Wall mounted rack ROLINE 26.21.0128 4U Grey 80 kg capacity

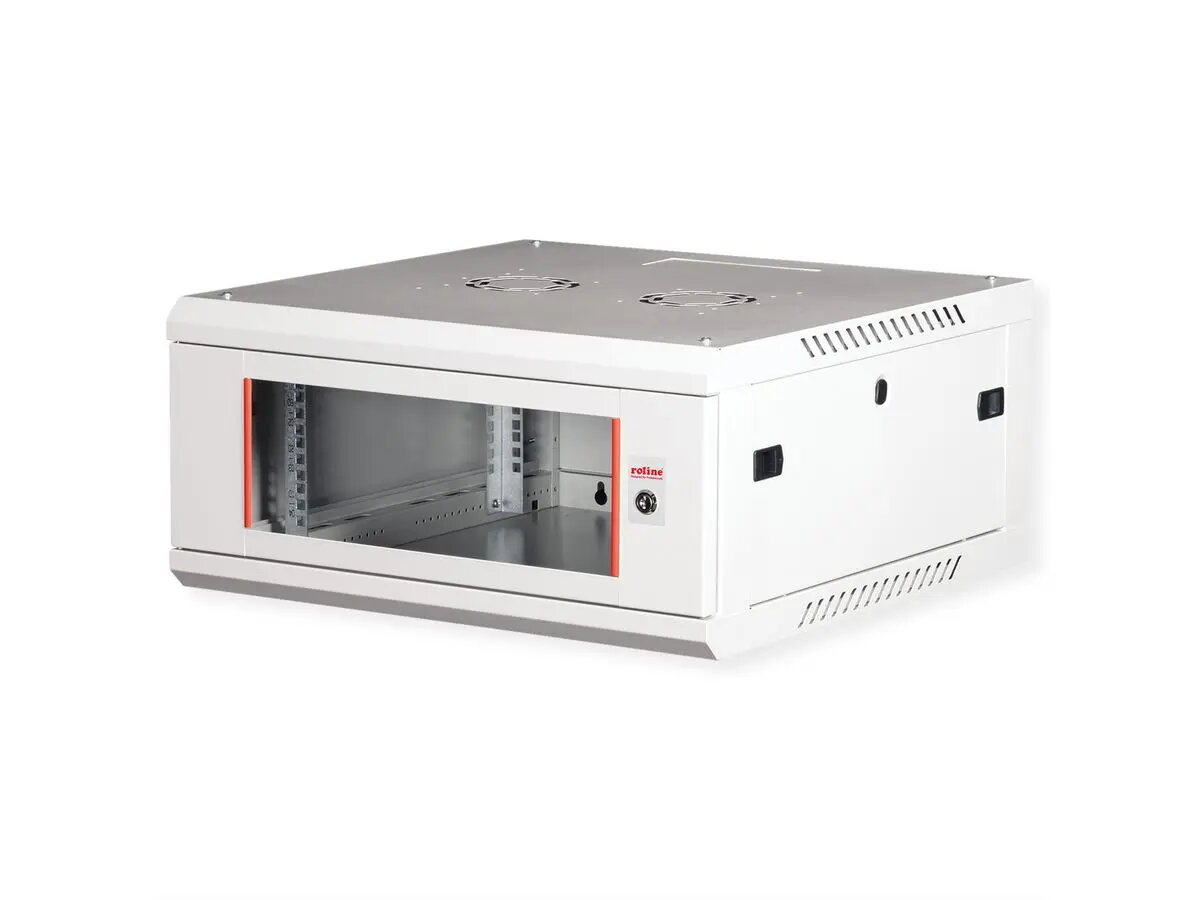

The ROLINE 26.21.0128 wall-mounted rack is a 4U enclosure designed for compact and flexible network cabling. With an 80 kg maximum load capacity and IP20 protection, this grey (RAL 7035) steel cabinet provides adjustable 19" galvanised profile rails and depth-adjustable mounting to accommodate various network or server equipment. The base plate and roof include punched cable inlets, and the roof has a removable punched area for an optional fan module. Side panels feature quick-release fasteners and can accept an optional lock. Wall installation is performed by first fixing the rear panel to the wall and then attaching the cabinet; the unit can also be made free-standing using optional levelling feet or castors.

Advantages

The cabinet combines durability and flexibility through a robust sheet-steel construction with powder-coating, adjustable galvanised 19" rails, and multiple cable inlet options. Quick-release removable side panels improve accessibility for installation and maintenance, while the roof’s fan module cutout and optional locks provide adaptability for different operating environments. Wall-mounting with the separate rear panel simplifies installation, and optional feet or castors allow conversion to a free-standing unit.

Suitable for

• Small server rooms and communication cabinets
• Office network equipment and patch panels
• Wall-mounted switches, routers and low-profile servers
• Environments requiring compact, space-saving rack installations

Key specifications

• Model: ROLINE 26.21.0128
• Form factor: 4U wall-mounted rack
• Load capacity: 80 kg
• Protection class: IP20
• Colour: Grey (RAL 7035)
• Material: Powder-coated sheet steel
• Rail type: Galvanised profile rails, 483 mm (19"), depth-adjustable
• Cable entry: Punched inlet in base plate and roof; roof has punched-out area for fan module

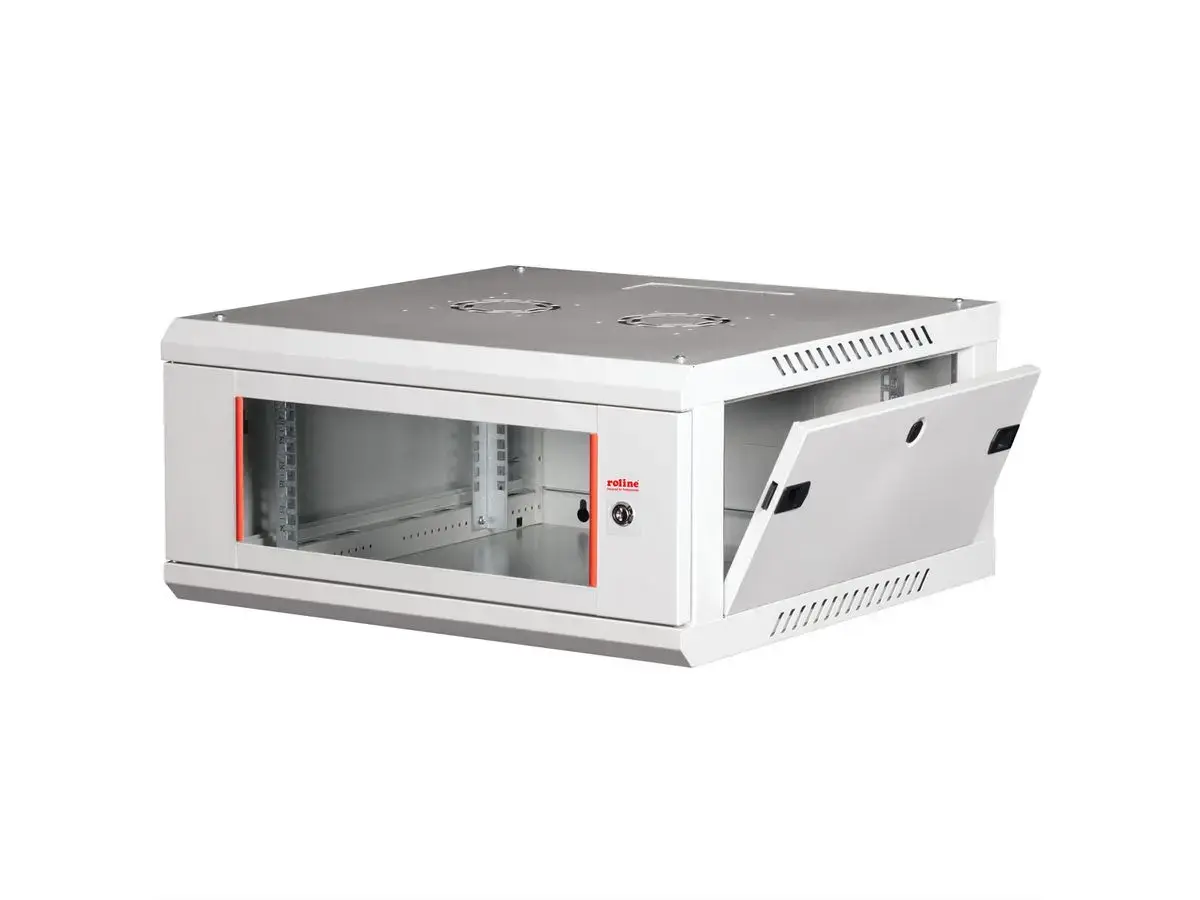

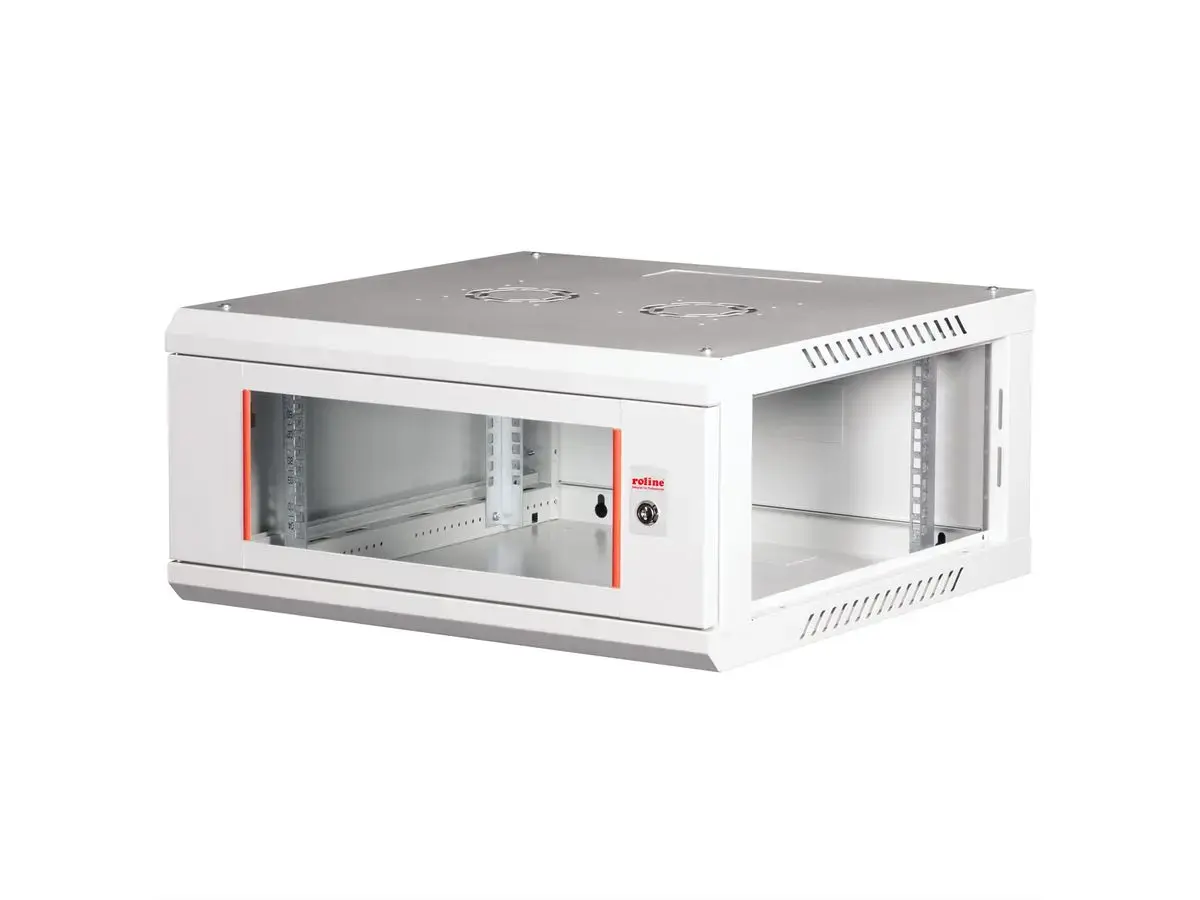

• Side panels: Removable with quick-release fasteners; optional lock possible
• Mounting: Rear panel fixed to wall then connected to housing; optional levelling feet or castors for free-standing use
• Brand: Secomp
• MPN: 26.21.0128
• EAN: 7630049601314

How to use

Fix the rear panel securely to a suitable wall structure using appropriate anchors and screws for the wall material. Attach the cabinet housing to the mounted rear panel, adjust the depth of the 19" galvanised rails as needed, and secure equipment in the rails. Route cables through the punched inlets in the base plate or roof; if active cooling is required, install a compatible fan module in the roof’s punched-out area before closing the cabinet. Use the quick-release side panels to access internal equipment during installation and maintenance, and fit the optional lock if physical access control is needed.

Usage recommendations

Mount the rack on a solid wall capable of supporting the combined weight of the cabinet and installed equipment (up to 80 kg). Verify clearance for ventilation and cable routing, and use appropriately rated fixings and earthing as required by local installation standards.
