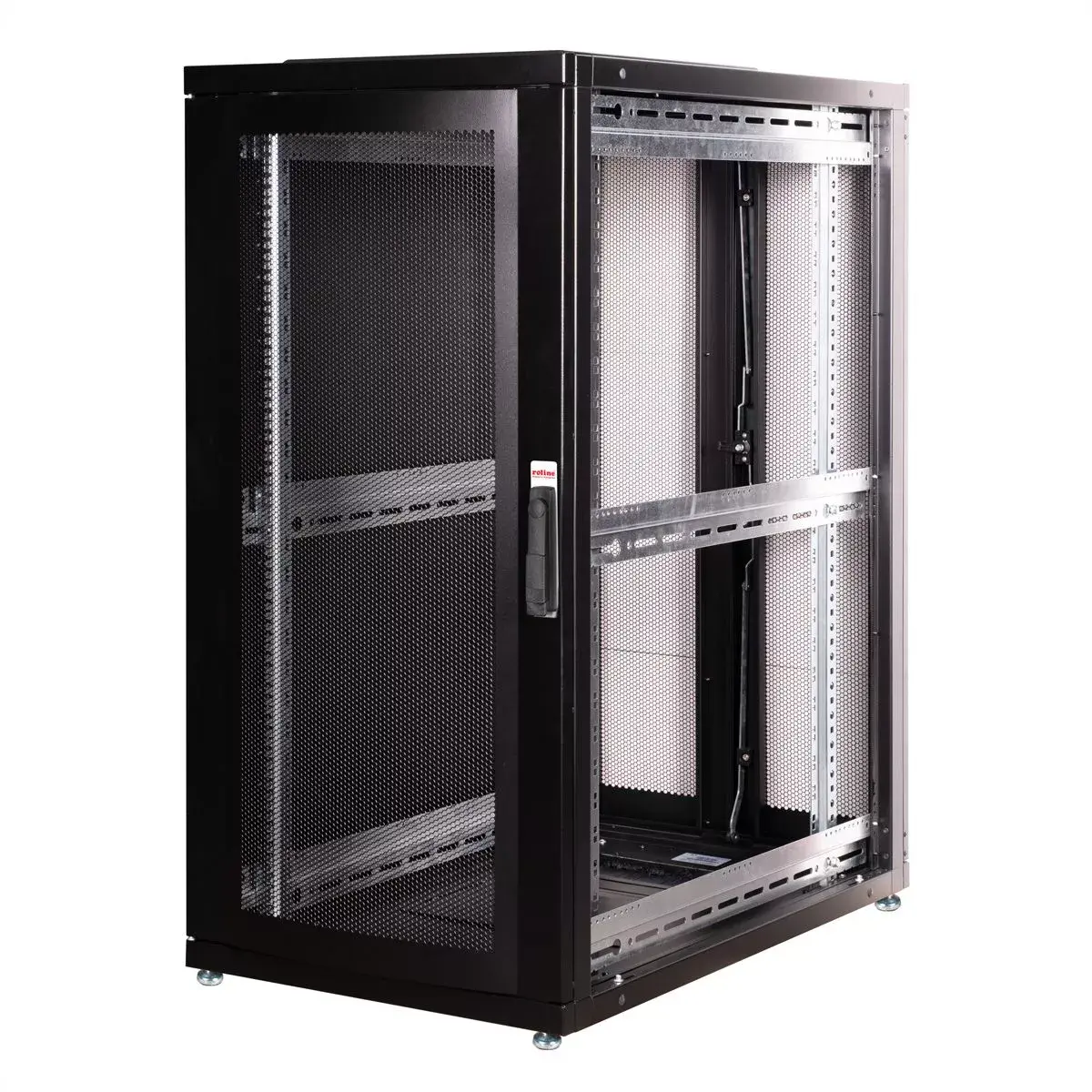

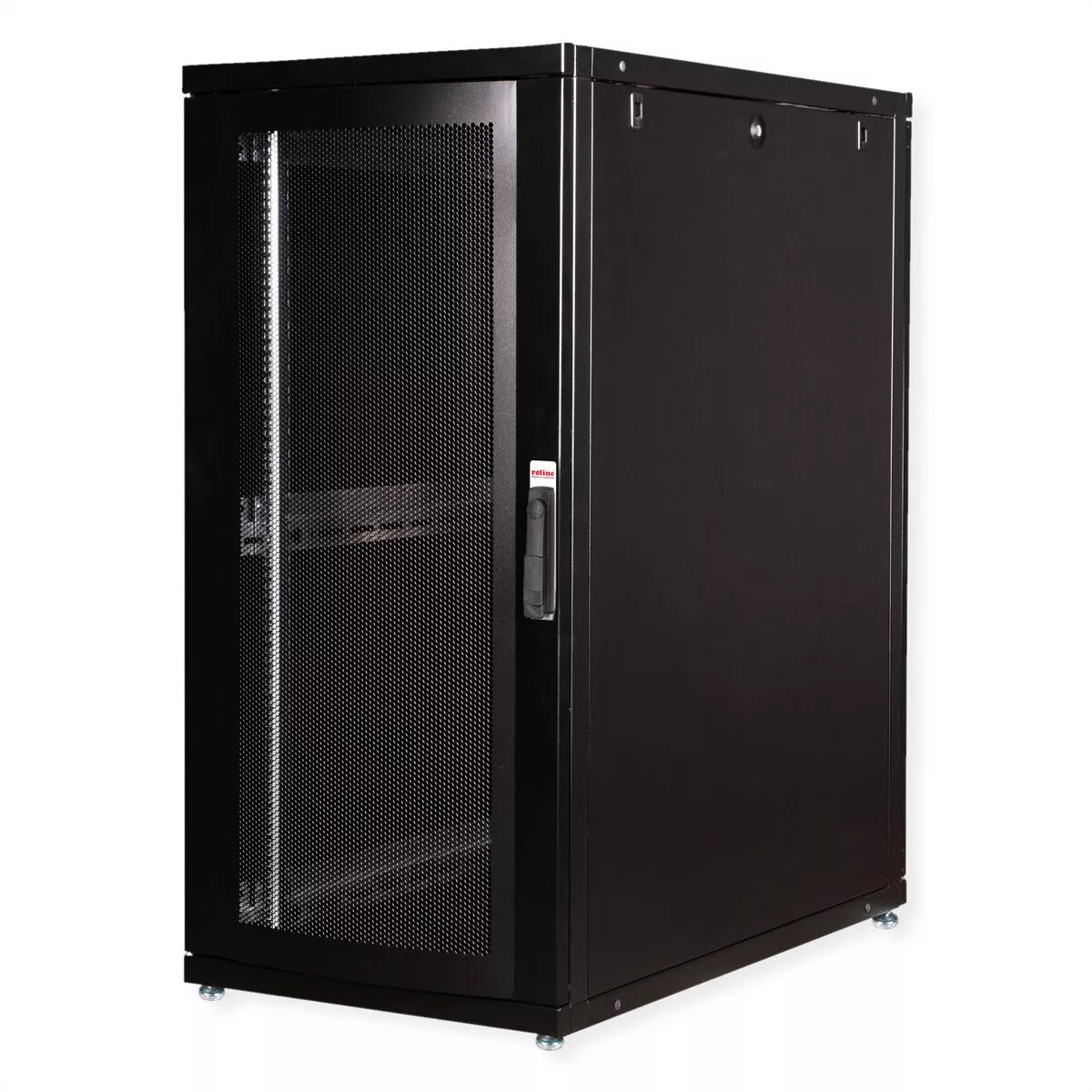

Freestanding rack ROLINE Pro 26 U 600x1000 black 1000 kg

The ROLINE Pro 26 U 600x1000 black freestanding rack is a 19-inch server enclosure designed for secure and flexible network cabling and server installation. It provides 26U of usable rack space, a maximum load capacity of 1000 kg and an IP20 protection rating. The cabinet is made from robust steel with panels powder-coated in black (RAL 9005) and includes adjustable feet for stable placement.

Advantages

This rack offers flexible cable entry options including side inlets with brushes, a slide-on inlet with foam rubber seal and an additional brush inlet in the base (available from 800 mm enclosure width), facilitating neat and protected cabling. Perforated single-leaf front door and double-leaf rear doors with swivel handles and profile half cylinders improve airflow. The perforated roof cover allows simple installation of a fan module. Inside, two pairs of galvanised 19" profile rails with height markings readable in both directions are depth-adjustable and connected with depth braces. Modular lockable and removable side panels and changeable door hinges increase accessibility and serviceability. The cabinet can be dismantled for transport or installation in confined spaces.

Suitable for

• Server rooms and data closets requiring a 26U 19" rack
• Network equipment, switches and rack-mounted servers up to 1000 kg total
• Environments needing organized cable management and added airflow
• Installations where removable panels and transport-friendly dismantling are useful

Key specifications

• Form factor: 19" freestanding rack, 26U
• External dimensions (W×D): 600 × 1000 mm
• Maximum load capacity: 1000 kg
• Material: steel, up to 2.0 mm thickness
• Finish: electrostatic powder coating, black (RAL 9005)
• Protection rating: IP20
• Weight: 82 kg
• Internal mounting: two pairs of galvanised 19" profile rails, depth-adjustable with readable U markings

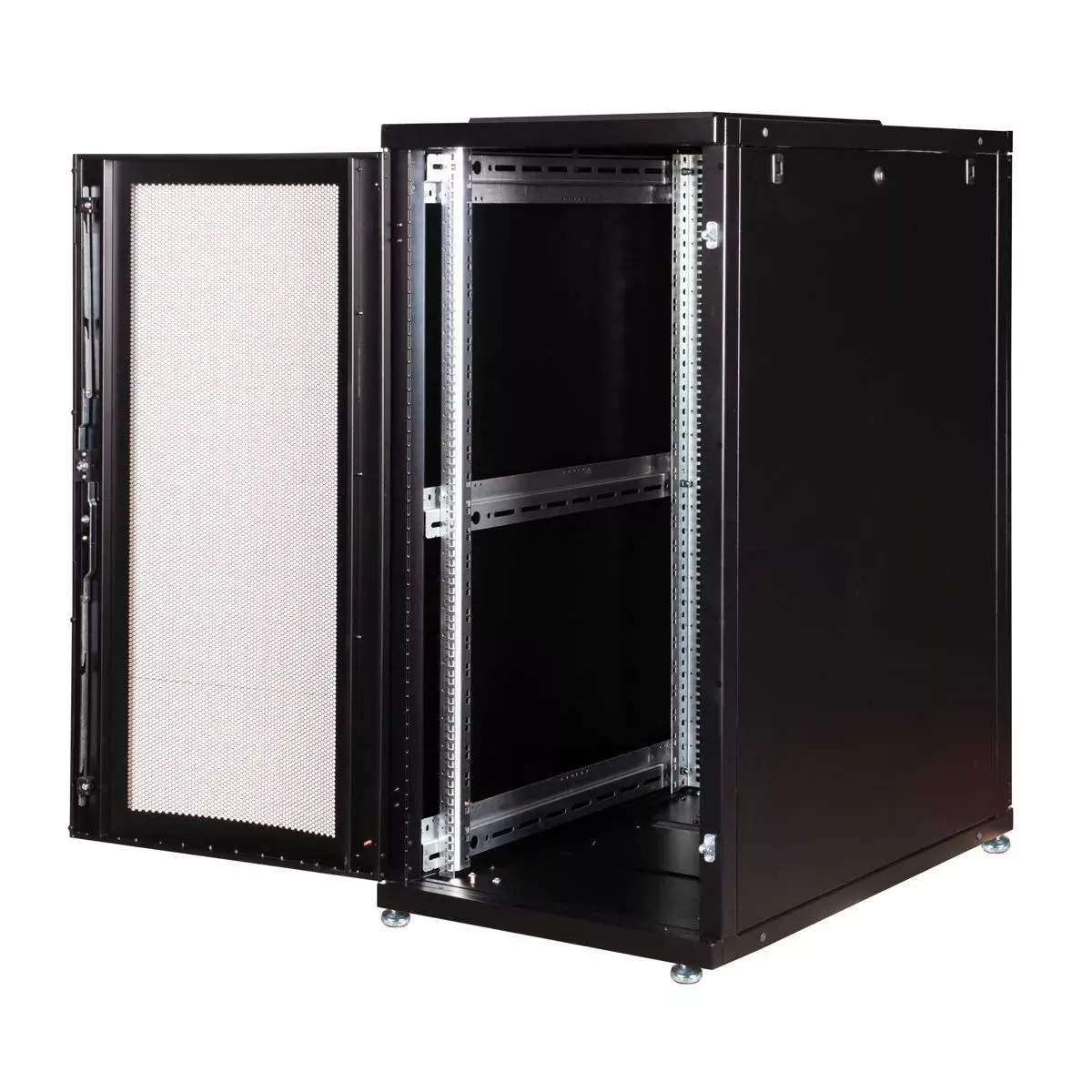

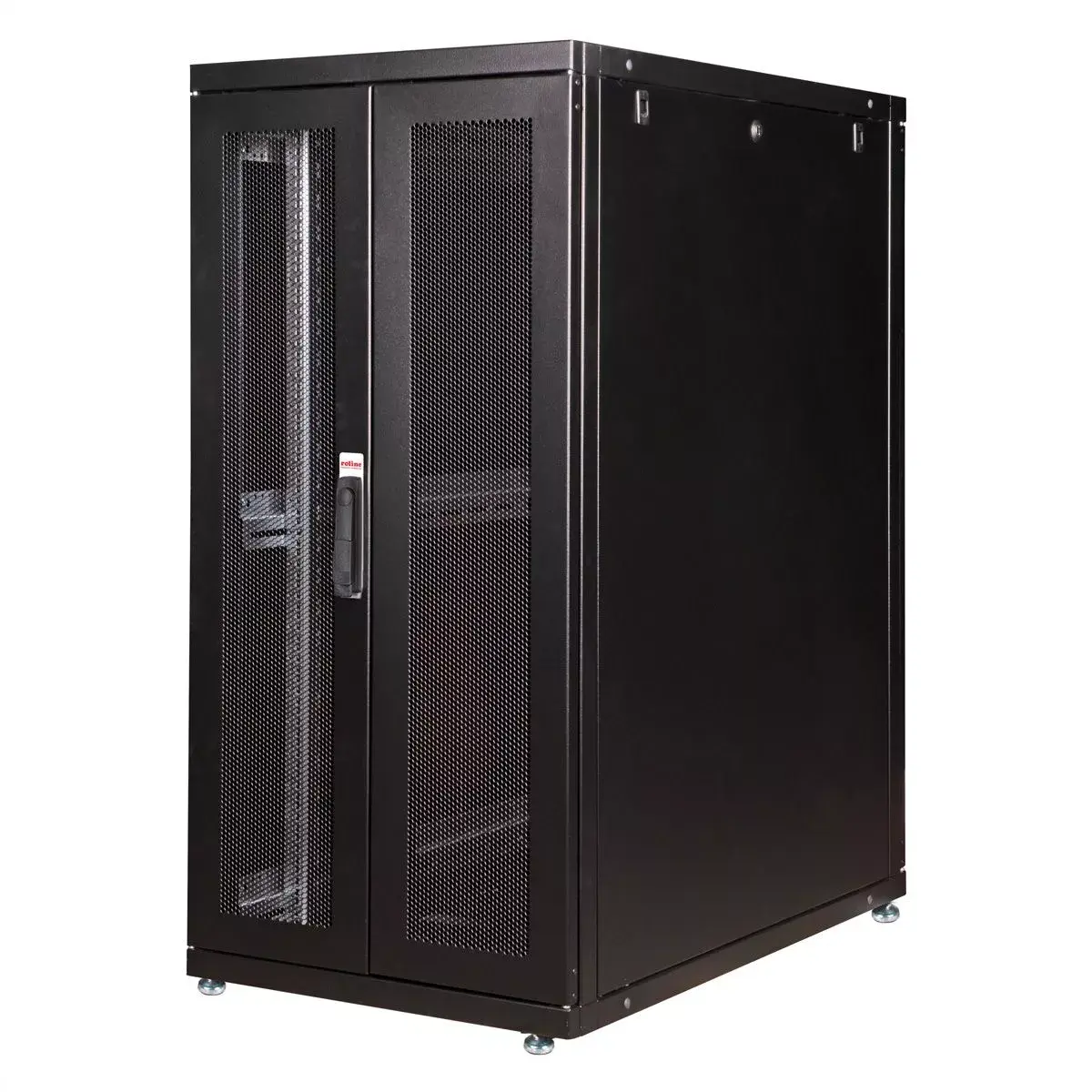

• Doors: perforated single-leaf front door, perforated double-leaf rear doors with swivel handles and profile half cylinders
• Cable entries: brush inlets on sides of roof and base, slide-on inlet with foam seal

How to use

Place the rack on a level surface and adjust the feet for stable alignment. Mount rack equipment on the internal 19" profile rails using standard rack screws; adjust rail depth as needed and secure with the provided depth braces. Route cables through the brush inlets and slide-on inlet with foam seal to reduce dust ingress and maintain cable organization. Install fan modules into the perforated roof cover if additional ventilation is required. Use the lockable doors and removable side panels to control access and perform maintenance.

Usage recommendations

For optimal airflow and load distribution, position heavy equipment on lower U positions, allow clearance at the front and rear for ventilation, and regularly check that rail depth braces and door hinges are tightened. Observe the 1000 kg maximum load rating and distribute weight evenly across the rack.
