Freestanding rack ROLINE Pro 26 U 600x1000 grey 1000 kg

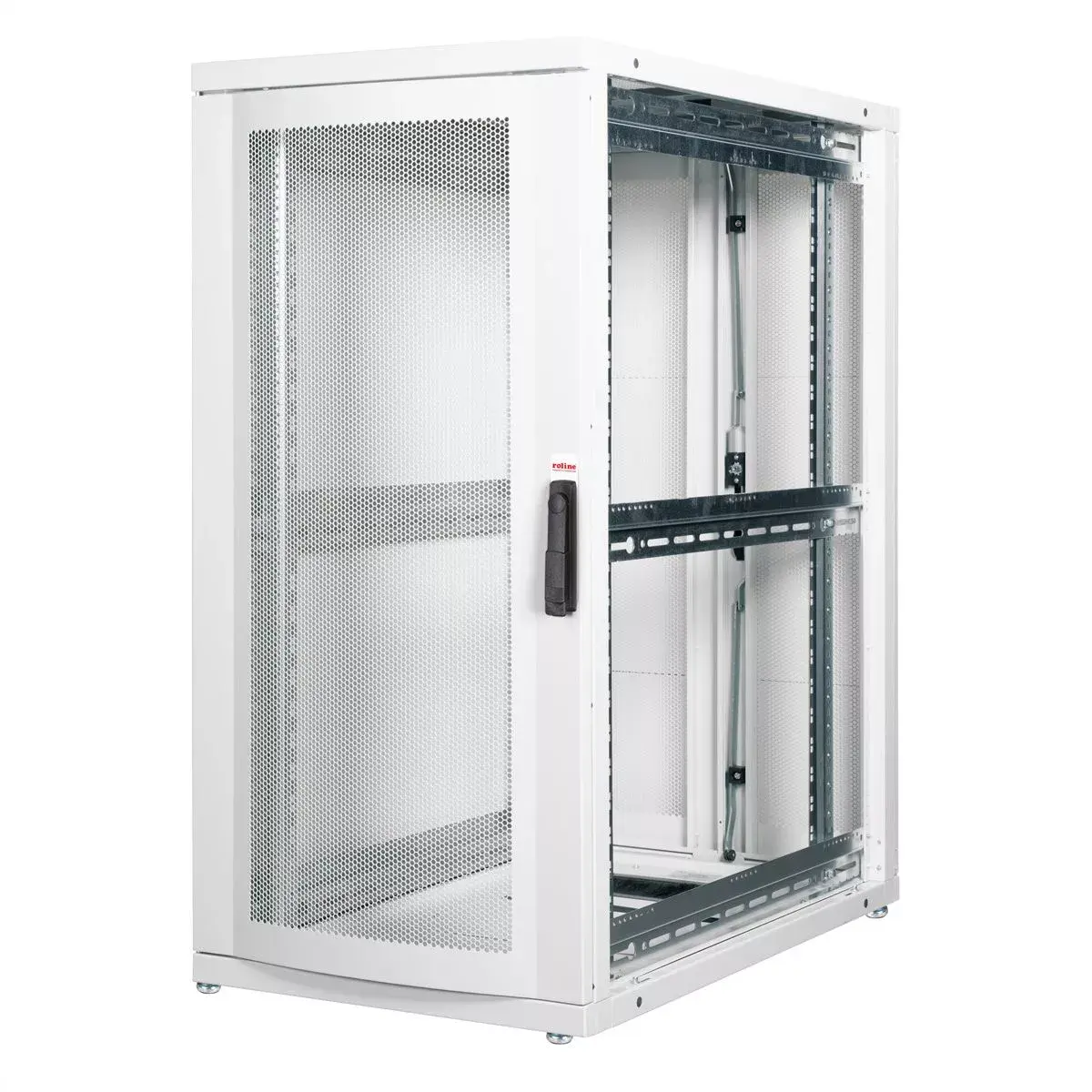

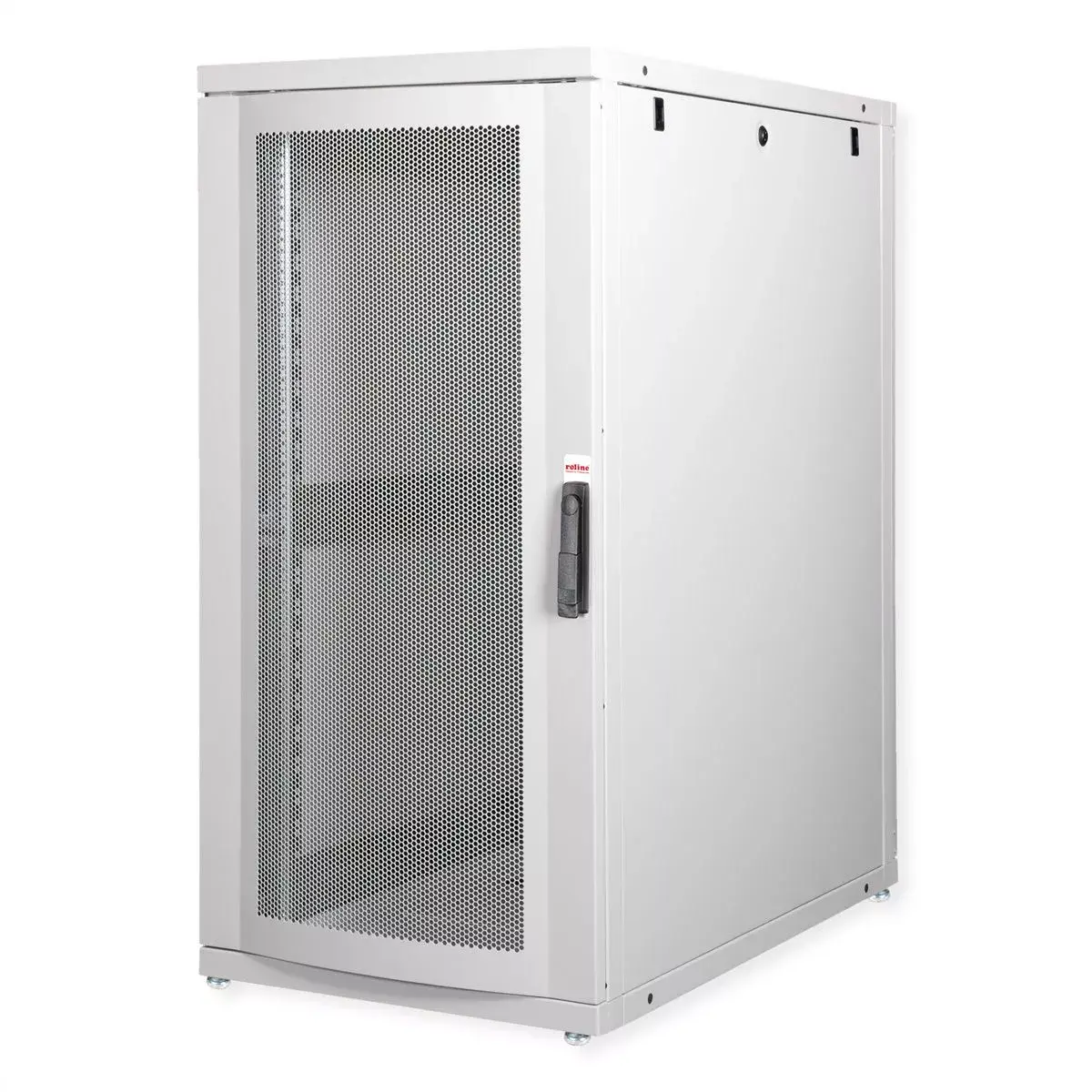

The ROLINE Pro 26U freestanding server rack (600x1000 mm) is a robust 19" enclosure designed for server and network cabling with a load capacity of up to 1000 kg and an IP20 protection rating. The cabinet features perforated front and rear doors for improved airflow, a perforated roof for fan module installation, and side and base cable inlets with brushes and a slide-on inlet with foam rubber seal. Internally, two pairs of galvanised 19" profile rails with reversible U-unit markings and adjustable depth are installed and connected with depth braces. The cabinet is constructed from steel (up to 2.0 mm thickness), powder-coated in grey (RAL 7035), and includes adjustable feet and modular removable side panels for accessibility.

Advantages

The rack offers high load capacity and stable construction suitable for heavy equipment, flexible cable entry options on roof and base, and improved ventilation through perforated doors and roof. Adjustable and depth-readable 19" rails simplify equipment mounting, while modular lockable side panels and replaceable door hinges provide easy access and maintainability. The electrostatically applied powder coat enhances surface durability.

Suitable for

• Installation of servers, switches and patch panels in data centres and server rooms
• Network and telecommunications equipment mounting in office technical rooms
• Environments requiring a stable freestanding rack with up to 1000 kg load capacity

Key specifications

• Form factor: Freestanding 19" rack, 26 U
• External dimensions (W x D): 600 x 1000 mm
• Maximum load capacity: 1000 kg
• Material: Steel, up to 2.0 mm thickness
• Finish: Powder-coated, grey RAL 7035
• Protection rating: IP20
• Weight: 82 kg
• Cable entry: Side and base inlets with brushes; slide-on inlet with foam rubber seal

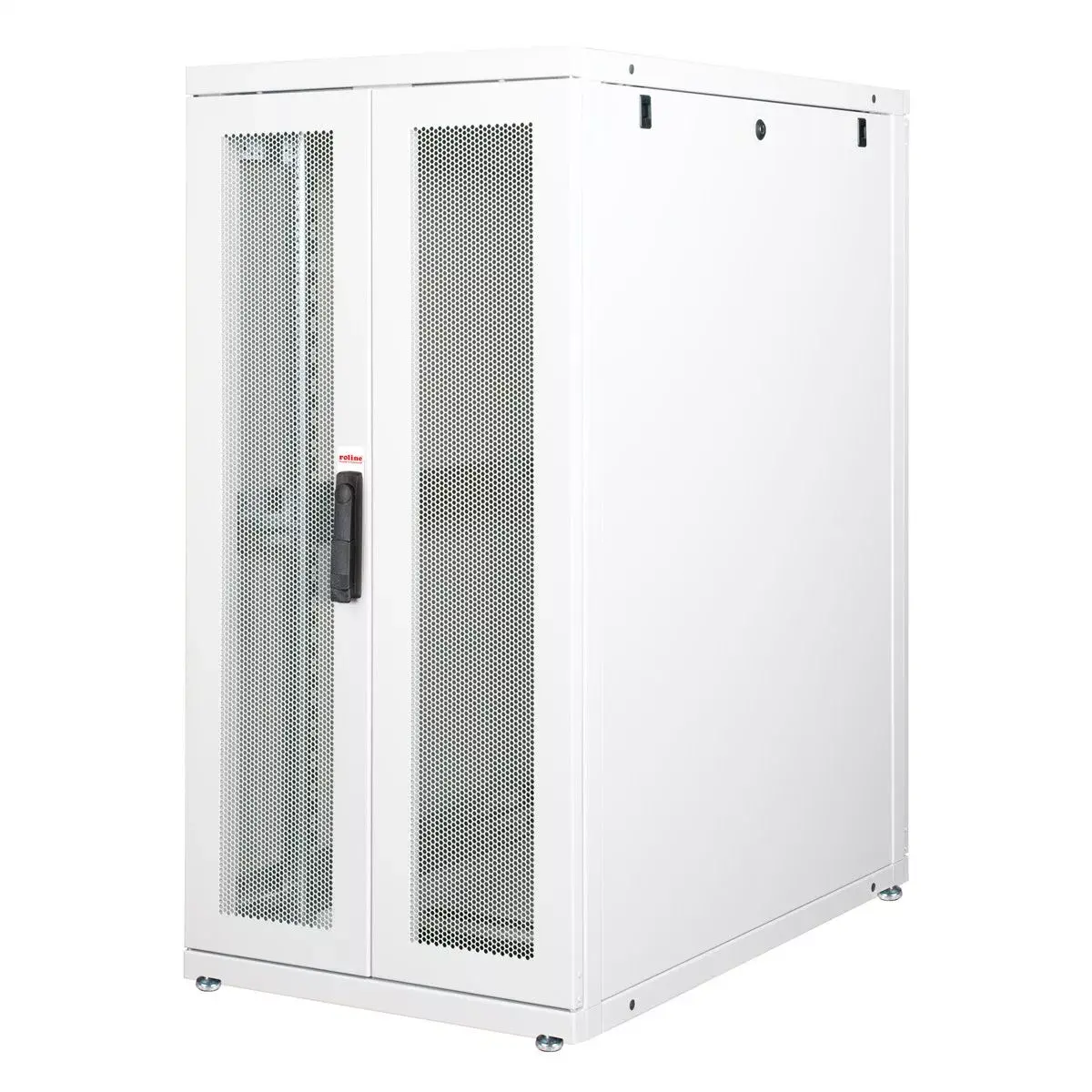

• Doors: Perforated single-leaf front door; double-leaf perforated rear door with swivel handle and profile half cylinder

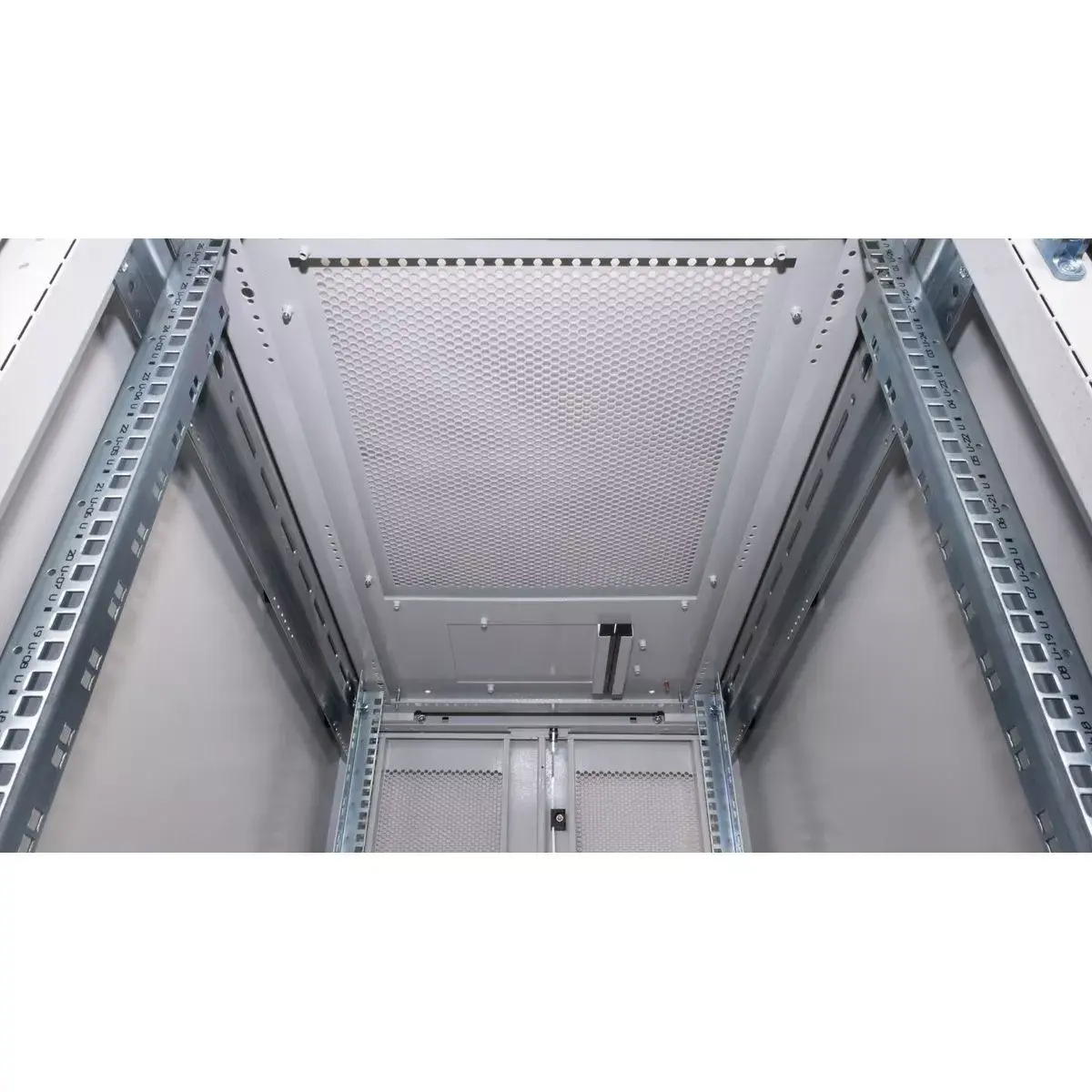

• Rails: Two pairs galvanised 19" profile rails, adjustable depth, U-unit markings readable in both directions

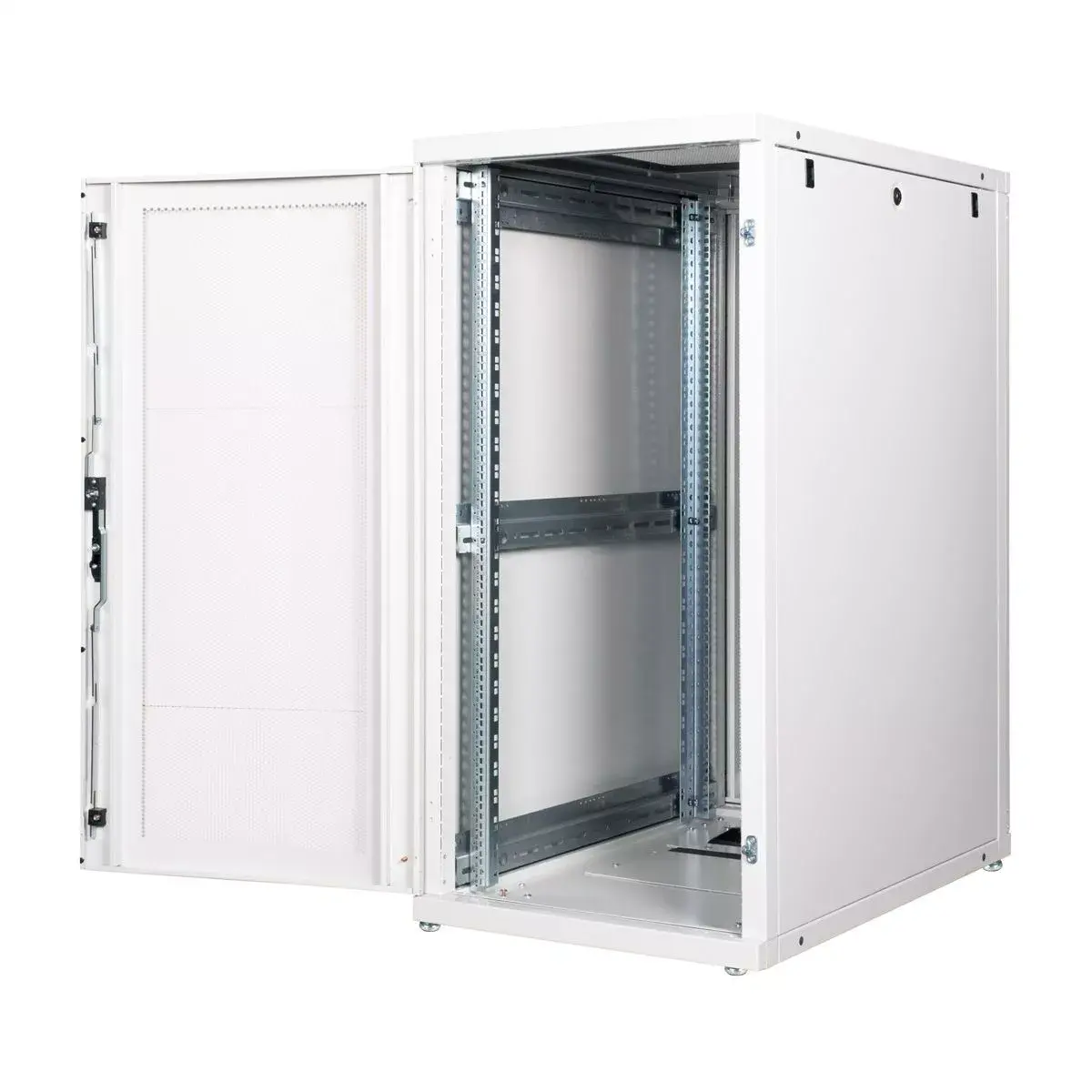

• Side panels: Modular, lockable, removable (horizontally divided from 42U — note: division applies to larger sizes)

How to use

Position the rack on a level surface and adjust the feet to ensure stability. Route cables through the roof or base brush inlets or the slide-on inlet with foam seal to maintain cable organisation and dust protection. Mount equipment on the galvanised 19" profile rails, set the required depth and secure with appropriate screws and cage nuts. Use the perforated doors and roof to manage airflow; install fan modules into the perforated roof if additional cooling is required. Side panels and doors can be removed or unlocked for maintenance and installation tasks.

Usage recommendations

For optimal performance, distribute heavy equipment evenly across rack units, ensure proper airflow front-to-back, and secure the rack to the floor or a stabilising structure if installed in high-traffic or seismic areas. Regularly check and maintain door hinges, locks and brush inlets to retain accessibility and cable protection.
