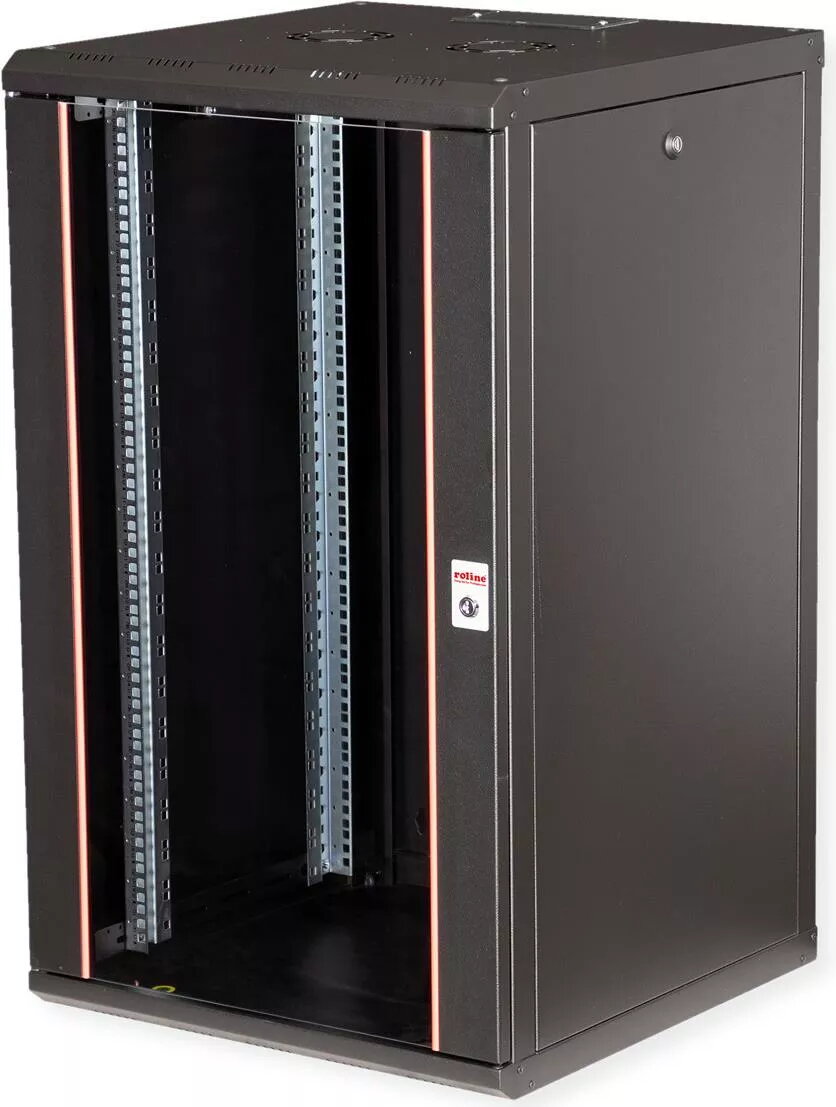

Wall mounted rack ROLINE Pro 20 U 600x600mm black

The ROLINE Pro 20U 600x600mm wall-mounted rack is a 19-inch enclosure designed for secure and organised network cabling and equipment storage. It provides 20U of mounting height, a keyed lock for access control and IP20 protection. The enclosure is constructed from robust sheet steel with a powder-coated finish and includes adjustable 19" profile rails and multiple cable entry points for flexible installation.

Advantages

The cabinet combines a compact footprint with a 20U mounting capacity, adjustable depth rails and several cable inlets for neat cable routing. Its steel construction (up to 1.5 mm thick) and powder coating in black (RAL 9005) ensure mechanical stability and surface protection. The modular, lockable and removable side panels and front door improve accessibility for maintenance, while the roof’s slide-on cable inlet with foam seal and punched rear/base openings simplify cable entry. A punched area in the roof accommodates an optional fan module.

Suitable for

• Small server rooms and network closets with limited floor space
• Telecommunications and networking equipment installation
• IT racks for switches, patch panels and 19" devices up to 20U
• Wall-mounted applications requiring IP20 protection and locking

Key specifications

• Brand: Secomp (ROLINE Pro series)
• Model / MPN: 26.21.0179
• EAN: 7630049601826
• Rack units: 20U (483 mm per 19" standards)
• Dimensions (W x D): 600 x 600 mm
• Protection rating: IP20
• Material / Thickness: sheet steel up to 1.5 mm, powder-coated (black RAL 9005)
• Weight: 43 kg
• Features: adjustable depth galvanised 19" profile rails, slide-on roof cable inlet with foam seal, punched cable inlets with plastic covers, removable and lockable panels and front door, roof prepared for fan module

How to use

Mount the rear panel to a suitable load-bearing wall using appropriate fasteners and then attach the cabinet housing to the secured rear panel. Adjust the depth of the galvanised 19" profile rails to fit the installed equipment and secure devices with standard 19" mounting hardware. Route cables through the slide-on roof inlet or the punched rear/base openings and seal as required. If a fan module, levelling feet or castors are needed, install them in the prepared roof area or at the base following the manufacturer’s instructions.

Usage recommendations

The enclosure is intended for indoor use in dry, dust-controlled environments consistent with IP20 protection. Ensure wall fixings support the cabinet weight with installed equipment, and maintain ventilation if high-power devices are used. Use the keyed lock to restrict physical access and secure cable entry points to maintain neat and safe cabling.
