Type:
Characteristics of the device.
-

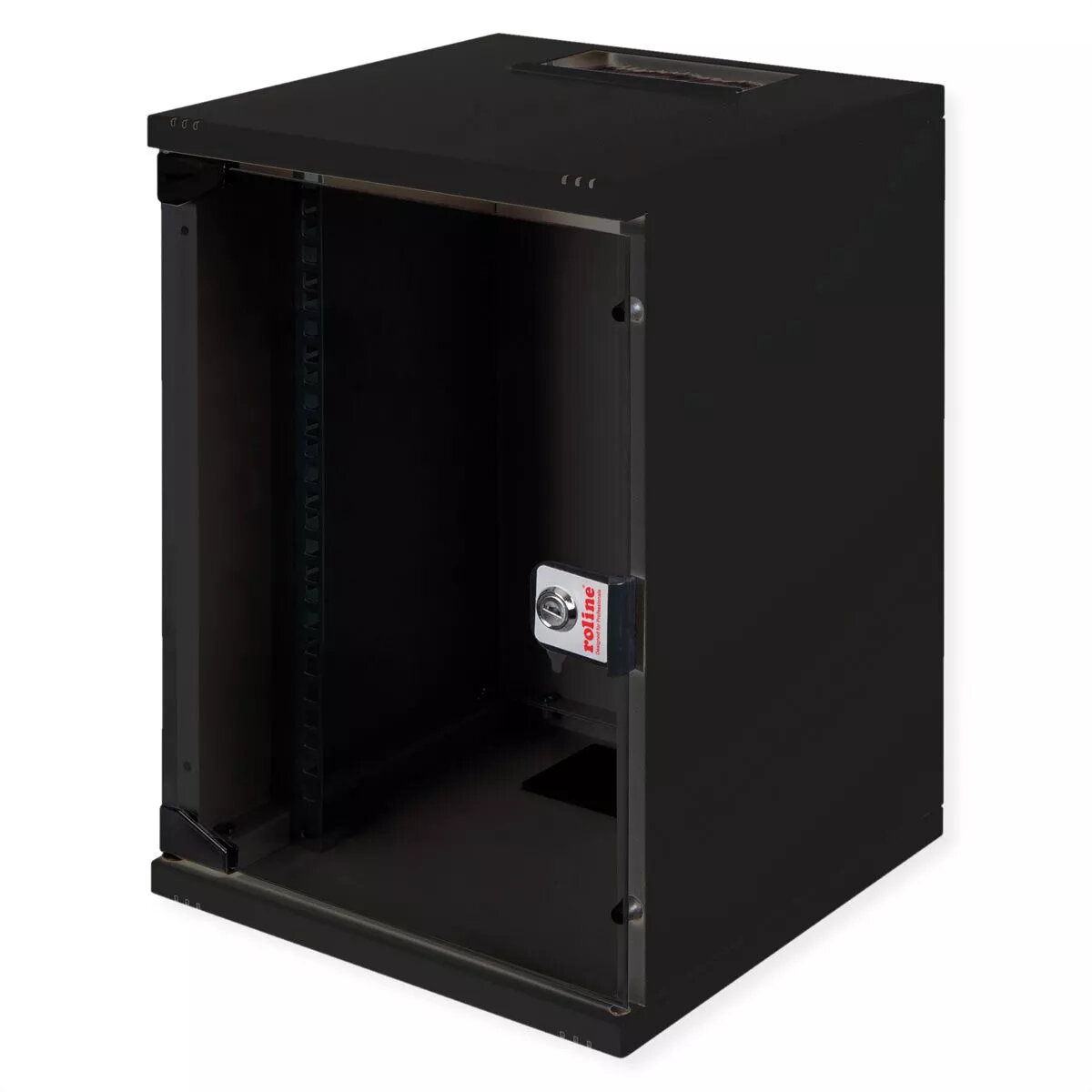

Wall mounted rack
-
Weight:
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
-
6.77 kg
-
Package weight:
Weight of the packaged product.
-
7560 g
-
Material:
The material from which a thing is or can be made e.g. wood, plastic.
-
Steel
-
Size (imperial):
Physical dimension.
-
10 "
-
Height:
The measurement of the product from head to foot or from base to top.
-
464 mm
-
Width:
The measurement or extent of something from side to side.
-
300 mm
-
Depth:
The distance from the front to the back of something.
-
300 mm
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
Black
-
Maximum weight capacity:
The maximum weight that the product is designed to hold/store.
-
20 kg
-
Rack capacity:
The spase that device fill in rack.
-
10U
-
Side panels included:
Indicates if the side panels are included or not
-
Yes
-
Package depth:
The distance from the front to the back of the packaging.
-
350 mm
-
Package height:
The distance from the top to the bottom of the packaging.
-
545 mm
-
Package width:
The distance from one side of the packaging to the other.
-
350 mm
-
Quick installation guide:
-
Yes
-
Cooling type:
The method used to cool the device or to cool the air around the device.
-
Passive
-
International Protection (IP) code:
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
-
IP20
-
Mounting kit:
-
Yes
-
Key lock:
-
Yes
-
Rack rails:
-
Yes
-
Mounting depth (min):
-
170 mm
-
Mounting depth (max):
-
270 mm
-
Removable front door:
-
Yes
-
Front door construction:
-
Glass
