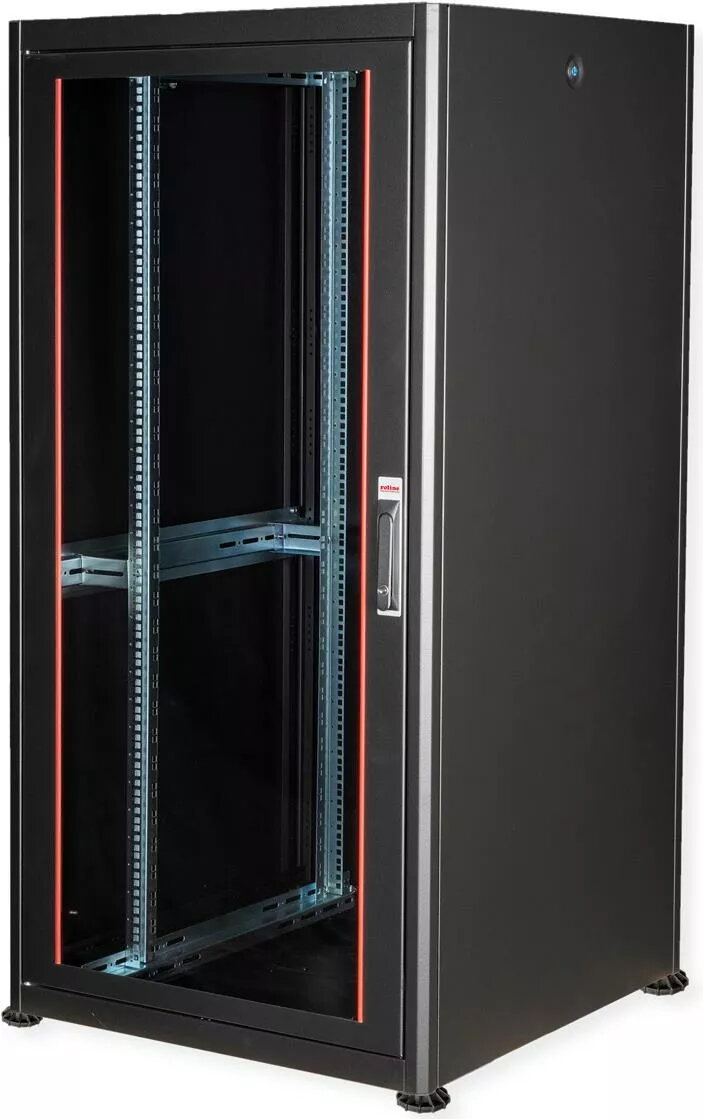

Freestanding rack ROLINE 19-inch network cabinet Basic 32U 800x800 Glass door black

Freestanding rack ROLINE 19-inch network cabinet Basic 32U 800x800 Glass door black is a floor-mounted 19" enclosure designed for economical and flexible network expansion. The cabinet provides 32U of mounting space, a maximum load capacity of 600 kg and an IP20 protection rating. The body is made of robust sheet steel (up to 1.5 mm) and is finished with electrostatic powder coating in black (RAL 9005). The enclosure includes a glazed, lockable and removable front door, removable side and rear panels, adjustable feet and depth-adjustable, reversible 19" profile rails for mounting equipment.

Advantages

The ROLINE Basic cabinet combines a sturdy steel construction with a compact, demountable design that allows full disassembly when required. Strategically positioned cable inlets in the base, roof and—on wider models—the left and right sides simplify cabling during installation. The roof chassis includes a punched area for an optional fan module. Depth-adjustable, galvanised 19" rails with additional depth struts provide flexible equipment mounting, while the removable panels and reversible door hinge improve accessibility and maintenance.

Suitable for

• Server, switch and patch panel installation in small to medium IT rooms
• Network equipment consolidation in wiring closets and telecommunications spaces
• Environments requiring a lockable glass front for equipment visibility and security
• Installations where easy cabling and optional fan mounting are needed

Key specifications

• Form factor: 19-inch freestanding network cabinet
• Height: 32U
• Dimensions (W×D): 800 × 800 mm
• Maximum load capacity: 600 kg
• Material: sheet steel, up to 1.5 mm thickness
• Finish: electrostatic powder coating, black (RAL 9005)
• Protection rating: IP20
• Front door: glass, lockable and removable; hinge changeable
• Rails: two pairs of galvanised 19" profile rails, reversible and depth-adjustable; connected to additional depth struts
• Cable inlets: base inlet with screwed cover plate (rear centre); additional side inlets with plastic covers for enclosures ≥800 mm; roof inlets (one for 600 mm width, three for 800 mm width)

How to use

Place the freestanding rack on a level surface and adjust the feet for stability. Remove the front door or side panels if required to install equipment. Mount devices on the 19" profile rails, adjusting their depth as needed and securing them to the rails. Route cables through the base, side or roof inlets and secure covers after cabling. If additional ventilation is required, install a compatible fan module into the punched area of the roof chassis. After installation, close and lock the front door and reattach side/rear panels.

Usage recommendations

For safe operation, distribute equipment weight evenly across the 32U space and avoid exceeding the 600 kg load capacity. Use appropriate earthing and follow local electrical and cabling standards; if cooling is needed, fit a fan module in the roof punched area and ensure sufficient airflow around the cabinet.
