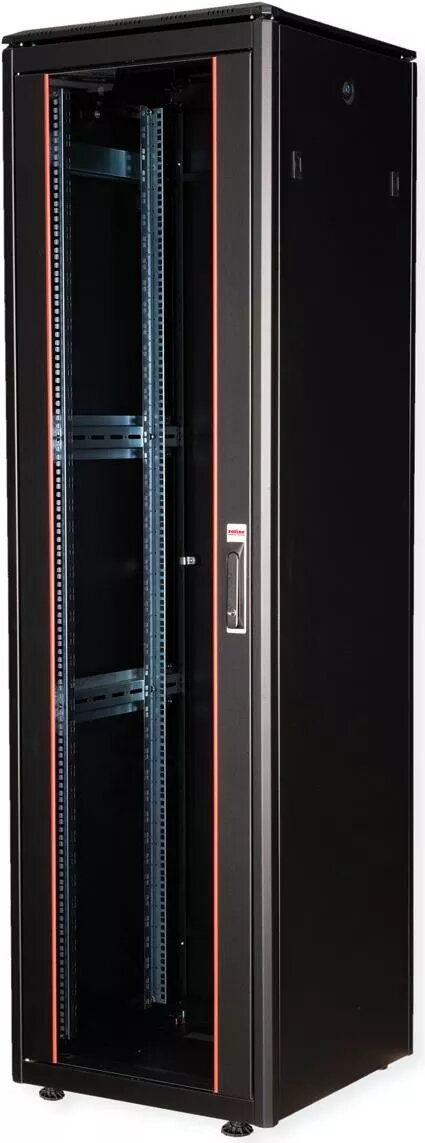

Freestanding rack ROLINE 19-inch Network Cabinet Pro 42U 600x600 Glass door black

The ROLINE 19-inch Network Cabinet Pro 42U 600x600 Glass door black is a freestanding steel enclosure designed for organized and secure housing of network equipment. It provides 42U of rack space, adjustable 19" profile rails, brush and slide-in cable inlets, ventilation slots and an option to install fan modules. The cabinet is finished with electrostatic powder coating in black (RAL 9005) and features removable side panels and a glass front door with reversible hinge. The construction uses sheet steel up to 1.5 mm thick and the cabinet supports up to 600 kg of equipment with an IP20 protection rating.

Advantages

The cabinet offers flexible cable management through roof and base brush inlets and a slide-on inlet with foam seal, plus brush strips on the rear door to reduce dust entry. Adjustable, reversible 19" profile rails with additional depth struts allow varied mounting depths and reliable load support. A stepped removable top with ventilation slots and space for fan modules improves airflow. Modular removable panels and the ability to change the door hinge simplify installation and maintenance.

Suitable for

• Server racks and network switches in small to medium data rooms
• Telecommunications and patch panel installations
• IT equipment storage in offices and technical rooms
• Environments requiring structured cable routing and ventilation

Key specifications

• Rack size: 19-inch, 42U
• Outer dimensions (W x D): 600 x 600 mm
• Maximum load capacity: 600 kg
• Material: sheet steel up to 1.5 mm
• Finish: electrostatic powder coating, black (RAL 9005)
• Doors/panels: glass front door, removable side panels; reversible hinge
• Cable management: roof/base brush inlets, slide-on base inlet with foam seal, brush strips on rear door
• Ventilation: stepped removable top with ventilation slots; fan module compatible
• Rail system: two pairs of galvanised 19" profile rails, depth-adjustable and reversible
• Protection rating: IP20
• Weight: 73.7 kg

How to use

Place the freestanding rack on a level floor and adjust the feet for stability. Install equipment into the adjustable 19" profile rails, setting the required mounting depth and securing devices with appropriate rack screws. Route cables through the brush inlets in the roof or base and use the vertical cable ducts (if present) to keep cabling organized. If additional ventilation is needed, fit compatible fan modules into the removable stepped top. Ensure the glass door hinge is set to the preferred side and close panels after installation to maintain security and airflow.

Usage recommendations

Distribute equipment weight evenly across the rack and observe the 600 kg maximum load. Keep cable bundles tidy and avoid blocking ventilation slots. For environments with higher dust or humidity, consider placing the cabinet in a controlled technical room, since the product is rated IP20 and intended for indoor use.
