header-product Dimmer Shelly Plus 0-10V Built-in Blue Grey 110-240V

Dimmer Shelly Plus 0-10V Built-in Blue Grey 110-240V

Dimmer Shelly Plus 0-10V Photo 1
Dimmer Shelly Plus 0-10V Photo 2
Dimmer Shelly Plus 0-10V Photo 3
Dimmer Shelly Plus 0-10V Photo 4
Dimmer Shelly Plus 0-10V Photo 5
Dimmer Shelly Plus 0-10V Photo 6
Dimmer Shelly Plus 0-10V Photo 7
Dimmer Shelly Plus 0-10V Photo 8
Dimmer Shelly Plus 0-10V Photo 9
Dimmer Shelly Plus 0-10V Photo 1
Dimmer Shelly Plus 0-10V Photo 2
Dimmer Shelly Plus 0-10V Photo 3
Dimmer Shelly Plus 0-10V Photo 4
Dimmer Shelly Plus 0-10V Photo 5
Dimmer Shelly Plus 0-10V Photo 6
Dimmer Shelly Plus 0-10V Photo 7
Dimmer Shelly Plus 0-10V Photo 8
Dimmer Shelly Plus 0-10V Photo 9
Out of stock.
View similar!

Short description

The Shelly Plus 0-10V is a built-in dimmer designed for wireless control. It operates on an AC input voltage of 110-240V and has a maximum indoor range of 30m. The compact design measures 42mm in width, 37mm in depth, and 17mm in height, making it easy to install in various settings.
Warranty: 2 Years
SKU: 11358808
Manufacturer: SHELL
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Shelly Plus 0-10V Built-in Blue Grey 110-240V is a compact retrofit dimming controller designed to manage 0-10V dimmable drivers. The unit fits behind existing switches and provides precise remote dimming control via Wi‑Fi and Bluetooth without requiring a hub. It supports schedules, scenes and scripting for local automation and integrates with popular voice assistants and the Shelly Smart Control app.

Advantages

The device works with standard switches so there is no need to replace your current switch hardware; it supports single and dual-button inputs. It connects to your Wi‑Fi network for direct control and also offers Bluetooth for quick inclusion or as a gateway. Advanced features include customizable minimum and maximum brightness to match the driver's range, smart schedules (including sunrise/sunset), pre-set scenes, motion-aware fading, night mode for low nighttime brightness and full scripting support for local automation.

Suitable for

  • Retrofitting existing lighting circuits to add dimming functionality
  • Homes where maintaining existing switch aesthetics is desired
  • Rooms requiring scheduled or scene-based lighting (living rooms, bedrooms, nurseries)
  • Integrations with voice assistants (Alexa, Google Home) and Shelly Smart Control

Key specifications

  • Brand: SHELL
  • Model / MPN: 0-10V
  • EAN: 3800235265703
  • Input voltage: 110–240 V AC
  • Protocol: Wi‑Fi and Bluetooth
  • Mounting: built-in (fits behind switches)
  • Dimensions (W×D×H): 42 × 37 × 17 mm
  • Max indoor operating range: 30 m

How to use

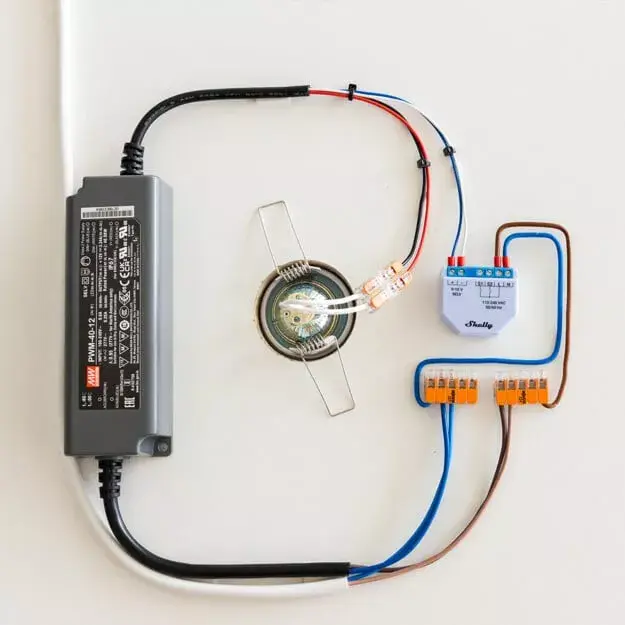

Install the Shelly Plus 0-10V behind your existing switch following electrical safety standards and local regulations. Connect the unit to the 0–10V driver wiring and mains (110–240 V AC). After power-up, add the device to your Wi‑Fi network via the Shelly app or perform quick inclusion using Bluetooth. Configure brightness limits, schedules, scenes or scripts in the app and link the device to voice assistants if required.

Usage recommendations

Match the minimum and maximum brightness settings in the Shelly app to your connected driver's dimming range for accurate control. For installations involving motion sensors, enable the fade feature to avoid abrupt lighting changes. Ensure a qualified electrician performs the physical installation if you are not experienced with mains wiring.

All features
Type: Characteristics of the device.
Dimmer
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.017 kg
Operating relative humidity (H-H):
30 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-20 - 40
Height: The measurement of the product from head to foot or from base to top.
17 mm
Width: The measurement or extent of something from side to side.
42 mm
Depth: The distance from the front to the back of something.
37 mm
Product colour: The colour e.g. red, blue, green, black, white.
Grey, Blue
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.11b, IEEE 802.11n, IEEE 802.11g
Power consumption (standby): The amount of electricity that is consumed when the product is on standby.
1.2 W
Operating frequency: The rate at which an electrical current alternates, usually measured in Hertz (Hz). Also the way to note a general location on the radio frequency spectrum such as 800 MHz, 900 MHz or 1900 MHz.
2400 - 2483.5
Case design:
Built-in
Control type: The way in which the device is controlled.
Wireless
Brightness adjustment:
Yes
Package type: The type of product package e.g. box.
Box
Remotely operated: The device can be controlled by remote control, which is a device that controls an apparatus by means of radio or infrared signals.
Yes
Dimmable: The ability to vary the power output. For example, a light can be 'dimmed' to half power to make it less bright.
Yes
AC input voltage: The voltage of the AC electricity that is inputted into the product.
110 - 240
Maximum indoor range: The maximum distance to which the signals are transmitted, when the device is used indoors.
30 m
Maximum outdoor range: The maximum distance to which the signals are transmitted, when the device is used outdoors.
50 m
Transmit power:
1 mW
Suitable for indoor use:
Yes
Mobile app support:
Yes
