Connector plug 5-pin, ShiverPeaks S/CONN maximum connectivity (model 53000)

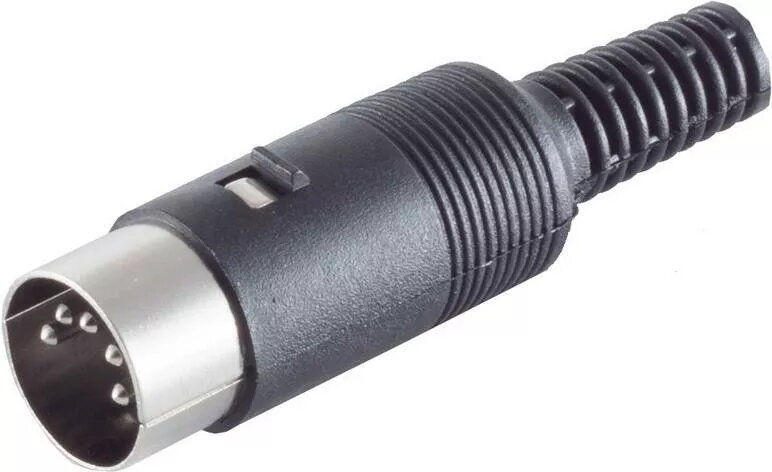

ShiverPeaks Connector plug 5-pin (S/CONN maximum connectivity, model 53000) is a compact electrical connector designed for reliable five-conductor connections. It is intended for signal and low-voltage power wiring where a five-pin interface is required, providing a space-efficient solution for linking modular equipment, sensors, audio lines, and industrial control wiring.

Advantages

The connector plug offers a compact form factor and a straightforward mating interface that reduces installation time. Its five-contact layout supports mixed signal and low-voltage power lines in a single connector, helping to minimize cable clutter. Constructed for repeated mating and demating cycles, the plug maintains consistent electrical contact and mechanical retention suitable for modular equipment and field installations.

Suitable for

• Industrial control and automation wiring
• Sensor and actuator connections
• Audio and signal transmission for compact systems
• Modular equipment interconnects and test fixtures
• Low-voltage power distribution for small devices

Key specifications

• Contact configuration: 5-pin layout for five conductors
• Application: signal and low-voltage power connections
• Form factor: compact plug housing suitable for limited space installations
• Durability: designed for repeated mating cycles with stable contact retention
• Mounting/connection type: removable plug for inline or panel mating with compatible receptacles

How to use

Prepare cable conductors to the recommended strip length for the connector terminals, then insert each conductor into its corresponding contact and secure according to the mating system (crimp, screw, or solder termination as appropriate for the compatible receptacle). Align the plug with the mating receptacle and engage until the mechanical retention feature locks the connector in place. Verify correct pin assignment and continuity before applying power or signals.

Usage recommendations

Use wire sizes and termination methods that match the connector's contact design and intended current load. Avoid exposing the connector to excessive mechanical stress or corrosive environments without additional sealing. For reliable operation, perform visual inspections and continuity checks during installation and maintenance cycles.
