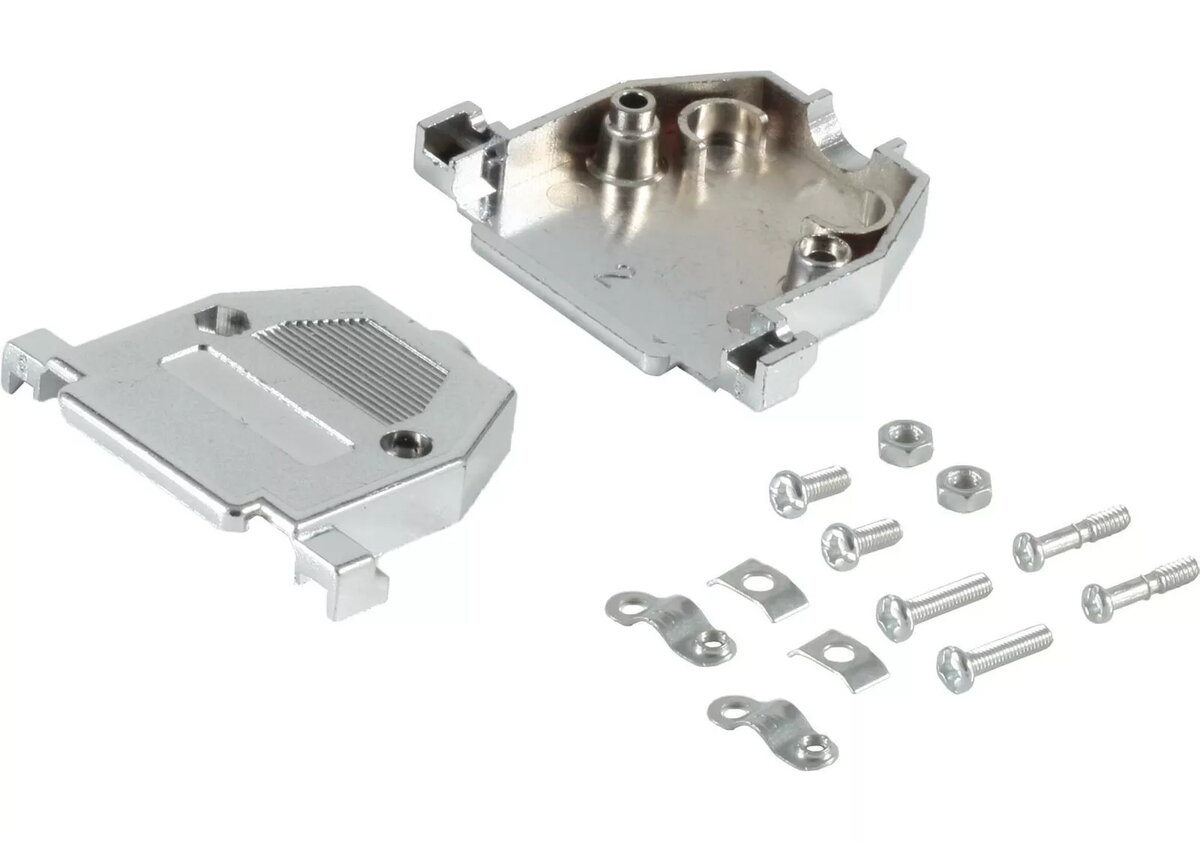

ShiverPeaks enclosure shell 79125-M 25-pin metallized for electronic housings

ShiverPeaks enclosure shell 79125-M 25-pin metallized for electronic housings is a metalized housing component designed to provide a conductive shell and a defined 25-pin interface for connectors or cabling. Intended as a replacement part or integration element for electronic assemblies, this enclosure shell fits applications that require electromagnetic screening, reliable mechanical support for a 25-pin connector and a durable metalized surface to improve grounding and signal integrity.

Advantages

The metallized finish delivers a continuous conductive layer that supports electromagnetic compatibility (EMC) measures and reduces interference. The 25-pin configuration is standardized for Sub D-style connections, enabling straightforward integration with common connector types and cabling harnesses. Constructed to offer mechanical stability and repeatable mating with connectors, the shell simplifies assembly and replacement in control units and device housings.

Suitable for

• Replacement part for electronic housings and control units requiring a 25-pin interface
• Custom electronic enclosures and prototypes that need EMC shielding and grounded surfaces
• Applications where reliable mechanical support for Sub D-style 25-pin connectors is required

Key specifications

• Material: metalized surface on a structural shell designed for electronic housings
• Connector interface: 25-pin Sub D-style footprint for connector mounting and cabling
• Functionality: conductive coating for improved grounding and electromagnetic screening
• Mechanical characteristics: shaped shell providing structural support and alignment for connectors

How to use

Position the enclosure shell on the electronic housing or chassis so the 25-pin opening aligns with the mating connector or cable route. Secure the shell using the appropriate fasteners or mounting points in the device assembly to ensure proper mechanical retention and electrical contact. Ensure mating connectors are correctly aligned before tightening to prevent pin damage. If required, verify conductive continuity between the shell and chassis ground to achieve intended EMC performance.

Usage recommendations

For reliable EMC performance and long-term durability, install the shell on a clean, conductive chassis surface and use proper fastening torque. Inspect the metallized coating for damage before installation and avoid aggressive mechanical abrasion that may remove the conductive layer. When integrating with shielded cables or housings, confirm grounding paths are continuous and secure connector mating to manufacturer-recommended tolerances.
