Siemens 3RA2913-2BB2 Wiring Kit for Star-Delta Starting with Mechanical Interlock Size S00 Spring-Loaded Terminals

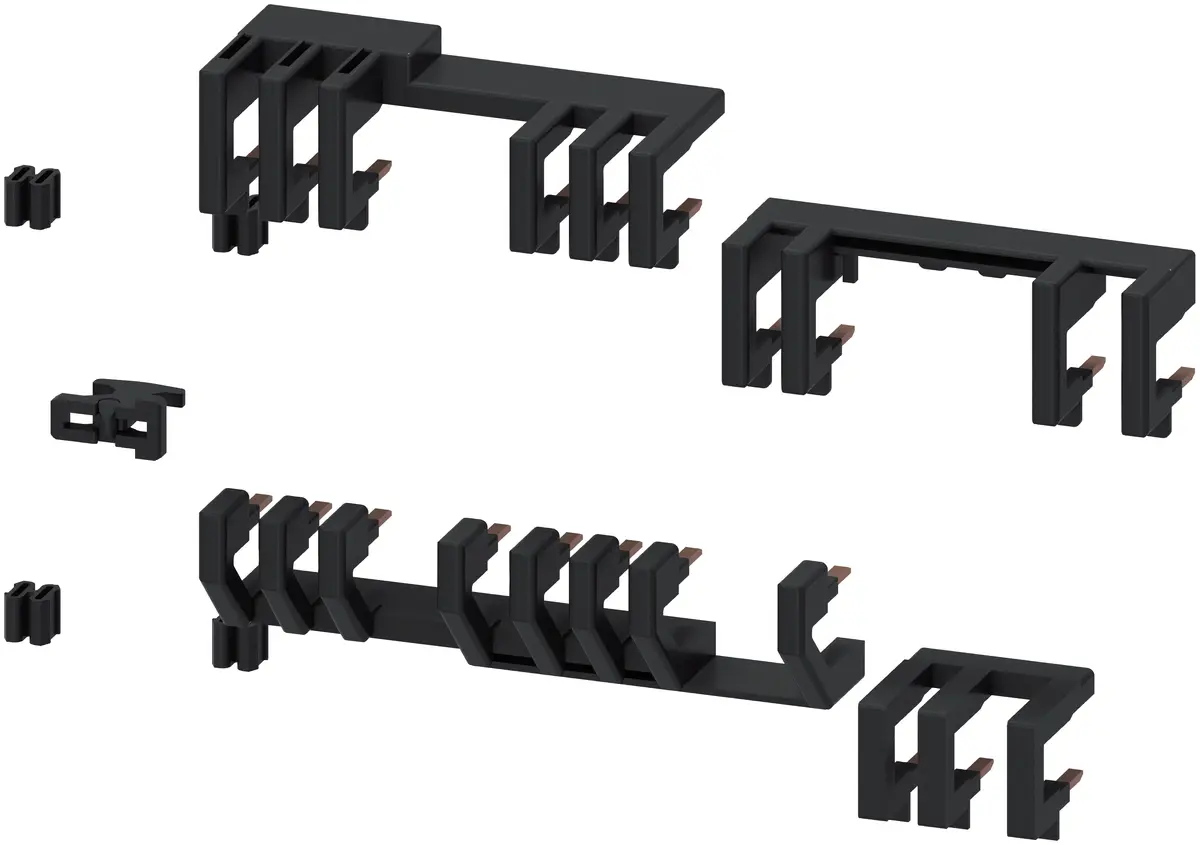

The Siemens 3RA2913-2BB2 wiring kit is engineered specifically for star-delta starting configurations involving size S00 contactors. This comprehensive wiring solution includes a built-in mechanical interlock to ensure safe and reliable operation in motor management systems and industrial control panels. Featuring advanced spring-loaded terminals, it facilitates secure and vibration-resistant electrical connections, significantly reducing installation time and effort.

Advantages

This wiring kit provides a streamlined approach to assembling complex motor starter circuits while minimizing wiring errors. The inclusion of a mechanical interlock enhances operational safety by preventing simultaneous closure of the involved contactors. The spring-loaded terminal technology ensures a consistently reliable contact force that remains stable over time, even in environments subject to mechanical stress and vibration. Its standardized design ensures seamless compatibility with Siemens size S00 components, resulting in a neat, professional, and space-saving panel layout.

Suitable for

• Industrial control panel assembly and motor management systems
• Star-delta starting configurations requiring size S00 contactors
• Applications where mechanical interlocking between contactors is mandatory
• Electrical installations benefiting from fast spring-loaded terminal connections

When it may not be suitable

This product is not compatible with contactors of sizes other than S00 or applications that do not utilize a star-delta starting method. It is also unsuitable for direct-on-line or reversing starter setups that require different wiring configurations and distinct interlock arrangements.

Key specifications

• Designed for size S00 contactors
• Configured for star-delta starting
• Equipped with mechanical interlock
• Features spring-loaded terminals
• Package weight: 85 g
• Package dimensions: 45.5 mm width and 105.5 mm depth

How to use

To use the wiring kit, first ensure that the power supply to the control panel is completely switched off and locked out. Mount the compatible size S00 contactors onto the standard mounting rail according to your circuit layout. Attach the mechanical interlock between the designated contactors to prevent simultaneous activation. Carefully route and connect the pre-formed wiring modules into the spring-loaded terminals of the contactors, ensuring each wire is inserted fully to the designated insertion depth for a secure electrical connection. Verify all mechanical and electrical connections before restoring power and testing the star-delta starting sequence.

What to consider before purchase

• Verify that your existing contactors correspond strictly to size S00
• Confirm that your motor control application requires a star-delta starting method
• Check available space within your control panel against the package dimensions
• Ensure compatibility with spring-loaded terminal connection methods

Usage recommendations: Install this wiring kit strictly in accordance with professional electrical installation standards and manufacturer guidelines. Regularly inspect the spring-loaded terminals and mechanical interlock during routine panel maintenance to ensure continued reliability and safety.
