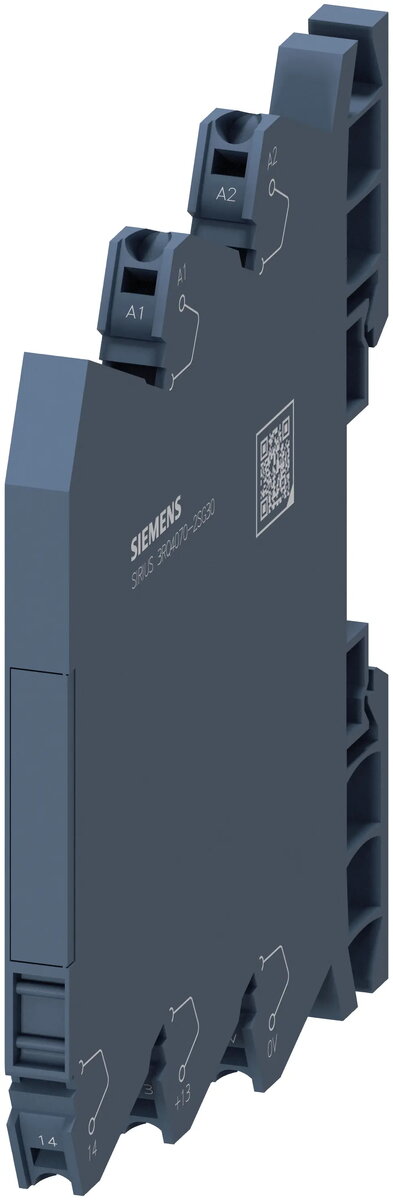

Siemens 3RQ4070-2SG30 Semiconductor Coupling Relay, 110-230V AC/DC, 1NO, Push-In

The Siemens 3RQ4070-2SG30 is a high-performance semiconductor coupling relay engineered for precise signal transmission within industrial automation environments. This input optocoupler is designed to bridge the gap between control systems and field devices, ensuring reliable operation across a wide voltage range of 110-230V AC/DC. With its compact 6.2mm width, it is an ideal solution for space-constrained control cabinets, while the integrated Push-In spring-loaded terminals facilitate rapid and secure wiring without the need for specialized tools.

Advantages

The primary benefit of this semiconductor relay is its robust design which ensures long-term reliability and high switching frequency compared to traditional electromechanical relays. The Push-In connection technology significantly reduces installation time and maintenance efforts, as it provides a vibration-resistant contact that remains stable over time. Its slim profile allows for high-density mounting, maximizing the utility of available DIN rail space in complex electrical panels. Furthermore, the wide input voltage range provides flexibility for various global power standards, simplifying inventory management and system design.

Suitable for

• Industrial automation control systems
• Signal isolation between controllers and actuators
• Space-limited electrical cabinets
• High-frequency switching applications
• Interface circuits in manufacturing machinery

When it may not be suitable

This relay is intended for signal-level switching and may not be suitable for applications requiring the direct control of high-power inductive loads or motors that exceed the specified thermal current limit. It is also not designed for environments with extreme moisture or corrosive gases unless housed in an appropriate protective enclosure.

Key specifications

• Input voltage: 110-230V AC/DC
• Output configuration: 1 NO contact
• Connection type: Push-In (spring-loaded)
• Width: 6.2 mm
• Thermal current: 5 A

How to use

Installation involves mounting the relay onto a standard DIN rail within a control cabinet. Once secured, connect the control signal wires to the input terminals and the load circuit to the output terminals using the Push-In mechanism. Ensure that the wires are stripped to the appropriate length before insertion to guarantee a solid electrical connection. Always verify that the input voltage matches the specified range before energizing the circuit to prevent damage to the internal semiconductor components.

What to consider before purchase

• Verify that the control voltage matches the 110-230V AC/DC range
• Ensure the 5A thermal current is sufficient for your specific load requirements
• Check available space on the DIN rail to accommodate the 6.2mm width
• Confirm that the 1 NO contact configuration meets your circuit logic needs

Usage recommendations

For optimal performance and longevity, ensure that the relay is installed in an environment with adequate ventilation to prevent overheating. Regularly inspect the Push-In connections during scheduled maintenance to ensure they remain free from debris and maintain proper contact pressure.
