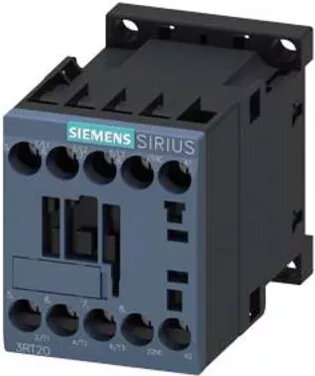

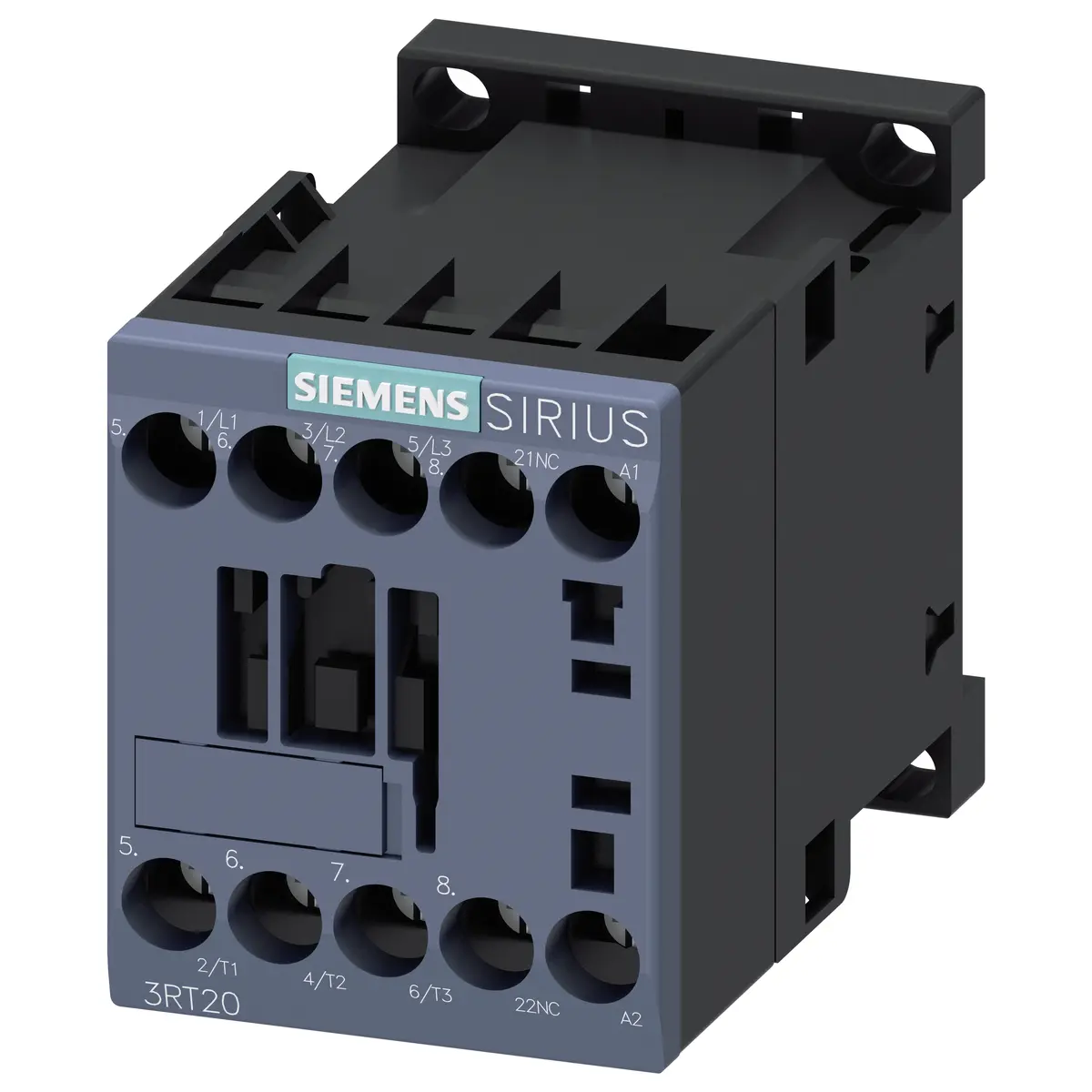

Siemens 3RT2017-1AB02 Power Contactor, 3-Pole, 12A, 24V AC Coil, Size S00

The Siemens 3RT2017-1AB02 is a high-performance 3-pole power contactor engineered for the reliable switching of electrical loads in industrial environments. As a size S00 component, it offers a compact footprint while maintaining robust performance standards. With a rated operational current of 12A and a 24V AC control coil, this device is specifically designed to integrate seamlessly into motor control circuits and complex automation systems, ensuring consistent operation and long-term durability.

Advantages

This power contactor stands out due to its high switching reliability and compact design, which saves valuable space in control cabinets. The unit is built to withstand demanding industrial conditions, offering high mechanical and electrical endurance. Its standardized S00 size allows for easy installation and compatibility with a wide range of Siemens modular accessories, simplifying maintenance and system upgrades. The 24V AC coil provides a safe and standard control voltage for various industrial automation setups.

Suitable for

• Industrial motor control applications
• Switching of resistive and inductive loads
• Automation systems and control panels
• Heating and lighting control circuits

When it may not be suitable

This contactor is not intended for applications requiring currents exceeding its 12A rating or for environments where the control voltage differs from the specified 24V AC. It is also not suitable for direct outdoor installation without a protective enclosure.

Key specifications

• Number of poles: 3
• Rated operational current: 12A
• Control coil voltage: 24V AC
• Size: S00
• Mounting type: Screw terminal

How to use

The device should be mounted on a standard DIN rail or directly onto a flat surface within a control cabinet. Ensure that the power supply matches the 24V AC coil requirement before connecting the control wires to the coil terminals. The main power lines should be connected to the corresponding power terminals, ensuring all connections are tightened to the manufacturer's specified torque to prevent overheating or loose contacts.

What to consider before purchase

• Verify that the 24V AC control voltage matches your existing control system.
• Ensure the 12A current rating is sufficient for your specific load requirements.
• Check available space in your control cabinet to accommodate the S00 size.
• Confirm that the screw terminal connection type is compatible with your wiring standards.

Usage recommendations

Always ensure that the electrical system is de-energized before performing any installation or maintenance work on the contactor. Regularly inspect the terminals for tightness and check for any signs of wear or overheating to maintain optimal performance.
