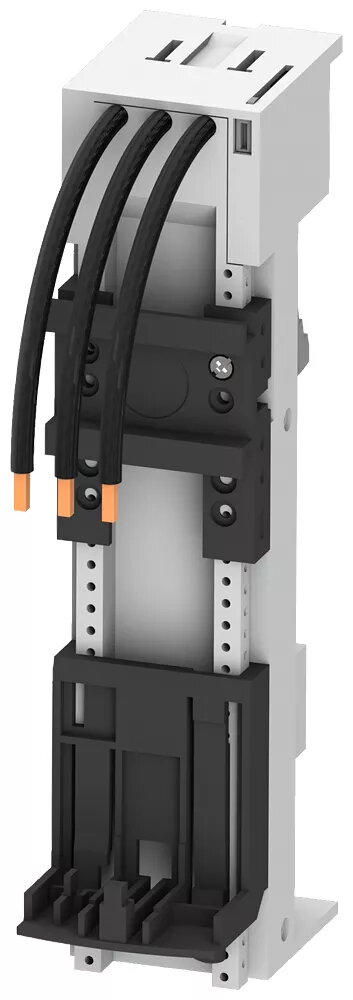

Siemens 8US1251-5DS10 Adapter for S00/S0 25A 60mm Busbar System

The Siemens 8US1251-5DS10 is a high-quality adapter specifically engineered for integration into 60mm busbar systems. This component provides a reliable and secure mounting solution for S00 and S0 size electrical devices, facilitating efficient power distribution in industrial control panels. Designed for durability and precision, it ensures that components are firmly held in place while maintaining optimal electrical contact within the busbar configuration.

Advantages

This adapter offers significant benefits for electrical panel builders by streamlining the installation process of modular components. Its robust construction ensures long-term operational stability, reducing the need for frequent maintenance. By utilizing this standardized adapter, users can achieve a clean and organized layout within their control cabinets, which enhances both safety and accessibility for future inspections or modifications.

Suitable for

• Industrial control panel assembly
• Electrical power distribution systems
• Mounting S00 and S0 size motor starters and contactors
• Modular busbar configurations with 60mm spacing

When it may not be suitable

This adapter is not intended for use with busbar systems that deviate from the 60mm standard spacing. Furthermore, it is not compatible with components outside the specified S00 and S0 size categories or applications exceeding the 25A rated current limit.

Key specifications

• Rated current: 25A
• Busbar system compatibility: 60mm
• Component size compatibility: S00 and S0
• Dimensions: 45mm x 200mm

How to use

To install the adapter, ensure the power supply to the busbar system is completely disconnected. Align the adapter with the 60mm busbar rails and secure it according to the manufacturer's mechanical mounting guidelines. Once the adapter is firmly attached, snap the S00 or S0 size component onto the designated mounting surface. Verify that all connections are tight and that the component is properly seated before restoring power to the system.

What to consider before purchase

• Verify the busbar system spacing is exactly 60mm
• Confirm the size of your electrical components matches S00 or S0
• Ensure the total current load does not exceed 25A
• Check available space within the control panel for the 45mm x 200mm footprint

Usage recommendations

Always adhere to local electrical safety regulations and manufacturer installation manuals when working with busbar systems. Ensure that all electrical connections are inspected by qualified personnel to prevent overheating or short circuits.
