header-product Interface Card Silverstone ECM20 Internal PCIe SATA

Interface Card Silverstone ECM20 Internal PCIe SATA

Interface Card Silverstone ECM20 Photo 1
Interface Card Silverstone ECM20 Photo 2
Interface Card Silverstone ECM20 Photo 3
Interface Card Silverstone ECM20 Photo 4
Interface Card Silverstone ECM20 Photo 5
Interface Card Silverstone ECM20 Photo 6
Interface Card Silverstone ECM20 Photo 7
Interface Card Silverstone ECM20 Photo 1
Interface Card Silverstone ECM20 Photo 2
Interface Card Silverstone ECM20 Photo 3
Interface Card Silverstone ECM20 Photo 4
Interface Card Silverstone ECM20 Photo 5
Interface Card Silverstone ECM20 Photo 6
Interface Card Silverstone ECM20 Photo 7
Out of stock.
View similar!

Short description

The Silverstone ECM20 is an internal PCIe and SATA interface card designed for M.2 connections. It features a sleek black design and supports high-speed data transfer, making it ideal for enhancing your system's performance. With easy installation and compatibility with various devices, the ECM20 is a reliable choice for expanding your storage capabilities.
Warranty: 2 Years
SKU: 1981203
Manufacturer: SILVERSTONE
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

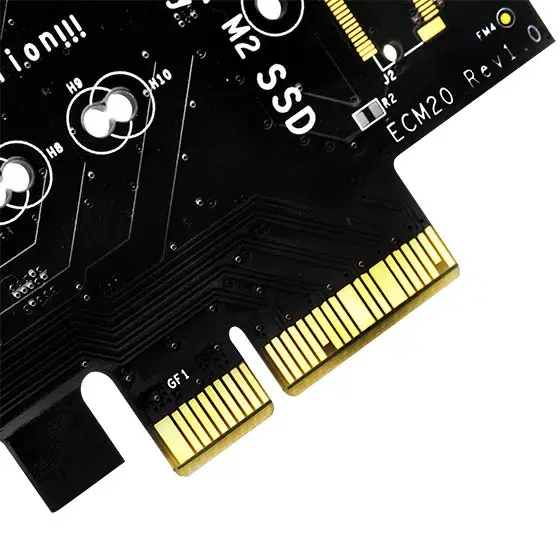

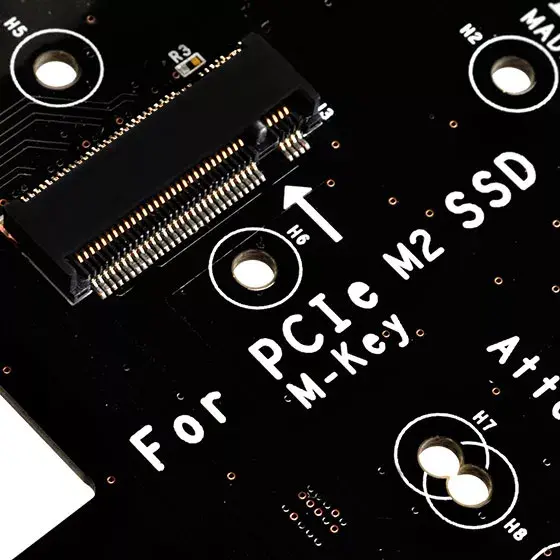

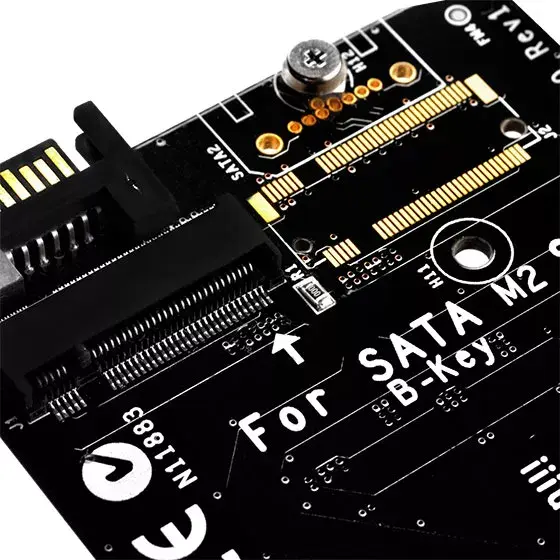

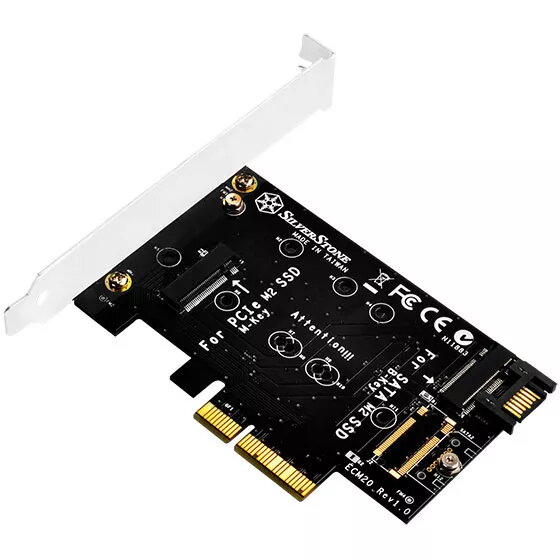

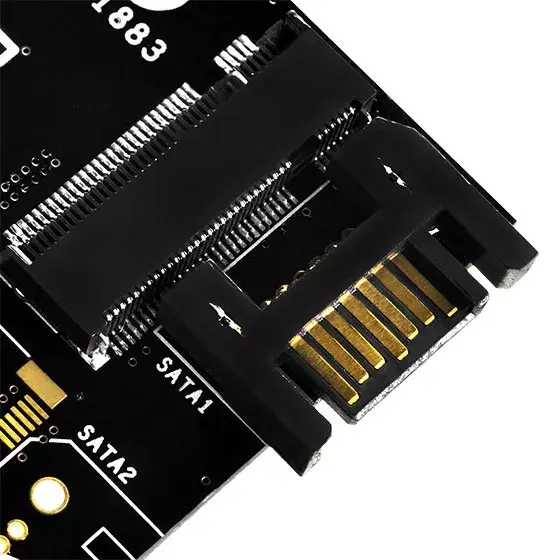

The SilverStone ECM20 is an internal interface card that expands a desktop PC's M.2 connectivity by providing one M-key slot routed to a PCIe x4 interface and a second B-key slot routed to a SATA III interface. The card is designed to accommodate two M.2 SSDs simultaneously and fits into a PCIe expansion slot with an optional low-profile bracket. No drivers are required for operation.

Advantages

The ECM20 enables high-speed NVMe storage via the PCIe x4-linked M.2 (M key) slot while also offering an additional M.2 (B key) slot for SATA-based drives, giving flexible storage expansion without occupying multiple motherboard ports. Its low-profile expansion option and plug-and-play operation simplify installation and compatibility with a range of desktop systems.

Suitable for

  • Upgrading a desktop with an NVMe M.2 SSD for faster read/write performance
  • Adding extra SATA-based M.2 storage without using onboard SATA ports
  • Systems that need both PCIe NVMe and SATA M.2 drives simultaneously

Key specifications

  • Brand: SILVERSTONE
  • Model: SST-ECM20
  • Interfaces: M.2 (host), PCIe x4 (M key output), SATA III (B key output)
  • Supports: Two M.2 SSDs simultaneously (one M-key NVMe, one B-key SATA)
  • Internal form factor with optional low-profile bracket
  • Product colour: Black
  • EAN: 4710007222133

How to use

Power off the PC and unplug it from the mains. Install the ECM20 into an available PCIe expansion slot and secure the bracket. Insert an M.2 NVMe SSD into the M-key slot at an angle and fasten it with the mounting screw; if using a SATA-based M.2 drive, insert it into the B-key slot and secure it similarly. Reconnect power, start the system, and the drives will be available to the operating system without requiring driver installation. If needed, replace the full-height bracket with the included low-profile bracket before installation.

Usage recommendations

For best performance, install an NVMe drive in the M-key (PCIe x4) slot and use the B-key slot for a SATA M.2 drive. Ensure your motherboard has an available PCIe slot and sufficient cooling for high-speed SSDs.

Specifications

Internal: The product is built in.
Yes
Host interface: Interface that enables a host controller to communicate with a driver.
M.2
Output interface: The socket (port) where the output connectors are connected.
PCIe, SATA
All features

System requirements

Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.
Yes
Windows operating systems supported: Windows vesions wich can be used with the device.
Yes

Logistics data

Harmonized System (HS) code:
84733020

Design

Product colour: The colour e.g. red, blue, green, black, white.
Black
Internal: The product is built in.
Yes

Ports & interfaces

Host interface: Interface that enables a host controller to communicate with a driver.
M.2
Output interface: The socket (port) where the output connectors are connected.
PCIe, SATA

Description

Machine translation.
