Power Supply Unit Silverstone Extreme 500 Bronze

Name: Power Supply Unit Silverstone Extreme SST-EX500-B
Brand: SILVERSTONE
SKU: 4437447
Price: 88.99 EUR
Availability: OutOfStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Power Supply Unit Silverstone Extreme 500 Bronze 500 W

Short description

The Silverstone Extreme 500 Bronze is a reliable 500 W power supply unit designed for PCs. It features a 24-pin ATX connector, non-modular cabling, and active cooling with a 9.2 cm fan. With an input voltage range of 90-264 V and a frequency of 47-63 Hz, it ensures stable performance. The compact SFX form factor makes it ideal for small cases, and its 80 PLUS Bronze certification guarantees energy efficiency.

Warranty: 2 Years

SKU: 4437447

Manufacturer: SILVERSTONE

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

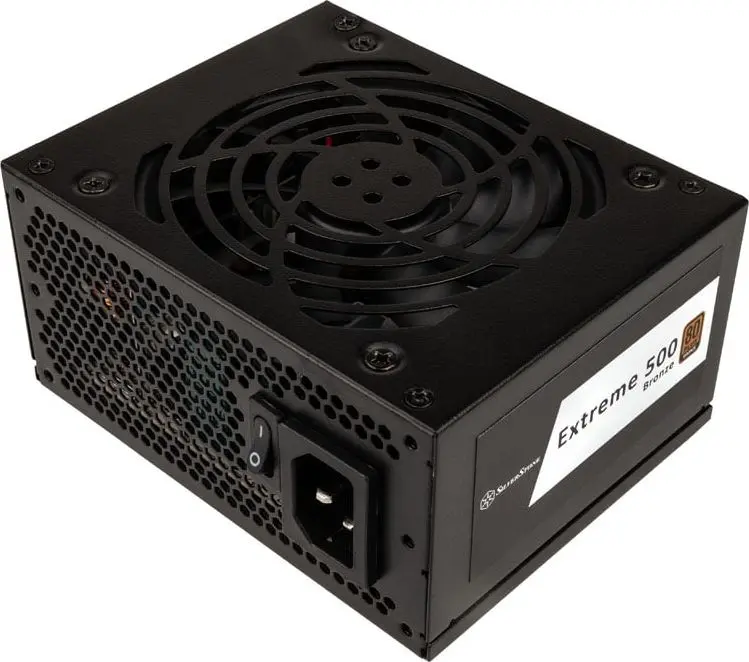

The Silverstone Extreme 500 Bronze 500 W is a compact SFX power supply unit designed for small-form-factor personal computers that require a reliable 500 W power source. It provides a fixed 24-pin ATX motherboard connector and non-modular cabling that simplifies installation in confined enclosures. Active cooling is provided by a 92 mm fan, while the wide input voltage range and frequency support ensure stable operation across typical mains conditions. The unit carries an 80 PLUS Bronze efficiency rating to reduce energy losses during typical system loads.

Advantages

The Silverstone Extreme 500 Bronze delivers stable 500 W output suitable for mainstream builds in compact cases. Its SFX form factor and compact dimensions allow installation in small enclosures where ATX power supplies do not fit. The non-modular cable set provides all standard connectors out of the box while keeping the internal design straightforward. Built-in active cooling with a 92 mm fan and a broad input range (90–264 V, 47–63 Hz) maintain reliable thermal and electrical performance. The 80 PLUS Bronze certification indicates improved energy efficiency compared with non-certified units.

Suitable for

Small-form-factor desktop PCs and compact home theater PCs (HTPCs)
Mainstream gaming builds with moderate power requirements
Office and productivity systems requiring a reliable, efficient PSU
System upgrades where space constraints prevent use of full-size ATX PSUs

Key specifications

Total power: 500 W
Form factor: SFX (compact)
Motherboard power connector: 24-pin ATX
Efficiency certification: 80 PLUS Bronze
Cooling: 92 mm fan (active cooling)
Input voltage range: 90–264 V
Input frequency: 47–63 Hz
Colour: Black
Weight: 1.02 kg

How to use

Install the Silverstone Extreme 500 Bronze into a compatible SFX-capable case following the case manufacturer’s instructions. Connect the 24-pin ATX connector to the motherboard and attach the required peripheral and CPU connectors to the respective components. Ensure all connectors are seated securely and route cables to avoid obstructing airflow. Verify input voltage and use an appropriate power cable and surge protection if available. After initial power-up, confirm system stability and monitor temperatures during the first hours of operation.

Usage recommendations

For optimal performance, use this PSU in systems with combined component power draw within the 500 W rating and allow sufficient airflow around the unit. Keep dust away from the 92 mm fan and ensure the case provides adequate ventilation. If planning significant upgrades to high-power graphics cards or multiple-drive arrays, select a higher-capacity PSU appropriate for the intended components.

Specifications

Total power:: 500 W
Motherboard power connector:: 24-pin ATX
80 PLUS certification:: 80 PLUS Bronze
Fan diameter:: 92 mm
Weight:: 1.02 kg
Product colour:: Black

All features

Power

Total power:: 500 W
Power Factor Correction (PFC) type:: Active
Power protection features:: Short circuit, Overheating, Over voltage, Over power, Over current
Combined power (+3.3V):: 120 W
Combined power (+12V):: 499.2 W
Combined power (+5V):: 120 W
Max output current (+3.3V):: 20 A
Max output current (+12V):: 41.66 A
Max output current (+5V):: 20 A
Max output current (-12V):: 0.3 A
Max output current (+5Vsb):: 2.5 A
AC input frequency:: 47 - 63
AC input voltage:: 90 - 264

Ports & interfaces

Motherboard power connector:: 24-pin ATX
Floppy disk drive connector:: Yes
Floppy drive power connector:: 1
Number of SATA power connectors:: 3
Peripheral (Molex) power connectors (4-pin):: 2
EPS power connector (8-pin):: Yes
CPU power connector (4+4 pin):: Yes
PCI Express power connectors (6+2 pin):: 2
Cabling type:: Non-Modular
Motherboard power cable length:: 400 mm

Performance

Purpose:: PC
80 PLUS certification:: 80 PLUS Bronze
Mean time between failures (MTBF):: 100000 h
Noise level: Not only energy saving helps to protect the environment but also noise level reduction. Noise level reduction up to 3 dB really means noise level reduction in 2 times. For example, a device with noise level 39 dB (А) will be two times quieter than a devise with a noise level 42 dB (А). Energy-saving certificate that shows noise level plays the role of an additional objective indicator basing on which You can successfully choose a product.: 18 dB
ATX version:: 2.4
Power supply unit (PSU) form factor:: SFX

Design

Fan diameter:: 92 mm
Number of fans:: 1 fan(s)
Cooling type:: Active
Product colour:: Black

Weight & dimensions

Weight:: 1.02 kg
Height:: 63.5 mm
Width:: 125 mm
Depth:: 100 mm

Operational conditions

Operating temperature (T-T):: 0 - 40
