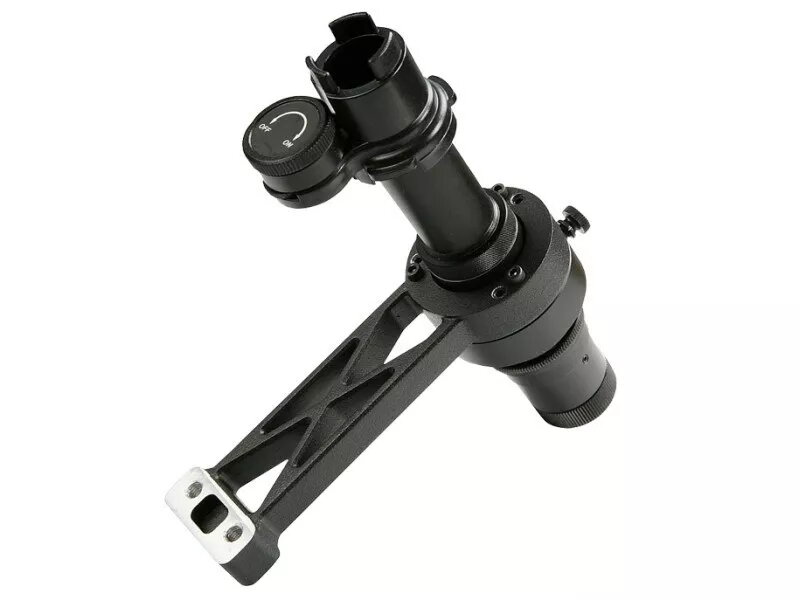

Polar finder Skywatcher AZ-EQ5 SW-4238 with illuminated reticle for equatorial alignment

The Polar finder Skywatcher AZ-EQ5 SW-4238 with illuminated reticle is an alignment accessory designed to assist users in achieving precise polar alignment of AZ‑EQ5 mounts. It provides a built-in illuminated reticle that improves visibility of the celestial pole and alignment stars in low-light conditions, making setup easier for long-exposure photography and improved mount tracking accuracy.

Advantages

This polar finder offers a clear, illuminated reticle that enhances sighting accuracy during twilight and night-time operations. Its integration with the AZ‑EQ5 mount design delivers a secure mechanical fit and stable alignment reference. By enabling more precise polar alignment, the accessory helps reduce periodic alignment errors and supports better tracking for astrophotography and prolonged visual observing sessions.

Suitable for

• Amateur and intermediate astrophotographers using AZ‑EQ5 mounts
• Visual observers who require accurate polar alignment for long tracking sessions
• Users setting up mounts in low-light or twilight conditions

Key specifications

• Type: Polar alignment finder with illuminated reticle
• Compatibility: Designed for AZ‑EQ5 series equatorial-capable mounts
• Illumination: Built-in adjustable illumination for reticle visibility in low light
• Mounting: Mechanical interface compatible with the AZ‑EQ5 polar axis housing
• Optical features: Reticle designed for locating celestial pole and nearby alignment stars

How to use

Install the polar finder into the polar axis housing or mounting socket provided on the AZ‑EQ5 mount according to the mount manufacturer’s alignment procedure. Power the illumination source and adjust brightness so the reticle is visible without washing out nearby stars. Rotate and tilt the mount following standard polar alignment steps: center Polaris or the appropriate pole region in the reticle, then make azimuth and altitude adjustments until the sought alignment star matches the reticle markings. Verify alignment by performing a short tracking test or plate solve if using astrophotography equipment.

Usage recommendations

Use moderate reticle illumination to preserve night vision; re-check alignment after any significant change in tripod position or latitude. For astrophotography, perform a final fine alignment using drift alignment or software-assisted polar alignment to achieve optimal tracking accuracy.
