Socket S740 handheld 1D/2D barcode reader

Name: Handheld barcode reader Socket S740 CX3445-1908
Brand: Socket
SKU: 1890884
Price: 401.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Handheld barcode reader Socket S740 — 1D/2D LED scanner, Bluetooth, NiMH 2000 mAh, yellow

Socket S740 handheld 1D/2D barcode reader Photo 1

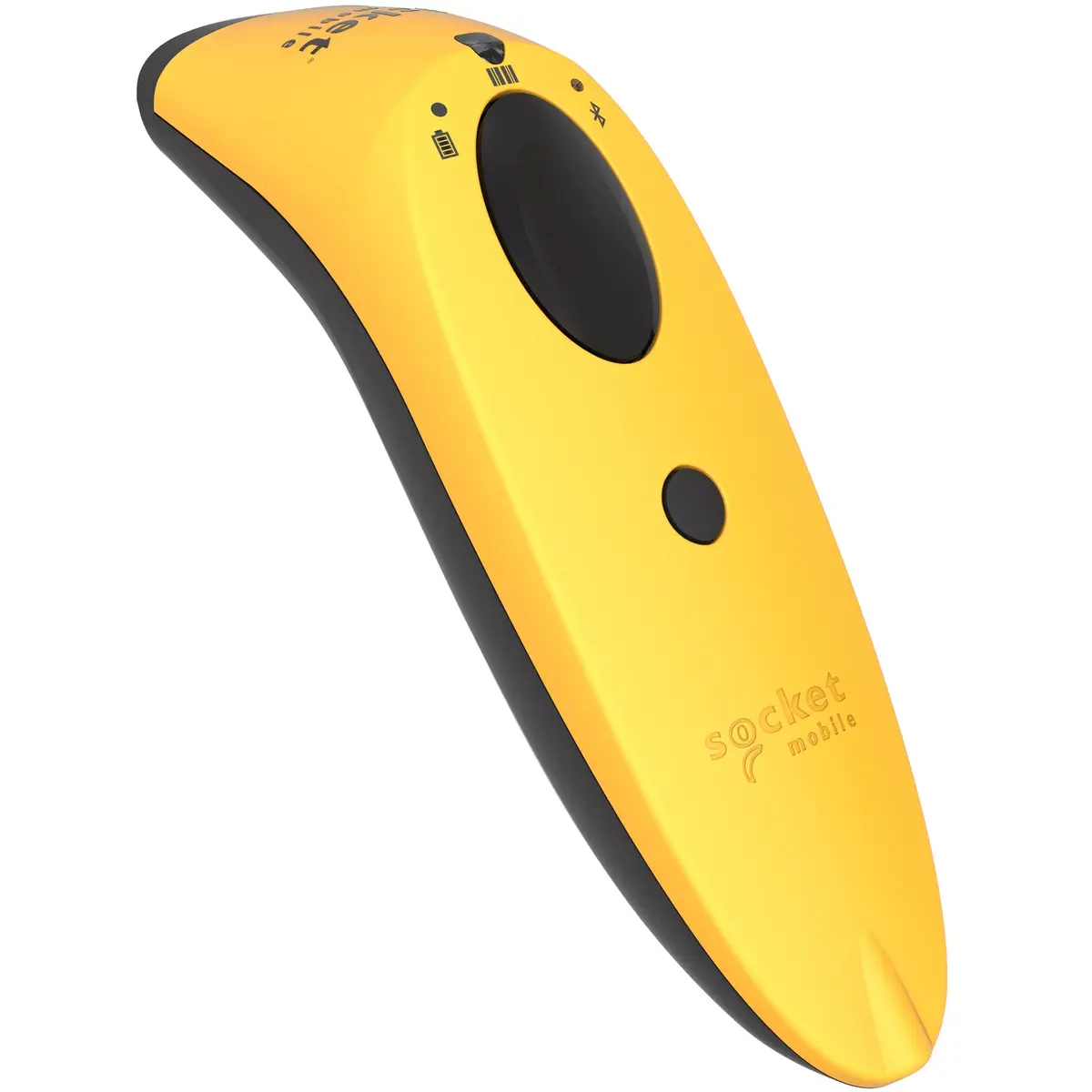

Socket S740 handheld 1D/2D barcode reader Photo 2

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

Socket S740 is a handheld 1D/2D barcode reader with an LED sensor and wireless Bluetooth connectivity. It supports common linear and 2D symbologies (QR, Data Matrix, PDF417, GS1, Code 128, etc.), has a wireless range up to 10 m, and runs on a 2000 mAh NiMH battery. Compact and lightweight (117 g), it is suitable for retail, inventory, logistics and mobile scanning tasks.

Available for order: 5 pcs.

Warranty: 2 Years

SKU: 1890884

Manufacturer: Socket

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

29.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.12 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

29.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

SocketScan S740 is a handheld 1D/2D imager barcode scanner with Bluetooth wireless connectivity and an LED sensor. It reads common linear and 2D symbologies (QR, Data Matrix, PDF417, GS1, Code 128 and others), scans barcodes from paper or screens, and is powered by a 2000 mAh NiMH battery for full workday operation. The scanner is compact and lightweight (about 117 g) and is available in multiple colours to suit different environments. Status lights indicate battery, Bluetooth and scanning activity, and the device is compatible with applications built for previous Socket Mobile scanners without requiring software changes.

Advantages

The S740 combines 1D and 2D scanning in a single handheld unit with Bluetooth wireless communication for cable-free use. Its LED sensor and imaging capability enable reliable reads from printed labels and smartphone displays. A long-lasting NiMH battery supports extended shifts, while an ergonomic, lightweight design reduces user fatigue. Visual indicators for battery, Bluetooth and scan status simplify operation, and broad application compatibility eases integration into existing systems.

Suitable for

Retail point of sale (POS) scanning
Inventory management and stock control
Asset tracking and asset audits
Field service and mobile workforce scanning
Logistics and warehouse item picking

Key specifications

Scanner type: 1D/2D imager
Sensor: LED imager
Supported 1D symbologies: Codabar, JAN, Interleaved 2 of 5, GS1-128 (UCC/EAN-128), GS1 DataBar Expanded, EAN-8, EAN-13, Code 93, Code 39, Code 128, Code 11, MSI, UPC
Supported 2D symbologies: MicroPDF417, Aztec Code, Data Matrix, MaxiCode, Micro QR Code, PDF417, QR Code
Connectivity: Bluetooth wireless (up to ~10 m range, depending on environment)
Power: NiMH rechargeable battery, 2000 mAh
Weight: approx. 117 g
Form factor: handheld, ergonomic
Available colours: multiple options (including yellow)

How to use

Charge the scanner before first use and turn it on using the power control. Pair the S740 with your host device over Bluetooth following the on-screen prompts or the Companion App for setup. Aim the imager at the barcode so the code fills the scan area and press the scan button; the indicator lights and audible/visual feedback confirm a successful read. Use the Capture SDK or existing Socket Mobile-compatible applications to integrate scanning into your workflows without changing application software.

Usage recommendations

For best results, keep the imager window clean and ensure adequate ambient lighting when scanning from screens. Use the Companion App to configure settings such as symbology enablement and transmit mode, and store the scanner on charge when not in use to maintain battery readiness for full-shift operation.

Specifications

Scanner type:: 1D/2D
Sensor type:: LED
Connectivity technology:: Wireless
Weight:: 0.117 kg
Linear (1D) barcodes supported:: Codabar, JAN, Interleaved 2 of 5, GS1-128 (UCC/EAN-128), GS1 DataBar Expanded, EAN-8, EAN-13, Code 93, Code 39, Code 128, Code 11, MSI, U.P.C.
2D (matrix & stacked) barcodes supported:: MicroPDF417, Aztec Code, Data Matrix, MaxiCode, Micro QR Code, PDF417, QR Code
Product colour:: Yellow

All features

Scanning

Scanner type:: 1D/2D
Sensor type:: LED
Type:: Handheld bar code reader
Linear (1D) barcodes supported:: Codabar, JAN, Interleaved 2 of 5, GS1-128 (UCC/EAN-128), GS1 DataBar Expanded, EAN-8, EAN-13, Code 93, Code 39, Code 128, Code 11, MSI, U.P.C.
2D (matrix & stacked) barcodes supported:: MicroPDF417, Aztec Code, Data Matrix, MaxiCode, Micro QR Code, PDF417, QR Code
Wavelength:: 660 nm
Light levels (direct sunlight):: 0 - 100000

Ports & interfaces

Connectivity technology:: Wireless
Bluetooth version:: 2.1+EDR
Wireless range:: 10 m
Standard interfaces:: Bluetooth

Power

Number of batteries supported:: 2
Charging time:: 6 h
Number of reads per charge:: 70000
Power source type:: Battery

Technical details

Sustainability certificates:: RoHS

Performance

Product colour:: Yellow
LED indicators:: Y

Weight & dimensions

Weight:: 0.117 kg
Height:: 132.2 mm
Width:: 37.1 mm
Depth:: 40.1 mm

Operational conditions

Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 45

Logistics data

Harmonized System (HS) code:: 84716070

Battery

Battery technology:: Nickel-Metal Hydride (NiMH)
Battery capacity:: 2000 mAh
