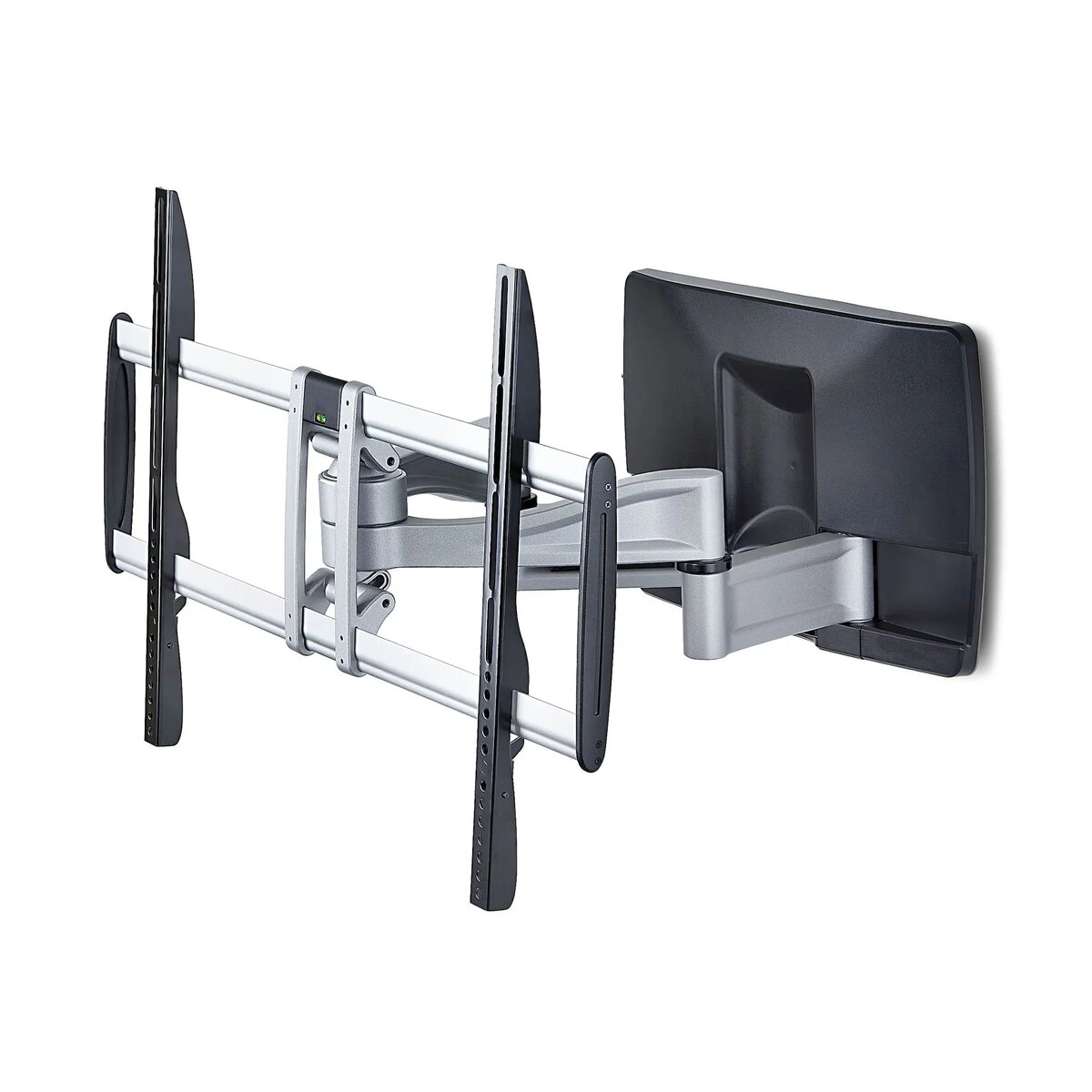

Wall Mount Bracket StarTech Heavy-Duty Articulating for up to 100" / 85 kg, VESA 200x200–800x500, Low-Profile, Black

StarTech heavy-duty articulating wall mount designed for flat-screen TVs from 32" up to 100" (max) and a maximum weight of 85 kg. This low-profile bracket supports VESA mounting patterns from 200×200 mm to 800×500 mm and offers tilt and swivel adjustment to fine-tune viewing angles. The mount collapses to 10.5 cm from the wall and extends to 55 cm for access behind the display. Constructed from steel and aluminum with integrated cable management and decorative covers, the black finish suits both residential and commercial installations that require secure support for extra-large displays.

Advantages

The articulating dual-arm design provides smooth motion and stable support for large, heavy televisions while enabling a compact, low-profile look when retracted. Adjustable tilt (−12° to +2°) and swivel (−60° to +60°) allow precise post-install positioning without moving the wall plate. The mount includes mounting hardware, spacers and a wall template to simplify installation on wood studs, brick, or concrete. Integrated cable channels keep wiring organized and concealed for a cleaner appearance.

Suitable for

• Conference rooms and meeting spaces
• Digital signage and retail displays
• Classrooms and training facilities
• Residential living rooms with large TVs
• Customer-facing reception or waiting areas

Key specifications

• Screen size compatibility: 32" (min) to 100" (max)
• Maximum load capacity: 85 kg (187.4 lb)
• VESA compatibility: 200 x 200 mm up to 800 x 500 mm
• Tilt range: −12° to +2°
• Swivel range: −60° to +60°
• Extension from wall: 10.5 cm (retracted) to 55 cm (extended)
• Mounting method: dual-stud (16 in spacing) compatible; suitable for wood studs, brick, or concrete
• Materials: steel and aluminum with decorative covers
• Color: black
• Cable management: integrated channels
• Displays supported: single screen

How to use

Locate and mark wall studs or appropriate solid mounting locations using the included wall template. Secure the wall plate to the wall with the provided screws and anchors appropriate for the surface type (wood studs, brick, or concrete). Attach the compatible VESA mounting brackets to the TV, using spacers if required, then hang the display on the articulating arms and fasten according to the assembly instructions. Adjust tilt and swivel to achieve the desired viewing angle and use the integrated cable channels to route and conceal cables. Verify all fasteners are tight and the mount supports the TV weight before leaving the installation unattended.

Usage recommendations

For safest installation, use two qualified installers for heavy or extra-large displays, follow local building codes, and verify the wall structure and fasteners are rated for the maximum load. Periodically inspect mounting hardware and connections to ensure continued stability and proper cable routing.
