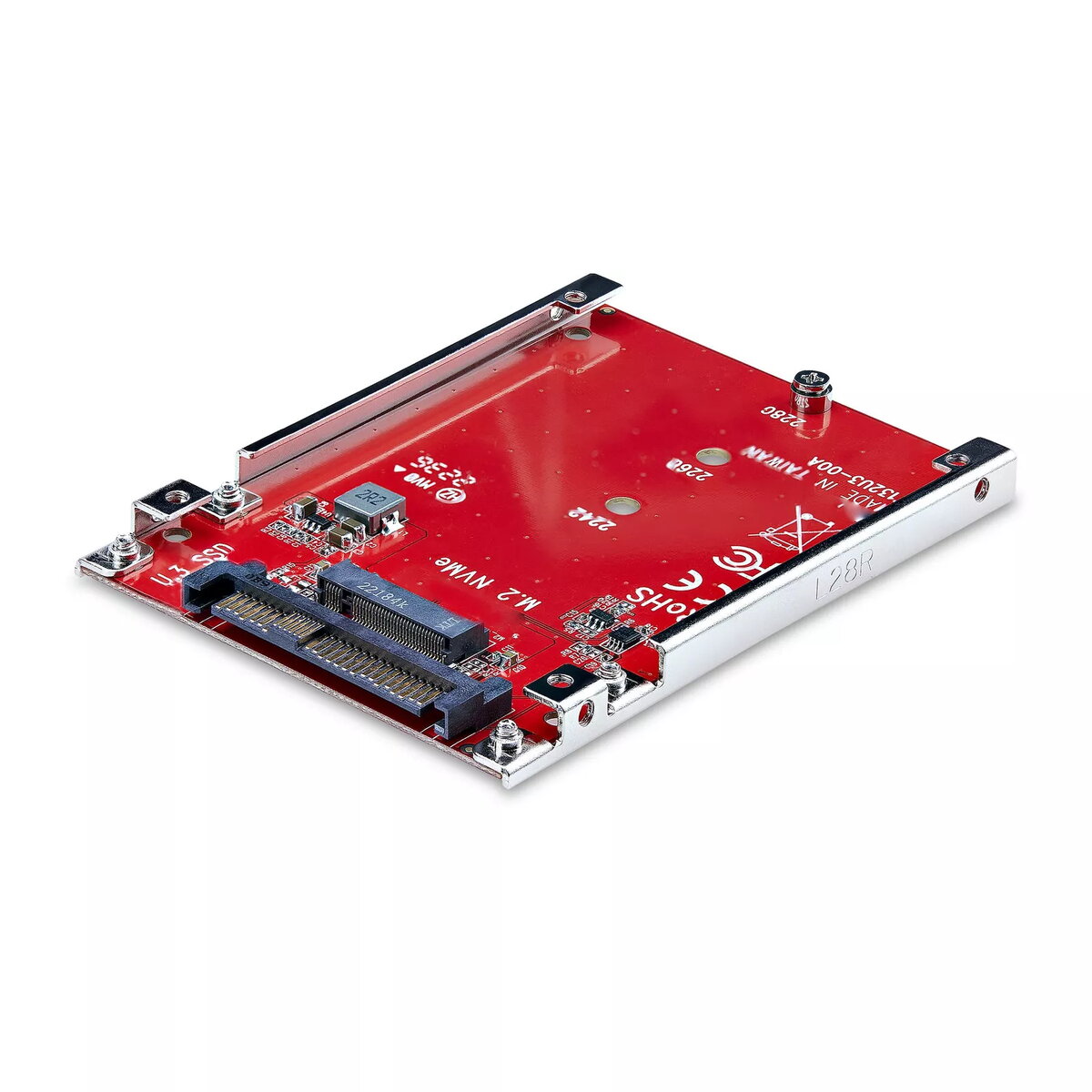

StarTech.com 1M25-U3-M2-ADAPTER Internal M.2 Adapter U.3 to M.2 Red

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 1

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 2

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 3

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 4

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 5

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 6

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 7

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 8

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 9

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 10

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 11

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 12

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 13

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 14

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 15

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 16

Internal M.2 Adapter StarTech.com 1M25-U3-M2-ADAPTER Photo 17

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com 1M25-U3-M2-ADAPTER is an internal M.2 adapter that connects U.3 to M.2. It features a compact design with a width of 70 mm and a height of 7 mm, making it suitable for PC installations. With a mean time between failures of over 12 million hours, it ensures reliability. The adapter outputs 3.3 V at 5 A, providing efficient power for your devices.

Available at price 48.99 €: 10 pcs.

Total available for order: 36 pcs.

Warranty: 2 Years

SKU: 10643010

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

07.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.04 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

07.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 58.99 €: 9 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

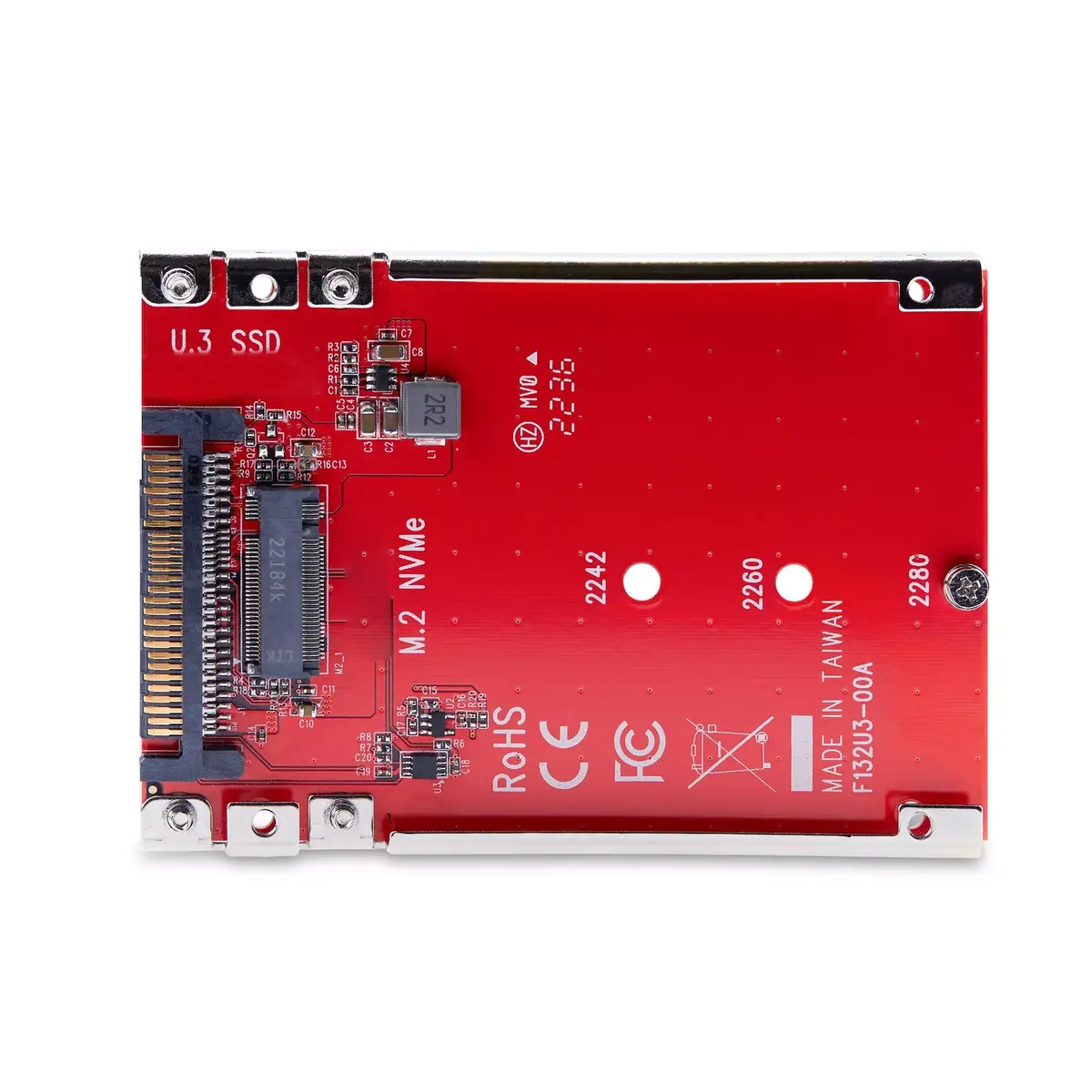

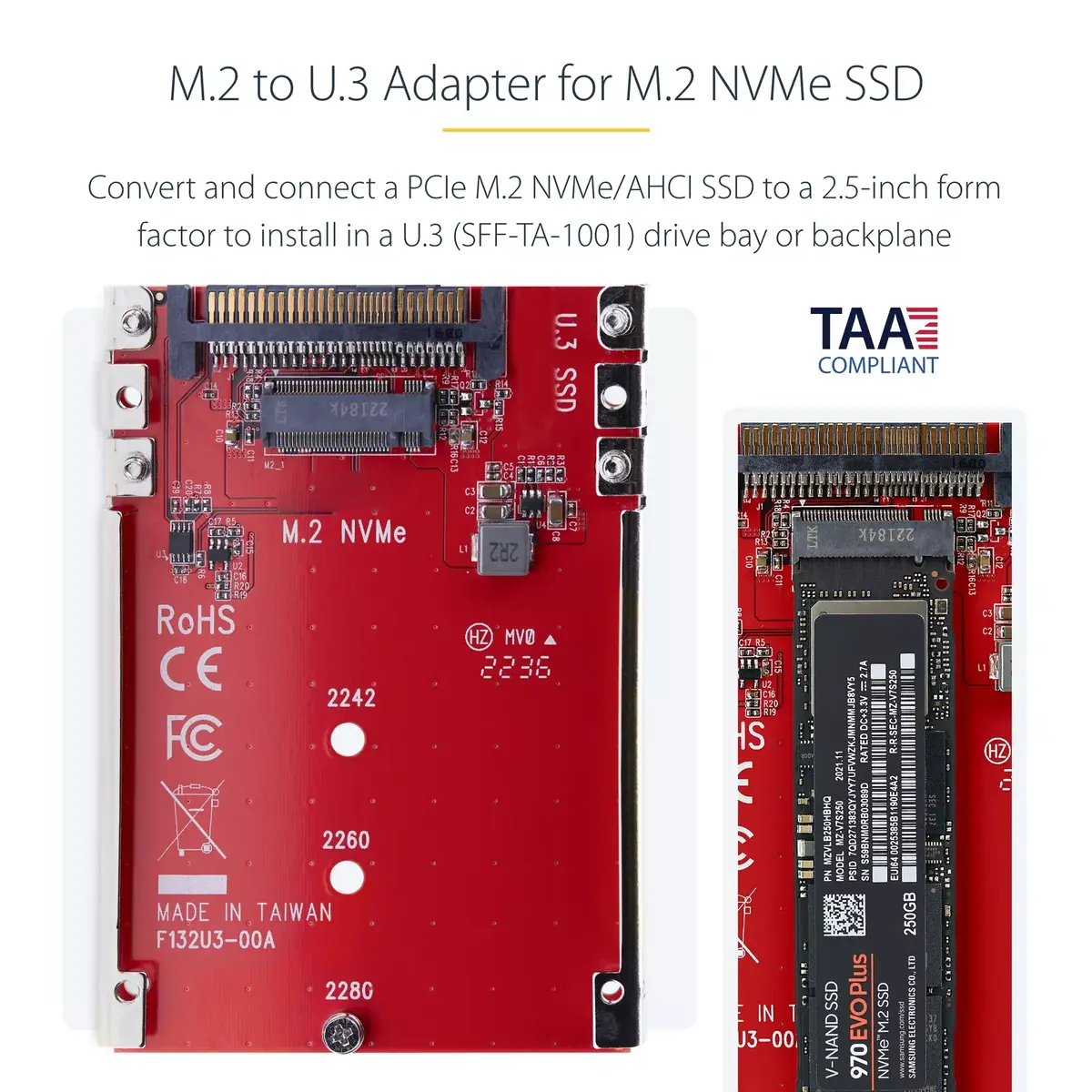

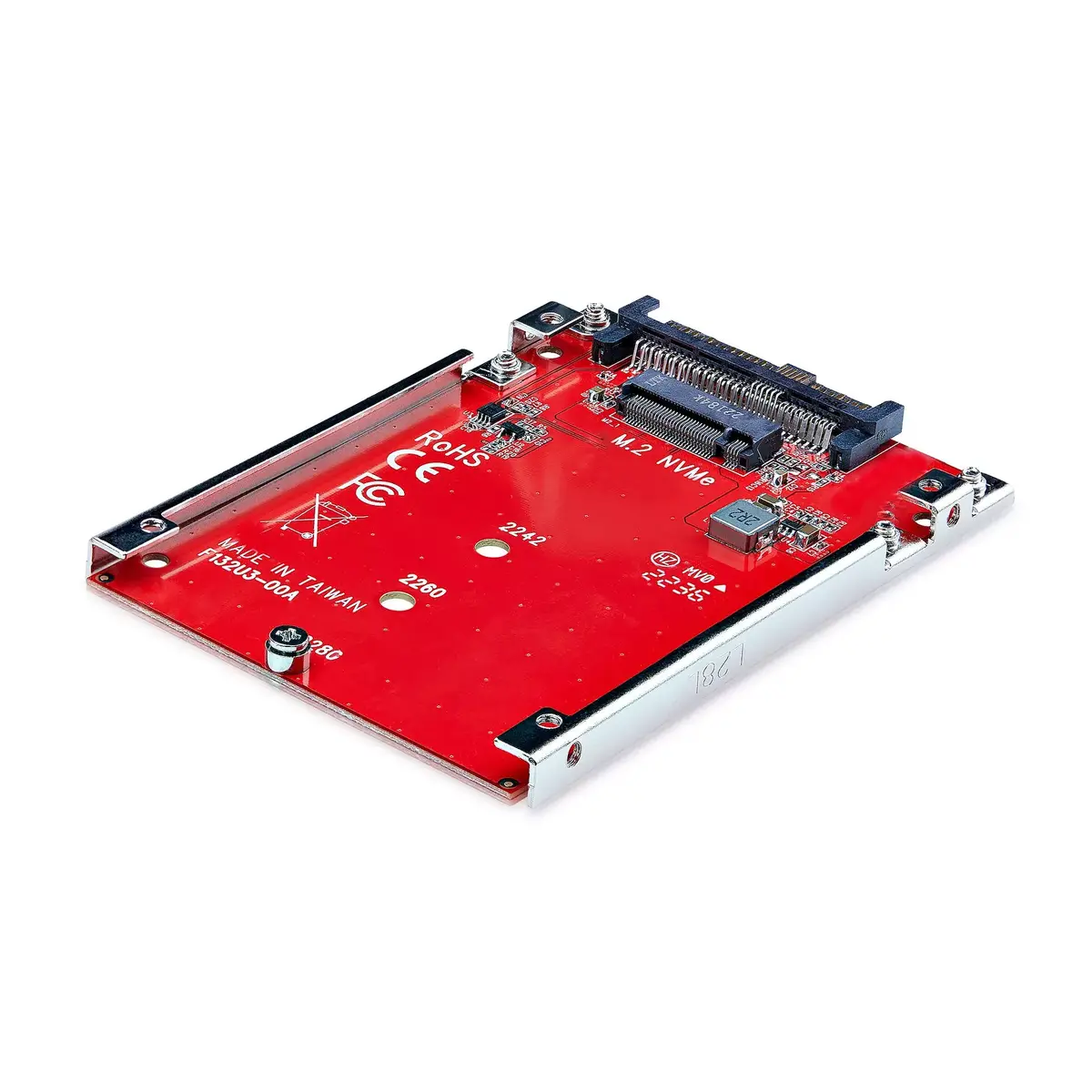

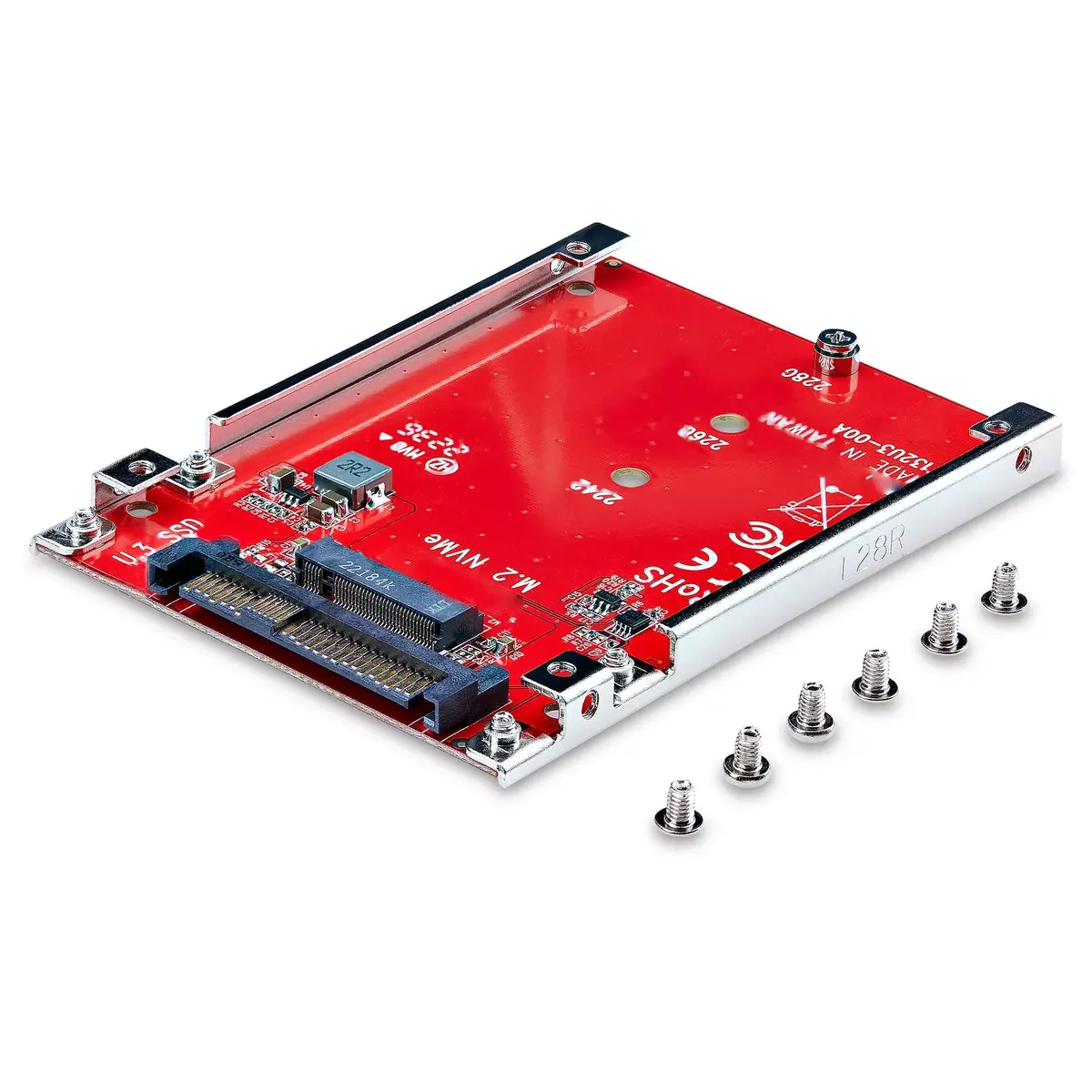

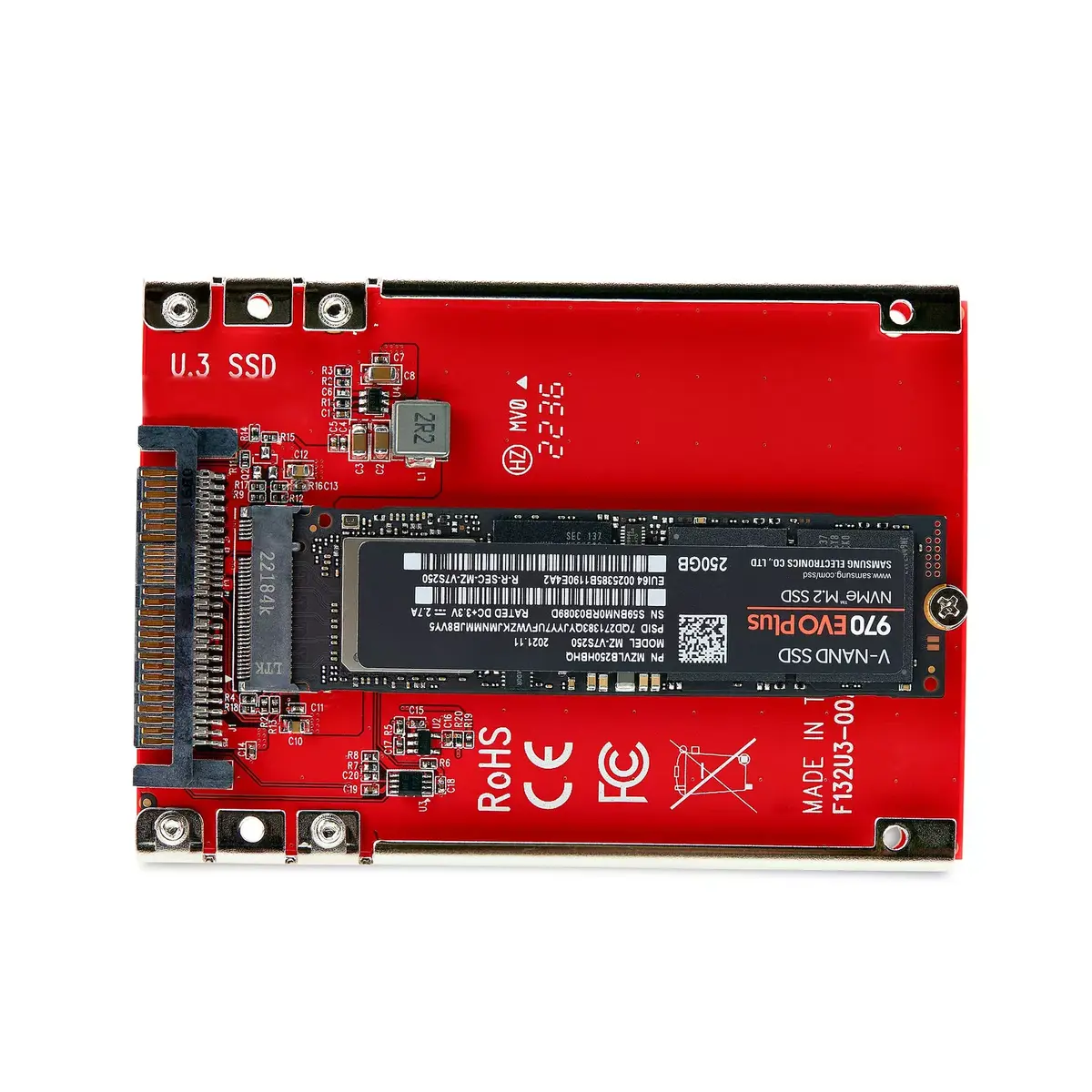

Connect an M.2 NVMe drive to a 2.5-inch U.3 (SFF-TA-1001) drive bay using the StarTech.com 1M25-U3-M2-ADAPTER. This internal adapter converts PCIe M.2 NVMe/AHCI SSDs in 2242, 2260, or 2280 form factors to a 2.5-inch U.3-compatible module while preserving native PCIe Gen 4 performance. The compact adapter measures 70 mm wide and 7 mm high, supplies 3.3 V at 5 A, and is designed for installation inside PCs and server systems.

Advantages

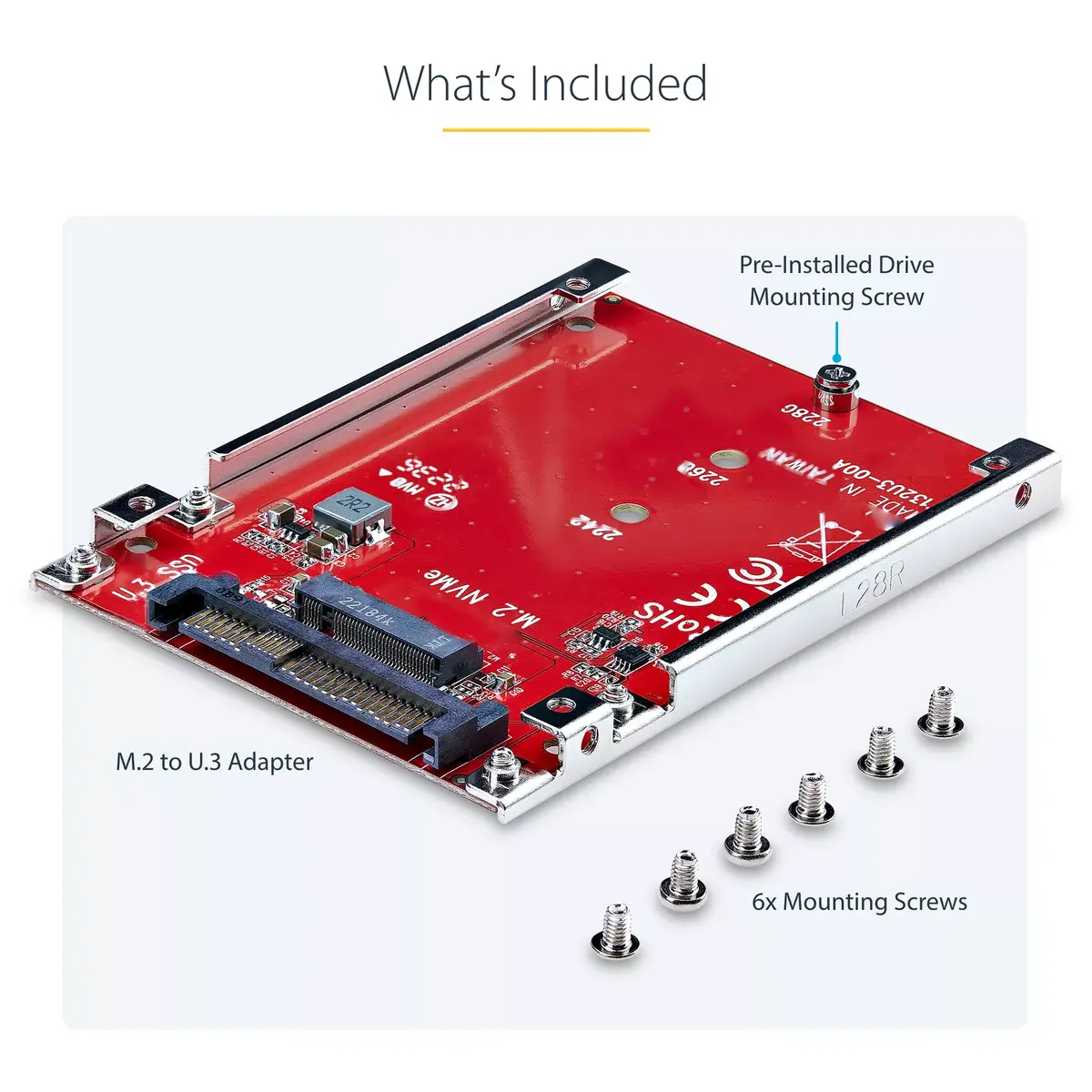

The adapter changes the M.2 form factor to fit a U.3 drive bay without using an active chipset, maintaining PCIe Gen 4 read and write speeds. It supports backward compatibility with earlier M.2 PCIe NVMe drives and provides a mean time between failures (MTBF) of over 12 million hours. No drivers or additional software are required for operation, and the package includes mounting hardware for both the M.2 drive and the U.3 adapter.

Suitable for

Installing a 2242, 2260, or 2280 M.2 NVMe SSD into a 2.5-inch U.3 drive bay or backplane
Converting internal M.2 PCIe NVMe drives for use in servers or workstations with U.3 bays
Upgrading storage in systems that require a 2.5-inch U.3 form factor while retaining NVMe performance

Key specifications

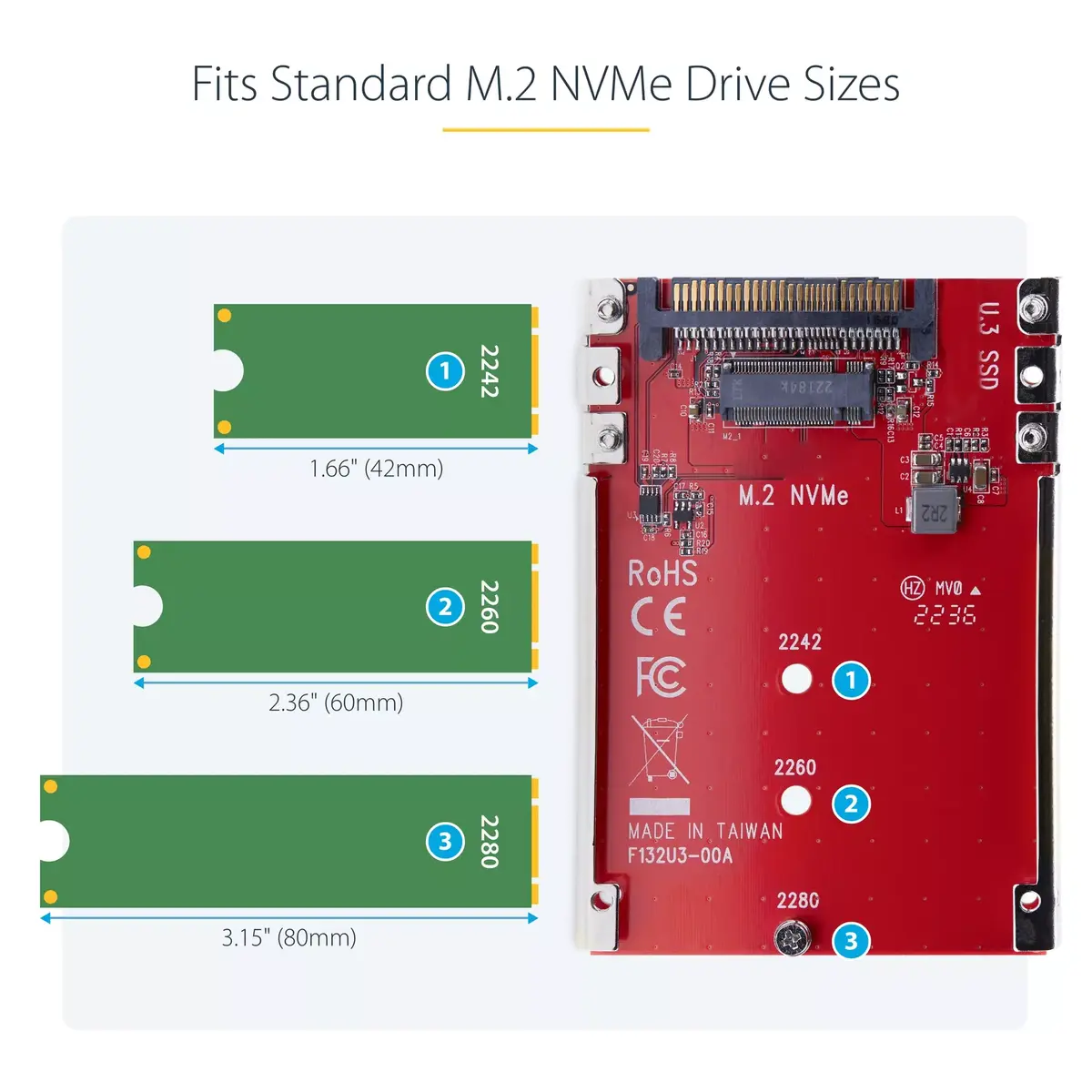

Compatible M.2 sizes: 2242, 2260, 2280

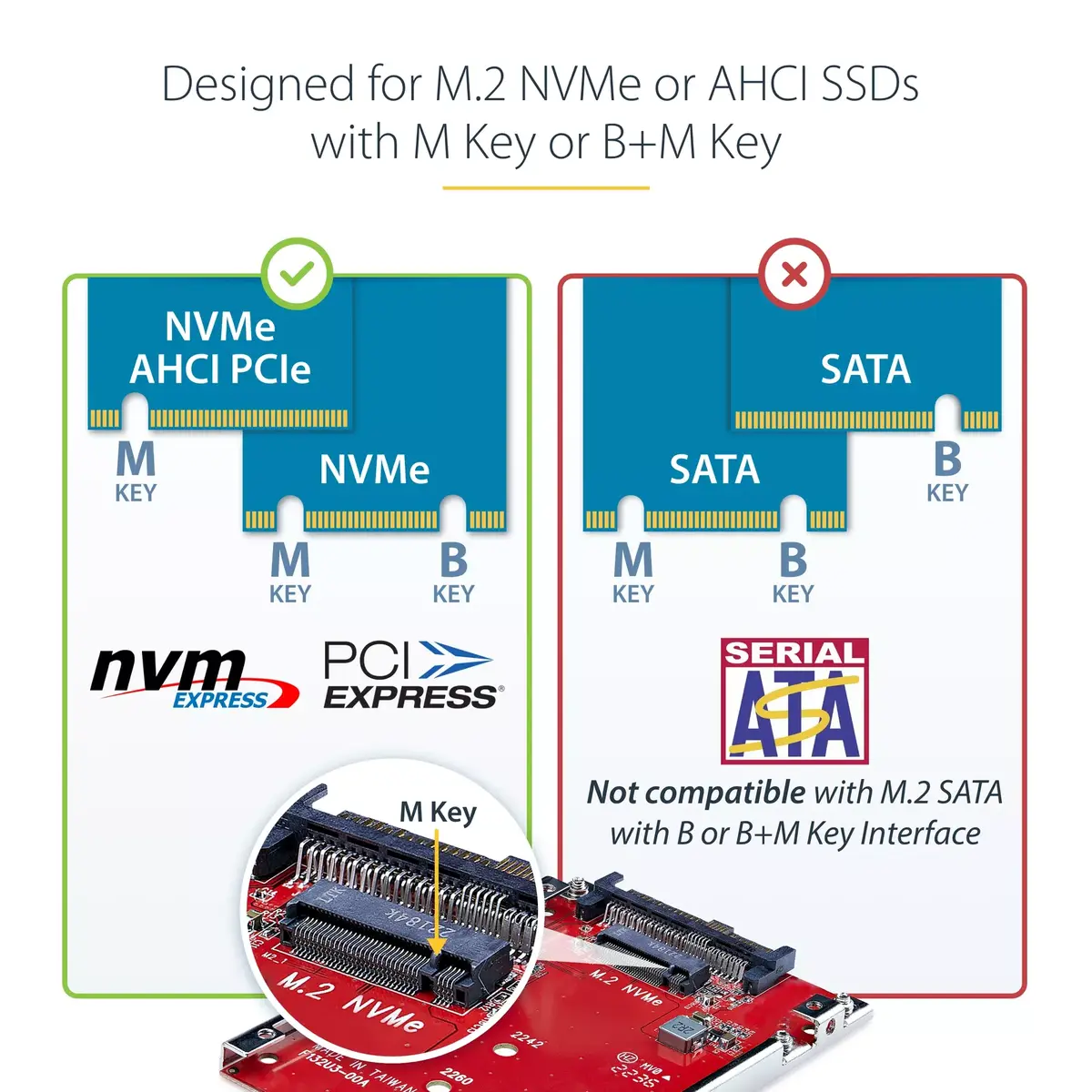

Interface supported: PCIe M.2 NVMe / AHCI (not compatible with M.2 SATA)
U.3 form factor: SFF-TA-1001 (2.5-inch U.3 bay)
Power output: 3.3 V at 5 A
Dimensions: 70 mm (width) x 7 mm (height)
MTBF: >12,000,000 hours

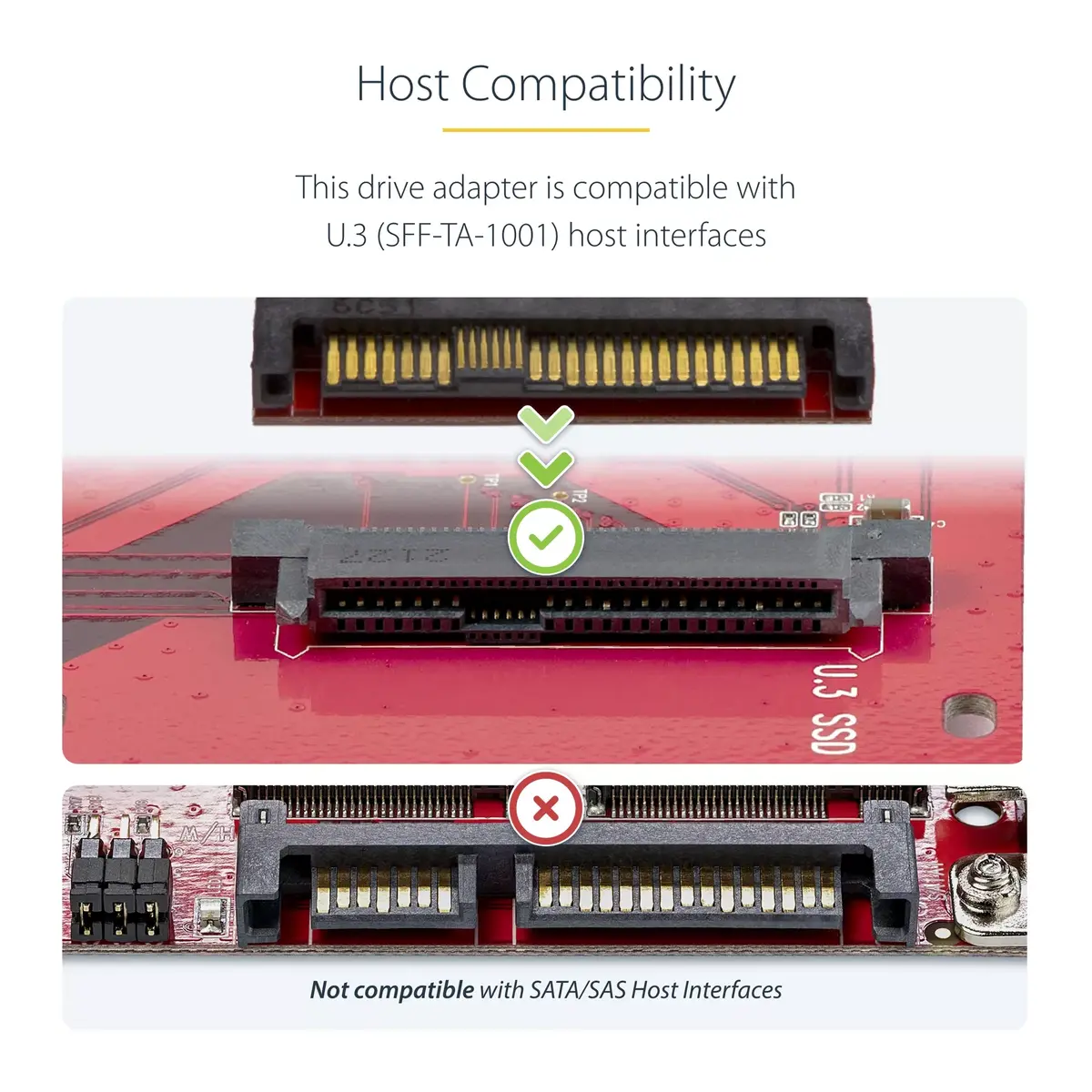

Not compatible with SATA or SAS host controllers, M.2 SATA SSDs, or U.2 host interfaces

How to use

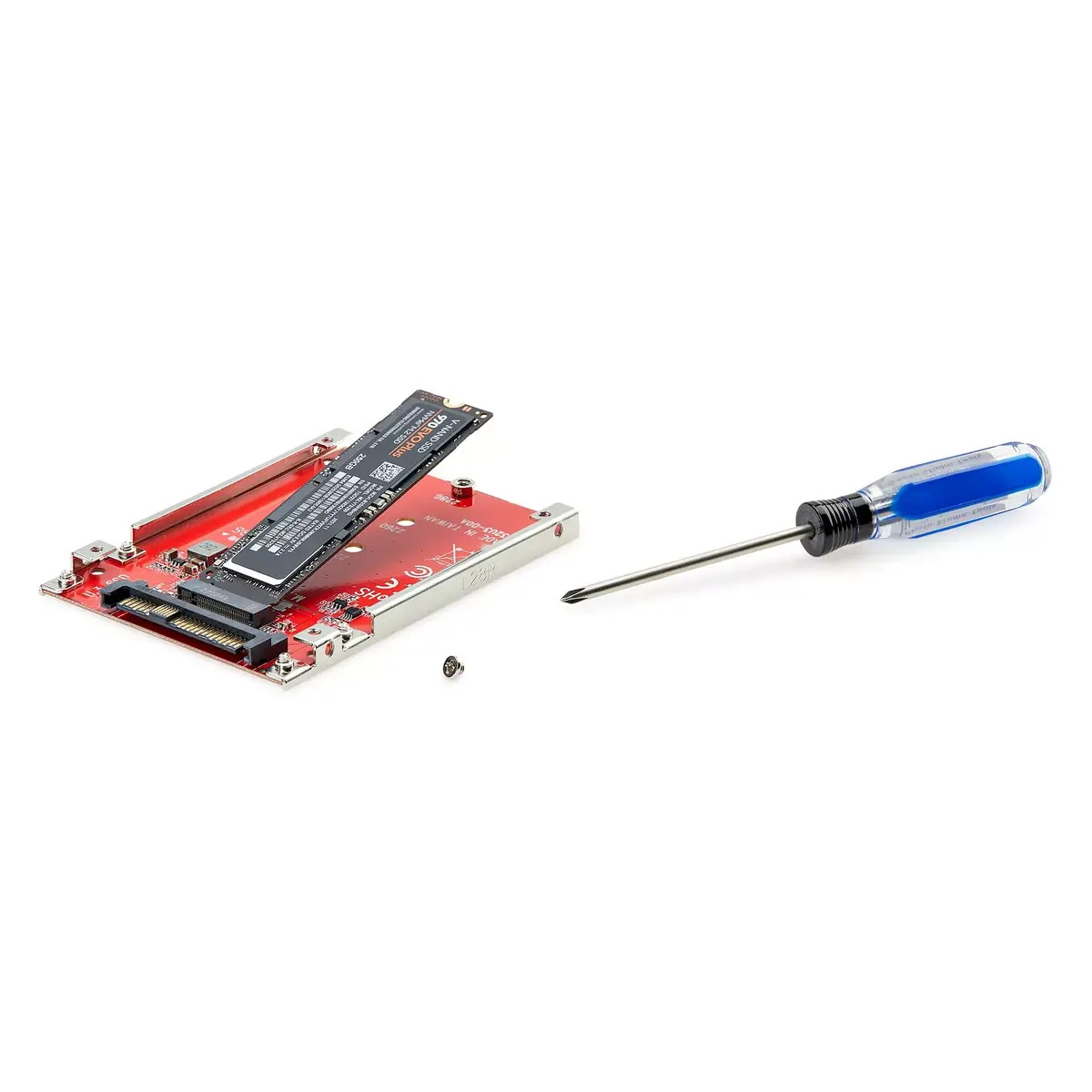

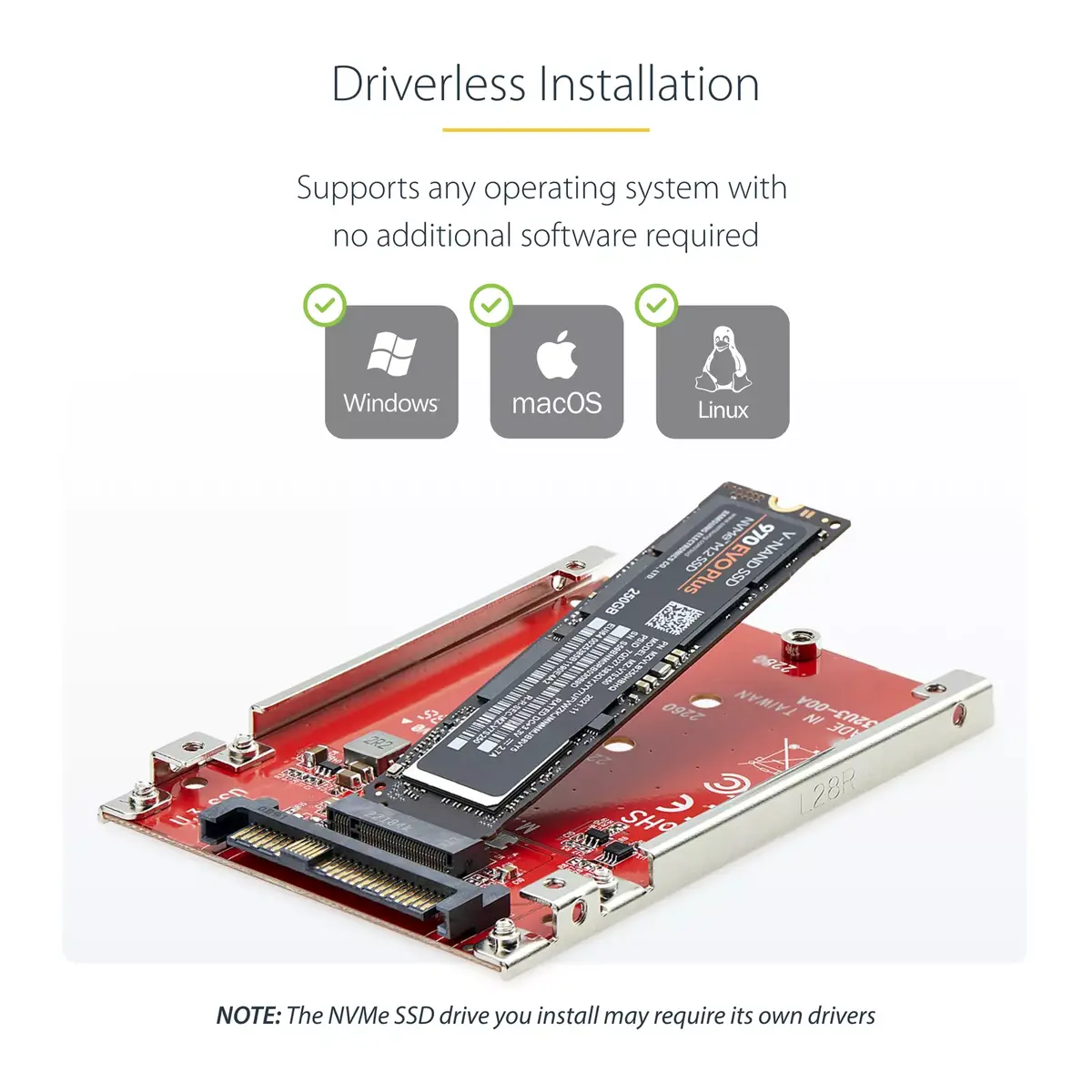

Install the M.2 NVMe SSD (2242/2260/2280) onto the adapter using the supplied mounting hardware, secure the drive, and insert the adapter into a 2.5-inch U.3 drive bay or backplane. Ensure the host supports PCIe NVMe over a U.3 interface; no drivers or additional software are required for Windows, macOS, or Linux. Power and data connections are handled through the U.3 bay once the adapter is installed.

Usage recommendations

Use this adapter only with PCIe NVMe M.2 drives (2242/2260/2280). Do not attempt to connect M.2 SATA SSDs or use the adapter with SATA/SAS host controllers or U.2 host interfaces. Verify that the target backplane or host supports U.3 and NVMe before installation to ensure compatibility and preserve full PCIe Gen 4 performance.

Specifications

Host interface:: U.3
Weight:: 0.037 kg
Internal:: Yes
Output interface:: M.2
Product colour:: Red

All features

Operational conditions

Operating relative humidity (H-H):: 15 - 90
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: 0 - 50

Technical details

Sustainability compliance:: Yes
Compliance certificates:: Trade Agreements Act (TAA), RoHS

Ports & interfaces

Host interface:: U.3
Output interface:: M.2

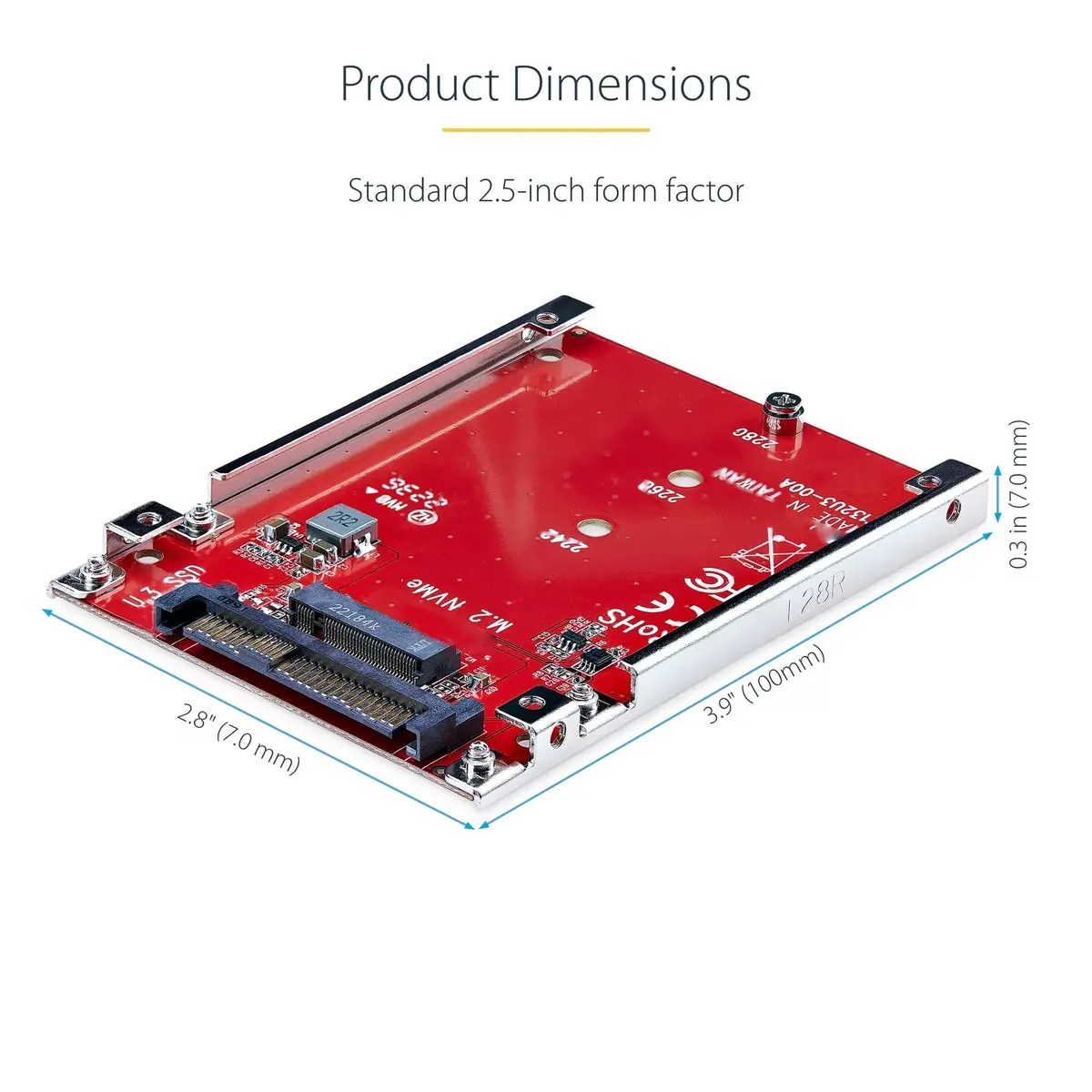

Weight & dimensions

Weight:: 0.037 kg
Package weight:: 100 g
Height:: 7 mm
Width:: 70 mm
Depth:: 100 mm

Power

Output voltage:: 3.3
Output current:: 5 A

System requirements

Windows operating systems supported:: Y
Mac operating systems supported:: Y
Linux operating systems supported:: Y

Design

Internal:: Yes
Product colour:: Red
Purpose:: PC

Performance

Mean time between failures (MTBF):: 12368734 h
S.M.A.R.T. support:: Yes

Logistics data

Master (outer) case height:: 312 mm
Master (outer) case width:: 490 mm
Master (outer) case length:: 381 mm
Products per master (outer) case:: 60 pc(s)

Packaging data

Package depth:: 175 mm
Package height:: 30 mm
Package width:: 142 mm
Quick installation guide:: Yes

Features
