Backplane StarTech.com 2-Bay M.2 NVMe SSD

Name: Backplane StarTech.com 2-Bay M.2 NVMe 2M2-REMOVABLE-PCIE
Brand: StarTech
SKU: 11170407
Price: 197.99 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Backplane StarTech.com 2-Bay M.2 NVMe SSD PCIe x8 Hot-Swap Tool-less

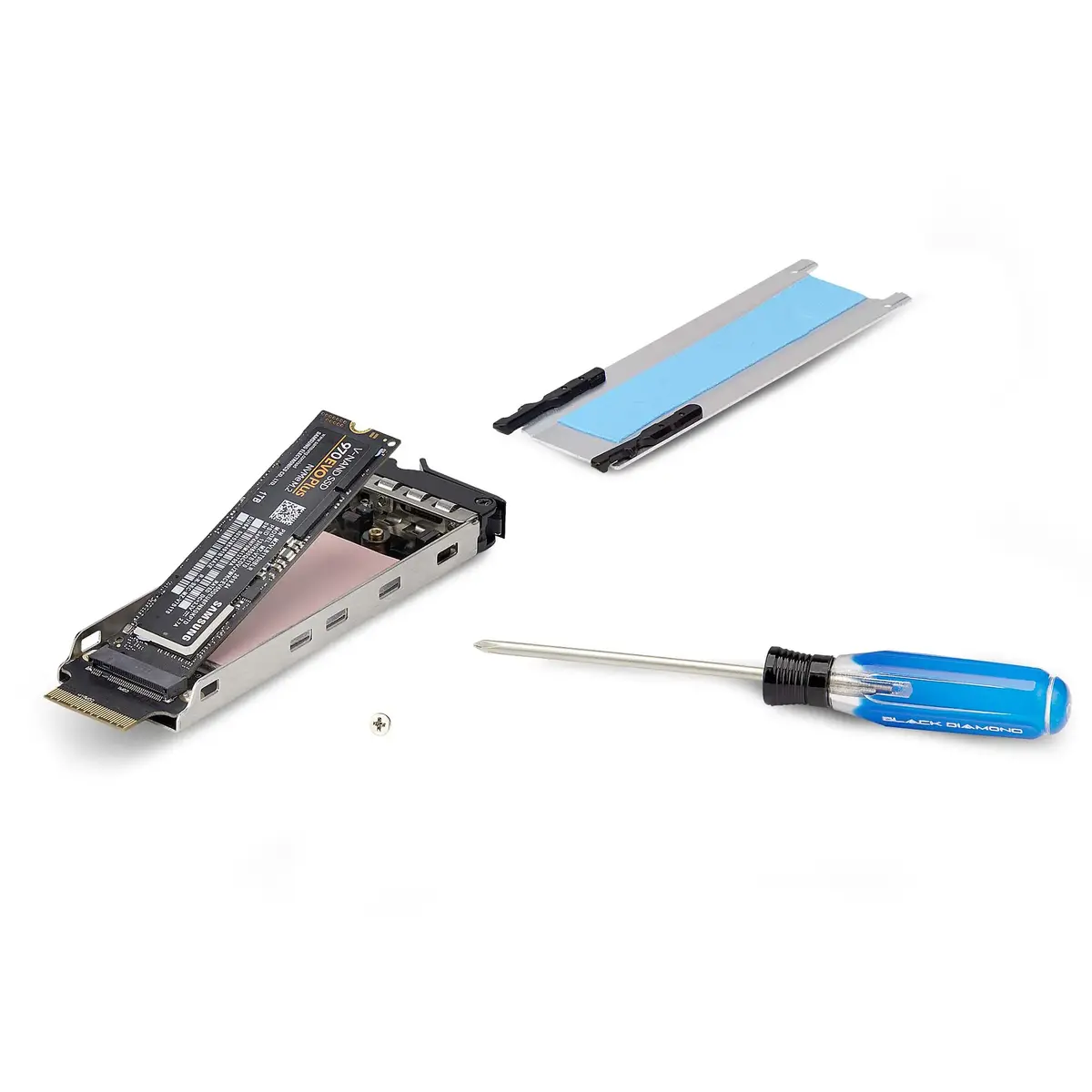

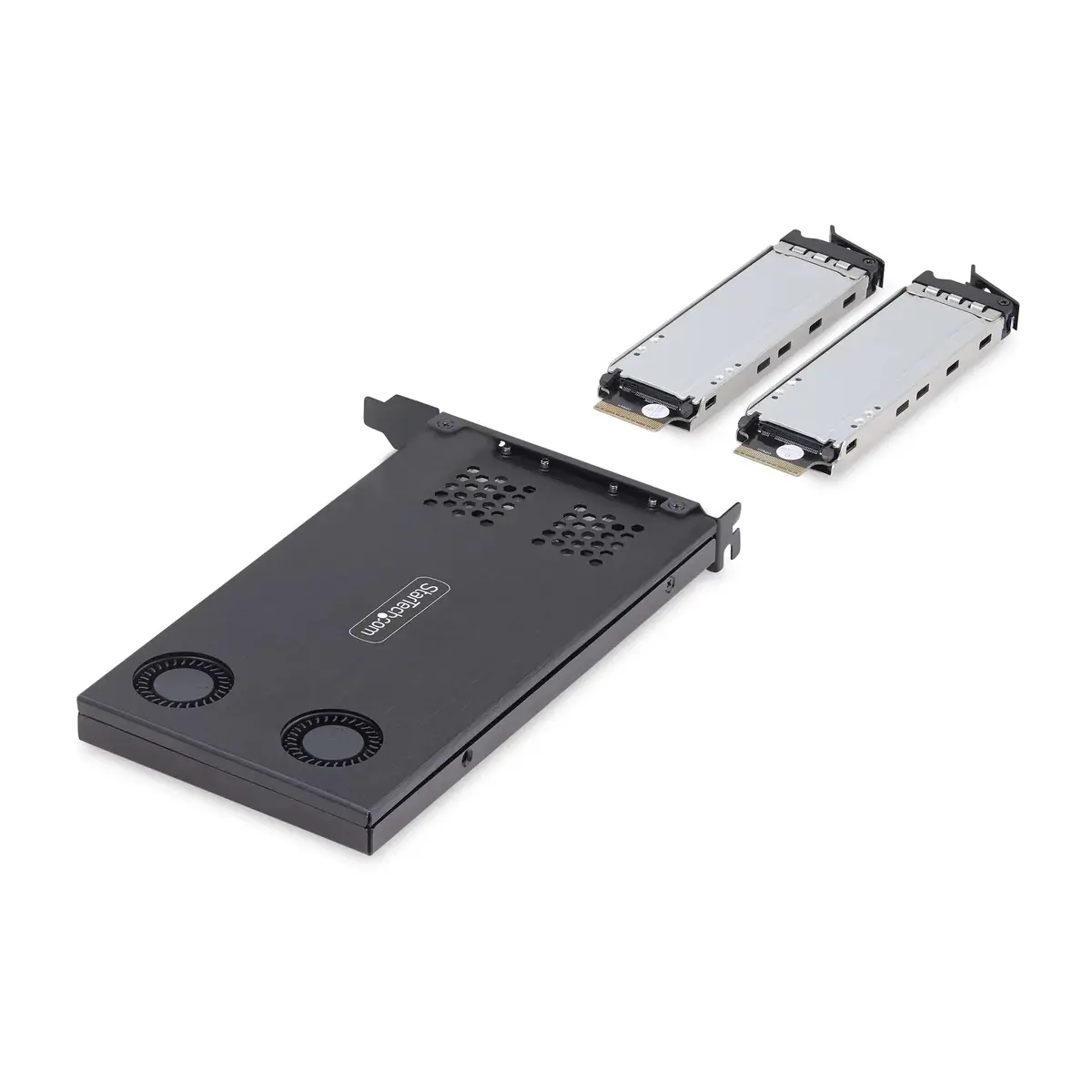

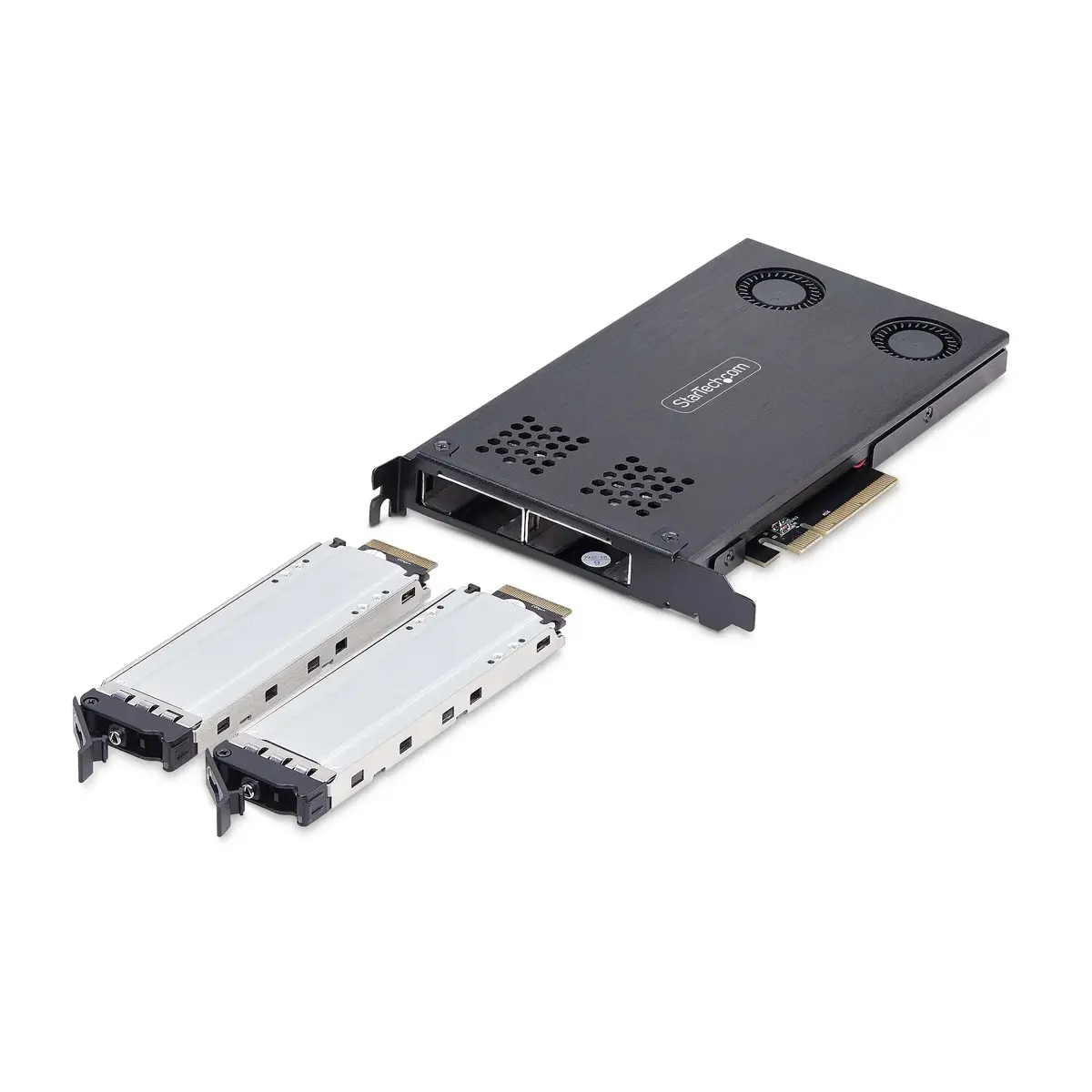

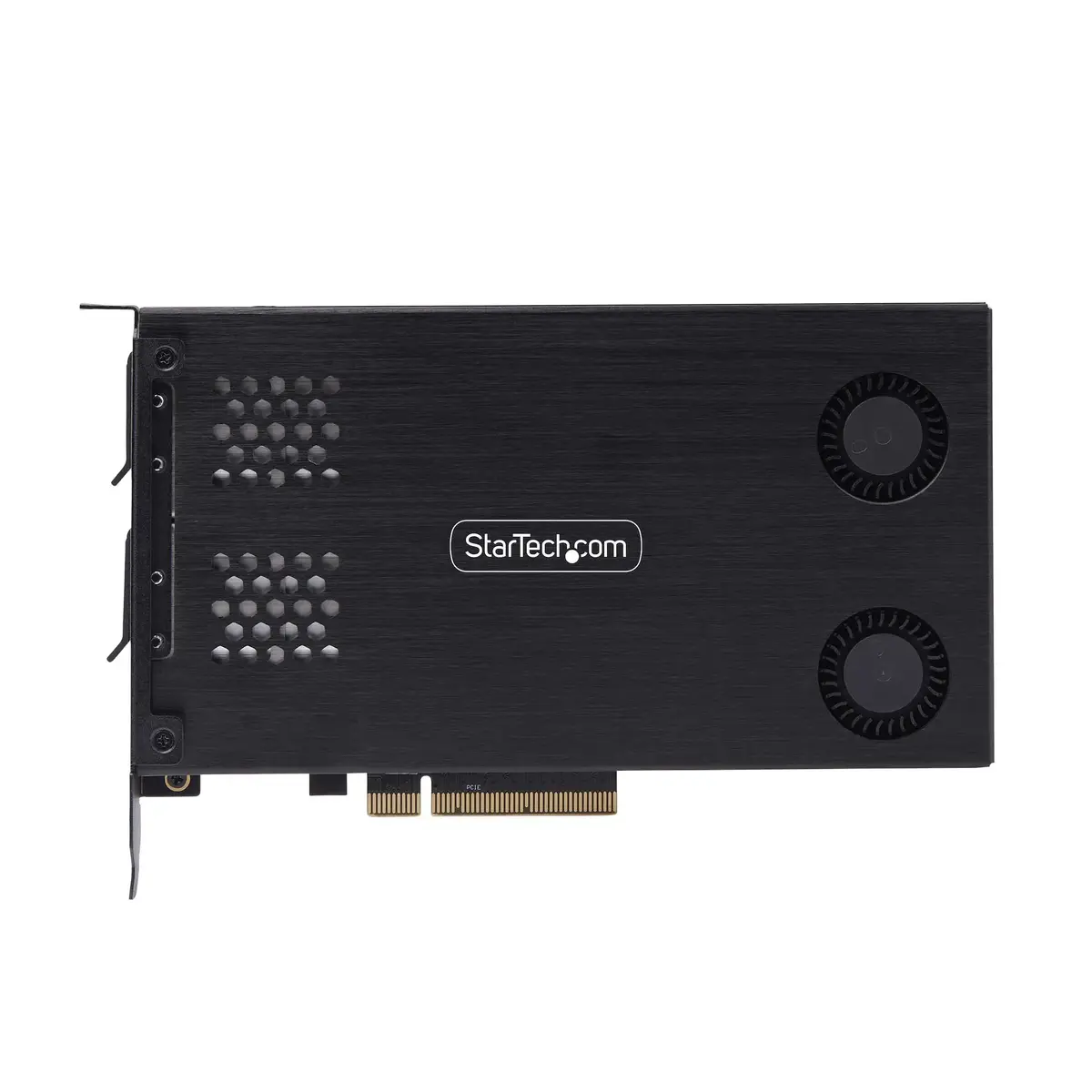

Backplane StarTech.com 2-Bay M.2 NVMe SSD Photo 1

Backplane StarTech.com 2-Bay M.2 NVMe SSD Photo 2

Backplane StarTech.com 2-Bay M.2 NVMe SSD Photo 3

Backplane StarTech.com 2-Bay M.2 NVMe SSD Photo 4

Backplane StarTech.com 2-Bay M.2 NVMe SSD Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com Dual-Bay M.2 NVMe SSD to PCIe x8 Removable Mobile Rack features a black design, tool-less installation, and two hot-swap drive bays. It supports M.2 SSDs and requires bifurcation for optimal performance. Dimensions are 186mm x 121mm x 19mm, making it compact for various setups.

Available at price 197.99 €: 7 pcs.

Total available for order: 60 pcs.

Warranty: 2 Years

SKU: 11170407

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

13.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.50 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

13.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 235.49 €: 6 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech.com 2-Bay M.2 NVMe SSD PCIe x8 Hot-Swap Tool-less backplane (MPN: 2M2-REMOVABLE-PCIE) provides two removable M.2 NVMe drive bays using an available PCIe x8 or larger expansion slot. It supports M-Key M.2 NVMe SSDs in sizes 2230, 2242, 2260, and 2280 and enables direct PCIe connectivity without on-board chipsets or adapters, preserving full performance for each drive.

Advantages

Tool-less installation lets you insert or remove M.2 NVMe drives without tools, while the latching, lockable drive trays (two keys included) add physical security. Each bay can deliver up to 64 Gbps per drive when used in a compatible PCIe slot with bifurcation. The unit uses a vented stainless steel frame and tray, thermal pads, an aluminum cover, active cooling fans, and anti-vibration springs to maintain reliable thermal and mechanical performance.

Suitable for

Systems with a free PCIe x8 or x16 slot that support PCIe bifurcation
Environments requiring quick-swap M.2 NVMe drives for service, upgrades, or data transfer
Workstations or servers that need to maintain native NVMe throughput without external enclosures

Key specifications

Supported drive types: M.2 NVMe SSDs (M-Key) — 2230, 2242, 2260, 2280
Interface: PCIe x8 (requires motherboard support for PCIe bifurcation to access multiple drives)
Maximum throughput: up to 64 Gbps per drive (no on-board chipsets/adapters)
Form factor/dimensions: 186 mm x 121 mm x 19 mm
Materials and cooling: vented stainless steel frame and tray, aluminum cover, thermal pads, active fans
Security/features: tool-less latching trays, lockable installation with two keys, anti-vibration springs, optional stabilizing screw
Compatibility: PCIe 4.0/3.0 motherboards that support bifurcation; not compatible with M.2 SATA drives

How to use

Install the backplane into an available PCIe x8 or larger expansion slot on a motherboard that supports PCIe bifurcation (x8 or x16 slot with bifurcation enabled). Place an M.2 NVMe SSD (M-Key, supported sizes 2230–2280) into a drive tray and secure it using the latching mechanism; locking is available with the supplied keys. Insert the tray into the bay for hot-swap access. Ensure your system BIOS/UEFI is configured for PCIe bifurcation so the OS can read and write to multiple drives simultaneously.

Usage recommendations

Use this backplane only with M.2 NVMe (PCIe) drives — M.2 SATA drives are not supported. Confirm your motherboard supports PCIe bifurcation and review BIOS/UEFI settings before installation. For best thermal performance, ensure adequate chassis airflow and periodically check that the fans and thermal pads remain unobstructed. Additional drive trays (TR-M2-REMOVABLE-PCIE) are available separately if you need spares.

Specifications

Host interface:: PCI Express
Weight:: 0.5 kg
Product colour:: Black

All features

Quick start guide:: Yes
SSD interface:: M.2
RAID support:: No
Key lock:: Yes
Number of screws:: 2
SSD form factor:: M.2
Number of lock keys included:: 2 pc(s)

Operational conditions

Operating relative humidity (H-H):: 10 - 60
Storage temperature (T-T):: 0 - 50
Operating temperature (T-T):: -10 - 60

Technical details

Compliance certificates:: RoHS

Ports & interfaces

Host interface:: PCI Express
Number of SSDs supported:: 2
PCIe version:: 4.0

Other features

Type:: Backplane

Weight & dimensions

Weight:: 0.5 kg
Package weight:: 500 g
Height:: 19 mm
Width:: 186 mm
Depth:: 121 mm

Design

Product colour:: Black
Number of fans:: 2 fan(s)

Performance

Mean time between failures (MTBF):: 40000 h
LED indicators:: Y
Data transfer rate:: 128 Gbit/s
Hot-swap:: Yes
S.M.A.R.T. support:: Yes

Logistics data

Master (outer) case height:: 258 mm
Master (outer) case width:: 325 mm
Master (outer) case length:: 485 mm
Products per master (outer) case:: 28 pc(s)

Features

TRIM support:: Yes

Packaging data

Package depth:: 151 mm
Package height:: 46 mm
Package width:: 230 mm
