StarTech 2.5" to 3.5" Drive Bay Mounting Bracket BRACKET125PT

Name: 2.5" SSD/HDD Mounting Bracket for BRACKET125PT
Brand: StarTech
SKU: 4076417
Price: 13.49 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

2.5" SSD/HDD Mounting Bracket for 3.5" Drive Bay by StarTech, fits 2.5" drives, 102×150×13 mm

StarTech 2.5" to 3.5" Drive Bay Mounting Bracket BRACKET125PT Photo 1

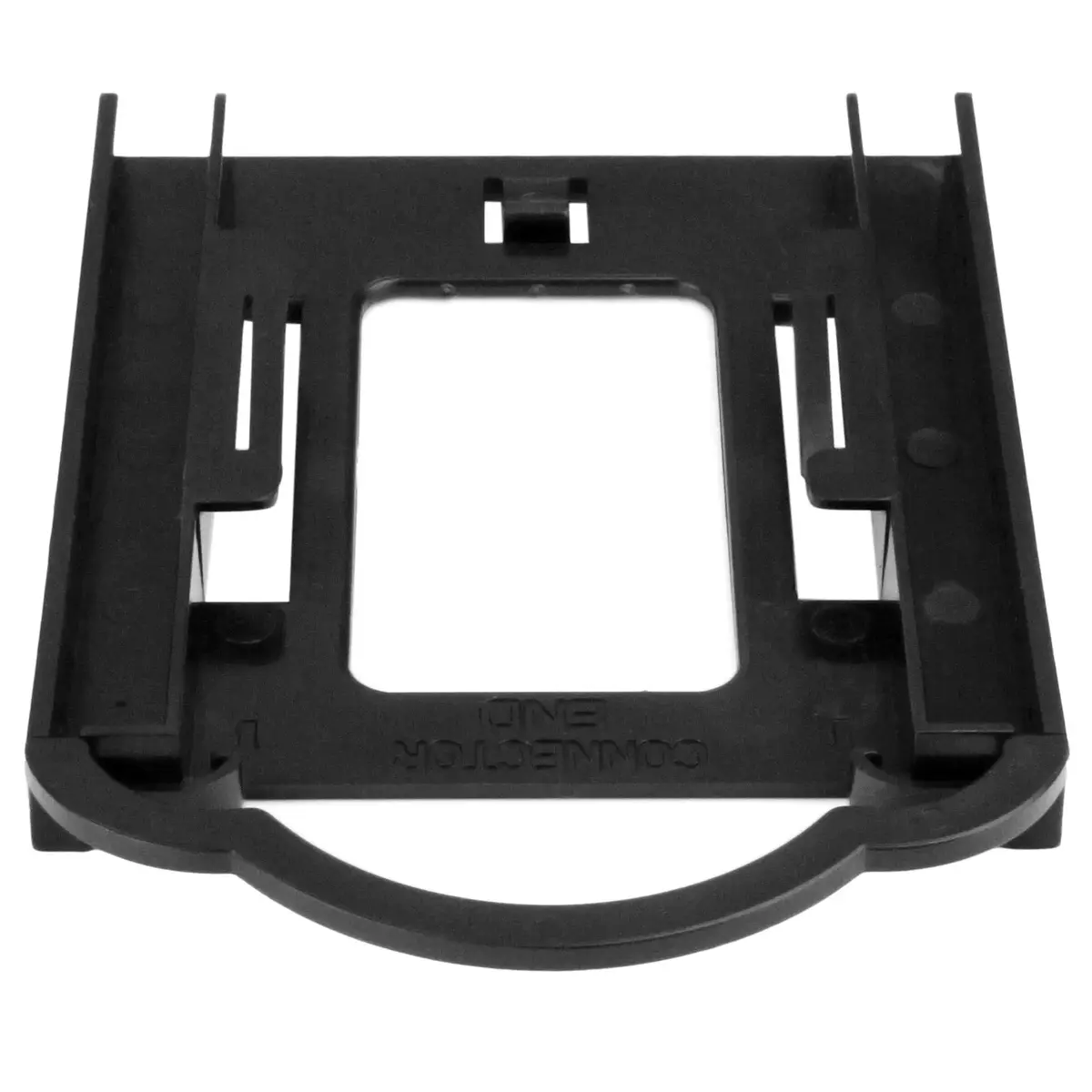

StarTech 2.5" to 3.5" Drive Bay Mounting Bracket BRACKET125PT Photo 2

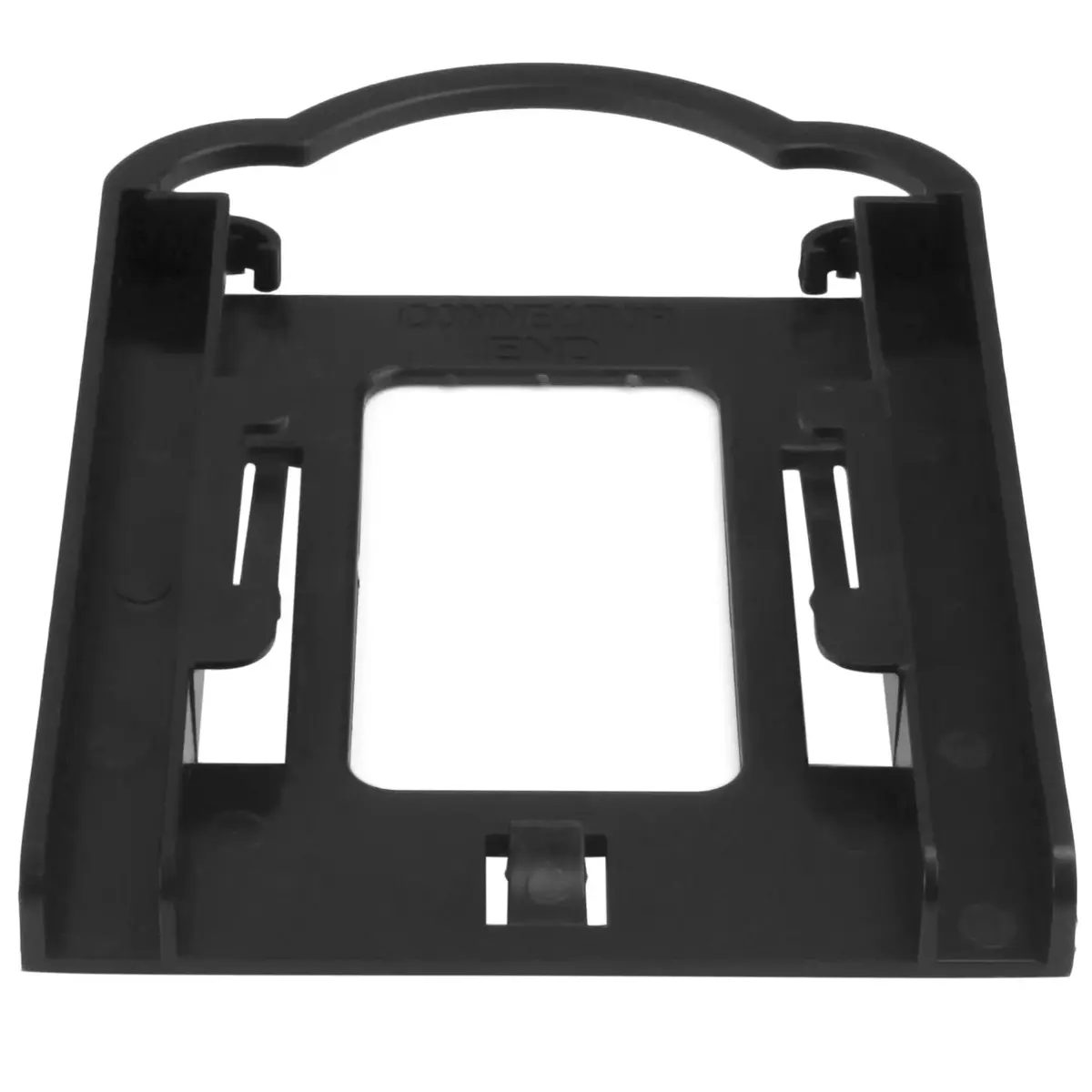

StarTech 2.5" to 3.5" Drive Bay Mounting Bracket BRACKET125PT Photo 3

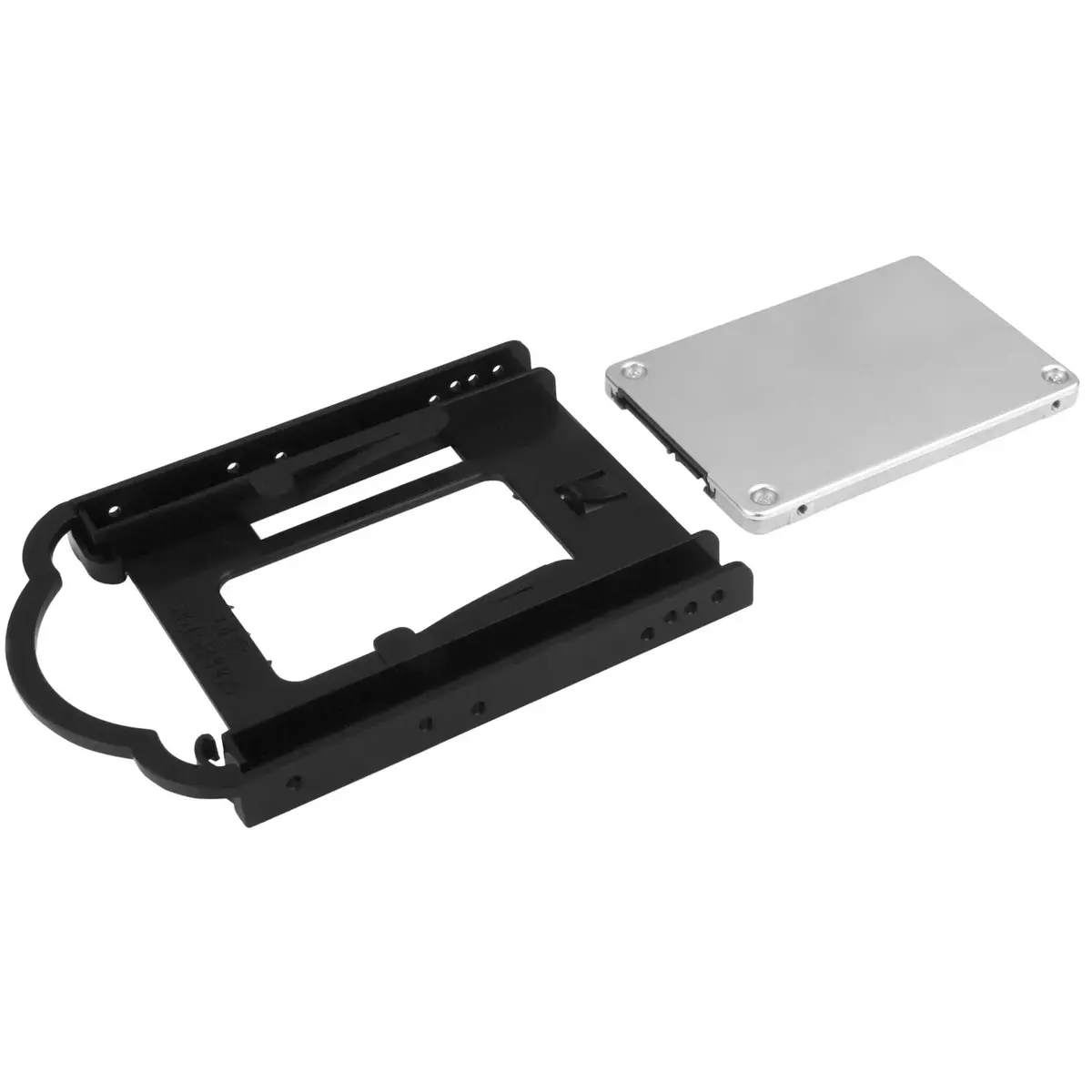

StarTech 2.5" to 3.5" Drive Bay Mounting Bracket BRACKET125PT Photo 4

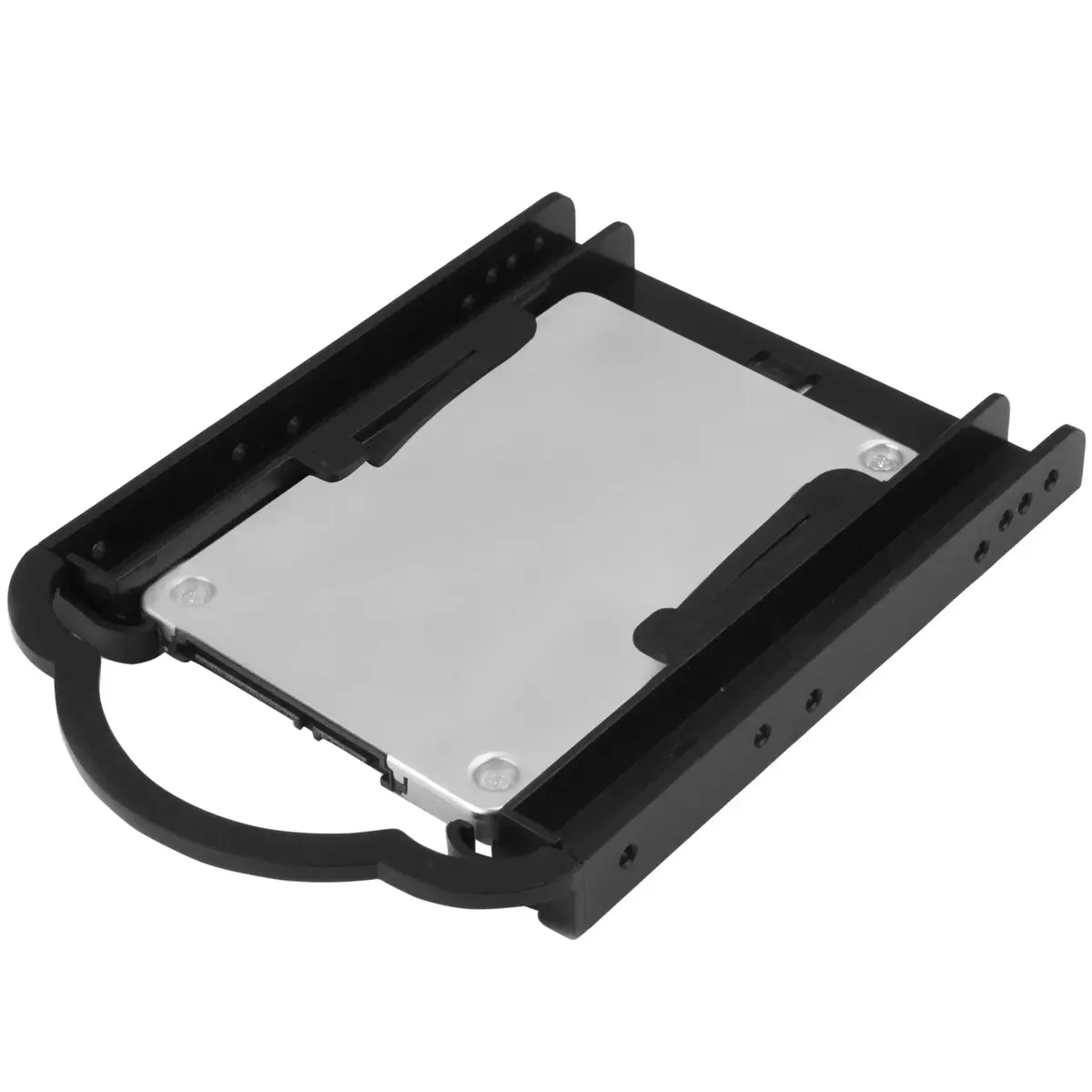

StarTech 2.5" to 3.5" Drive Bay Mounting Bracket BRACKET125PT Photo 5

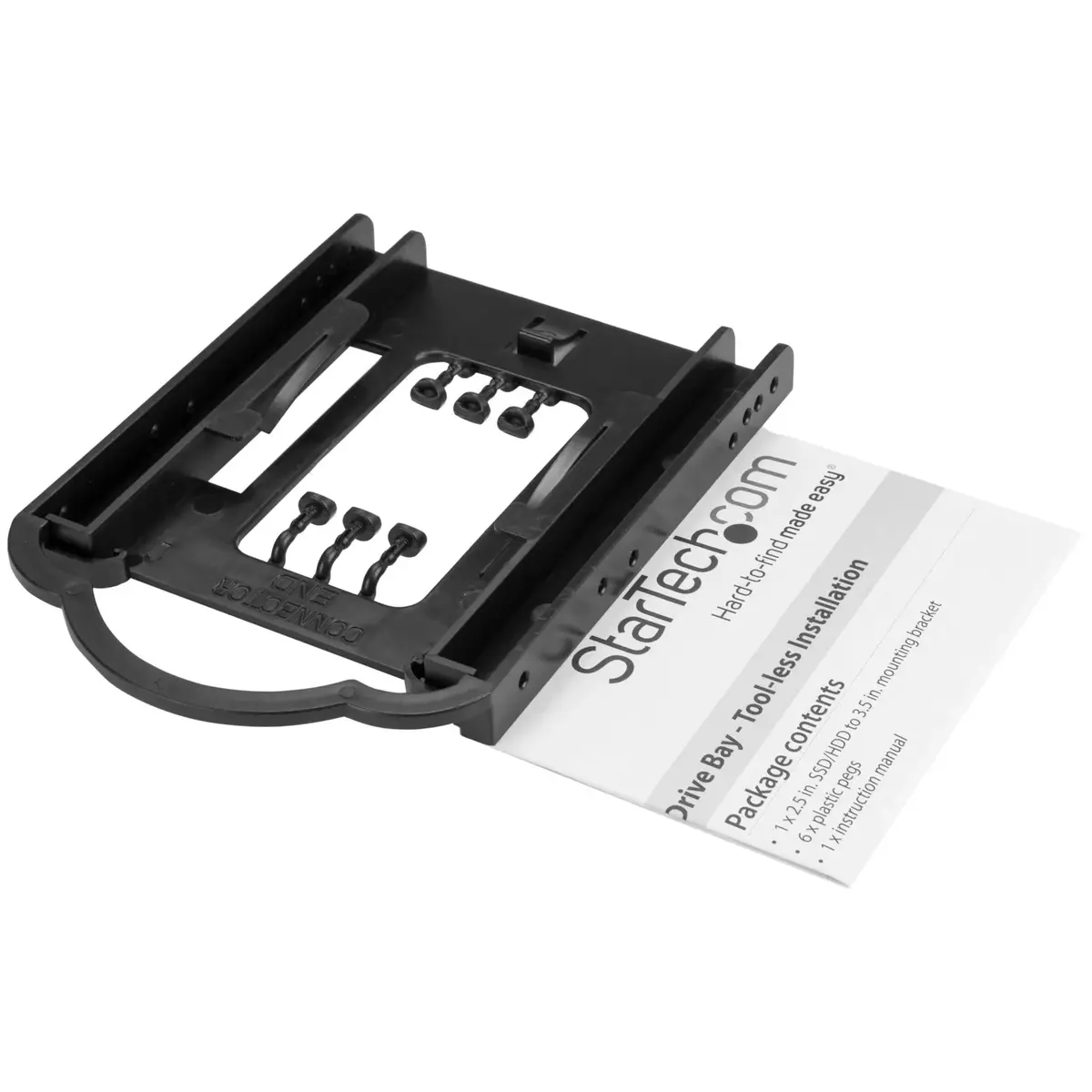

StarTech 2.5" to 3.5" Drive Bay Mounting Bracket BRACKET125PT Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Tool-less StarTech mounting bracket designed to install a 2.5" SSD or HDD into a standard 3.5" drive bay. Physical dimensions: 102 mm (W) × 150 mm (D) × 13 mm (H); fits a 3.5" (8.89 cm) bay. Carrier panel type allows screw-free installation and easy drive insertion/removal. CE and RoHS certified; suitable for desktop PC upgrades and storage conversions.

Available for order: 186 pcs.

Warranty: 2 Years

SKU: 4076417

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

10.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.03 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

10.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Install a 2.5" SSD or HDD into a standard 3.5" drive bay quickly and without tools using the StarTech 2.5" SSD/HDD Mounting Bracket for 3.5" Drive Bay. The bracket supports 2.5" drives with heights from 7 mm to 9.5 mm and fits a 3.5" (8.89 cm) bay. Its carrier panel-style design enables screw-free installation and easy drive insertion and removal. CE and RoHS certified, the bracket is lightweight and intended for desktop PC upgrades, storage conversions and environments where simple, repeatable drive installs are required.

Advantages

The tool-less design eliminates the need for additional hardware or tools, reducing installation time and complexity. Its compact dimensions (102 × 150 × 13 mm) and carrier panel format permit fast drive swaps and simple maintenance in tight system interiors. Certification to CE and RoHS standards ensures regulatory compliance for many installations. The bracket is compatible with standard 3.5" drive bays and holds 2.5" drives securely using tool-less retention pegs, making it a practical choice for routine upgrades and system builds.

Suitable for

Upgrading desktop PCs to add a 2.5" SSD or HDD
Converting spare 3.5" bays to house 2.5" storage in workstations or home servers
IT technicians and system integrators performing multiple drive installations or replacements
Environments that require quick drive swaps without tools, such as labs and media stations

Key specifications

Compatible drive size: 2.5" SSD or HDD (7 mm – 9.5 mm height)
Fits drive bay: standard 3.5" (8.89 cm) bay
Physical dimensions: 102 mm (W) × 150 mm (D) × 13 mm (H)
Mounting style: tool-less carrier panel with plastic retention pegs
Material: lightweight bracket construction for internal mounting
Certifications: CE and RoHS compliant

How to use

Align the 2.5" drive with the bracket's mounting position and press it into the carrier so the tool-less pegs engage the drive’s mounting holes or edges. Once the drive is secured in the bracket, slide the assembled bracket into an available 3.5" drive bay until it seats firmly. Connect the appropriate SATA power and data cables to the drive from inside the computer. To remove the drive, disconnect the cables and pull the bracket out of the bay, then disengage the drive from the retention pegs.

Usage recommendations

Before installation, power down and unplug the computer. Use electrostatic discharge (ESD) precautions when handling drives. Verify the drive height is within the supported 7 mm–9.5 mm range. After installation, ensure cables are routed to avoid obstructing fans or airflow. For repeated hot-swap use, confirm your chassis supports front-accessible 3.5" bays and follow any system-specific procedures for drive replacement.

Specifications

Weight:: 0.033 kg
Material:: Plastic
Product colour:: Black

All features

HDD interface:: Serial Attached SCSI (SAS), Serial ATA III, Serial ATA II, Serial ATA, IDE/ATA
Size (imperial):: 3.5 "
Quick start guide:: Yes
Number of pegs:: 6

Storage

Supported storage drive heights:: 7, 9.5

Technical details

Sustainability compliance:: Yes
Sustainability certificates:: RoHS, CE

Design

Material:: Plastic
Product colour:: Black

Weight & dimensions

Weight:: 0.033 kg
Package weight:: 60 g
Height:: 13 mm
Width:: 102 mm
Depth:: 150 mm
Package depth:: 156 mm
Package height:: 21 mm
Package width:: 111 mm

Other features

Type:: Carrier panel
HDD size:: 2.5
Number of HDDs supported:: 1

Logistics data

Master (outer) case height:: 254 mm
Master (outer) case width:: 332 mm
Master (outer) case length:: 538 mm
Products per master (outer) case:: 100 pc(s)
Harmonized System (HS) code:: 84733080
