Mounting Bracket StarTech.com BRACKET125PT 2.5" SSD/HDD for 3.5" Drive Bay

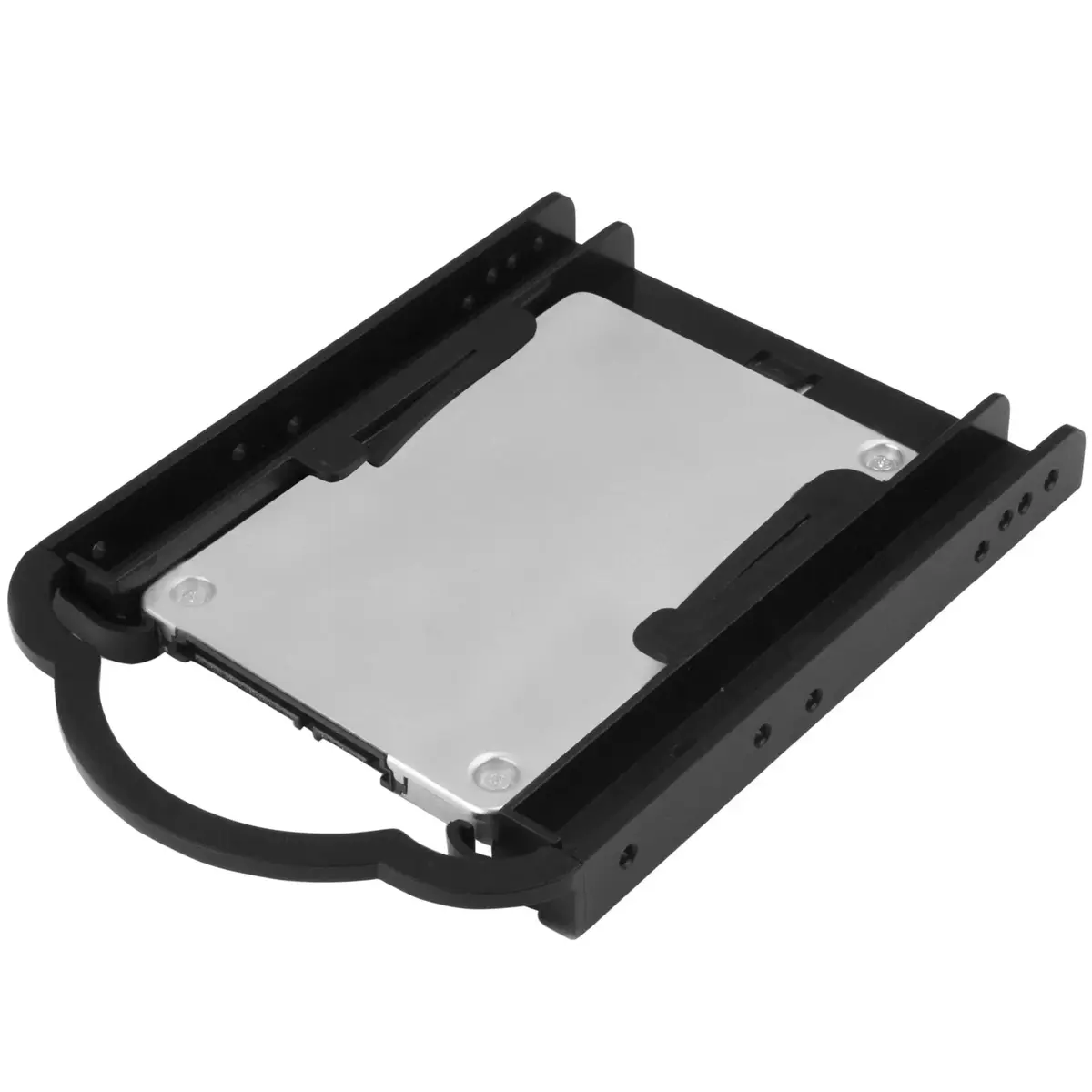

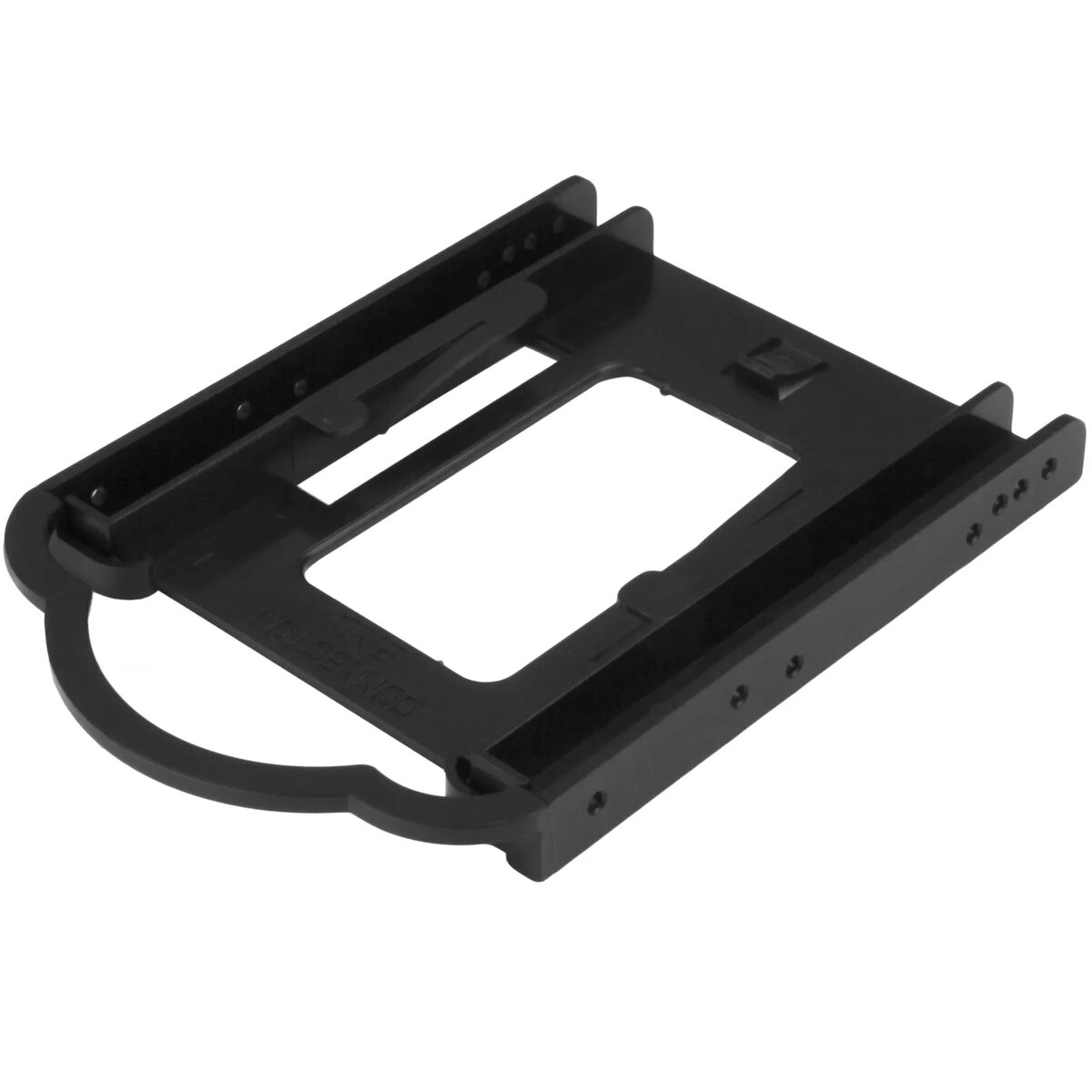

Mounting Bracket StarTech.com BRACKET125PT Photo 1

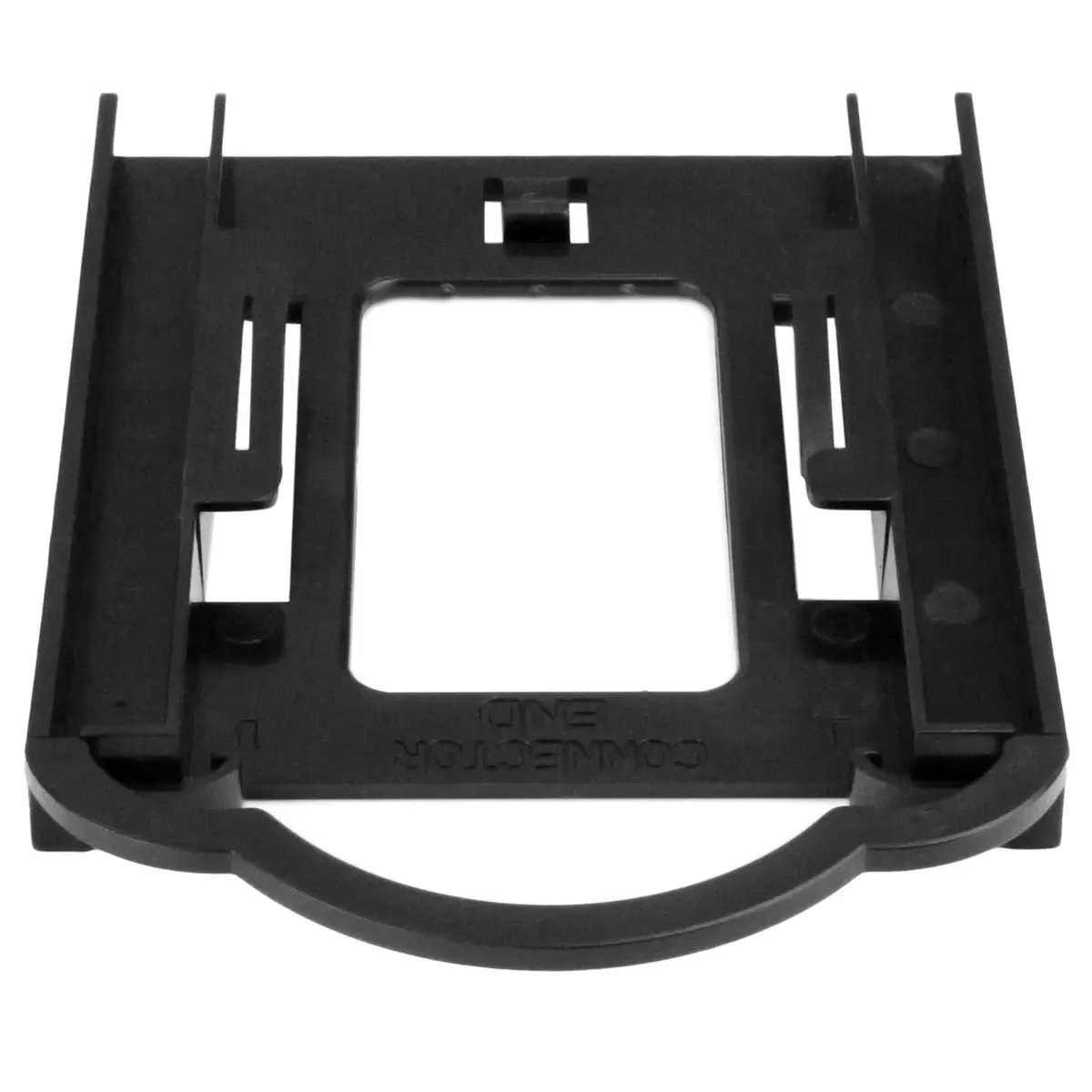

Mounting Bracket StarTech.com BRACKET125PT Photo 2

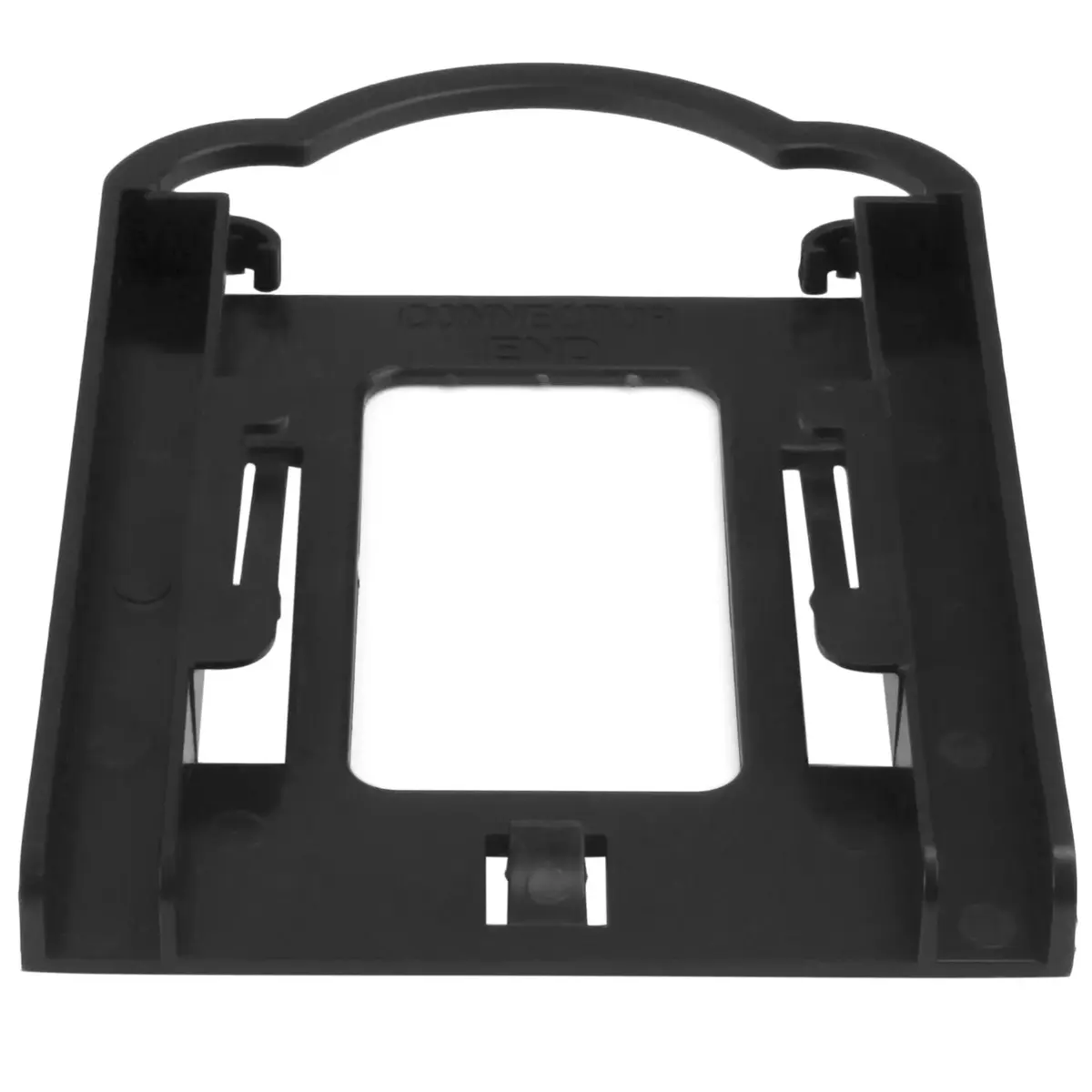

Mounting Bracket StarTech.com BRACKET125PT Photo 3

Mounting Bracket StarTech.com BRACKET125PT Photo 4

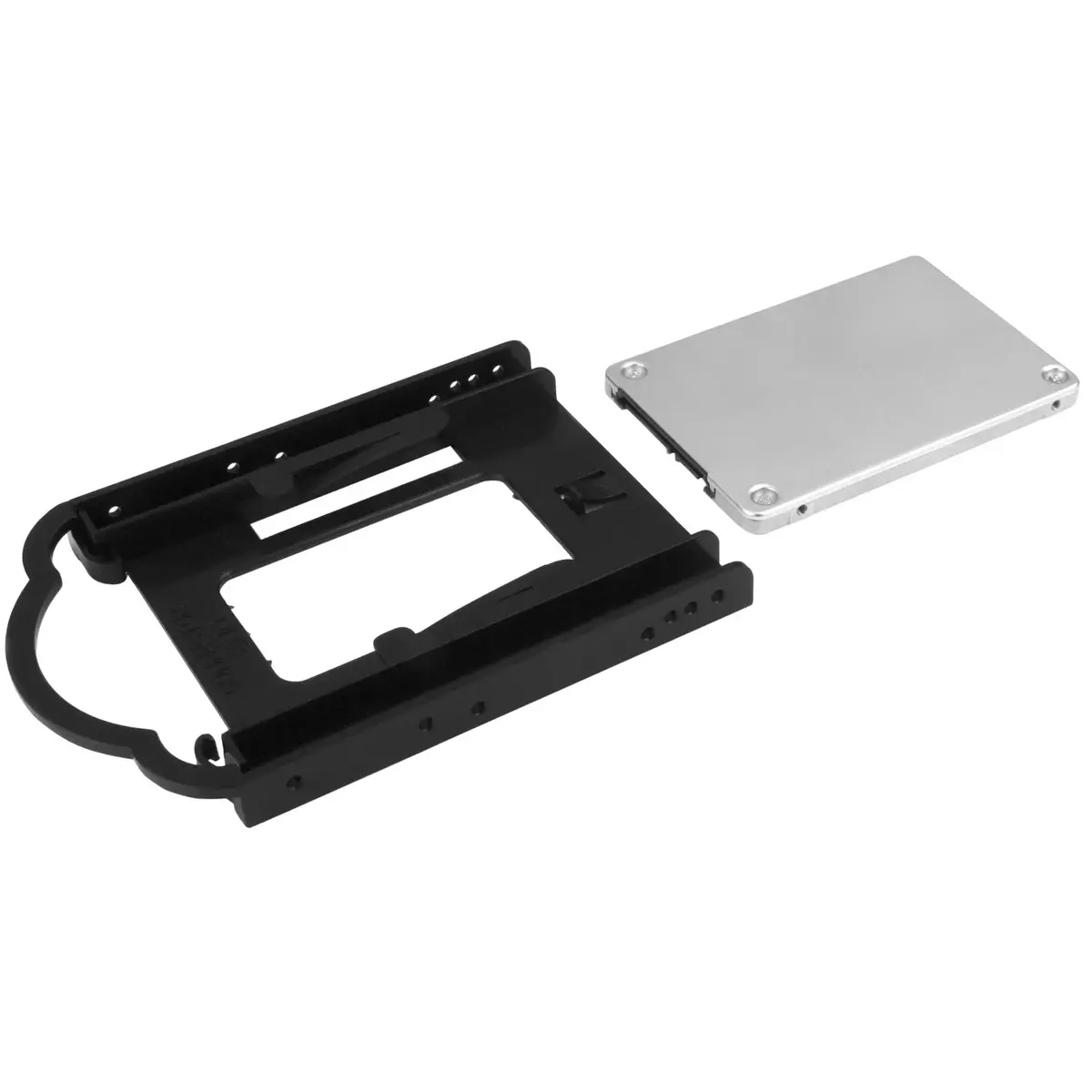

Mounting Bracket StarTech.com BRACKET125PT Photo 5

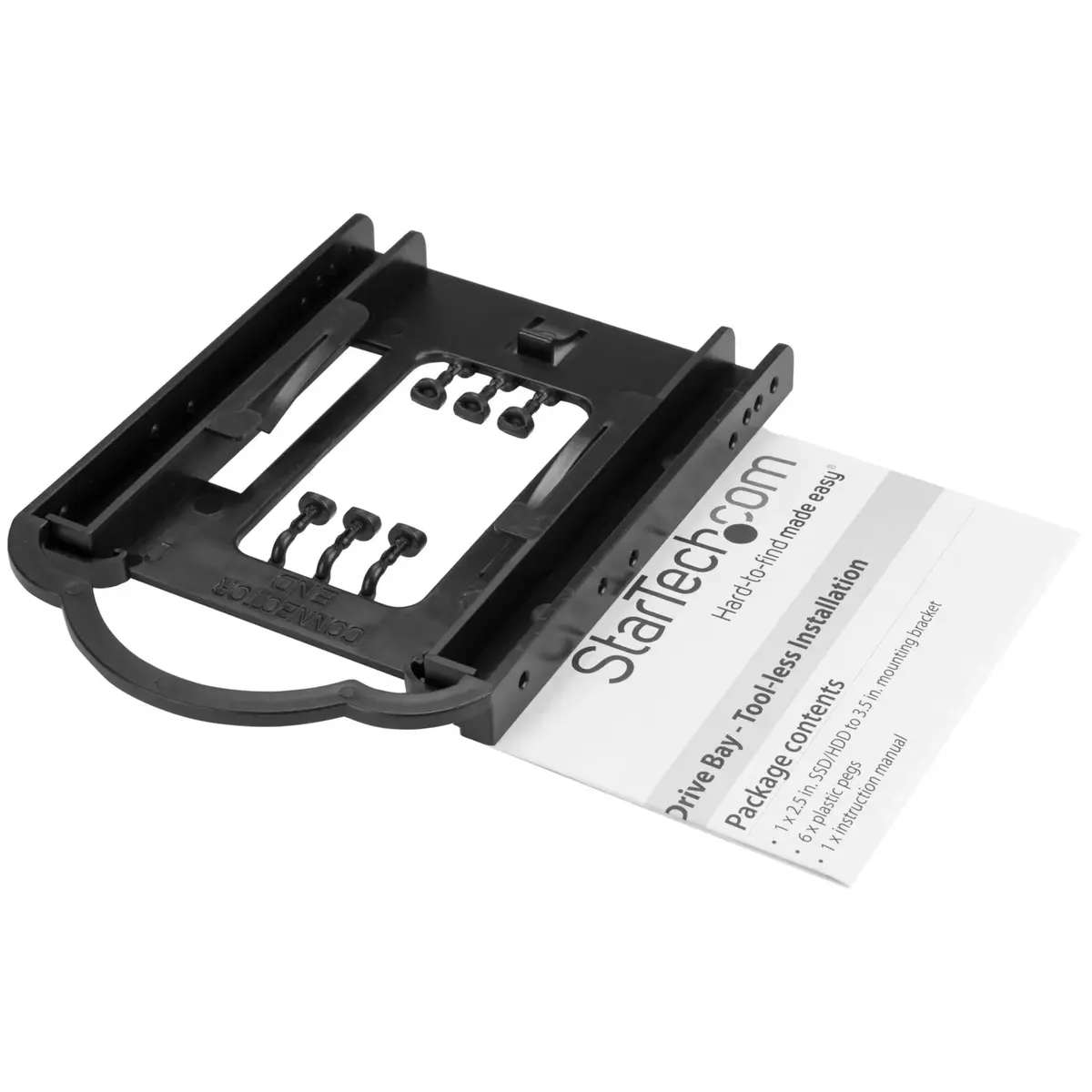

Mounting Bracket StarTech.com BRACKET125PT Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com 2.5" SSD/HDD Mounting Bracket allows for tool-less installation into a 3.5" drive bay. It supports 2.5" drives and features a durable design with dimensions of 102mm width, 150mm depth, and 13mm height. Certified with CE and RoHS, this bracket is ideal for easy upgrades and installations. Package dimensions are 111mm x 156mm x 21mm, making it compact for storage.

Available at price 8.99 €: 186 pcs.

Total available for order: 391 pcs.

Warranty: 2 Years

SKU: 506718

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.08 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech.com BRACKET125PT mounting bracket allows installation of a single 2.5" SSD or HDD into a standard 3.5" drive bay without additional hardware or tools. The tool-less bracket supports 2.5" drives with heights from 7 mm to 9.5 mm and is made from durable black plastic. Compact and lightweight, it is suitable for desktops and servers and is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Advantages

The tool-less design enables quick, no-tools installation and removal of a 2.5" SSD/HDD, saving time during system builds and upgrades. Its lightweight plastic construction provides reliable, trouble-free performance while keeping the overall assembly compact. The bracket is compatible with standard 3.5" drive bays and secures the drive using plastic pegs for a stable fit.

Suitable for

Installing a 2.5" SSD or HDD into a desktop PC 3.5" bay
Server drive bay upgrades where tool-less installation is preferred
System integrators and IT administrators performing multiple drive installations
Environments requiring compact, low-weight drive mounting (offices, schools, clinics)

Key specifications

Model: StarTech.com BRACKET125PT
Supports: 2.5" SSD/HDD (7 mm – 9.5 mm height)
Compatible bay: 3.5" drive bay
Material: Plastic
Colour: Black
Dimensions (product): 102 mm (W) x 150 mm (D) x 13 mm (H)
Weight: 0.033 kg
Certifications: CE, RoHS
Warranty: 2 years (StarTech.com) with free lifetime technical support

How to use

Place the 2.5" SSD or HDD into the mounting bracket and align it with the tool-less plastic pegs. Press the drive gently until it is held securely by the pegs. Insert the bracket with the secured drive into an available 3.5" drive bay in your desktop or server until it seats properly. Connect the drive’s power and data cables to the system and verify the drive is detected by the operating system.

Usage recommendations

For reliable operation, ensure the drive height is within the supported 7 mm–9.5 mm range and confirm the 3.5" bay is clear of obstructions. Handle the drive and bracket on a static-free surface and follow standard ESD precautions during installation.

Specifications

Weight:: 0.033 kg
Material:: Plastic
Product colour:: Black

All features

HDD interface:: Serial Attached SCSI (SAS), Serial ATA III, Serial ATA II, Serial ATA, IDE/ATA
Size (imperial):: 3.5 "
Quick start guide:: Yes
Number of pegs:: 6

Storage

Supported storage drive heights:: 7, 9.5

Technical details

Sustainability compliance:: Yes
Sustainability certificates:: RoHS, CE

Design

Material:: Plastic
Product colour:: Black

Weight & dimensions

Weight:: 0.033 kg
Package weight:: 60 g
Height:: 13 mm
Width:: 102 mm
Depth:: 150 mm
Package depth:: 156 mm
Package height:: 21 mm
Package width:: 111 mm

Other features

Type:: Carrier panel
HDD size:: 2.5
Number of HDDs supported:: 1

Logistics data

Master (outer) case height:: 254 mm
Master (outer) case width:: 332 mm
Master (outer) case length:: 538 mm
Products per master (outer) case:: 100 pc(s)
Harmonized System (HS) code:: 84733080
