Mounting Bracket StarTech.com Dual 2.5" SSD/HDD

Name: Mounting Bracket StarTech.com Dual 2.5" BRACKET225PT
Brand: StarTech
SKU: 624869
Price: 10.99 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Mounting Bracket StarTech.com Dual 2.5" SSD/HDD for 3.5" Drive Bay

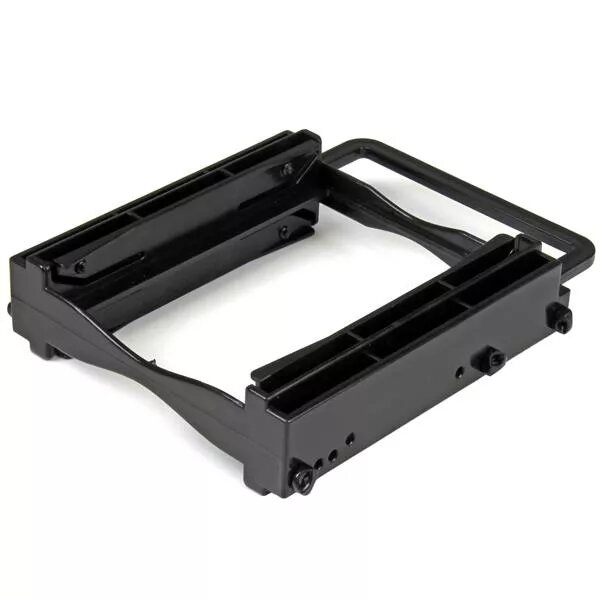

Mounting Bracket StarTech.com Dual 2.5" SSD/HDD Photo 1

Mounting Bracket StarTech.com Dual 2.5" SSD/HDD Photo 2

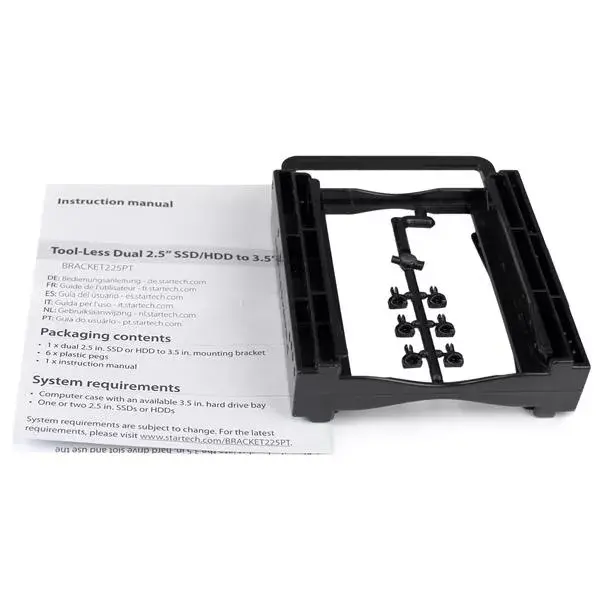

Mounting Bracket StarTech.com Dual 2.5" SSD/HDD Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com Dual 2.5" SSD/HDD Mounting Bracket allows for tool-less installation of two 2.5" drives into a standard 3.5" drive bay. Dimensions: 100mm width, 132mm depth, 29.5mm height. Package dimensions: 109mm x 143mm x 37mm. Certified RoHS compliant, ensuring environmental safety. Ideal for upgrading storage in desktops or servers with ease.

Available at price 10.99 €: 20 pcs.

Total available for order: 59 pcs.

Warranty: 2 Years

SKU: 624869

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.08 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 17.49 €: 10 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech.com Dual 2.5" SSD/HDD Mounting Bracket (BRACKET225PT) enables quick, tool-less installation of two 2.5" solid-state drives or hard drives into a standard 3.5" drive bay. The lightweight plastic bracket is designed for desktop or server use and accommodates drives with heights from 5 mm up to 12.5 mm. Product dimensions are approximately 100 mm (W) x 132 mm (D) x 29.5 mm (H); the bracket is RoHS compliant and comes with a 2-year warranty and free lifetime technical support from StarTech.com.

Advantages

The tool-less design allows fast mounting and removal of two 2.5" drives without screws or tools, saving installation time. Wide compatibility supports a range of 2.5" SSDs and HDDs between 5 mm and 12.5 mm in height. Constructed from lightweight plastic and finished in black, the bracket offers reliable, low-profile installation inside a 3.5" bay and is certified RoHS for environmental compliance.

Suitable for

Upgrading desktop or server storage with 2.5" SSDs or HDDs
Systems with an available 3.5" drive bay requiring dual 2.5" drives
Quick drive swaps where tool-less installation is preferred

Key specifications

Model: BRACKET225PT
Fits: two 2.5" SSD/HDD into one 3.5" drive bay
Supported drive height: 5 mm — 12.5 mm
Material: Plastic
Colour: Black
Product dimensions: 100 mm x 132 mm x 29.5 mm
Weight: 0.052 kg
RoHS compliant
Warranty: 2 years (StarTech.com)

How to use

Place each 2.5" drive into the mounting bracket and secure it using the bracket's tool-less retention features according to the drive orientation shown on the bracket. Insert the populated bracket into a vacant 3.5" drive bay in your desktop or server and engage the tool-less pegs to hold the bracket in place. Connect the drives to the system using the appropriate SATA power and data cables and verify drive recognition in the BIOS or operating system.

Usage recommendations

For reliable operation, ensure drives used are within the supported 5–12.5 mm height range, route SATA and power cables to avoid strain on connectors, and confirm the 3.5" bay has sufficient clearance for the bracket and cabling before final installation.

Specifications

Weight:: 0.052 kg
Material:: Plastic
Product colour:: Black

All features

HDD interface:: Serial ATA, IDE/ATA
Size (imperial):: 3.5 "
Quick start guide:: Yes
Number of pegs:: 6

Technical details

Sustainability certificates:: RoHS

Design

Material:: Plastic
Product colour:: Black
Certification:: CE, REACH

Weight & dimensions

Weight:: 0.052 kg
Package weight:: 81 g
Height:: 29.5 mm
Width:: 100 mm
Depth:: 132 mm
Package depth:: 143 mm
Package height:: 37 mm
Package width:: 109 mm

Other features

Type:: Bezel panel
HDD size:: 2.5
Number of HDDs supported:: 2

Logistics data

Harmonized System (HS) code:: 84733080
