Weight:
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
-
0.007 kg
-
Operating relative humidity (H-H):
-
0 - 85
-
Cabling technology:
Type of cable technology performance.
-
10GBase-T
-
Storage temperature (T-T):
The minimum and maximum temperatures at which the product can be safely stored.
-
-40 - 70
-
Package weight:
Weight of the packaged product.
-
203 g
-
Operating temperature (T-T):
The minimum and maximum temperatures at which the product can be safely operated.
-
-10 - 60
-
Height:
The measurement of the product from head to foot or from base to top.
-
19.3 mm
-
Width:
The measurement or extent of something from side to side.
-
16.6 mm
-
Depth:
The distance from the front to the back of something.
-
31.4 mm
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
White
-
Networking standards:
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
-
IEEE 802.3bt, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3
-
Power over Ethernet (PoE):
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
-
Yes
-
Package depth:
The distance from the front to the back of the packaging.
-
157 mm
-
Package height:
The distance from the top to the bottom of the packaging.
-
44 mm
-
Package width:
The distance from one side of the packaging to the other.
-
165 mm
-
Master (outer) case height:
-
247 mm
-
Master (outer) case width:
-
348 mm
-
Connector 1:
This is the first connector in the device.
-
RJ-45
-
Cable types supported:
-
Cat5e, Cat6
-
Construction type:
The way in which the product is constructed.
-
Angled
-
Cable shielding:
The protective layer for the cable, typically made of plastic.
-
U/UTP (UTP)
-
Connector 1 gender:
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
-
Female
-

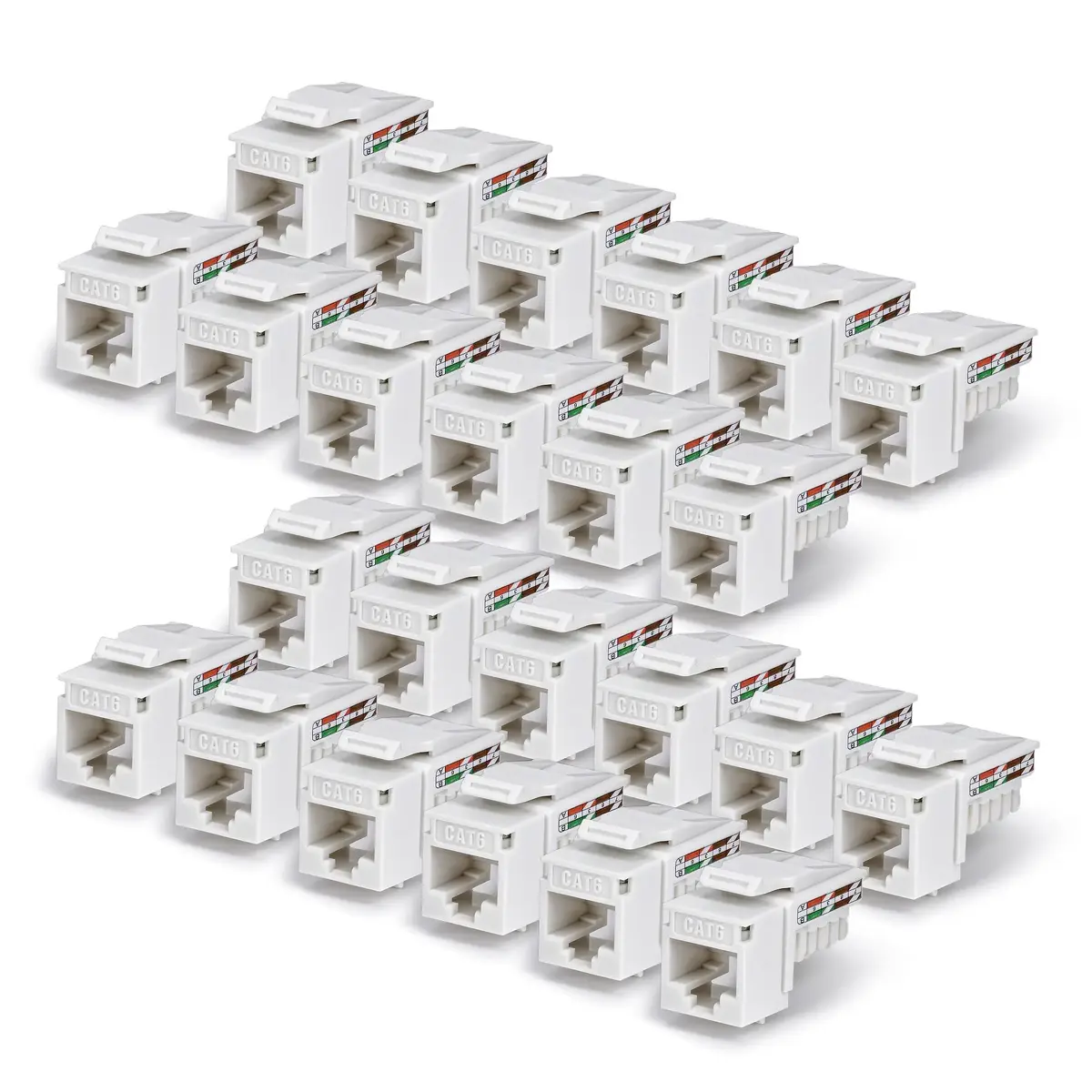

Quantity per pack:
-
24 pc(s)
-
Master (outer) case length:
-
331 mm
-
Products per master (outer) case:
-
20 pc(s)
-
Built-in dust cover:
-
Yes
-
Pinout modular connector:
-
568A/B
-
Compliance certificates:
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
-
Trade Agreements Act (TAA)
