AV Repeater StarTech.com DisplayPort Signal Booster 4K 60Hz 20m

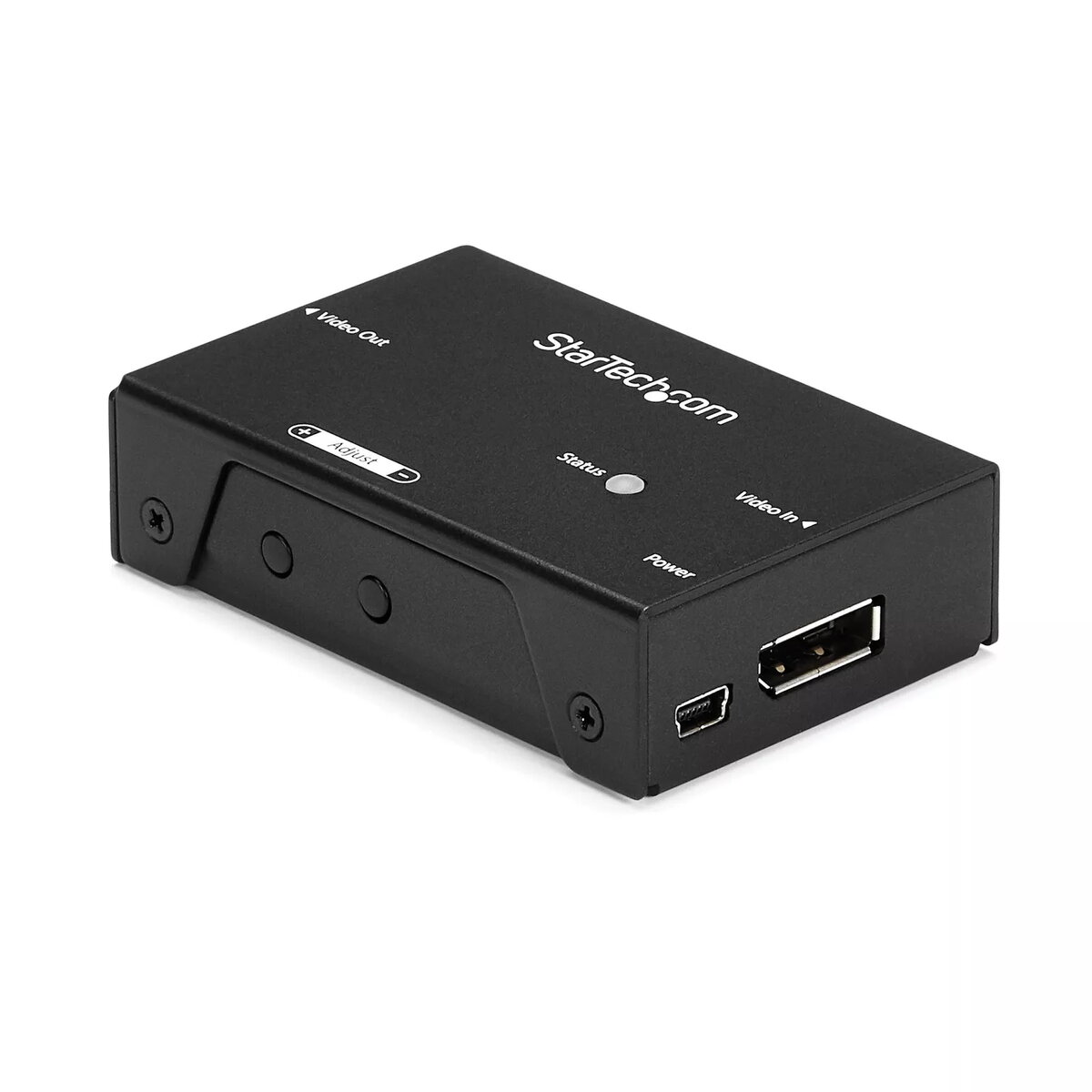

The StarTech.com DisplayPort Signal Booster (DPBOOST) increases the strength of your DisplayPort video signal to extend a video source up to 65 ft (20 m) over standard DisplayPort cabling while supporting resolutions up to 4K at 60Hz. The compact 50 x 80 x 21 mm black unit operates at 5V and is designed for inline or discreet installations where extending video without installing new cabling infrastructure is required.

Advantages

This DisplayPort signal booster preserves Ultra HD 4K video at 60Hz up to 22 ft (7 m) and supports longer runs at lower resolutions — 4K at 30Hz to 42 ft (13 m) and 1080p at 60Hz to 65 ft (20 m). Its small form factor allows hidden or unobtrusive placement, and the booster provides adjustable equalization to optimize signal amplification for varying cable lengths. The DPBOOST is TAA compliant and includes a 2-year StarTech.com warranty with free lifetime technical support.

Suitable for

• Extending PC or media player DisplayPort outputs to distant monitors or projectors
• Boardrooms, classrooms, waiting rooms and other multi-room AV deployments
• Inline installations between two standard DisplayPort cables (input up to 50 ft, output up to 15 ft)

Key specifications

• Model: DPBOOST
• Maximum resolution: 3840 x 2160 @ 60Hz
• Maximum extension distance: up to 20 m (65 ft) at 1080p 60Hz; up to 13 m (42 ft) at 4K 30Hz; up to 7 m (22 ft) at 4K 60Hz
• Power: 5 V
• Dimensions: 50 x 80 x 21 mm
• Weight: 0.152 kg
• Colour: Black
• Compliance: TAA

How to use

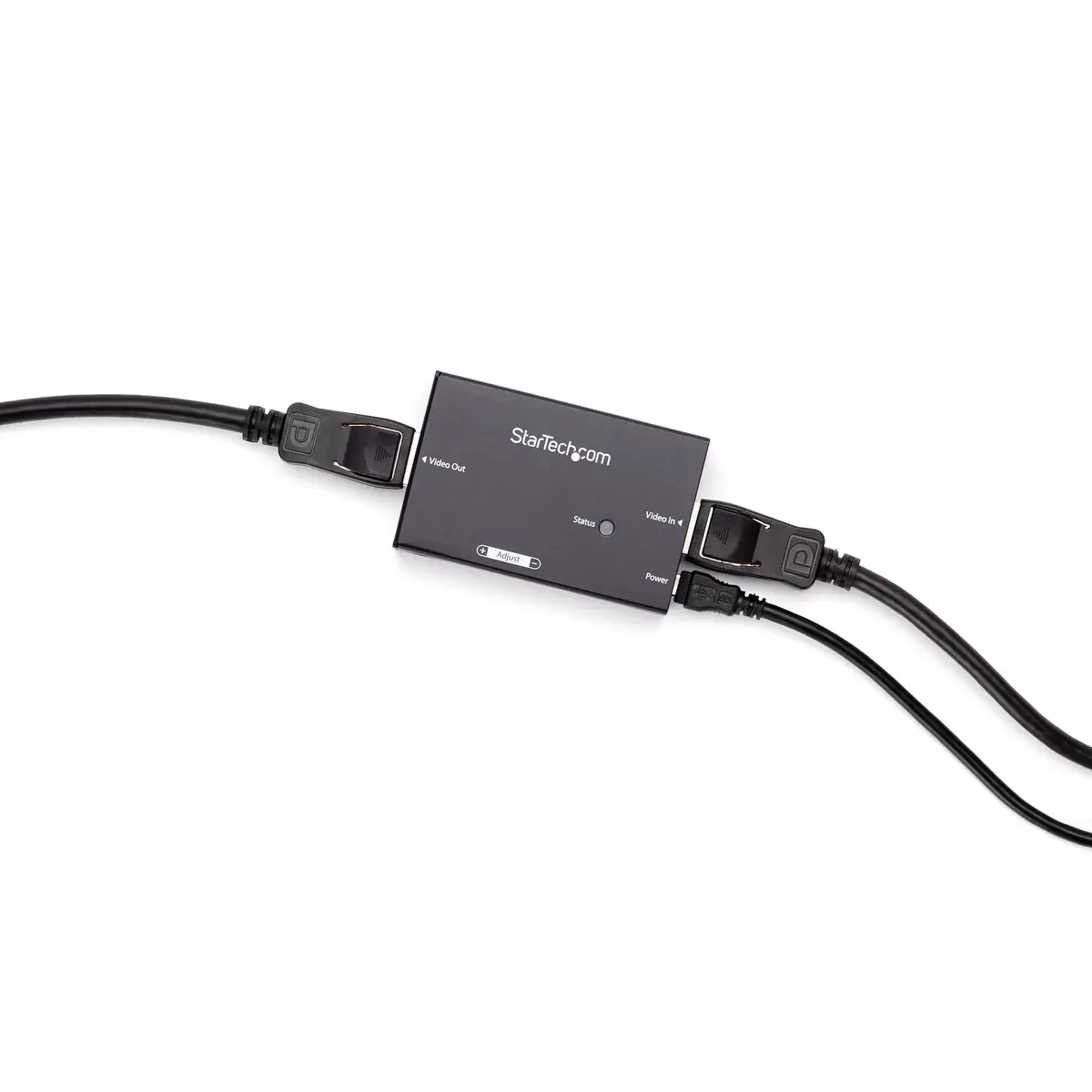

Place the booster inline between your video source and display using standard DisplayPort cables, or install it as a discreet inline amplifier where cabling runs are long. For inline installations follow the recommended cable lengths (input up to 50 ft / output up to 15 ft) and plug the booster into the signal path. Adjust the equalization controls to increase or decrease amplification until the video signal is stable and the desired resolution is achieved.

Usage recommendations

For best results, test the video output at the target resolution and distance, then fine-tune the equalization settings. Use good-quality DisplayPort cables and avoid unnecessary adapters. For deployments across multiple rooms, verify required distances in each location and configure the booster accordingly.
