HDMI Audio Extractor StarTech HD202A — 4K 60Hz, 4096x2160, 5.1-channel, HDMI in/out, black

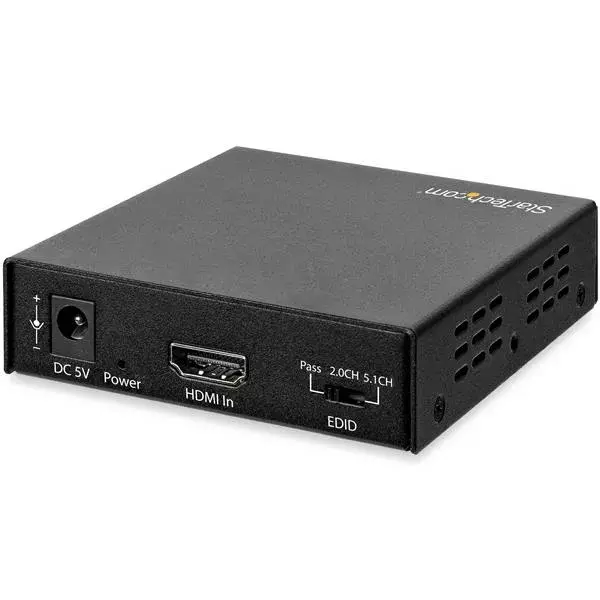

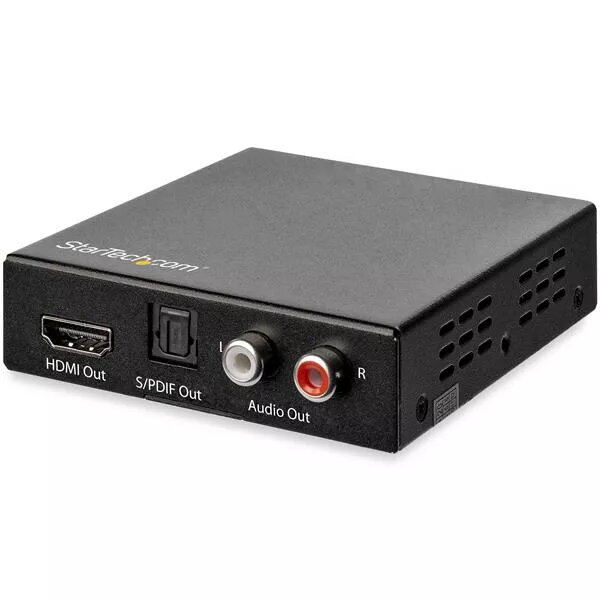

The StarTech HD202A HDMI Audio Extractor separates multichannel audio from HDMI video sources while passing through video up to 4K (4096×2160) at 60 Hz. This compact black unit supports HDMI 2.0 bandwidth and HDR video pass-through, enabling a single HDMI source to deliver a high-resolution picture to a display while routing audio independently to dedicated digital or analog audio equipment. The extractor provides 5.1-channel audio output via HDMI and offers optical (Toslink) and dual RCA analog outputs for flexible integration with surround receivers, soundbars or powered speakers. It is powered from 100–240 V mains with a 5 V/1 A supply and has a small footprint suitable for home AV setups, conference rooms and media players requiring separate audio feeds.

Advantages

The HD202A maintains 4K 60Hz video quality and supports HDR pass-through while extracting audio, ensuring both image fidelity and multichannel sound. Its EDID management supports 2-channel, 5.1-channel and pass-through audio modes for broad device compatibility. Multiple audio outputs (optical Toslink and dual RCA) and HDCP compliance allow integration with both modern digital audio systems and older analog equipment. The compact design and wide input power range make it easy to place within existing AV installations.

Suitable for

• Home theater setups that need separate audio routing to receivers or soundbars
• Conference rooms where presentation video goes to a display and audio to room speakers
• Media players and set-top boxes requiring independent audio feeds for recording or amplification
• Integration of new HDMI 2.0 sources with legacy analog audio systems

Key specifications

• Maximum video resolution: up to 4K (4096×2160) at 60 Hz
• Video bandwidth: up to 18 Gbps (HDMI 2.0)
• HDR video pass-through supported

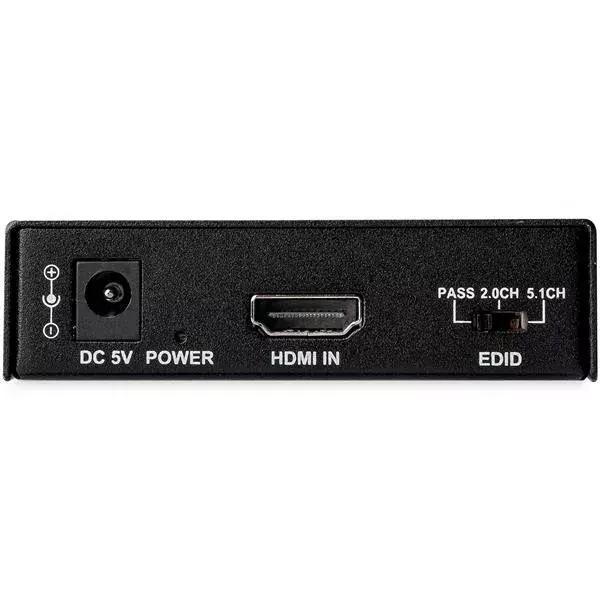

• Audio formats: 2.0, 5.1 and pass-through modes via EDID management

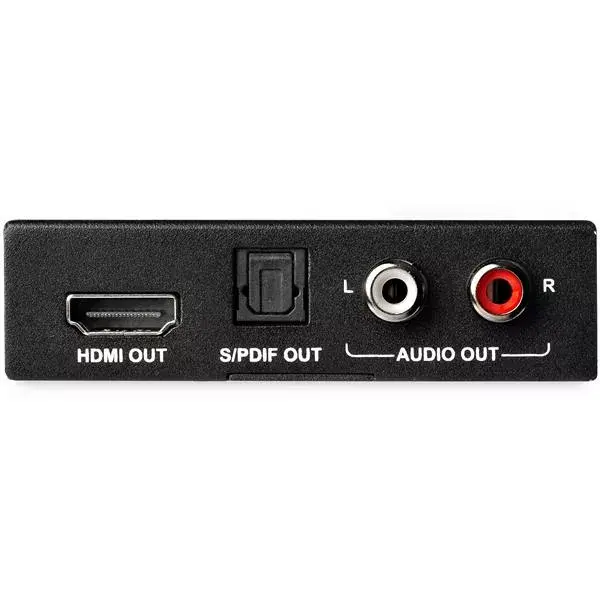

• Audio outputs: optical Toslink (digital) and dual RCA (analog); HDMI audio output supported
• Power: operates from 100–240 V mains with 5 V/1 A supply
• Colour: black; compact footprint for discrete installation
• Typical use cases: de-embedding audio from HDMI for separate amplification or recording

How to use

Connect the HDMI source (for example a Blu-ray player, streaming box or game console) to the extractor's HDMI input, then connect the HDMI output from the extractor to your display. Use the optical Toslink cable or dual RCA cables to connect the extractor’s audio outputs to your receiver, soundbar or powered speakers. Configure the source and connected audio device to match the desired audio mode (2.0, 5.1 or pass-through) using the extractor’s EDID settings if required. Apply mains power to the unit using the supplied adapter and verify that video and audio are routing as expected.

Usage recommendations

For reliable 4K 60Hz and HDR performance use high-speed HDMI cables rated for HDMI 2.0/18 Gbps. When integrating with analog equipment, confirm whether your amplifier or recorder supports the selected channel configuration and use the EDID mode that best matches your audio system. Keep the extractor in a ventilated location and avoid stacking heat-generating devices directly on top of it.
