header-product 2-Drive 2.5in Trayless Hot-Swap SATA Mobile Rack Backplane — StarTech HSB220SAT25B (3.5in, black)
68.49 €

2-Drive 2.5in Trayless Hot-Swap SATA Mobile Rack Backplane — StarTech HSB220SAT25B (3.5in, black)

StarTech 2-Drive 2.5in Trayless Hot-Swap Backplane HSB220SAT25B Photo 1
StarTech 2-Drive 2.5in Trayless Hot-Swap Backplane HSB220SAT25B Photo 2
StarTech 2-Drive 2.5in Trayless Hot-Swap Backplane HSB220SAT25B Photo 3
StarTech 2-Drive 2.5in Trayless Hot-Swap Backplane HSB220SAT25B Photo 4
StarTech 2-Drive 2.5in Trayless Hot-Swap Backplane HSB220SAT25B Photo 5
StarTech 2-Drive 2.5in Trayless Hot-Swap Backplane HSB220SAT25B Photo 6

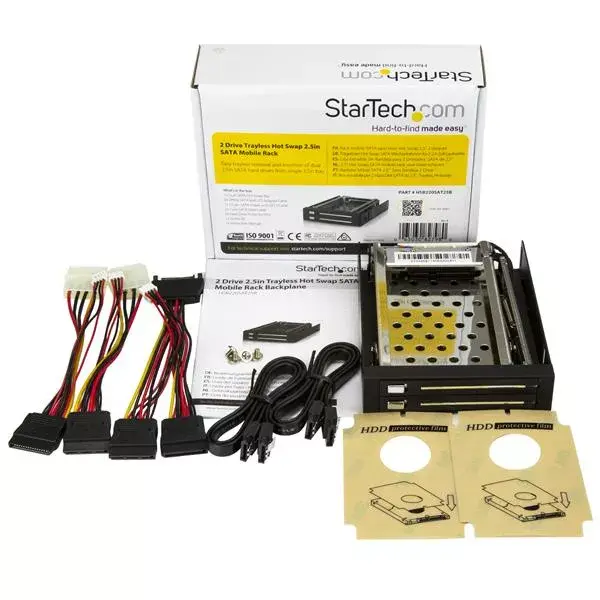

StarTech 2-Drive 2.5in Trayless Hot-Swap Backplane HSB220SAT25B Photo 7
StarTech 2-Drive 2.5in Trayless Hot-Swap Backplane HSB220SAT25B Photo 1
StarTech 2-Drive 2.5in Trayless Hot-Swap Backplane HSB220SAT25B Photo 2
StarTech 2-Drive 2.5in Trayless Hot-Swap Backplane HSB220SAT25B Photo 3
StarTech 2-Drive 2.5in Trayless Hot-Swap Backplane HSB220SAT25B Photo 4
StarTech 2-Drive 2.5in Trayless Hot-Swap Backplane HSB220SAT25B Photo 5
StarTech 2-Drive 2.5in Trayless Hot-Swap Backplane HSB220SAT25B Photo 6
StarTech 2-Drive 2.5in Trayless Hot-Swap Backplane HSB220SAT25B Photo 7
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

2-Drive 2.5in Trayless Hot-Swap SATA Mobile Rack Backplane — StarTech HSB220SAT25B (3.5in, black)

{{email}}
You keep track of price changes

2-Drive 2.5in Trayless Hot-Swap SATA Mobile Rack Backplane — StarTech HSB220SAT25B (3.5in, black)

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

StarTech 2-drive 2.5" trayless hot-swap SATA mobile rack backplane for installation in a 3.5" bay. Supports two 2.5" SATA drives with hot-swap capability, includes SATA cables, and fits standard 3.5in front openings. Black bezel panel with compact dimensions (102×134×24 mm) and RoHS compliance. Ideal for server, NAS or workstation drive expansion and quick drive replacement.
Available for order: 8 pcs.
Warranty: 2 Years
SKU: 3980482
Manufacturer: StarTech
free shipment

Cheapest with

Latvijas Pasts pakomāts

Pick-up points

Latvijas Pasts pakomāts

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
15.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
20.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.29 kg)
Parcel couriers
Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa
20.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech 2-Drive 2.5in Trayless Hot-Swap SATA Mobile Rack Backplane (3.5in, black) is a front-mount backplane designed to fit a standard 3.5in front bay and accept two 2.5in SATA hard drives or solid state drives. The trayless design enables quick install and removal of drives without separate mounting brackets, and the backplane supports SATA III transfer speeds up to 6 Gbps when used with a compatible controller. The unit ships with required SATA cables and features a compact black bezel suited for servers, workstations, NAS devices and other systems that require rapid drive access and easy expansion.

Advantages

The trayless mechanism eliminates the need for drive trays or mounting hardware, reducing installation time and simplifying frequent drive swaps. Hot-swap capability allows drives to be inserted or removed without powering down the host system when supported by the system and controller. Compact dimensions and a black bezel make the module easy to integrate into typical 3.5in front openings while the aluminum construction and a high insertion rating are intended to provide durable, repeated use.

Suitable for

  • Server and rackmount drive expansion where rapid drive replacement is required
  • Workstations and NAS systems for adding or rotating 2.5in HDDs/SSDs
  • Operating system image deployment and cloning tasks that require frequent access to multiple drives
  • Industrial or lab environments that need quick access to data without opening the chassis

Key specifications

  • Form factor: installs in a standard 3.5in front bay and accepts two 2.5in drives
  • Interface support: SATA III compatible for transfer rates up to 6 Gbps with compatible controller
  • Drive support: two 2.5in SATA HDDs or SSDs, trayless installation
  • Material and build: aluminum construction with front bezel in black
  • Physical dimensions: approximately 102 × 134 × 24 mm
  • Product weight: 0.286 kg
  • Compliance: RoHS compliant

How to use

Install the backplane into an available 3.5in front bay following your system chassis instructions and secure it in place. Connect the supplied SATA cables to the backplane SATA ports and to the host SATA controller or motherboard. Insert 2.5in SATA drives directly into the trayless slots until they click into place; the design removes the need for separate mounting trays. When your system and controller support hot-swap, drives can be inserted and removed while the system is powered on, observing standard operating system and RAID controller procedures for safe removal and insertion.

Usage recommendations

Use SATA III-compatible controllers and cabling to achieve full transfer speeds up to 6 Gbps. Follow your operating system and RAID controller guidelines when performing hot-swap operations to prevent data loss. For frequent drive changes, ensure proper handling and ESD precautions to protect drives and connectors.

Specifications

Type:
Bezel panel
Weight:
0.286 kg
Product colour:
Black
All features
HDD interface:
Serial ATA III, Serial ATA II, Serial ATA
LED indicators:
Power, Activity
HDD size:
2.5
Number of HDDs supported:
2
Supported storage drive heights:
9.5

Performance

Type:
Bezel panel

Design

Product colour:
Black
Material:
Aluminium
Certification:
CE, FCC, REACH

Weight & dimensions

Weight:
0.286 kg
Package weight:
481 g
Height:
24 mm
Width:
102 mm
Depth:
134 mm
Package depth:
171 mm
Package height:
54 mm
Package width:
126 mm

Technical details

Sustainability certificates:
RoHS

Packaging content

Cables included:
SATA
Manual:
Yes
Screws included:
Yes

Other features

Size (imperial):
3.5 "

Logistics data

Harmonized System (HS) code:
84733080
