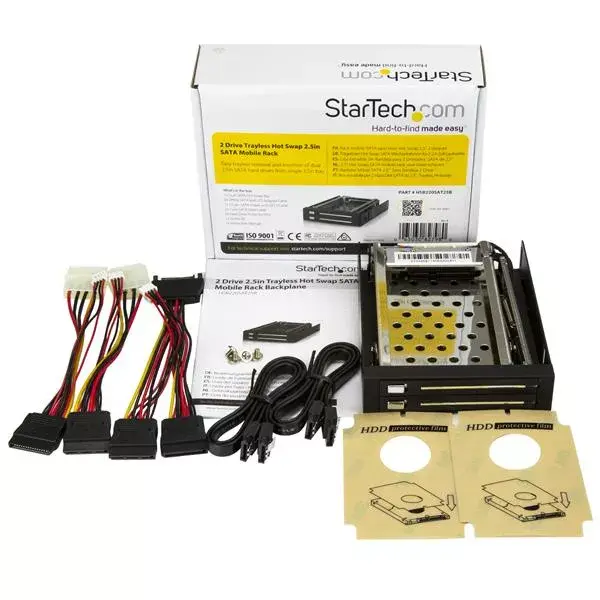

SATA Mobile Rack Backplane StarTech.com HSB220SAT25B Photo 7
SATA Mobile Rack Backplane StarTech.com HSB220SAT25B Photo 1
SATA Mobile Rack Backplane StarTech.com HSB220SAT25B Photo 2
SATA Mobile Rack Backplane StarTech.com HSB220SAT25B Photo 3
SATA Mobile Rack Backplane StarTech.com HSB220SAT25B Photo 4
SATA Mobile Rack Backplane StarTech.com HSB220SAT25B Photo 5
SATA Mobile Rack Backplane StarTech.com HSB220SAT25B Photo 6
SATA Mobile Rack Backplane StarTech.com HSB220SAT25B Photo 7
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

SATA Mobile Rack Backplane StarTech.com HSB220SAT25B

{{email}}
You keep track of price changes

SATA Mobile Rack Backplane StarTech.com HSB220SAT25B

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The StarTech.com 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane allows for easy installation and removal of 2.5" SATA drives without trays. It features a compact design with dimensions of 102 mm width, 134 mm depth, and 24 mm height. The package includes SATA cables and is RoHS certified, ensuring environmental safety. Ideal for quick drive swaps in a variety of applications.
Available at price 66.99 €: 38 pcs.
Total available for order: 50 pcs.
Warranty: 2 Years
SKU: 631754
Manufacturer: StarTech
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
09.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
14.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.48 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
14.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

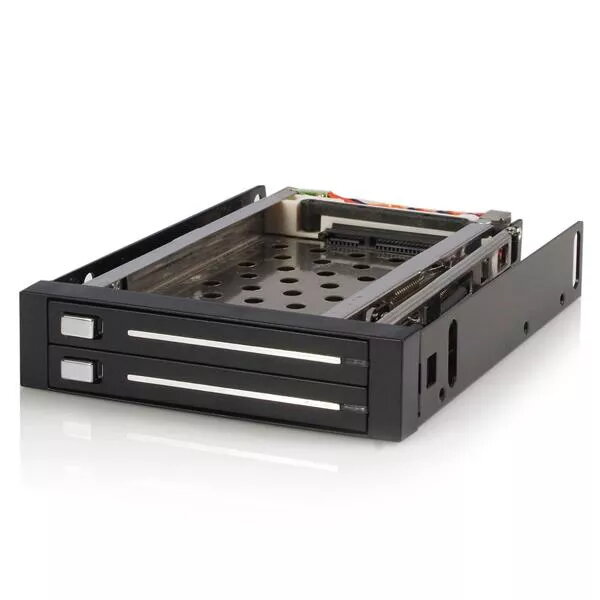

The StarTech.com SATA Mobile Rack Backplane HSB220SAT25B is a 3.5in hot-swap bay that holds two 2.5in SATA HDDs or SSDs in an available 3.5in drive bay. The trayless design enables quick installation and removal of drives without the need for mounting trays, while SATA III support provides transfer speeds up to 6 Gbps when used with a compatible controller. Constructed from aluminium and rated for over 50,000 insertions, the backplane is suitable for system builders, rackmount setups and environments that require frequent drive access.

Advantages

The trayless mechanism allows fast, tool-free swapping of 2.5in SATA HDDs or SSDs, reducing downtime during maintenance or imaging tasks. SATA III compatibility ensures high throughput (up to 6 Gbps) when paired with compatible drives and controllers. Aluminium construction and a high insertion rating contribute to durability and long-term reliability. The compact form factor fits a 3.5in bay while accommodating two drives and the package includes the necessary SATA cables.

Suitable for

  • Rapid OS image deployment and data migration
  • Server and workstation rackmount systems requiring hot-swappable drives
  • System building and testing environments with frequent drive swaps
  • Industrial and embedded applications needing reliable, removable storage

Key specifications

  • Form factor: fits 3.5in drive bay, holds two 2.5in SATA drives
  • Interface support: SATA III (up to 6 Gbps) compatible
  • Material: aluminium
  • Colour: black
  • Dimensions (W×D×H): 102 mm × 134 mm × 24 mm
  • Weight: 0.286 kg
  • RoHS certified; includes SATA cables
  • Insertion rating: 50,000+ cycles

How to use

Install the backplane into an available 3.5in bay in your chassis. Connect the included SATA data cables and a compatible SATA power connector from your power supply. Insert a 2.5in SATA HDD or SSD into one of the trayless slots until it clicks into place, then connect the corresponding SATA data cable to your controller. To remove a drive, use the eject mechanism to release and withdraw the drive without opening the chassis.

Usage recommendations

For best performance, pair the backplane with SATA III drives and a SATA III controller. Ensure proper airflow in the chassis and secure power connections for reliable operation. Use the device for non-critical hot-swap procedures in environments that support drive removal; for high-availability systems, integrate with appropriate RAID controllers and backup procedures.

Specifications

Weight:
0.286 kg
Material:
Aluminium
Product colour:
Black
All features
HDD interface:
Serial ATA III, Serial ATA II, Serial ATA
Size (imperial):
3.5 "

Storage

Supported storage drive heights:
9.5

Technical details

Sustainability certificates:
RoHS

Design

Material:
Aluminium
Product colour:
Black
LED indicators:
Power, Activity
Certification:
CE, FCC, REACH

Weight & dimensions

Weight:
0.286 kg
Package weight:
481 g
Height:
24 mm
Width:
102 mm
Depth:
134 mm
Package depth:
171 mm
Package height:
54 mm
Package width:
126 mm

Packaging content

Cables included:
SATA
Manual:
Yes
Screws included:
Yes

Other features

Type:
Bezel panel
HDD size:
2.5
Number of HDDs supported:
2

Logistics data

Harmonized System (HS) code:
84733080
