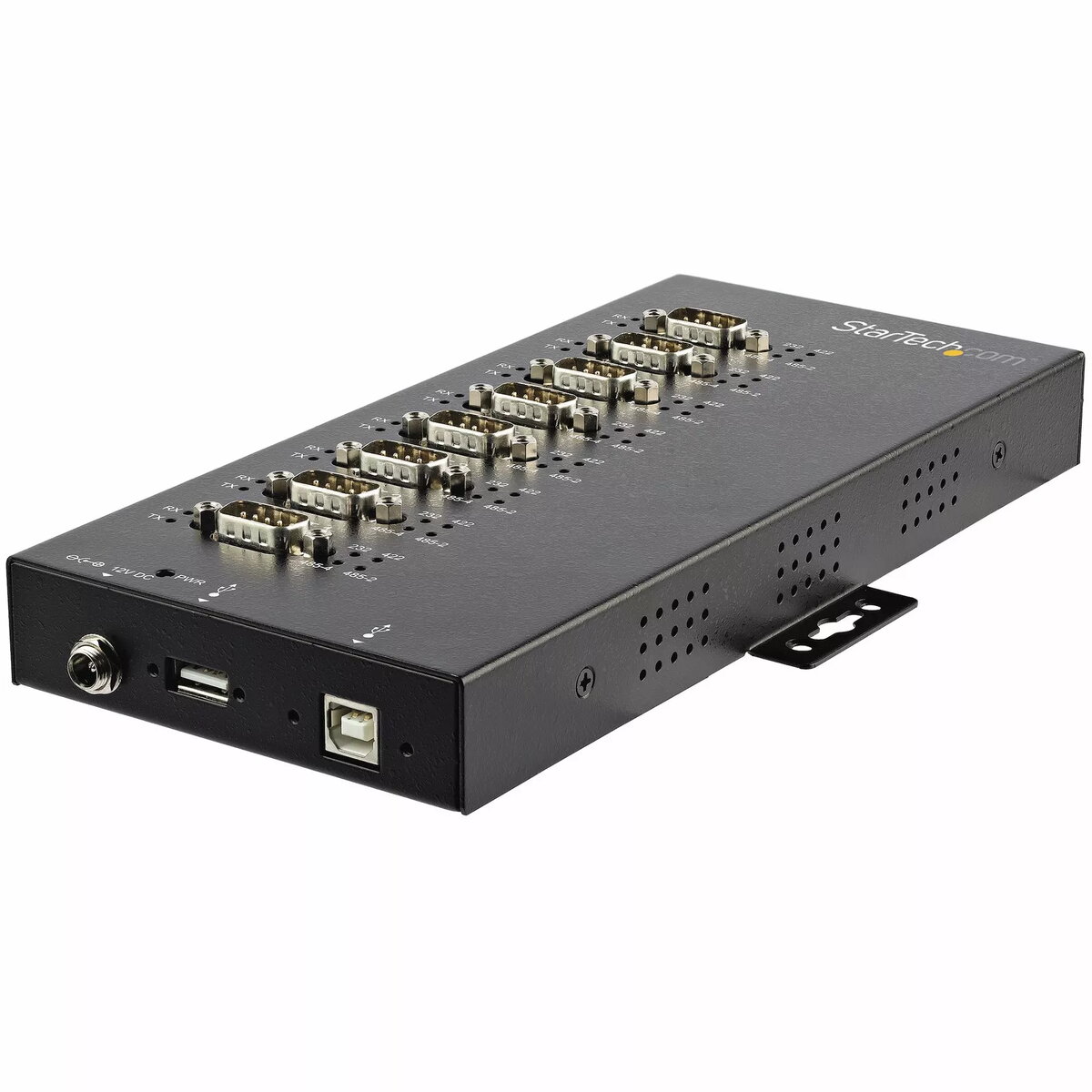

StarTech 8-Port Industrial USB 2.0 to DB9 Serial Hub ICUSB234858I — RS232/RS485/RS422, IP30, DIN-rail, 15 kV ESD

Input voltage: The voltage (V) which is required to power the product.

100 - 240

Input current:

1

RS-232 ports: The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.

8

Housing material: What the casing of the product is made of.

Steel

Surge protection:

Yes

Power source type: What the power source is.

AC

Hub interfaces: A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports.

Serial

Power plug type:

Type M

Included power plug types:

ANZ, EU, UK, US

DIN rail kit included:

Yes

Weight & dimensions

Package weight: Weight of the packaged product.

1600 g

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.688 kg

Height: The measurement of the product from head to foot or from base to top.

25 mm

Depth: The distance from the front to the back of something.

219 mm

Width: The measurement or extent of something from side to side.

128 mm

Operational conditions

Operating relative humidity (H-H):

5 - 95

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 85

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 55

System requirements

Server operating systems supported:

Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Yes

Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Windows operating systems supported: Windows vesions wich can be used with the device.

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Other features

Ports quantity: The number of ports or external interfaces to which other equipment can be connected.

8

Logistics data

Harmonized System (HS) code:

84719000

Products per master (outer) case:

14 pc(s)

Master (outer) case height:

275 mm

Master (outer) case length:

420 mm

Master (outer) case width:

410 mm

Packaging data

Package height: The distance from the top to the bottom of the packaging.

67 mm

Package depth: The distance from the front to the back of the packaging.

290 mm

Package width: The distance from one side of the packaging to the other.

190 mm

Cables included:

USB

Technical details

Sustainability compliance:

Yes

AC adapter included:

Yes

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

CE, RoHS

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

36 W

Output current:

3 A

Output voltage:

12

Features

Parity bit:

Even, Mark, No, Odd, Space

Stop bits:

1, 2

Data bits:

7, 8

Baud rate:

921.6 Kbit/s

Design

Product colour: The colour e.g. red, blue, green, black, white.

Black

Ports & interfaces

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

2

Host interface: Interface that enables a host controller to communicate with a driver.

USB 2.0

Performance

LED indicators:

Power

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

FTDI - FT4232H, Genesys Logic - GL825
