IDE to SATA Adapter StarTech IDE2SAT2

Name: IDE to SATA Adapter StarTech IDE2SAT2
Brand: StarTech
SKU: 3682169
Price: 27.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

IDE to SATA Adapter StarTech IDE2SAT2 Photo 3

IDE to SATA Adapter StarTech IDE2SAT2 Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The StarTech IDE to SATA Adapter (IDE2SAT2) allows you to connect a 2.5" SATA HDD/SSD/ODD to an IDE interface. It features a 40-pin PATA connector, a SATA output, and a 4-pin power connector. With a maximum data transfer rate of 0.133 Gbit/s and support for 48-bit LBA, this adapter is ideal for upgrading older systems. Compact dimensions (20mm x 75.5mm x 23mm) make it easy to integrate into tight spaces. Certified by FCC, CE, TAA, and REACH for quality assurance.

Available at price 27.99 €: 75 pcs.

Total available for order: 150 pcs.

Warranty: 2 Years

SKU: 3682169

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

26.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

26.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

01.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.03 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

01.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech IDE to SATA Adapter (IDE2SAT2) lets you connect a 2.5" or 3.5" SATA drive or an optical drive (Blu-ray/DVD/CD-ROM) to an IDE/PATA 40-pin motherboard port. It includes a 40-pin IDE connector, a SATA output and a 4-pin power connector, supporting SATA I/II/III drives and 48-bit LBA for compatibility with a wide range of legacy systems. The compact adapter (20mm x 75.5mm x 23mm) is designed to fit into tight spaces when upgrading older motherboards.

Advantages

The adapter provides a cost-effective way to add newer SATA HDDs, SSDs or optical drives to systems with only IDE/ATA ports without replacing the motherboard. It supports ODD (Optical Disk Drive) functionality so Blu-ray, DVD and CD-ROM drives operate from an IDE host connection. Installation requires no additional software and the product is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Suitable for

Upgrading older desktop PCs to use SATA hard drives or SSDs
Adding a Blu-ray, DVD or CD-ROM optical drive to an IDE-only motherboard
Data recovery or cloning from SATA drives on legacy systems

Key specifications

Model: StarTech IDE2SAT2
Interface: 40-pin IDE/PATA to SATA

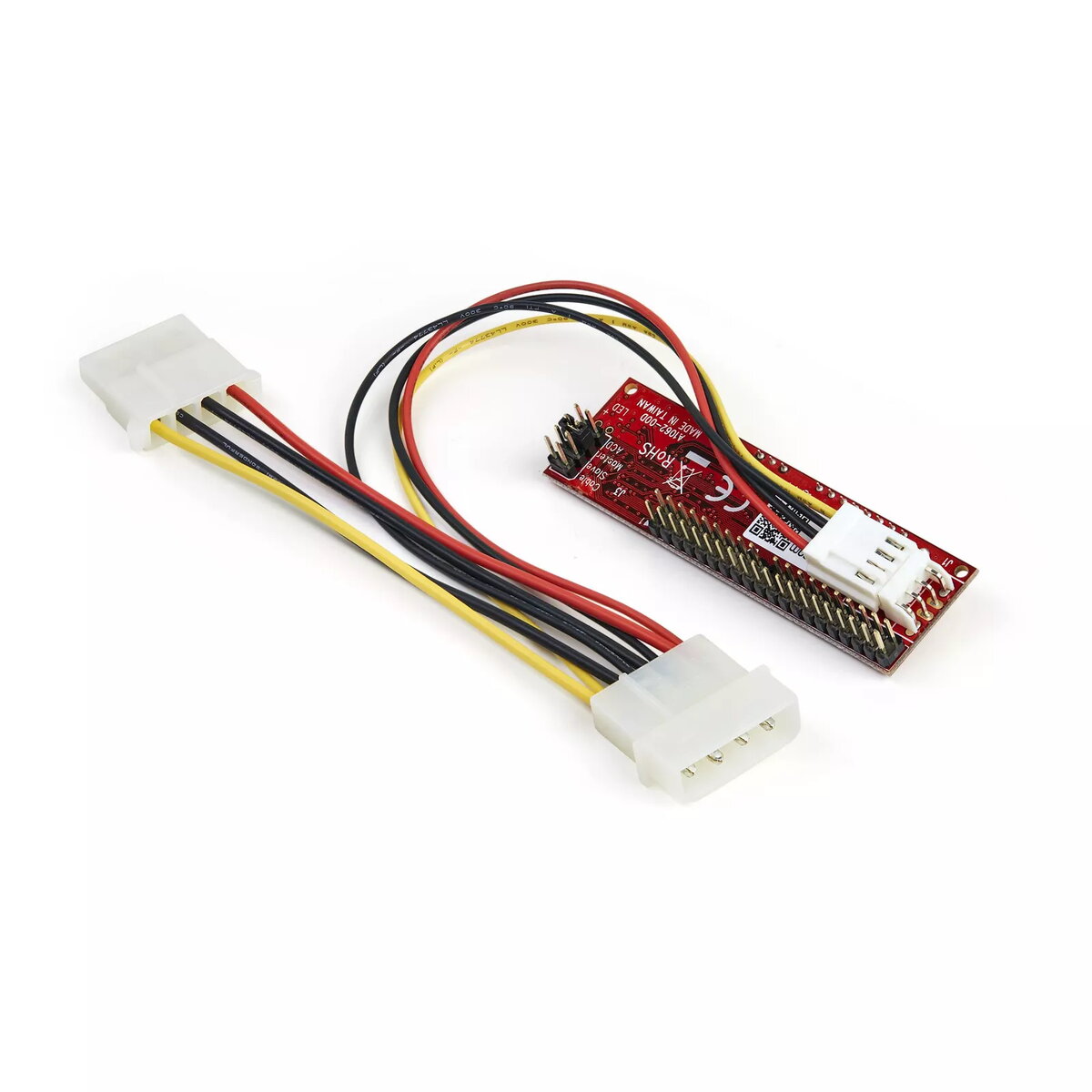

Power: 4-pin Molex power connector required for drive
SATA support: SATA I/II/III (SATA 1.5/3.0/6.0 Gbps compatible at host limits)
Max data transfer rate: 0.133 Gbit/s (IDE/ATA interface limit)
Addressing: 48-bit LBA support
Dimensions: 20 mm x 75.5 mm x 23 mm
Weight: 0.029 kg
Colour: Red
Certifications: FCC, CE, TAA, REACH

How to use

Power off the computer and disconnect mains power. Connect the adapter's 40-pin connector to the motherboard's IDE/PATA port, attach the SATA drive to the adapter's SATA output, and connect the drive's power via a 4-pin Molex power cable from the system power supply. Reconnect power and boot the system; the drive should be recognised by the BIOS/OS subject to IDE interface limitations. For optical drives, set master/slave jumper settings on the adapter or drive as required by your motherboard configuration.

Usage recommendations

Use the adapter in well-ventilated enclosures and ensure secure 4-pin Molex power connections. Remember that the IDE interface limits throughput (0.133 Gbit/s), so modern SATA SSDs will be constrained by the legacy host. Consult your motherboard manual for jumper settings and BIOS options when adding optical drives.

Specifications

Weight:: 0.029 kg
Product colour:: Red

All features

Internal:: Yes

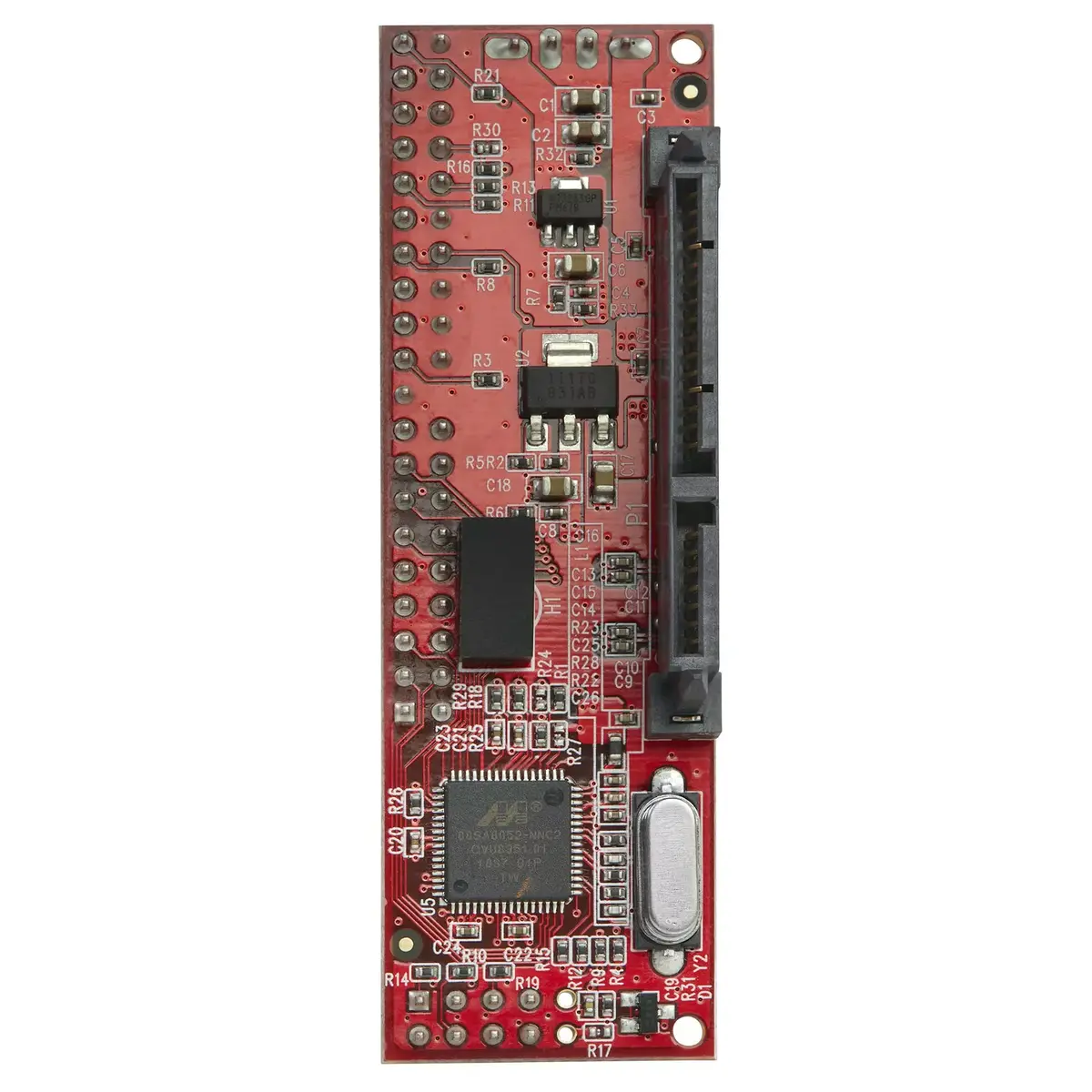

Chipset:: Marvell - 88SA8052
Host interface:: IDE
Output interface:: SATA
Logical block addressing (LBA) support:: 48 bit
Data transfer rate (max):: 0.133 Gbit/s

Performance

Operating temperature (T-T):: 5 - 50

Design

Product colour:: Red
Material:: Steel, Plastic
Certification:: FCC, CE, TAA, REACH

Weight & dimensions

Weight:: 0.029 kg
Package weight:: 89 g
Height:: 23 mm
Width:: 20 mm
Depth:: 75.5 mm
Package depth:: 145 mm
Package height:: 33 mm
Package width:: 175 mm

Technical details

Sustainability certificates:: RoHS

Packaging content

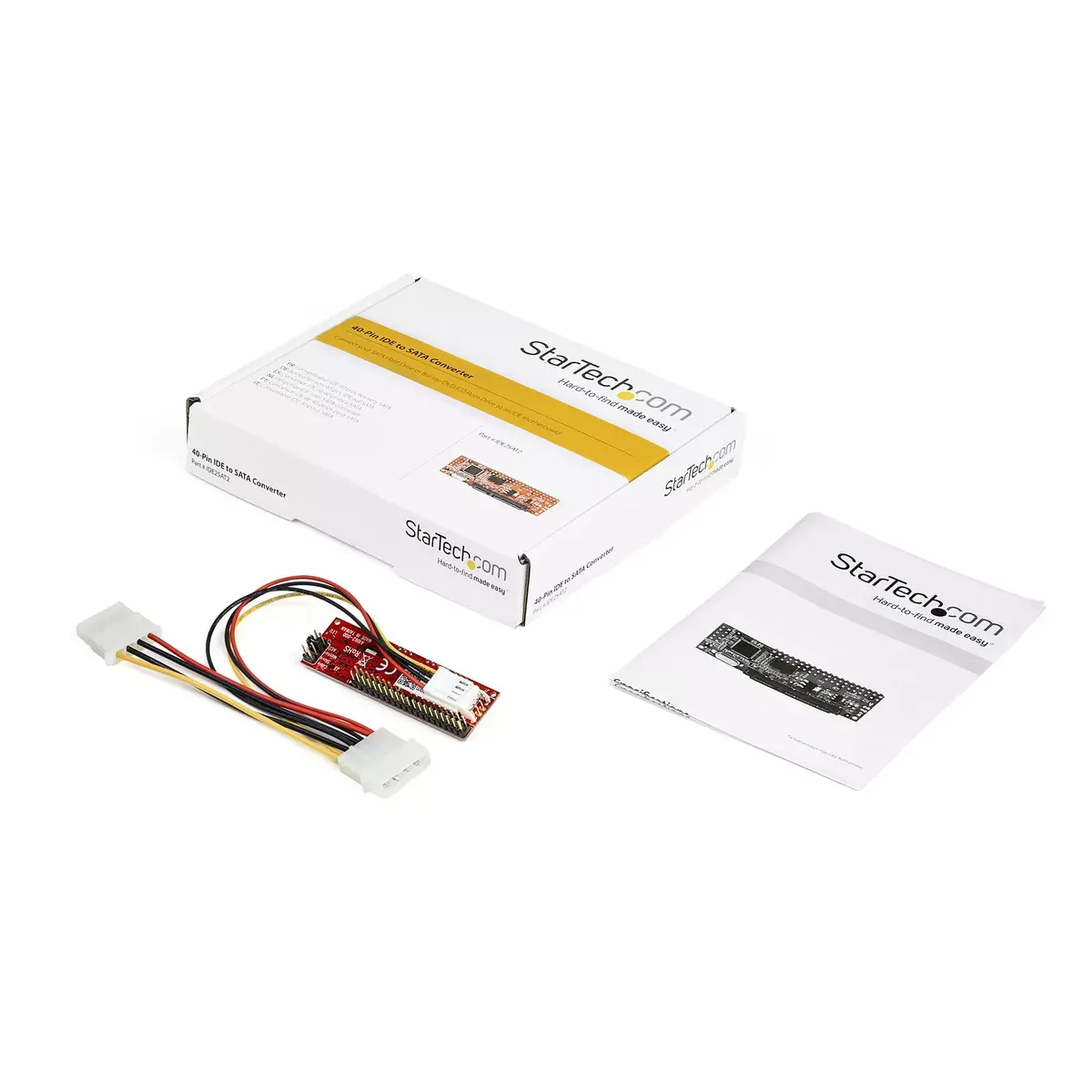

Manual:: Yes

Other features

Operating relative humidity (H-H):: 15 - 90
Storage temperature (T-T):: -25 - 80
Connector(s):: 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin)

Logistics data

Master (outer) case height:: 321 mm
Master (outer) case width:: 380 mm
Master (outer) case length:: 496 mm
Products per master (outer) case:: 60 pc(s)
Harmonized System (HS) code:: 84733020
