IDE to SATA Hard Drive Adapter StarTech IDE2SAT2

Name: IDE to SATA Hard Drive IDE2SAT2
Brand: StarTech
SKU: 499130
Price: 24.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

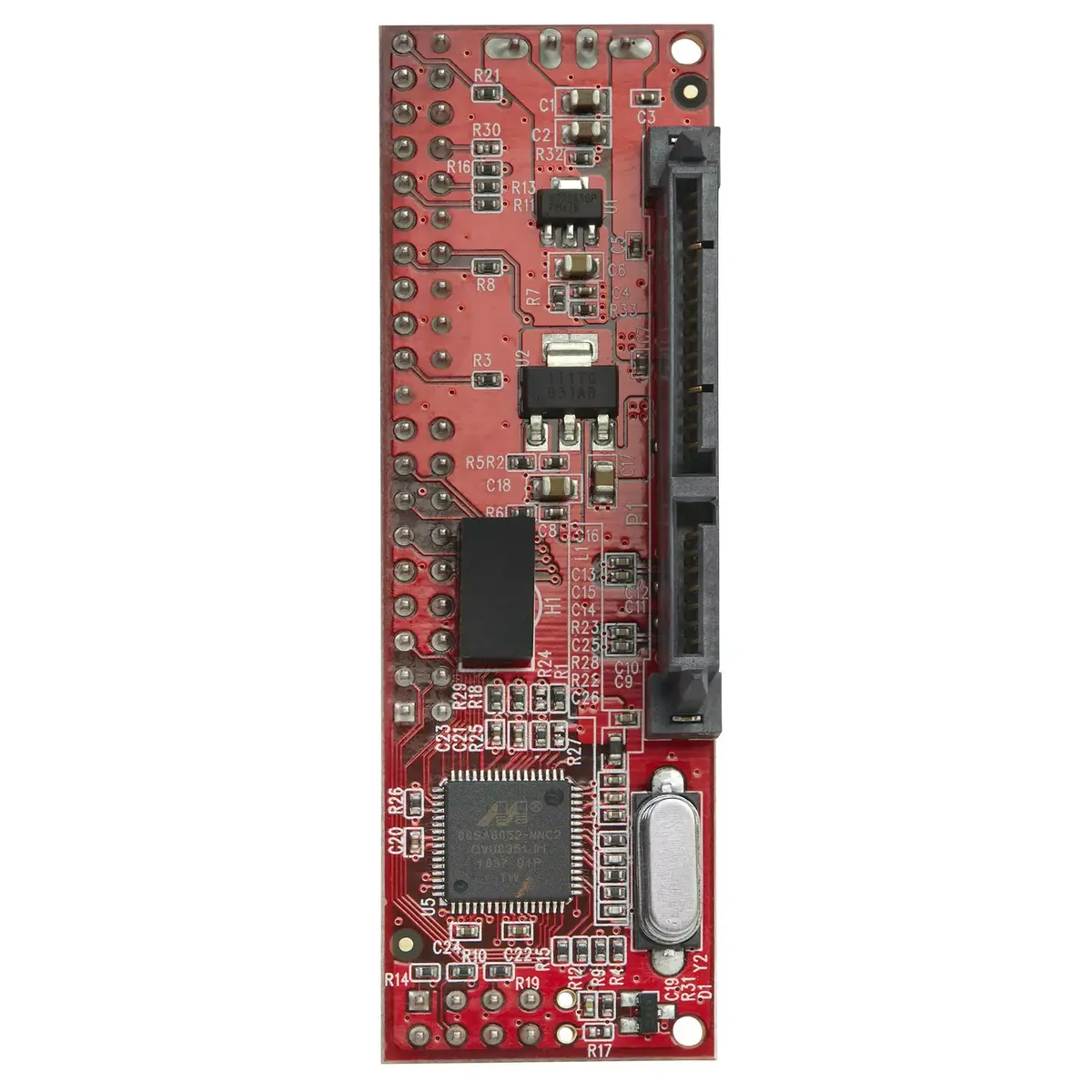

IDE to SATA Hard Drive Adapter StarTech IDE2SAT2 Photo 3

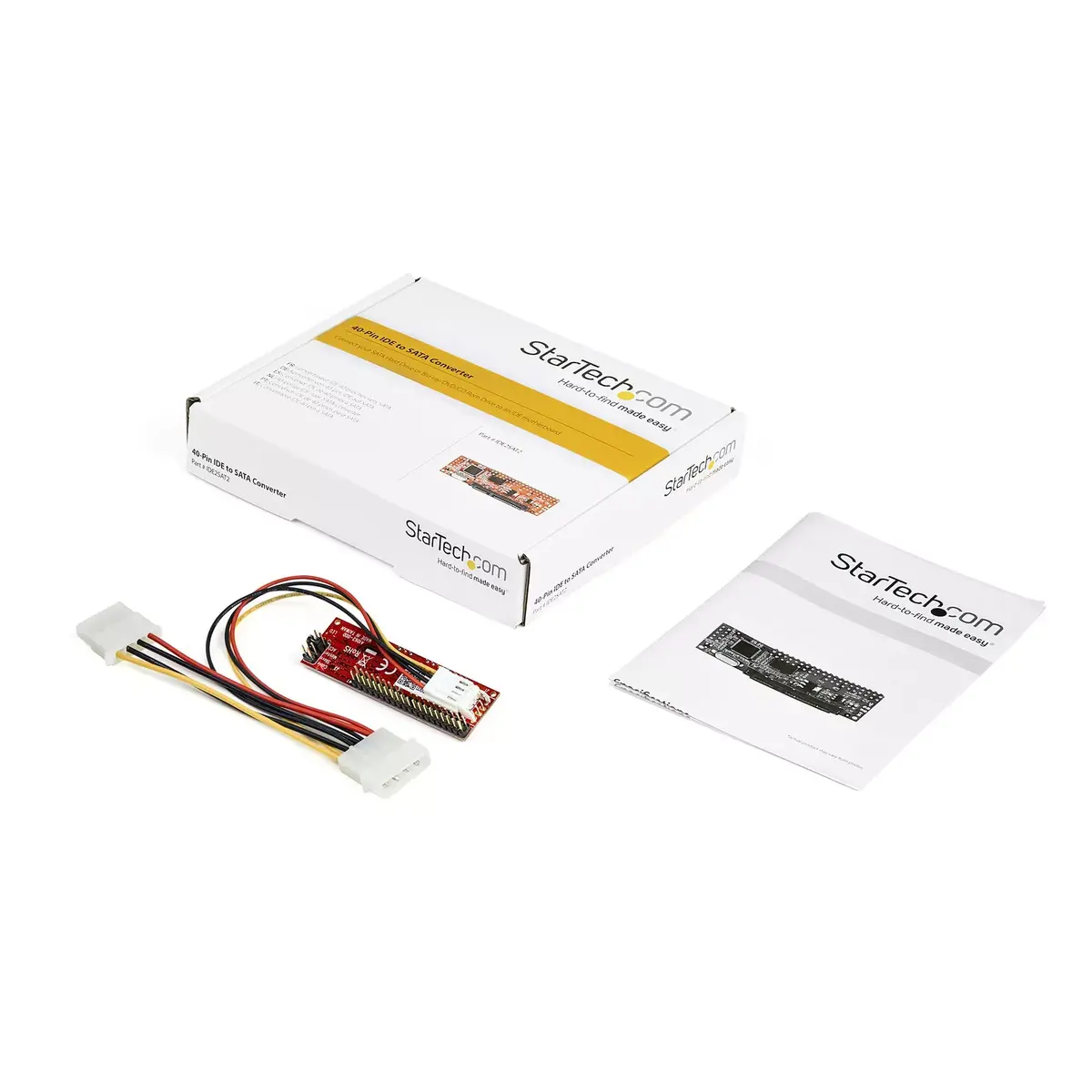

IDE to SATA Hard Drive Adapter StarTech IDE2SAT2 Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech IDE to SATA Hard Drive Adapter (IDE2SAT2) allows you to connect a 2.5" SATA HDD/SSD/ODD to an IDE interface. It features a 40-pin PATA connector and supports data transfer rates up to 0.133 Gbit/s. The compact design (20mm width, 75.5mm depth, 23mm height) makes it easy to integrate into various setups. Certified by FCC, CE, TAA, and REACH, it ensures reliable performance with a Marvell 88SA8052 chipset and 48-bit LBA support.

Available at price 24.49 €: 10 pcs.

Total available for order: 86 pcs.

Warranty: 2 Years

SKU: 499130

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

19.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

19.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

26.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.08 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

26.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The IDE to SATA Hard Drive Adapter StarTech IDE2SAT2 lets you connect a 2.5" or 3.5" SATA HDD/SSD or a 5.25" SATA optical drive to an older IDE/ATA motherboard port. The compact adapter provides a 40-pin PATA host connector and a SATA output interface, enabling the use of SATA I/II/III drives on IDE/ATA 33/66/100/133 systems. It is built around a Marvell 88SA8052 chipset and supports 48-bit LBA addressing.

Advantages

This adapter provides a cost-effective way to add newer SATA storage or optical drives to legacy systems without replacing the motherboard. Its small footprint (20 mm x 75.5 mm x 23 mm) and lightweight design make it easy to install inside desktop or server chassis. The unit is certified (FCC, CE, TAA, REACH) and comes with StarTech.com’s 2-year warranty and lifetime technical support.

Suitable for

Upgrading an older PC to use SATA HDDs or SSDs while keeping the existing IDE motherboard
Adding a Blu-ray, DVD, or CD-ROM optical drive to a legacy IDE system
Repair, data recovery, or testing tasks that require connecting SATA drives to IDE ports

Key specifications

Host interface: IDE (40-pin PATA)
Output interface: SATA (supports SATA I/II/III drives)
Data transfer rate (host): up to 0.133 Gbit/s (IDE/ATA 33/66/100/133)
Chipset: Marvell 88SA8052
Addressing: 48-bit LBA support
Physical dimensions: 20 mm (W) x 75.5 mm (D) x 23 mm (H)
Weight: 0.029 kg
Colour: Red
Certifications: FCC, CE, TAA, REACH

How to use

Power off the computer and open the chassis. Connect the adapter’s 40-pin PATA connector to an available IDE/ATA port on the motherboard and secure any retention if present. Attach the SATA drive to the adapter’s SATA port, and connect the drive’s power cable from the system power supply. Close the case, power on the system, and verify the drive is detected in BIOS/UEFI or the operating system. For optical drives, set the appropriate master/slave or cable select settings on the IDE channel if required by the system.

Usage recommendations

Use this adapter for compatibility and migration scenarios where replacing the motherboard is not desirable. Ensure the system BIOS supports the drive capacity and 48-bit LBA. For optimal reliability, use a stable power connection and verify drive detection after installation.

Specifications

Host interface:: IDE
Weight:: 0.029 kg
Internal:: Yes
Output interface:: SATA
Product colour:: Red

All features

Operational conditions

Operating relative humidity (H-H):: 15 - 90
Storage temperature (T-T):: -25 - 80
Operating temperature (T-T):: 5 - 50

Technical details

Compliance certificates:: RoHS

Ports & interfaces

Host interface:: IDE
Output interface:: SATA

Other features

Material:: Plastic, Steel
Connector(s):: 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin)
Manual:: Yes

Weight & dimensions

Weight:: 0.029 kg
Package weight:: 89 g
Height:: 23 mm
Width:: 20 mm
Depth:: 75.5 mm

Design

Internal:: Yes
Product colour:: Red

Performance

Certification:: FCC, CE, TAA, REACH
Chipset:: Marvell - 88SA8052
Logical block addressing (LBA) support:: 48 bit

Logistics data

Master (outer) case height:: 321 mm
Master (outer) case width:: 380 mm
Master (outer) case length:: 496 mm
Products per master (outer) case:: 60 pc(s)
Harmonized System (HS) code:: 84733020

Packaging data

Package depth:: 145 mm
Package height:: 33 mm
Package width:: 175 mm

Features

Data transfer rate (max):: 0.133 Gbit/s

Hide Show all

Description

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
WH15	10	19.06.2026 Best delivery	24.49 €
EU9	39	19.06.2026 Best delivery	24.99 €
WH109	37	07.07.2026	28.49 €

Available only for legal entities

24.49 €

Stock: 10

Delivery Date: 19.06.2026 Best delivery

Warehouse: WH15

24.99 €

Stock: 39

Delivery Date: 19.06.2026 Best delivery

Warehouse: EU9

28.49 €

Stock: 37

Delivery Date: 07.07.2026

Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the IDE to SATA Hard Drive Adapter StarTech IDE2SAT2 cost, and is it available for purchase?

The price is 24.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 86 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 19.06.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All StarTech products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized StarTech service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: host interface, weight, internal, output interface, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.
