FireWire Card Adapter StarTech.com MPEX1394B3

Name: StarTech.com 3 Port 2b 1a MPEX1394B3
Brand: StarTech
SKU: 10973727
Price: 47.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter PCIe IEEE 1394

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com MPEX1394B3 is a 3 port FireWire card adapter with PCIe interface. It supports data transfer rates up to 0.8 Gbit/s and is compatible with various Windows and Mac operating systems. Its compact design makes it suitable for both full-height and low-profile cases.

Available at price 47.99 €: 17 pcs.

Total available for order: 34 pcs.

Warranty: 2 Years

SKU: 10973727

Manufacturer: StarTech

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

12.08.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

17.08.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.20 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

17.08.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

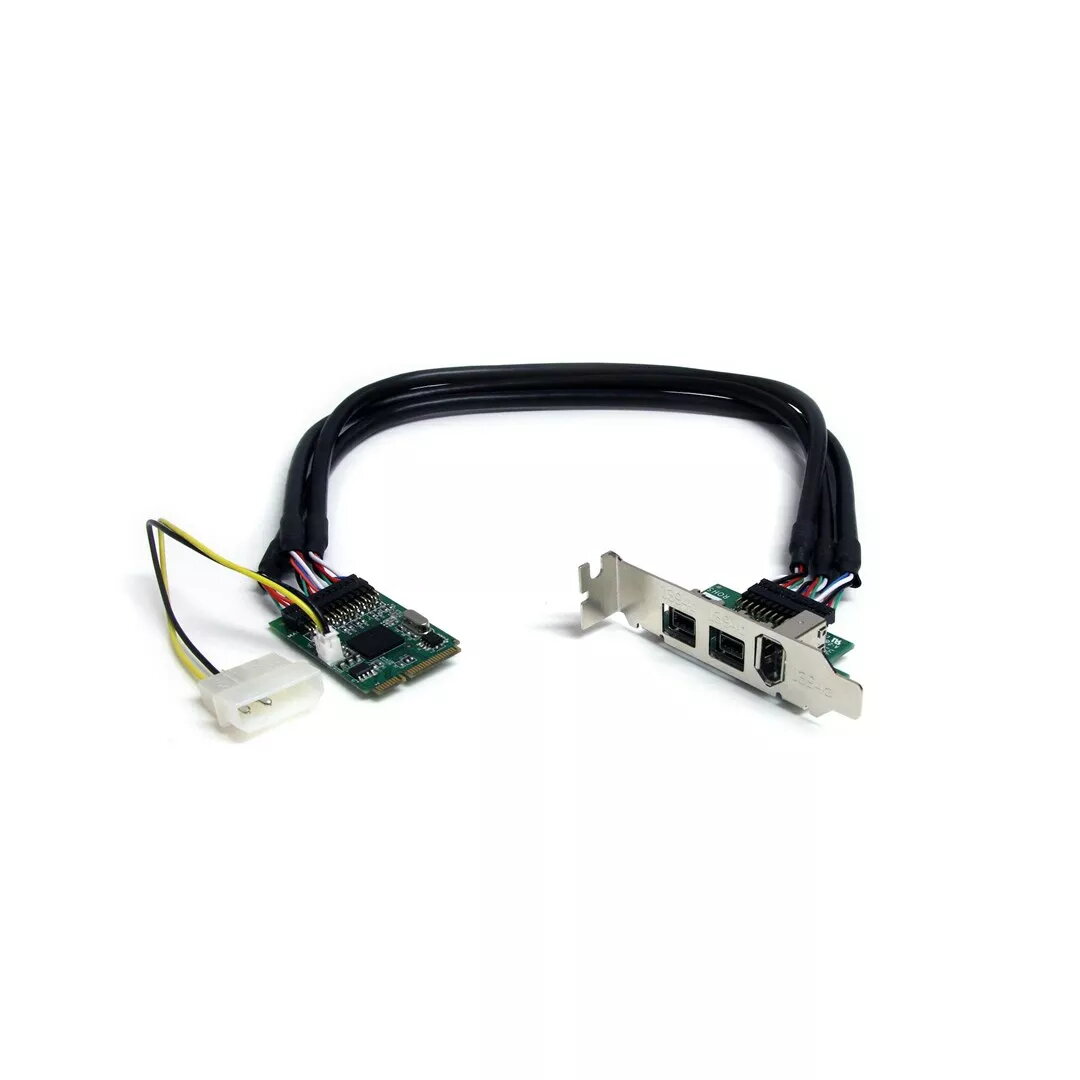

The StarTech.com MPEX1394B3 3-Port Mini PCI Express FireWire Card is a compact PCIe-to-FireWire adapter that adds two FireWire 800 (IEEE 1394b) ports and one FireWire 400 (IEEE 1394a) port to small form factor or embedded systems. Designed in a Mini PCI Express (Mini Card) form factor, the card enables external FireWire connectivity on systems where a full-sized PCIe card will not fit and supports external FireWire storage devices at data transfer speeds up to 800 Mbps.

Advantages

The adapter provides both FireWire-800 and FireWire-400 ports on a single Mini PCIe card, allowing compatibility with a wide range of legacy and modern IEEE 1394 devices. Its compact Mini PCI Express form factor is suitable for Mini-ITX and custom embedded systems. The product is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Suitable for

Adding external FireWire ports to Mini-ITX and other small form factor desktop systems
Embedded systems and custom hardware platforms that require IEEE 1394 connectivity
Connecting FireWire-800 / FireWire-400 storage devices, audio interfaces and legacy peripherals

Key specifications

Model: MPEX1394B3
Interface: Mini PCI Express (PCIe) host interface
Ports: 2 × FireWire 800 (IEEE 1394b), 1 × FireWire 400 (IEEE 1394a)
Maximum transfer rate: up to 800 Mbps (0.8 Gbit/s)
Internal: Yes
Product colours: Stainless steel, Black
Weight: 0.091 kg
Brand: StarTech.com
MPN: MPEX1394B3
EAN: 0065030842914

How to use

Power down the system and insert the Mini PCIe card into an available Mini PCI Express slot on the motherboard according to the system manufacturer’s instructions. Secure the card and reconnect power. Install any required drivers for your operating system if they are not automatically detected. Connect FireWire devices to the external FireWire ports using appropriate 6-pin or 9-pin cables, depending on the device and port type.

Usage recommendations

Use the MPEX1394B3 in systems with a compatible Mini PCIe slot and ensure the case or chassis provides access to the card’s external ports. For best performance with external storage and AV devices, use quality FireWire cables rated for 400 or 800 Mbps and verify driver compatibility with your operating system.

Specifications

Internal: The product is built in.: Yes
Host interface: Interface that enables a host controller to communicate with a driver.: PCIe
Output interface: The socket (port) where the output connectors are connected.: IEEE 1394/Firewire

All features

Weight & dimensions

Package weight: Weight of the packaged product.: 198 g
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.091 kg
Height: The measurement of the product from head to foot or from base to top.: 4 mm
Depth: The distance from the front to the back of something.: 50 mm
Width: The measurement or extent of something from side to side.: 30 mm

Operational conditions

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -54 - 150
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 70

System requirements

Server operating systems supported:: Windows Server 2019, Windows Server 2012, Windows Server 2008 R2
Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3): Yes
Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.: Mac OS X 10.8 Mountain Lion, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Windows operating systems supported: Windows vesions wich can be used with the device.: Windows 8.1 Enterprise x64, Windows 7 Starter x64, Windows 8.1 Enterprise, Windows 8.1, Windows 8 x64, Windows 8 Pro x64, Windows 8 Pro, Windows 8 Enterprise x64, Windows 8 Enterprise, Windows 8, Windows 7 Ultimate x64, Windows 7 Ultimate, Windows XP Home, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows 7 Professional x64, Windows XP Professional x64, Windows XP Professional, Windows XP Home x64, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Starter

Other features

Manual:: Yes

Logistics data

Harmonized System (HS) code:: 84733020
Products per master (outer) case:: 25 pc(s)
Master (outer) case height:: 202 mm
Master (outer) case length:: 663 mm
Master (outer) case width:: 280 mm

Packaging data

Package height: The distance from the top to the bottom of the packaging.: 32 mm
Package depth: The distance from the front to the back of the packaging.: 145 mm
Package width: The distance from one side of the packaging to the other.: 175 mm
Mounting brackets included:: Yes

Technical details

Sustainability compliance:: Yes
Sustainability certificates:: RoHS, CE

Features

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.: Yes
Data transfer rate (max):: 0.8 Gbit/s

Design

Product colour: The colour e.g. red, blue, green, black, white.: Black, Stainless steel
Internal: The product is built in.: Yes

Ports & interfaces

Firewire (IEEE 1394) ports: Number of IEEE 1394/FireWire ports (connecting interfaces) in the device. The IEEE 1394 interface is a serial bus interface standard for high-speed communications and isochronous real-time data transfer. It was developed in the late 1980s and early 1990s by Apple, who called it FireWire. The 1394 interface is comparable to USB though USB has more market share. Apple first included FireWire in some of its 1999 models, and most Apple computers since the year 2000 have included FireWire ports, though, as of 2013, only the 800 version (IEEE-1394b).: 3
Expansion card standard:: PCIe 1.1
Expansion card form factor:: Full-height / Low-profile
Host interface: Interface that enables a host controller to communicate with a driver.: PCIe
Output interface: The socket (port) where the output connectors are connected.: IEEE 1394/Firewire

Performance

Hot-swap:: Yes
Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.: Texas Instruments - XIO2213B

Hide Show all

Description

Machine translation. Load original

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
EU9	17	12.08.2026 Best delivery	47.99 € Best price
WH109	17	26.08.2026	54.49 €

Available only for legal entities

47.99 €

Stock: 17

Delivery Date: 12.08.2026 Best delivery

Warehouse: EU9

54.49 €

Stock: 17

Delivery Date: 26.08.2026

Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the FireWire Card Adapter StarTech.com MPEX1394B3 cost, and is it available for purchase?

The price is 47.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 34 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 12.08.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All StarTech products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized StarTech service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: internal, host interface, output interface, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.
