PCI Serial Parallel Combo Card StarTech.com PCI2S1P2

Name: StarTech.com PCI Serial Parallel Combo PCI2S1P2
Brand: StarTech
SKU: 4309270
Price: 38.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

StarTech.com PCI Serial Parallel Combo Card Dual Serial RS232 DB9 & Parallel LPT DB25

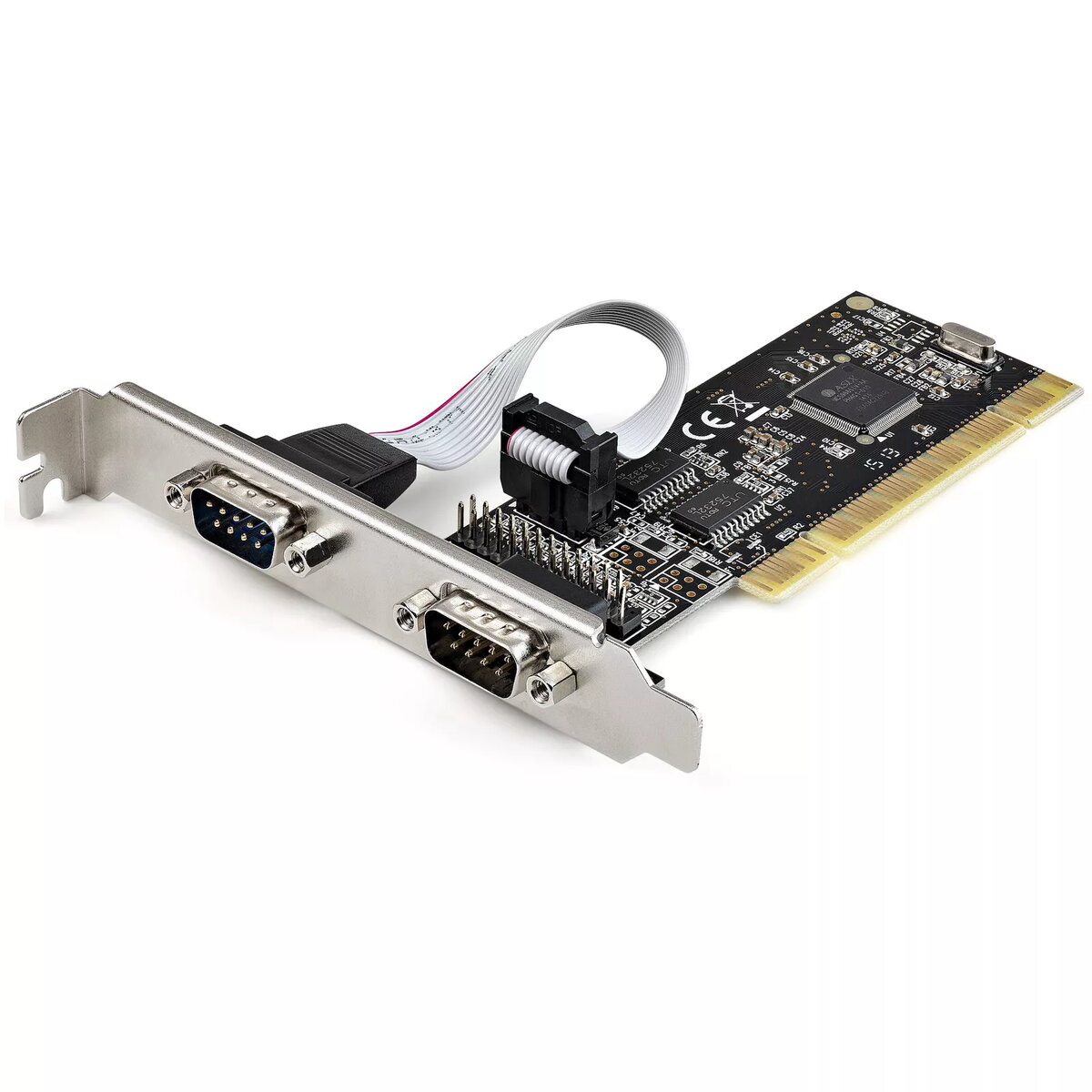

PCI Serial Parallel Combo Card StarTech.com PCI2S1P2 Photo 1

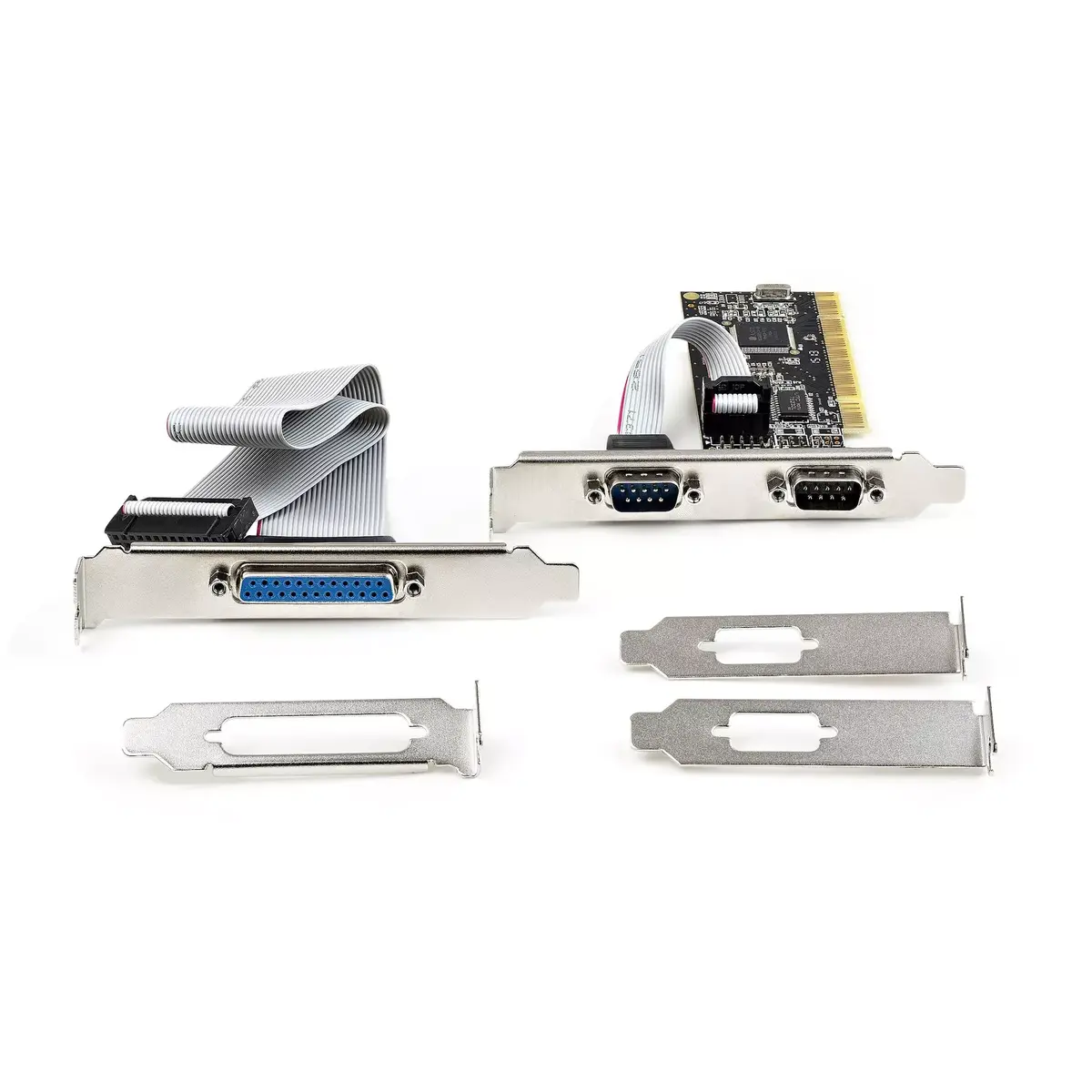

PCI Serial Parallel Combo Card StarTech.com PCI2S1P2 Photo 2

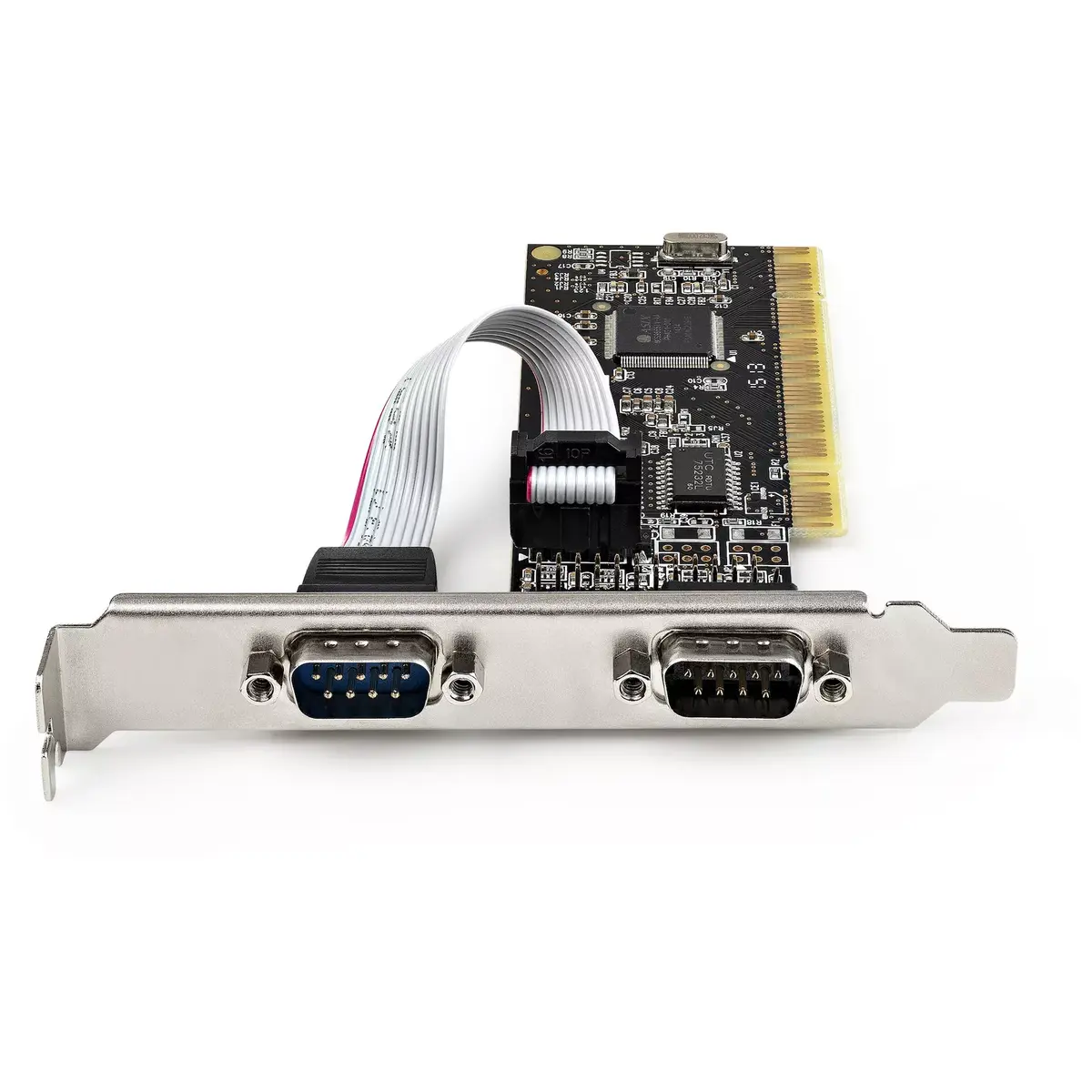

PCI Serial Parallel Combo Card StarTech.com PCI2S1P2 Photo 3

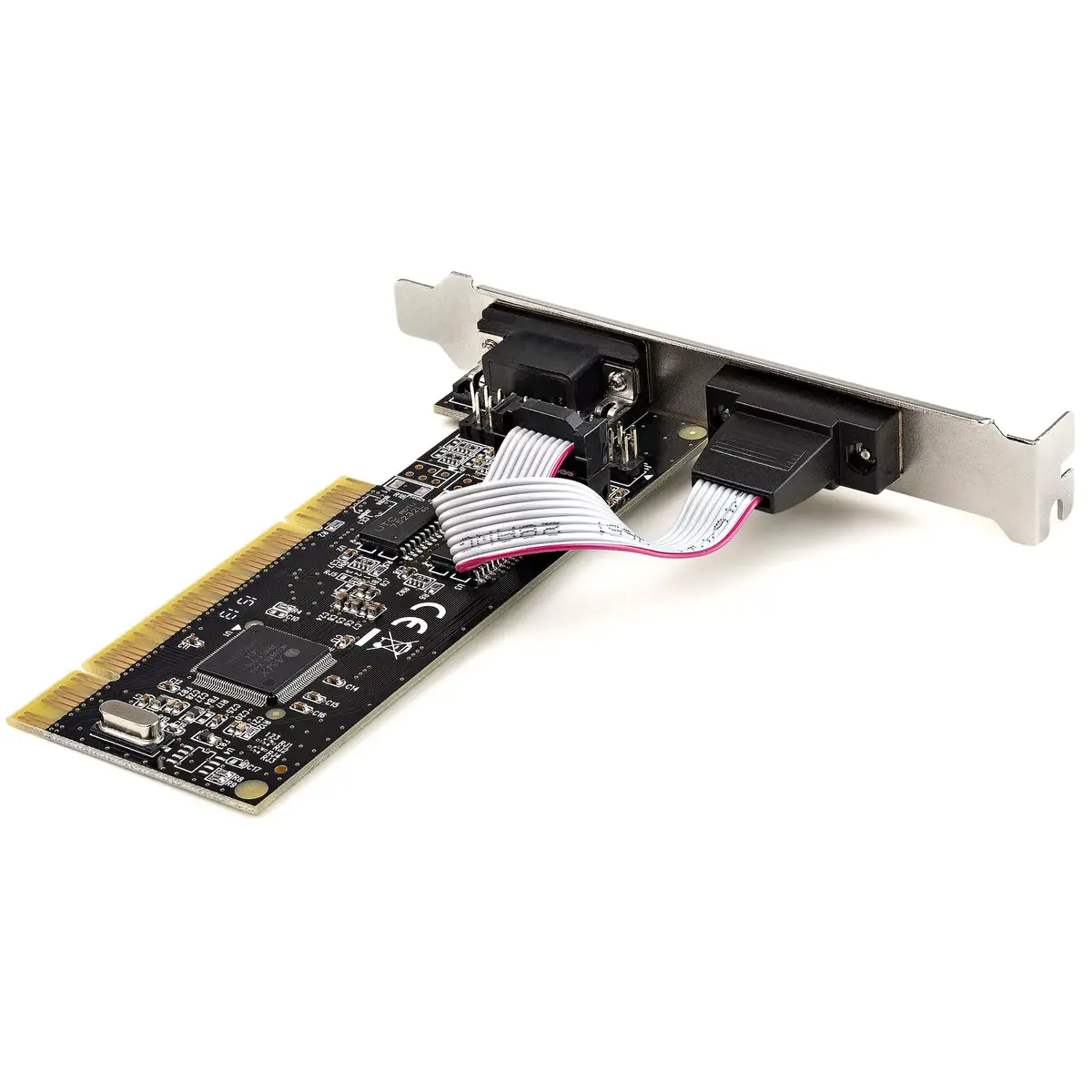

PCI Serial Parallel Combo Card StarTech.com PCI2S1P2 Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com PCI Serial Parallel Combo Card features dual RS232 ports and one parallel LPT port, ideal for connecting legacy devices. It supports Windows operating systems and offers a maximum data transfer rate of 0.0015 Gbit/s. The card is designed for both full-height and low-profile installations, making it versatile for different setups.

Available at price 38.49 €: 10 pcs.

Total available for order: 28 pcs.

Warranty: 2 Years

SKU: 4309270

Manufacturer: StarTech

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

12.10.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

15.10.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.19 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa

15.10.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 57.99 €: 9 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech.com PCI Serial Parallel Combo Card Dual Serial RS232 DB9 & Parallel LPT DB25 adds two RS232 DB9 serial ports and one IEEE 1284 DB25 parallel port to a desktop system via a single PCI/PCI-X card. Designed for legacy and industrial peripherals, the card supports both full-height and low-profile installations and is compatible with common Windows and Linux drivers. It uses an ASIX MCS9865 controller to provide reliable serial and parallel connectivity for devices that require RS-232 or LPT interfaces.

Advantages

This PCI combo card consolidates parallel and serial connectivity into one expansion slot, saving motherboard resources while providing two independent RS-232 COM ports and a bi-directional parallel LPT port. The serial ports implement 16C550-compatible UART features with 256-byte FIFO buffers and support up to 115.2 kbps per port. The parallel port supports SPP/Byte/Nibble/ECP/EPP modes and IEEE 1284 up to 1.5 Mbps. The card ships with full-height brackets and optional low-profile brackets for flexible installation and is backed by a lifetime warranty and multi-lingual technical support.

Suitable for

Connecting legacy printers, scanners and plotters that require a DB25 LPT interface
Point-of-sale terminals and serial receipt printers using DB9 RS-232
Industrial control equipment such as PLCs, sensors and factory automation devices
Laboratory and medical instruments, oscilloscopes and measurement devices with serial or parallel ports
Mixed Windows and Linux environments needing additional COM and LPT ports

Key specifications

Host interface: PCI / PCI-X
Parallel interface: IEEE 1284 (DB25), SPP/Byte/Nibble/ECP/EPP modes, up to 1.5 Mbps
Serial interfaces: 2 × RS-232 (DB9), 16C550-compatible UART, up to 115.2 kbps per port, 256-byte FIFO
Controller: ASIX MCS9865
Form factor compatibility: full-height and low-profile brackets included
Internal card design suitable for desktop installation
Product colour: Black
Weight: approximately 0.141 kg

How to use

Install the card into an available PCI or PCI-X slot on a powered-off desktop motherboard, selecting the appropriate bracket (full-height or low-profile) for your computer case. Secure the card with the chassis screw and reconnect power. Boot the system and install the provided or downloadable drivers compatible with your operating system; supported drivers include Windows (Windows 7 and later) and Linux kernels 2.6.x through supported 5.x LTS releases. After driver installation, connect DB9 serial and DB25 parallel devices using standard cables and configure COM port settings (baud rate, parity, stop bits) or parallel modes (ECP/EPP) in your application or operating system device manager as required.

Usage recommendations

Use shielded, appropriately rated serial and parallel cables of recommended lengths for your environment to minimize noise and signal degradation; verify COM port settings in device manager or terminal software before establishing communication, and select the parallel mode (SPP/ECP/EPP) that matches the requirements of your peripheral for reliable data transfer.

Specifications

Internal: The product is built in.: Yes
Host interface: Interface that enables a host controller to communicate with a driver.: PCI/PCI-X
Output interface: The socket (port) where the output connectors are connected.: Serial

All features

Weight & dimensions

Package weight: Weight of the packaged product.: 190 g
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.141 kg
Height: The measurement of the product from head to foot or from base to top.: 120 mm
Depth: The distance from the front to the back of something.: 134 mm
Width: The measurement or extent of something from side to side.: 21.6 mm

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -20 - 85
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 70

System requirements

Server operating systems supported:: Windows Server 2012, Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3): Yes
Windows operating systems supported: Windows vesions wich can be used with the device.: Windows 7 Home Premium x64, Windows 7 Enterprise, Windows 7 Home Premium, Windows 7 Home Basic x64, Windows 7 Home Basic, Windows 7 Enterprise x64, Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Professional x64, Windows 8.1 x64, Windows 8.1 Pro x64, Windows 8.1 Pro, Windows 8.1 Enterprise x64, Windows 8.1 Enterprise, Windows 8.1, Windows 8 x64, Windows 8 Pro x64, Windows 8 Pro, Windows 8 Enterprise x64, Windows 8 Enterprise, Windows 8, Windows 7 x64, Windows 7 Ultimate x64, Windows 7 Ultimate, Windows 7 Starter x64, Windows 7 Starter, Windows 7 Professional

Logistics data

Harmonized System (HS) code:: 84733020
Products per master (outer) case:: 40 pc(s)
Master (outer) case height:: 340 mm
Master (outer) case length:: 385 mm
Master (outer) case width:: 360 mm

Packaging data

Package height: The distance from the top to the bottom of the packaging.: 30 mm
Package depth: The distance from the front to the back of the packaging.: 170 mm
Package width: The distance from one side of the packaging to the other.: 142 mm
User guide:: Yes
Mounting brackets included:: Yes

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: RoHS, CE

Features

Flow Control type:: RTS/CTS, XON/XOFF, No
Parity bit:: Space, Odd, No, Mark, Even
Stop bits:: 1, 2, 1.5
Data bits:: 7, 9, 8, 5, 6
FIFO (First In, First Out):: 256
Baud rate:: 115.2 Kbit/s
Data transfer rate (max):: 0.0015 Gbit/s

Design

Product colour: The colour e.g. red, blue, green, black, white.: Black
Internal: The product is built in.: Yes

Ports & interfaces

Serial interface type:: RS-232
Serial ports quantity: The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.: 2
Expansion card form factor:: Full-height / Low-profile
Host interface: Interface that enables a host controller to communicate with a driver.: PCI/PCI-X
Output interface: The socket (port) where the output connectors are connected.: Serial

Performance

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.: Asix - MCS9865

Hide Show all

Instructions

mmo_92504594_1629898513_3702_23944.pdf

startech-PCI2S1P2-4309270.pdf

Description

Instructions

mmo_92504594_1629898513_3702_23944.pdf

startech-PCI2S1P2-4309270.pdf
