header-product M.2 SATA SSD Controller Card StarTech.com PEX2M2
40.49 €

M.2 SATA SSD Controller Card StarTech.com PEX2M2

M.2 SATA SSD Controller Card StarTech.com PEX2M2 Photo 1
M.2 SATA SSD Controller Card StarTech.com PEX2M2 Photo 2
M.2 SATA SSD Controller Card StarTech.com PEX2M2 Photo 3
M.2 SATA SSD Controller Card StarTech.com PEX2M2 Photo 4
M.2 SATA SSD Controller Card StarTech.com PEX2M2 Photo 5
M.2 SATA SSD Controller Card StarTech.com PEX2M2 Photo 1
M.2 SATA SSD Controller Card StarTech.com PEX2M2 Photo 2
M.2 SATA SSD Controller Card StarTech.com PEX2M2 Photo 3
M.2 SATA SSD Controller Card StarTech.com PEX2M2 Photo 4
M.2 SATA SSD Controller Card StarTech.com PEX2M2 Photo 5
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

M.2 SATA SSD Controller Card StarTech.com PEX2M2

{{email}}
You keep track of price changes

M.2 SATA SSD Controller Card StarTech.com PEX2M2

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The StarTech.com 2x M.2 SATA SSD Controller Card allows you to connect two M.2 SATA SSDs to your PCIe slot. It features a full-height/low-profile design, supports data transfer rates up to 6 Gbit/s, and is compatible with CE, FCC, and TAA certifications. The card is powered by the ASMedia ASM1062 chipset, ensuring reliable performance. Dimensions: 20mm width, 180mm depth, 120mm height.
Available at price 40.49 €: 7 pcs.
Total available for order: 27 pcs.
Warranty: 2 Years
SKU: 362385
Manufacturer: StarTech
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
12.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
17.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.16 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
17.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 43.49 €: 7 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech.com PEX2M2 M.2 SATA SSD controller card lets you add two NGFF (M.2) SATA solid-state drives to a desktop PC via a PCI Express slot. The card accepts common M.2 sizes and provides a compact, low-profile mounting solution for installing M.2 SATA drives for system performance improvement, storage expansion, or data recovery from an M.2 drive.

Advantages

This dual M.2 controller supports SATA III transfer speeds up to 6 Gbps and fits standard and low-profile cases thanks to its dual-profile bracket. It is compatible with a wide range of M.2 NGFF sizes (22110, 2280, 2260, 2242, 2230) and requires no additional drivers on modern operating systems, enabling fast installation and immediate use. The card is powered by a reliable chipset and offers an unobtrusive way to add or recover M.2 storage in desktop systems.

Suitable for

  • Adding two M.2 SATA SSDs to a desktop PC for system speed or capacity upgrades
  • Recovering data from a functioning M.2 drive removed from a laptop or other device
  • Installing an OS on an M.2 SATA drive for faster boot and application access while retaining HDDs for bulk storage

Key specifications

  • Model: StarTech.com PEX2M2
  • Interface: PCIe host interface; two M.2 B-Key SATA onboard sockets
  • Supported M.2 sizes: 22110, 2280, 2260, 2242, 2230
  • Maximum transfer rate: SATA III up to 6 Gbps

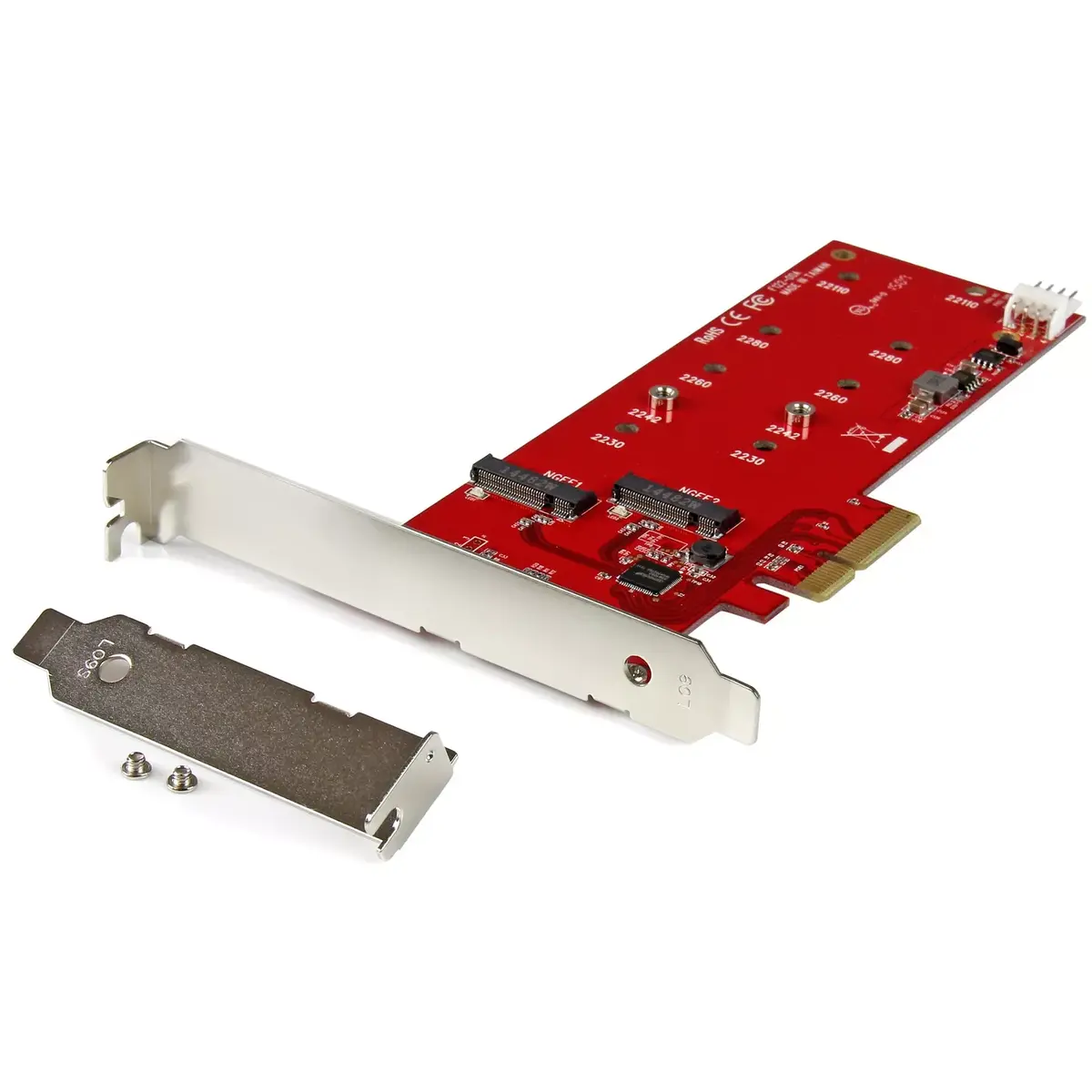

  • Form factor: Full-height/low-profile (dual-profile bracket)
  • Chipset: ASMedia ASM1062
  • Product colour: Red
  • Dimensions (approx.): width 20 mm, depth 180 mm, height 120 mm
  • Weight: 0.062 kg
  • Certifications: CE, FCC, TAA

How to use

Power off and unplug the computer, open the case and insert the PEX2M2 card into an available PCIe slot. Secure the card with the bracket screw and attach the appropriate standoffs to mount the M.2 drives of the supported lengths. Install your M.2 SATA SSDs into the B-Key sockets and secure them with the provided screws. Close the case, power on the system and the OS should detect the drives without additional drivers; format or configure the drives as required for use.

Usage recommendations

Install the operating system on an M.2 SATA drive for faster boot times and keep higher-capacity HDDs for bulk storage. When recovering data from a laptop M.2 drive, handle the drive carefully and ensure the host PC is powered off before insertion to avoid damage.

Specifications

Internal: The product is built in.
Yes
Host interface: Interface that enables a host controller to communicate with a driver.
PCIe
Output interface: The socket (port) where the output connectors are connected.
M.2
All features

Weight & dimensions

Package weight: Weight of the packaged product.
167 g
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.062 kg
Height: The measurement of the product from head to foot or from base to top.
120 mm
Depth: The distance from the front to the back of something.
180 mm
Width: The measurement or extent of something from side to side.
20 mm

Operational conditions

Operating relative humidity (H-H):
20 - 80
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-25 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
5 - 50

Other features

Quantity: The number of products there are.
1

Logistics data

Harmonized System (HS) code:
84733020
Products per master (outer) case:
40 pc(s)
Master (outer) case height:
497 mm
Master (outer) case length:
454 mm
Master (outer) case width:
343 mm

Packaging data

Package height: The distance from the top to the bottom of the packaging.
48 mm
Package depth: The distance from the front to the back of the packaging.
160 mm
Package width: The distance from one side of the packaging to the other.
218 mm
Mounting brackets included:
Yes

Technical details

Sustainability certificates:
RoHS

Features

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Yes
Native Command Queuing (NCQ):
Yes
Data transfer rate (max):
6 Gbit/s

Design

Product colour: The colour e.g. red, blue, green, black, white.
Red
Internal: The product is built in.
Yes

Ports & interfaces

Peripheral (Molex) power connectors (4-pin): White 4-pinned connector used to connect a peripheral to the power supply.
1
Port multiplier:
No
Internal SATA ports quantity:
2
Expansion card standard:
PCI 2.0
Expansion card form factor:
Full-height / Low-profile
Host interface: Interface that enables a host controller to communicate with a driver.
PCIe
Output interface: The socket (port) where the output connectors are connected.
M.2

Performance

Certification:
CE, FCC, TAA
Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
ASMedia - ASM1062

Description

Machine translation. Load original

Similar products

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}
Stock data
Warehouse Stock Delivery to the store Store Price
WH357 7 12.08.2026 Best delivery
43.49 €
Available only for legal entities
Warehouse Stock Delivery to the store Store Price
EU9 7 12.08.2026 Best delivery
40.49 € Best price
WH109 7 26.08.2026
45.99 €
EU6 6 12.08.2026 Best delivery
51.49 €
43.49 €
Stock: 7
Delivery Date: 12.08.2026 Best delivery
Warehouse: WH357
Available only for legal entities
40.49 €
Stock: 7
Delivery Date: 12.08.2026 Best delivery
Warehouse: EU9
45.99 €
Stock: 7
Delivery Date: 26.08.2026
Warehouse: WH109
51.49 €
Stock: 6
Delivery Date: 12.08.2026 Best delivery
Warehouse: EU6

Customer reviews

Customer questions

FAQ

How much does the M.2 SATA SSD Controller Card StarTech.com PEX2M2 cost, and is it available for purchase?

The price is 40.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 27 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 12.08.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All StarTech products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized StarTech service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: internal, host interface, output interface, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for M.2 SATA SSD Controller Card StarTech.com PEX2M2?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
